User Manual for Dell P2418HT 24" 16:9 10-Point Touchscreen IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell P2418HT 24" 16:9 10-Point Touchscreen
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell P2418HT 24" 16:9 10-Point Touchscreen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

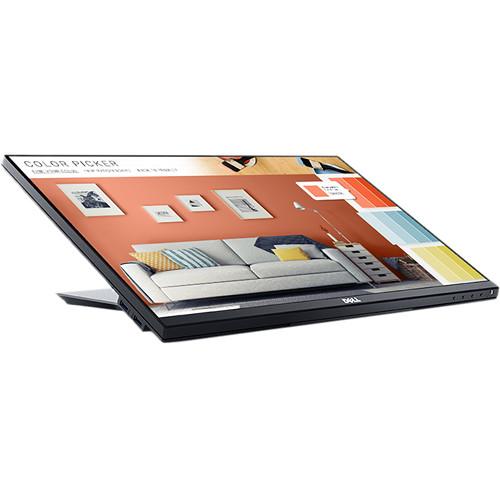

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More svvaxbfaxqruaayfressubwuyu Swipe, tap, slide, and pinch with the P2418HT 24" 16:9 10-Point Touchscreen IPS Monitor from Dell. This touchscreen monitor makes it easy to interact with the content being displayed on the screen, and with the included articulating stand you can adjust the angle of the display for maximum working comfort. In addition to the comfortable touchscreen, this monitor also features reduced size bezels for a more unobstructed view.
The P2418HT Touchscreen Monitor features a Full HD 1920 x 1080 resolution accompanied by a 1000:1 contrast ratio, a 250 cd/m² brightness rating, and a 6 ms response time to ensure you receive a crisp, clear picture with reduced ghosting. Setting up this monitor is simple thanks to the HDMI, VGA, and DisplayPort inputs; and with a built-in USB hub users can even plug compatible USB peripherals directly in to the monitor. Once configured, the monitor can be tilted, swiveled, and the height can be adjusted to take maximum advantage of the 178° horizontal and vertical viewing angles offered by this IPS display. - Intuitive Touch

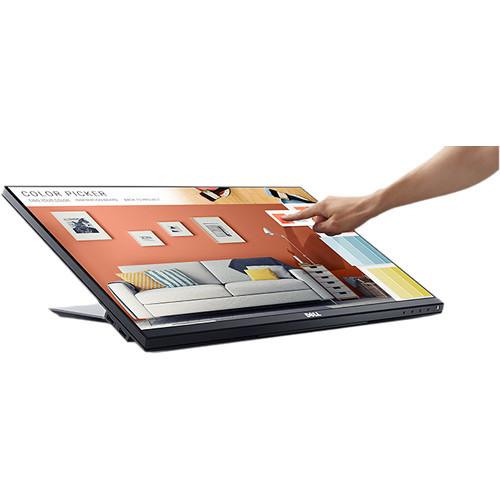

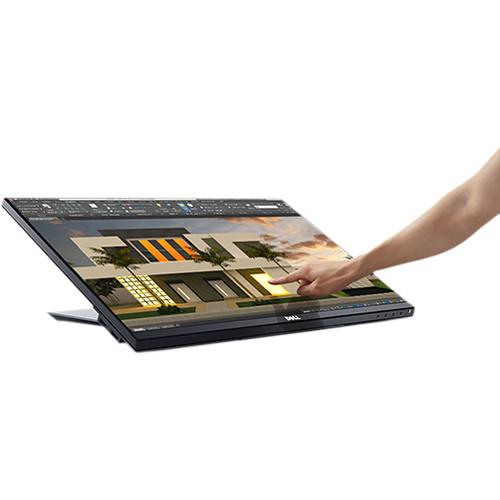

- The 10-point touch feature delivers a more natural and responsive experience, so you can tap, swipe, slide, and pinch in a snap. Enjoy smoother navigation with two-handed touch control across the anti-glare screen, from edge-to-edge.
- Work from Any Position

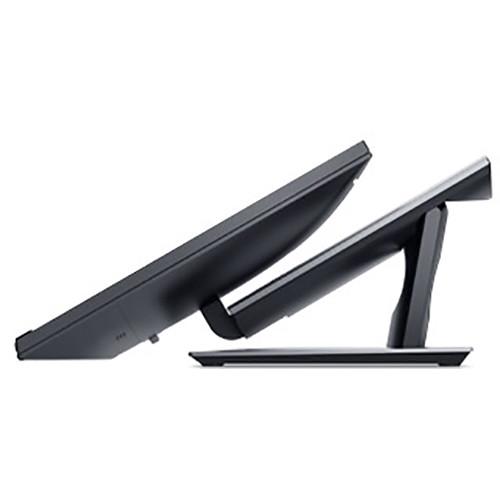

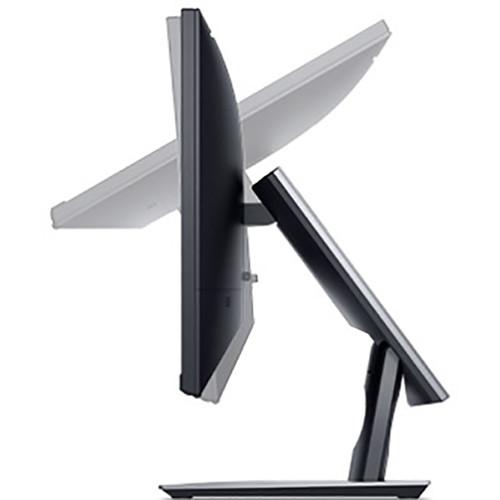

- An articulating stand transitions from a standard desktop monitor to a downward 60-degree angle touch orientation. It also supports extended tilt and swivel capabilities, so you can adjust the screen to your task or a more comfortable position. Plus, a protective cushion offers a durable buffer against bumps when the stand is fully compressed.
- See Clearly
- Advanced In-Cell Touch technology eliminates the need for the glass screen found in traditional monitors, delivering an anti-glare surface that reduces distracting reflections and fingerprints. The result is a smooth display with improved clarity that's easy on the eyes.
- Enhanced Viewing Experience
- See consistent colors and effectively collaborate across the 178°/178° wide viewing angle enabled by In-Plane Switching technology.
- Work Comfortably
- Enjoy an anti-glare, flicker-free screen with ComfortView, a feature that filters out harmful blue light emissions. Plus, it's TUV Certified.
- Freedom from Clutter

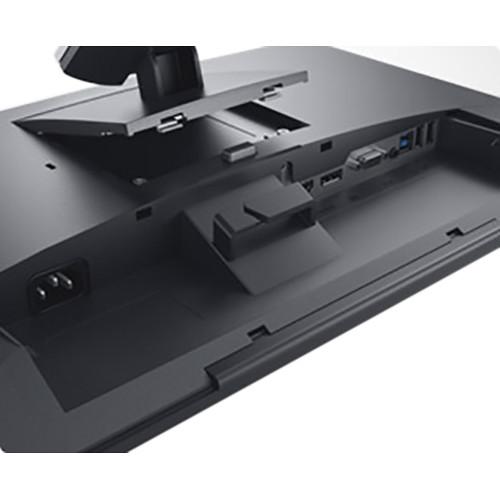

- Collaborate in an organized workspace with an intuitively designed cable management system. Cable routing prevents cables from getting in the way when your monitor stand is adjusted down, while a cable sleeve binds them together. Connectivity ports are discreetly concealed by a cable cover.
- Multitask
- The Dell Display Manager software lets you multitask and save time. Quickly tile and view applications side by side with the Easy Arrange feature. Customize and pre-set the color settings of your applications with Auto-Mode.

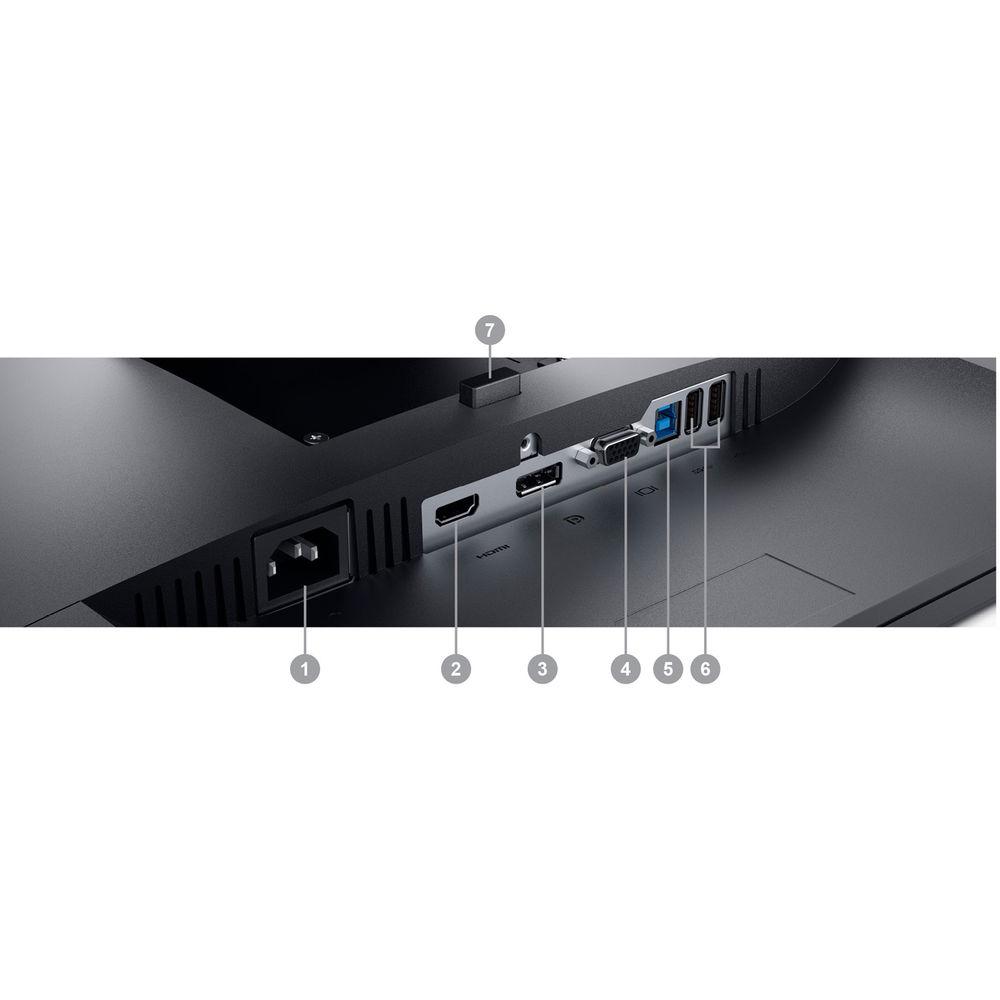

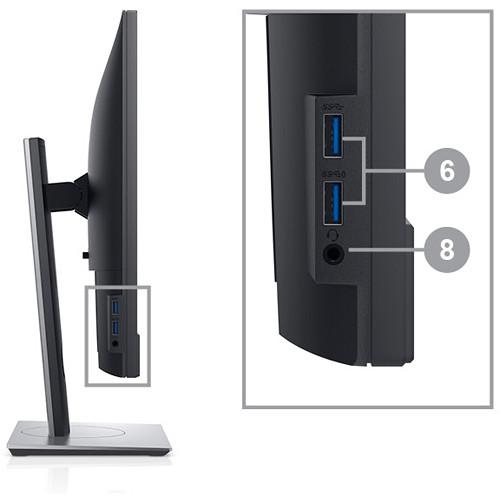

- Connectivity Ports
- Extensive connectivity ports including VGA, DP, HDMI, USB 3.0, and USB 2.0 allow you to easily connect to a wide range of devices.
- Ideal for Multiple Layouts
- Adapt to different office layouts thanks to VESA-compatibility. Choose to mount your monitor to the wall or attach it to monitor arms and enjoy a more flexible workspace.
UPC: 884116250289 In the Box Dell P2418HT 24" 16:9 10-Point Touchscreen IPS Monitor DisplayPort Cable (5.9' / 1.8m) VGA Cable (5.9' / 1.8m) USB 3.0 Cable (5.9' / 1.8m) Power Cable Cable Cover Cable Sleeve Stand Riser & Base Premium Panel Guarantee Limited 3-Year Advanced Service Exchange Limited 3-Year Hardware Warranty User Manual PDF 4.8mbsvvaxbfaxqruaayfressubwuyu More info from Dell Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell P2418HT 24" 16:9 10-Point Touchscreen IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell P2418HT Specs | | | Size | 24" | | Screen Area | 20.75 x 11.67" / 527.05 x 296.42 mm | | Panel Type | IPS-Type LCD | | Touchscreen | Yes | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 8,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz (DisplayPort, HDMI, VGA) | | Vertical Frequency | 50 to 76 Hz (DisplayPort, HDMI, VGA) | | HDR Compatibility | None | | Color Gamut | 72% CIE1931
84% CIE1976 | | Response Time | 6 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.275 x 0.275 mm | | | | Connectivity | 1 x HDMI 1.4
1 x DisplayPort 1.2
1 x VGA
1 x USB Type-B (USB 3.1 Gen 1)
2 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 2.0)
1 x 3.5 mm Output | | HDCP Support | Yes, Version 1.4 | | Built-In Speakers | None | | Supported Languages | Brazilian Portuguese
English
French
German
Japanese
Russian
Simplified Chinese
Spanish | | | | Power Consumption | 52 W (Maximum)
18 W (Typical)
16 W (Eco)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 90% | | Operating Altitude | 16,404' / 4999 m | | Storage Altitude | 40,000' / 12,192 m | | Certifications | ENERGY STAR, EPEAT GOLD, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 3.54" / 90 mm | | Swivel Adjustment | 60° (-30 to 30°) | | Tilt Adjustment | -5 to 60° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 11.5 x 13.2 x 9.2" / 292.0 x 335.0 x 234.8 mm (With Stand)
21.2 x 12.7 x 2.1" / 537.8 x 321.4 x 54.1 mm (Without Stand) | | Weight | 16.35 lb / 7.42 kg (With Stand)
6.88 lb / 3.12 kg (Without Stand) | | | | Package Weight | 21.5 lb | | Box Dimensions (LxWxH) | 23.35 x 14.75 x 7.5" |
