User Manual for Dell P2419HC 23.8" 16:9 Ultrathin Bezel IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell P2419HC 23.8" 16:9 Ultrathin Bezel
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell P2419HC 23.8" 16:9 Ultrathin Bezel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

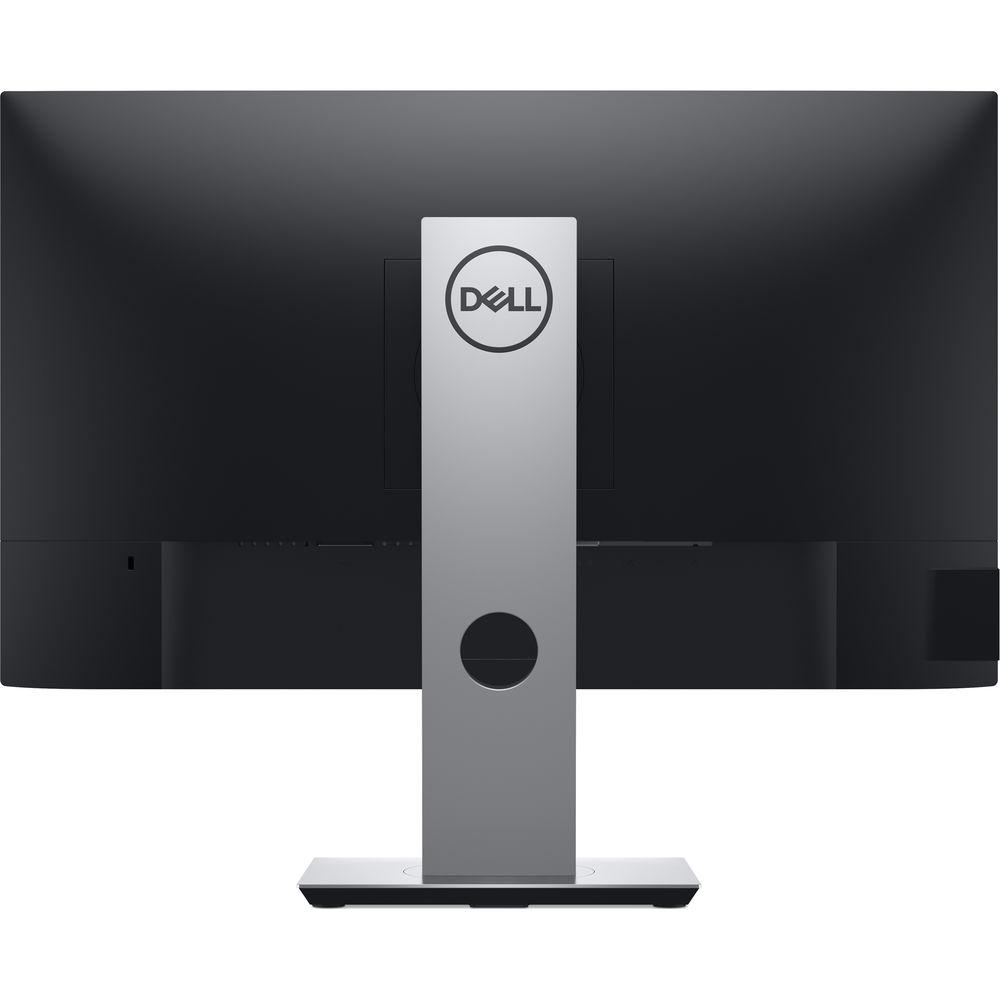

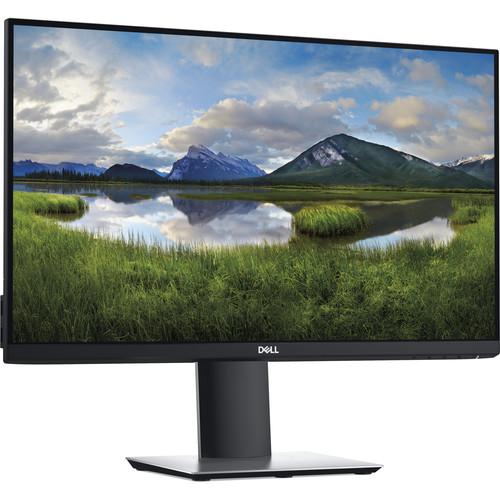

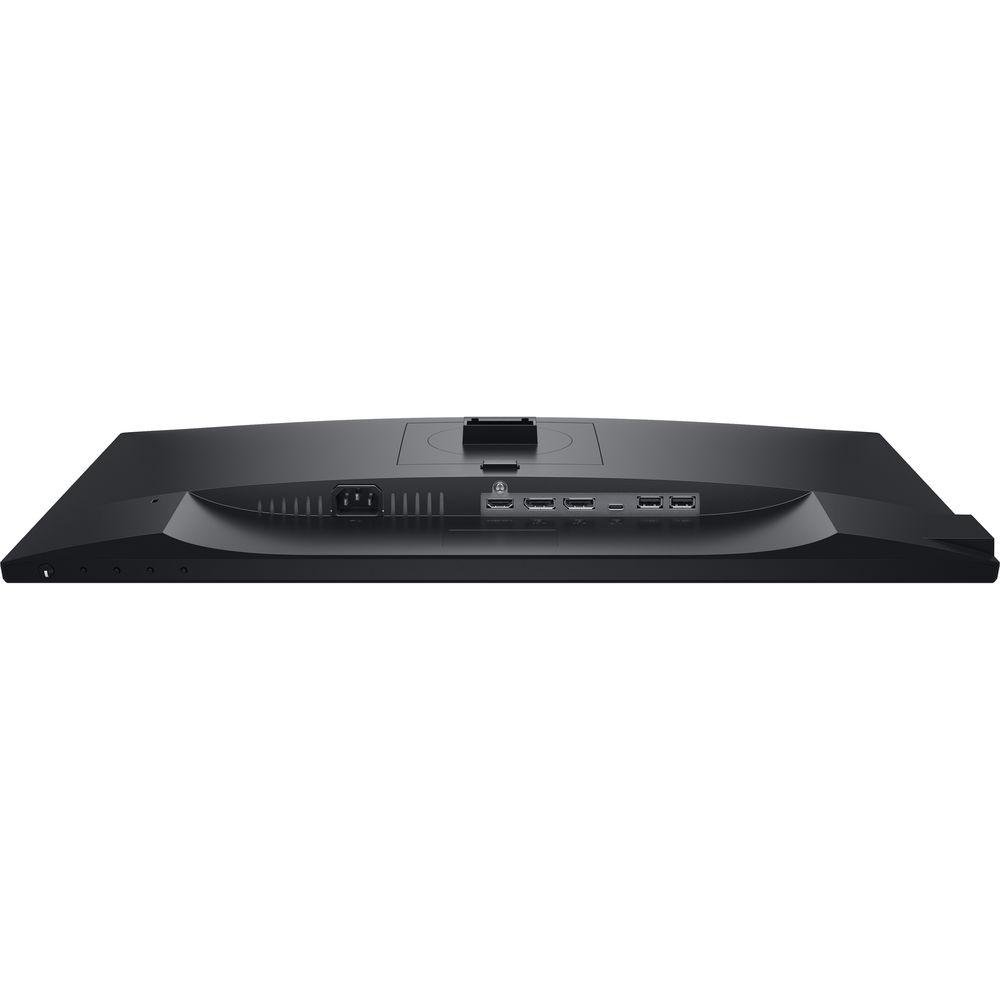

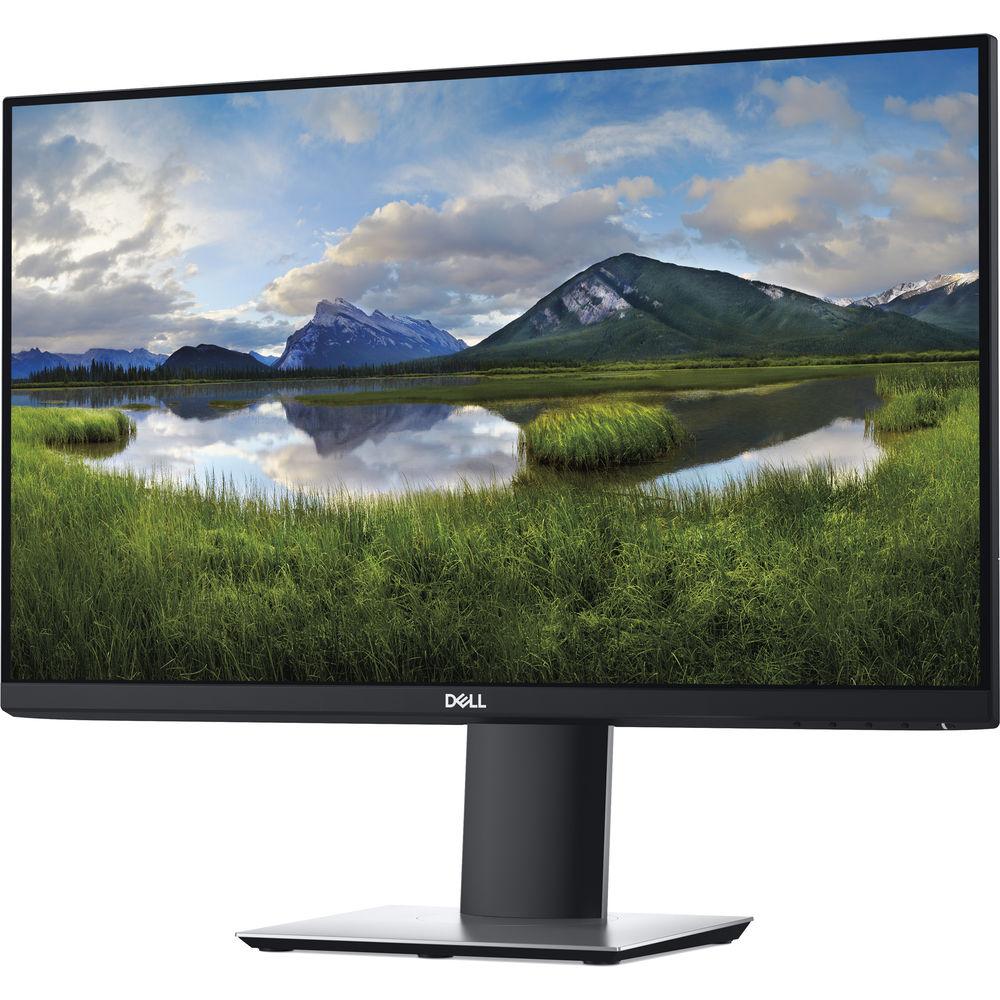

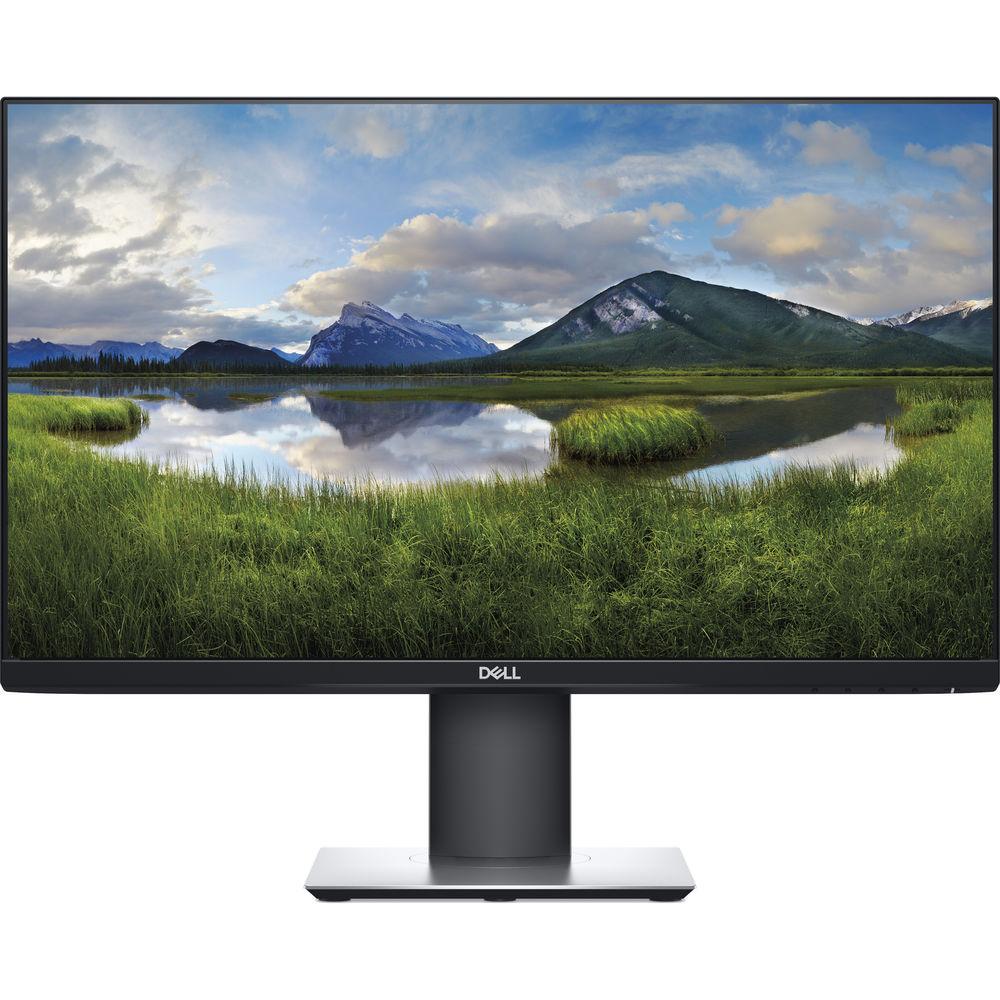

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With an ultrathin bezel and reduced size footprint, the P2419HC 23.8" 16:9 Ultrathin Bezel IPS Monitor from Dell transforms your desk. View your content with enhanced clarity on the Full HD 1920 x 1080 resolution panel, which supports a 1000:1 contrast ratio, a 250 cd/m² brightness rating, an 8 ms response time that can be shortened to 5 ms in fast mode, and support for up to 16.7 million colors. Setup is simple as this display comes equipped with HDMI, DisplayPort, and USB Type-C inputs as well as USB connectivity to connect USB compatible peripherals directly to the monitor. Once configured, the Dell P2419HC can be tilted, swiveled, pivoted, and the height can be adjusted to maximize your viewing experience. Furthermore, this IPS (In-Plane Switching) panel supports 178° horizontal and vertical viewing angles that allow the display to be seen from virtually any angle. - Ultimate Connectivity
- All-in-One
Declutter your desk with the included USB-C cable, a single cable solution that transmits power, data, video, and audio.
Big Convenience in One Cable
Get an easy charge with USB Type-C, the same cable that connects your device to the monitor. Also, as you charge your device with up to 65W of power, protect it with Dell's built-in surge protection.
Connect to Productivity

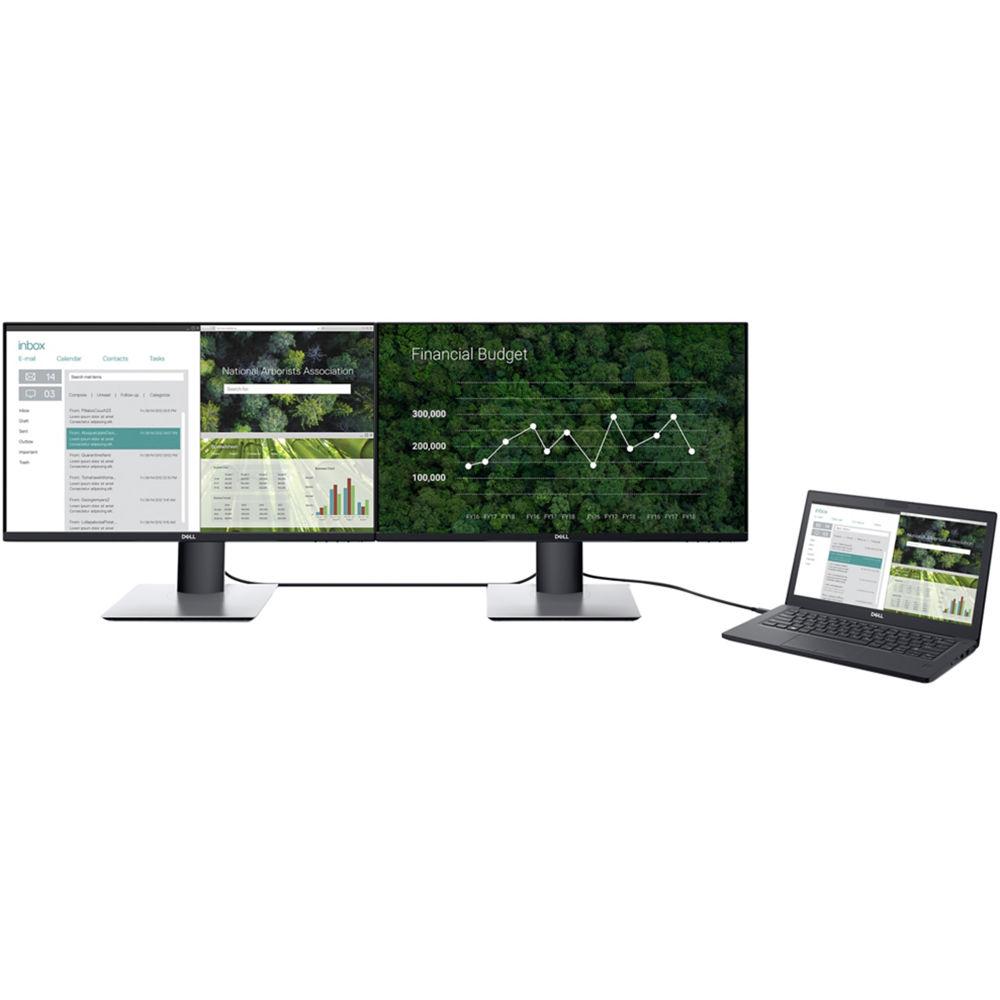

Easily daisy-chain up to two FHD monitors with the DisplayPort 1.2 output.
Smooth Transitions
Conveniently connect to a variety of laptops, or switch seamlessly between users, thanks to USB Type-C connectivity, ideal for shared workspaces. - Push Your Productivity
- More Room to Work
With a thin profile and reduced size monitor base, you can free up valuable desk space.
Expand Your Efficiency
The three-sided ultrathin bezel design lets you enjoy an uninterrupted view of your content across multiple monitors. And, with dual monitors, you can increase your productivity by up to 18%.
More Ways to Multitask
Work conveniently across multiple screens and select from predefined templates with the Easy Arrange feature on Dell Display Manager software. Quickly tile and arrange your applications and get back to work faster with Auto-restore, a feature that remembers where you left off.
Consistent and Rich Colors

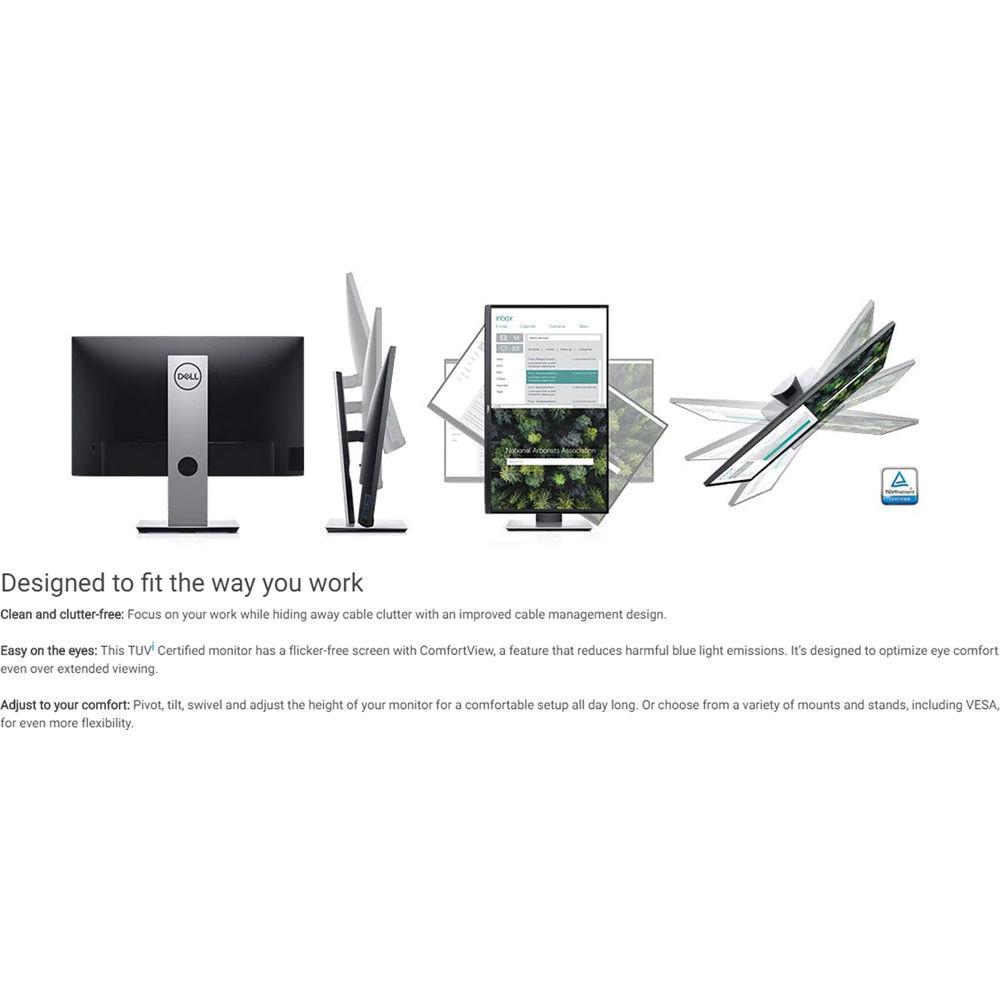

A wide viewing angle enabled by In-Plane Switching (IPS) technology lets you see vibrant colors, no matter where you sit. - Designed to Fit the Way You Work
- Clean and Clutter-Free
Focus on your work while hiding away cable clutter with an improved cable management design.
Easy on the Eyes
This TUV Certified monitor has a flicker-free screen with ComfortView, a feature that reduces harmful blue light emissions. It's designed to optimize eye comfort even over extended viewing.
Adjust to Your Comforts

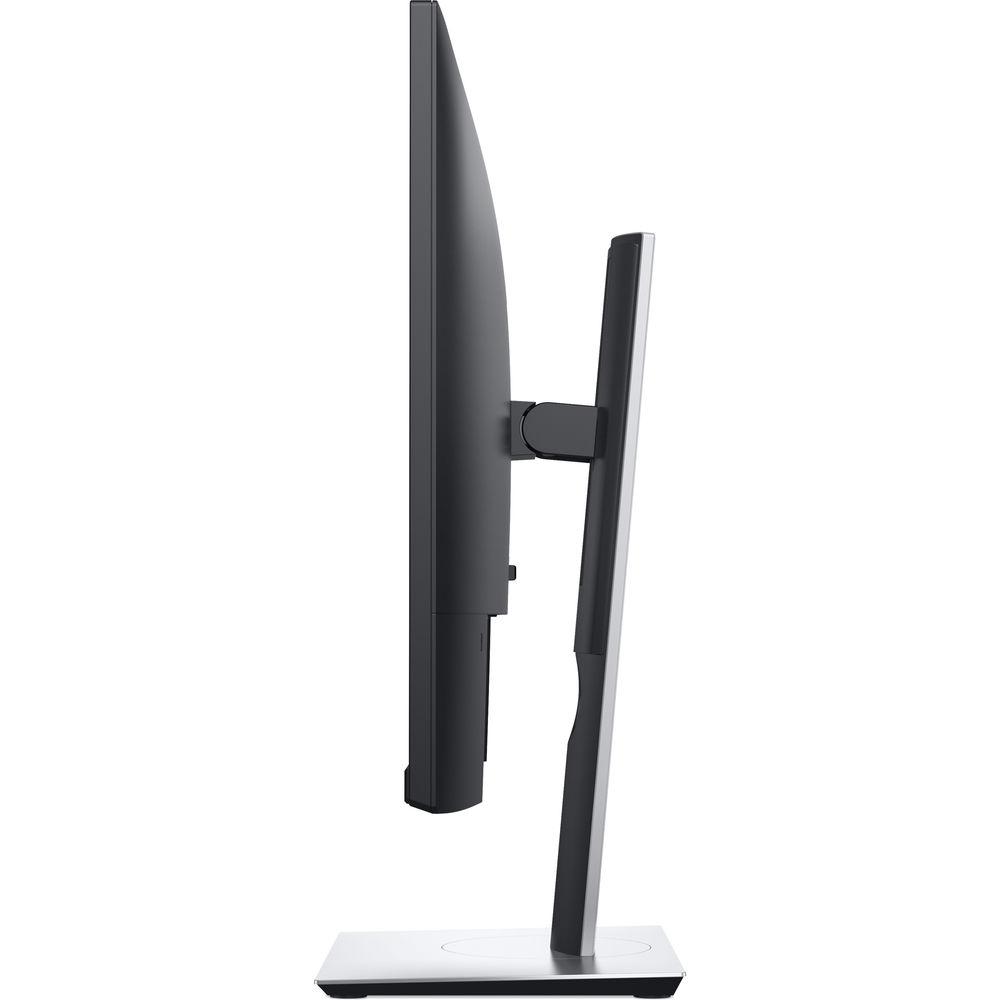

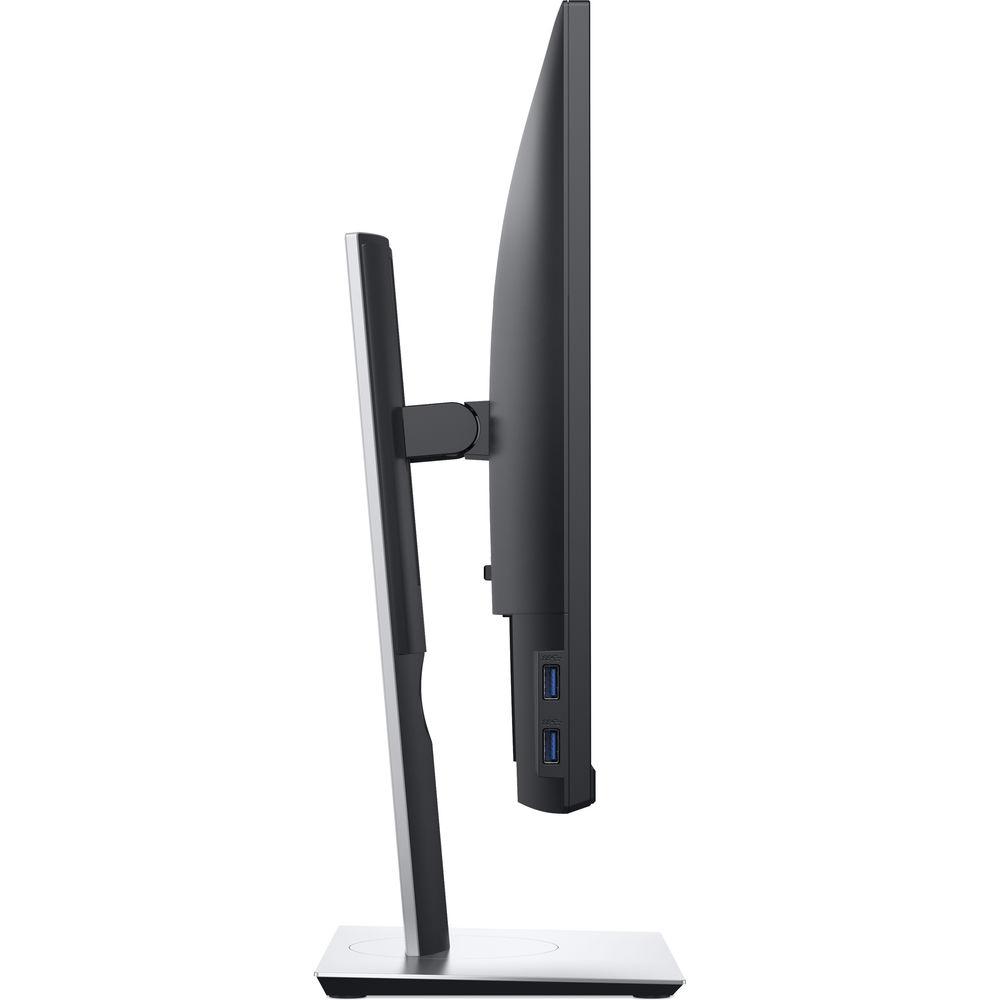

Pivot, tilt, swivel, and adjust the height of your monitor for a comfortable setup all day long. Or choose from a variety of mounts and stands, including VESA, for even more flexibility. UPC: 884116305606 In the Box Dell P2419HC 23.8" 16:9 Ultrathin Bezel IPS Monitor Power Cord DisplayPort to DisplayPort Cable USB Type-C Cable Cable Tie Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell P2419HC 23.8" 16:9 Ultrathin Bezel IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

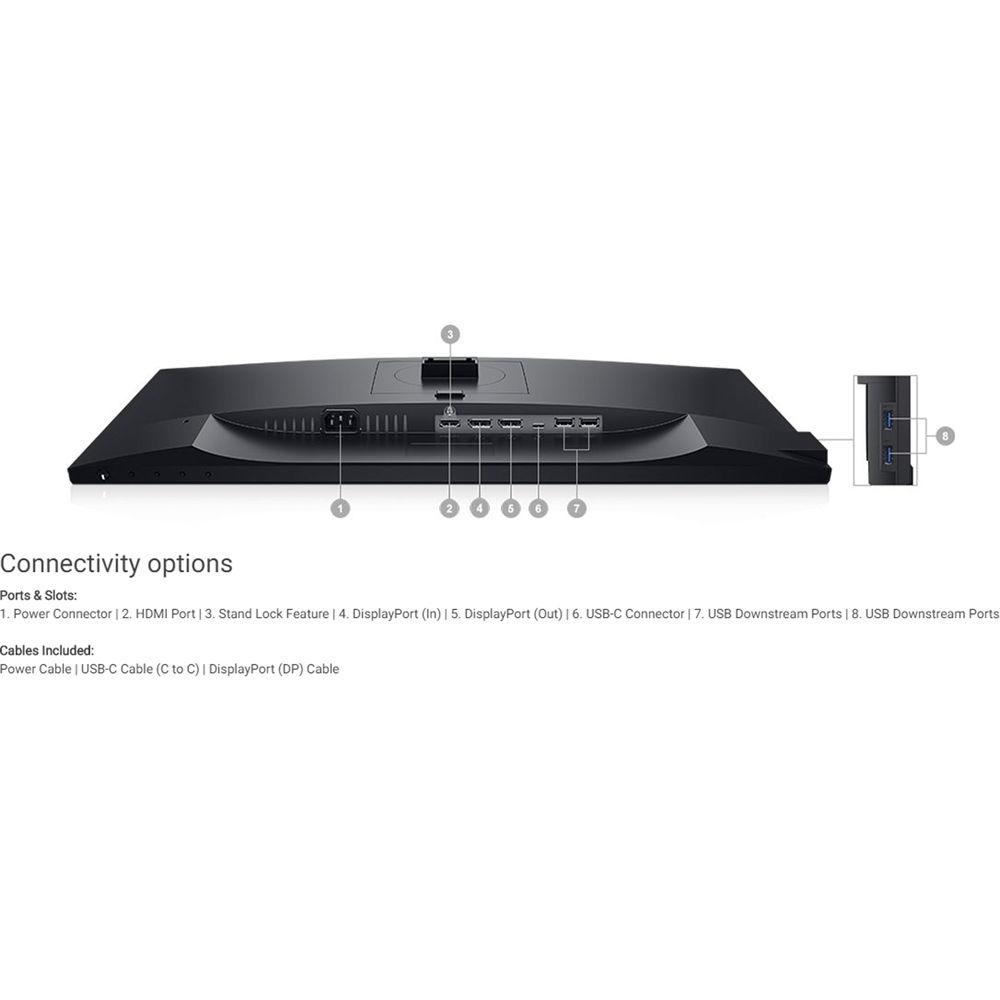

Technical parametersDell P2419HC Specs | | | Size | 23.8" | | Screen Area | 20.75 x 11.67" / 52.70 x 29.64 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 92 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 72% CIE1931 | | Response Time | 8 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.275 x 0.275 mm | | | | Connectivity | 1 x HDMI Input
1 x DisplayPort Output
1 x DisplayPort Input
1 x USB Type-C
2 x USB Type-A (USB 2.0) Output
2 x USB Type-A (USB 3.1 Gen 1) Output | | Built-In Speakers | None | | | | Power Consumption | 18 W (Typical)
119 W (Maximum)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A | | Power Adapter Type | Internal | | USB Power Delivery | 65 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 90% | | Operating Altitude | 16,404' / 5000 m | | Storage Altitude | 40,000' / 12,192 m | | Certifications | ENERGY STAR, EPEAT GOLD, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 5.12" / 130 mm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 21° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 21.3 x 19.1 x 6.6" / 54.1 x 48.5 x 16.8 cm (With Stand)
21.2 x 12.7 x 1.7" / 53.8 x 32.3 x 4.3 cm (Without Stand) | | Weight | 7.76 lb / 3.52 kg (Without Stand) | | | | Package Weight | 16.2 lb | | Box Dimensions (LxWxH) | 24.0 x 15.4 x 6.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 21 owners. Add your rating and experience with the product.
