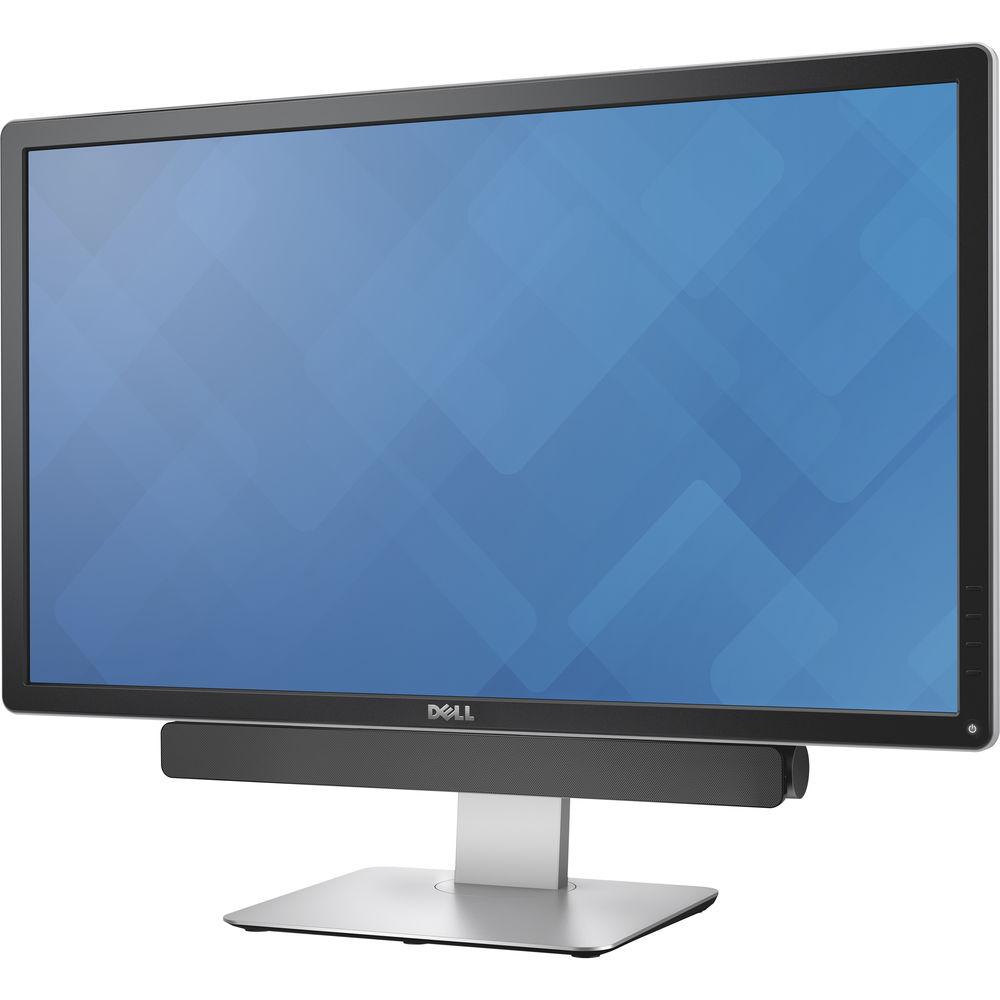

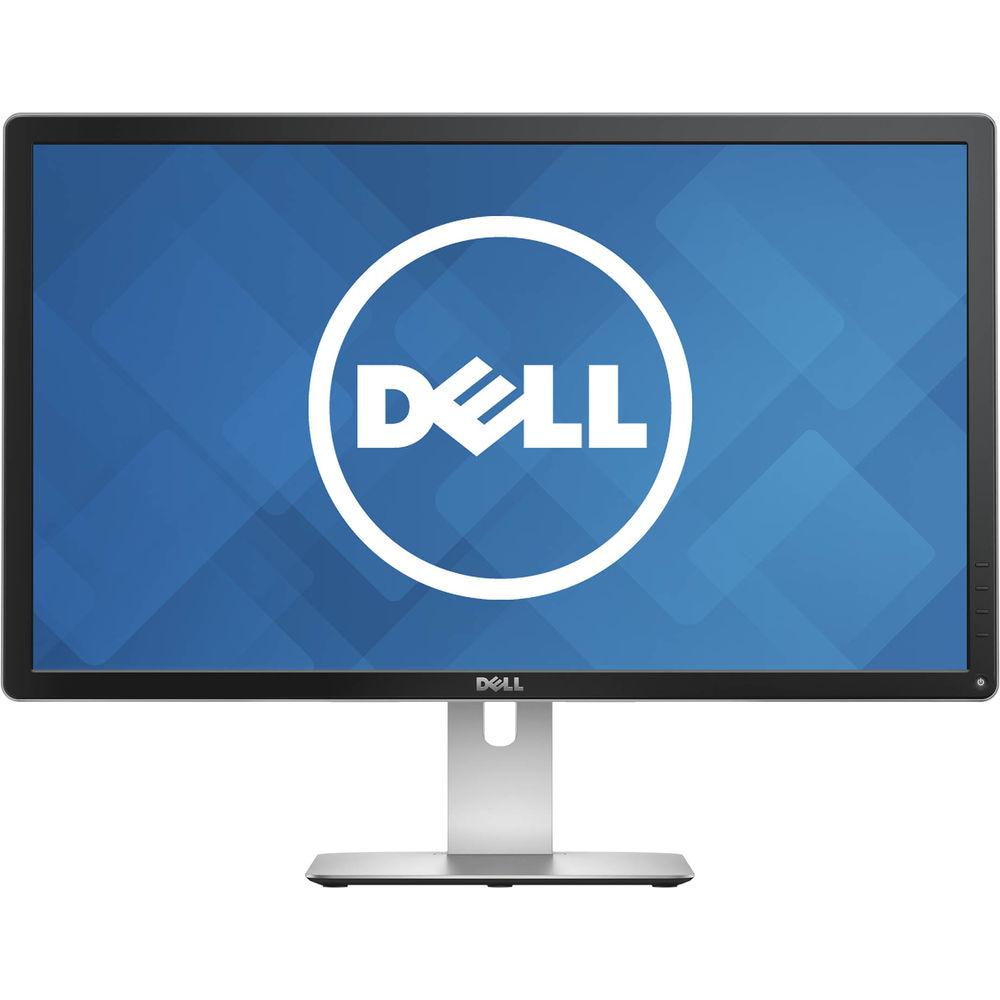

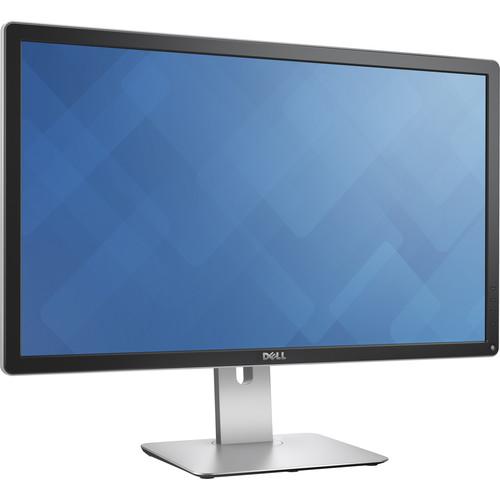

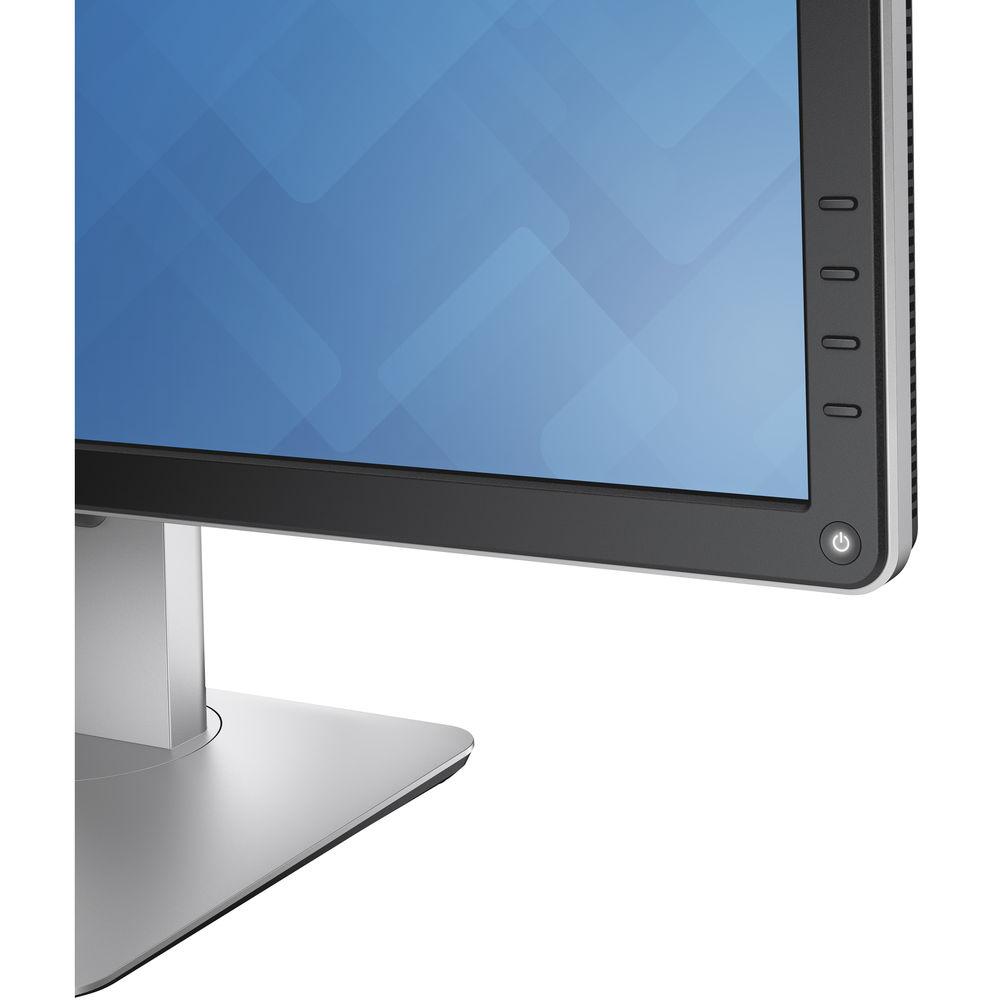

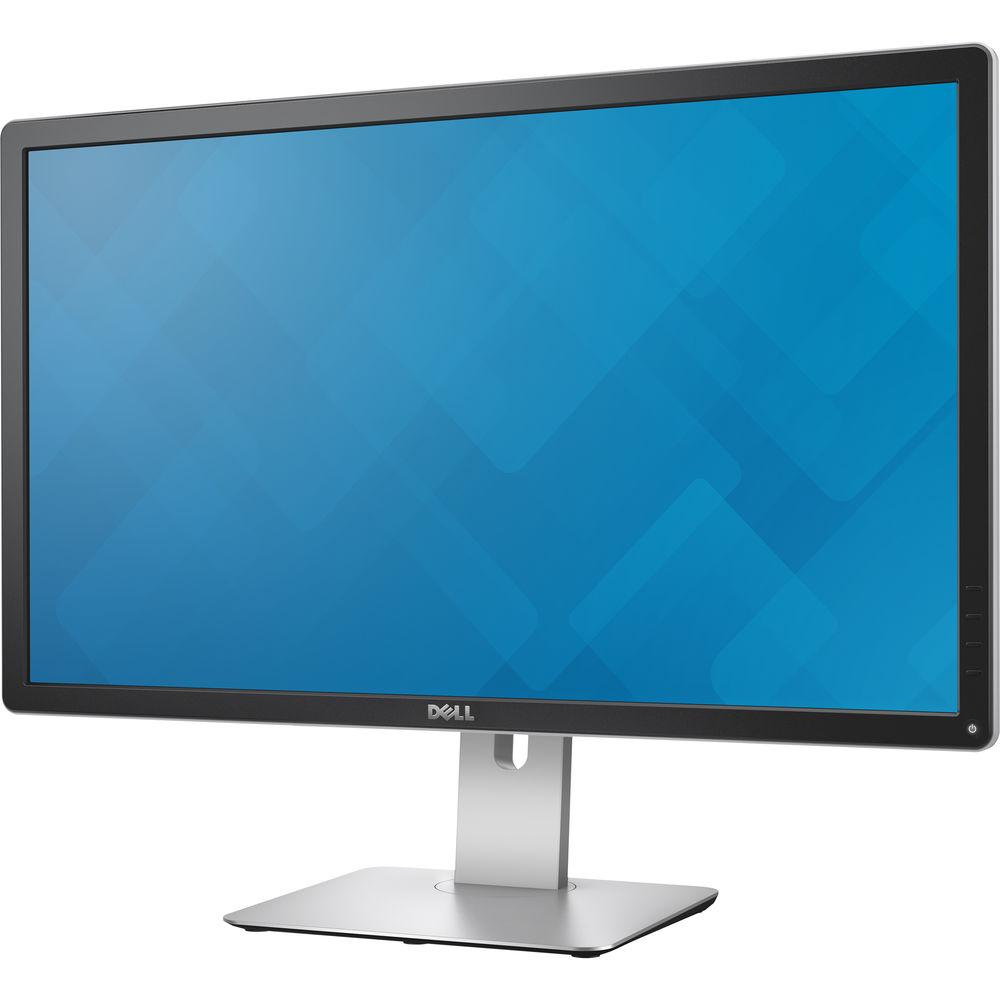

User Manual for Dell P2715Q 27" Ultra HD 4K Monitor Click to enlarge the picture
Contents of the user manual for the Dell P2715Q 27" Ultra HD 4K
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell P2715Q 27" Ultra HD 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The P2715Q 27" Ultra HD 4K Monitor from Dell features a resolution of 3840 x 2160 that provides over 8 million pixels, which offers you four times more detail than a 27" class Full HD resolution monitor. The high pixel density lets you see finer details onscreen, so you can better view and edit higher resolution photos and more. You can connect this monitor to your computer through a variety of ports that include a DisplayPort, mini DisplayPort, and HDMI. Furthermore, this monitor allows you to daisy-chain another monitor via the DisplayPort's in and out ports, and it connects to smartphones and tablets using an optional MHL HDMI cable. In addition to the video ports, the monitor is equipped with four USB 3.0 ports for connecting numerous USB devices. This monitor is built with an IPS panel that provides 178° viewing angles and 1.07 billion colors. To maintain its color accuracy, it is color calibrated from the factory with a 99% sRGB rating. Other viewing features include 2 million to 1 contrast ratio, 350 cd/m² brightness, and 9 ms response time. Included with the monitor are a cable cover, power cable, DisplayPort to mini DisplayPort cable, and a USB cable. - Color Accuracy
- You can count on natural and consistent color across different mediums because this monitor is factory tuned at 99% sRGB with a color calibration factory report certifying that each monitor has a deltaE greater than 3. That means you have precise color coverage right out of the box at a high-color depth of 1.07 billion colors. Each hue remains consistent from virtually any viewpoint with an ultra-wide viewing angle at 178°/ 178°.
- Full Adjustability
-

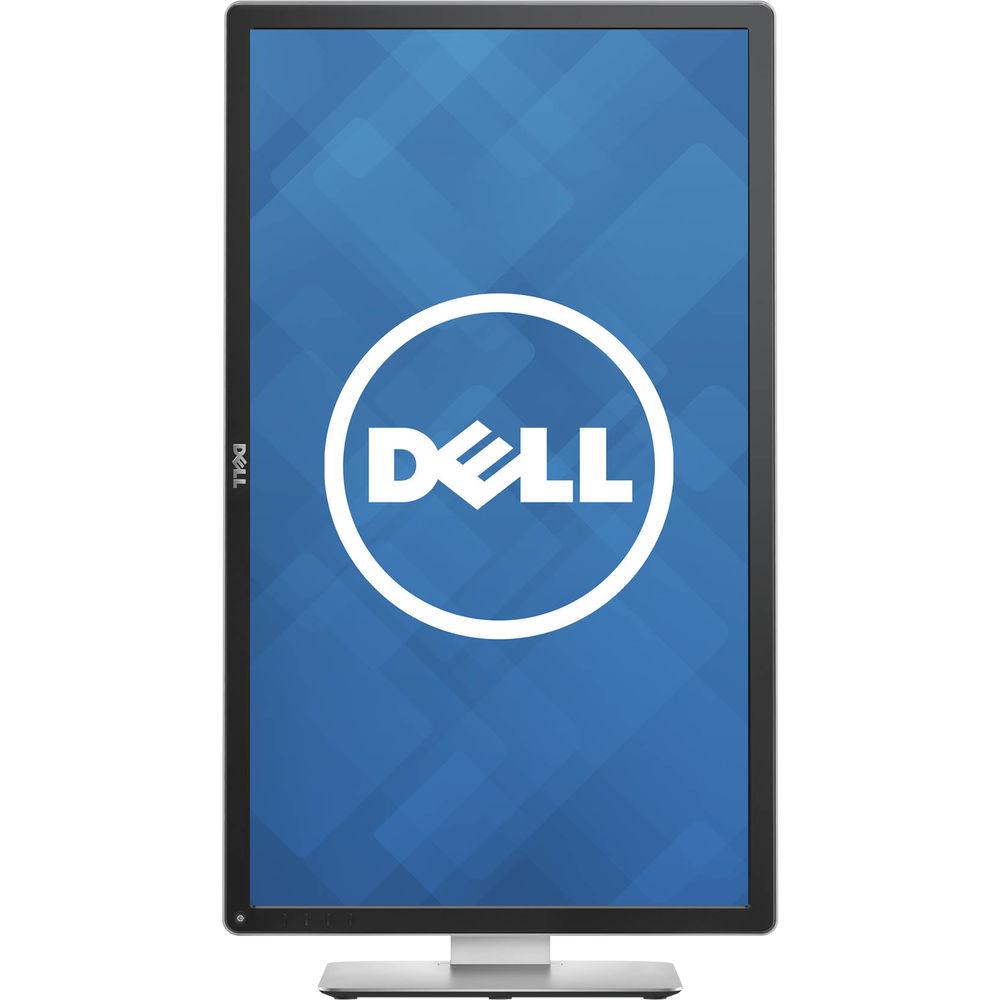

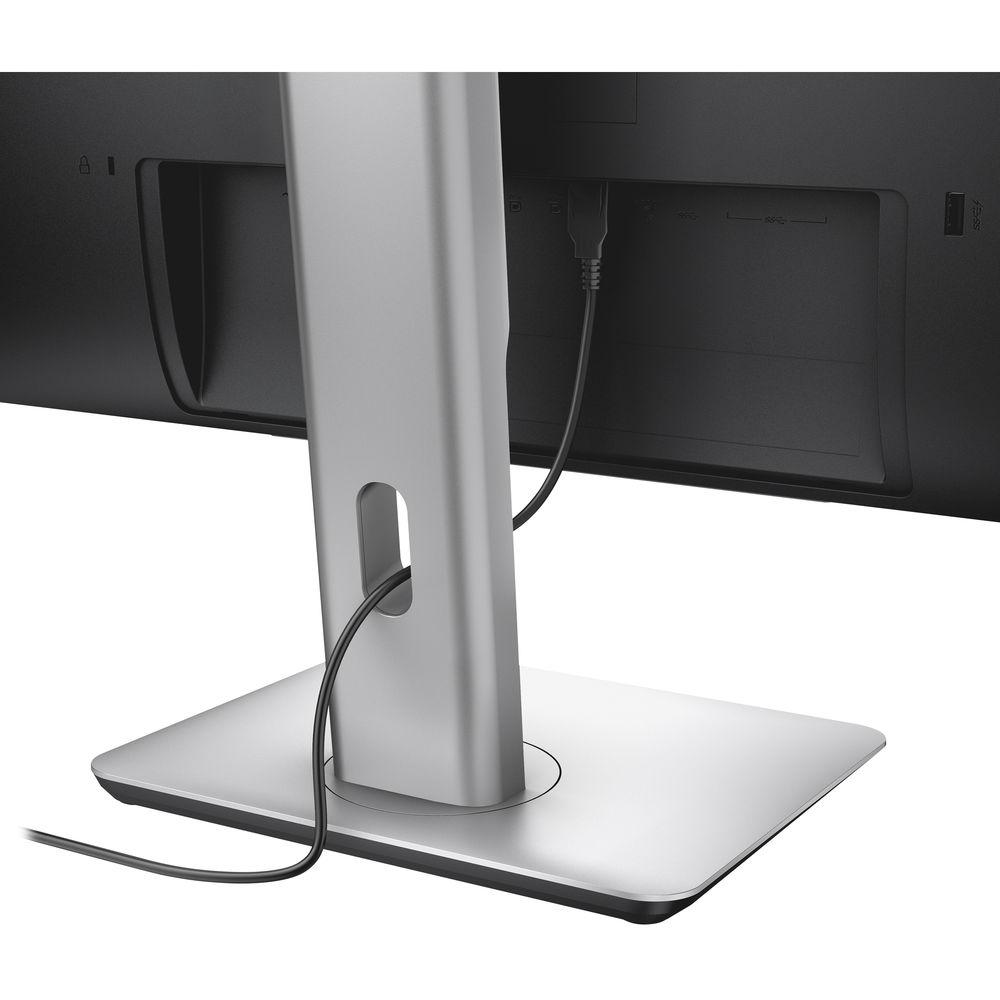

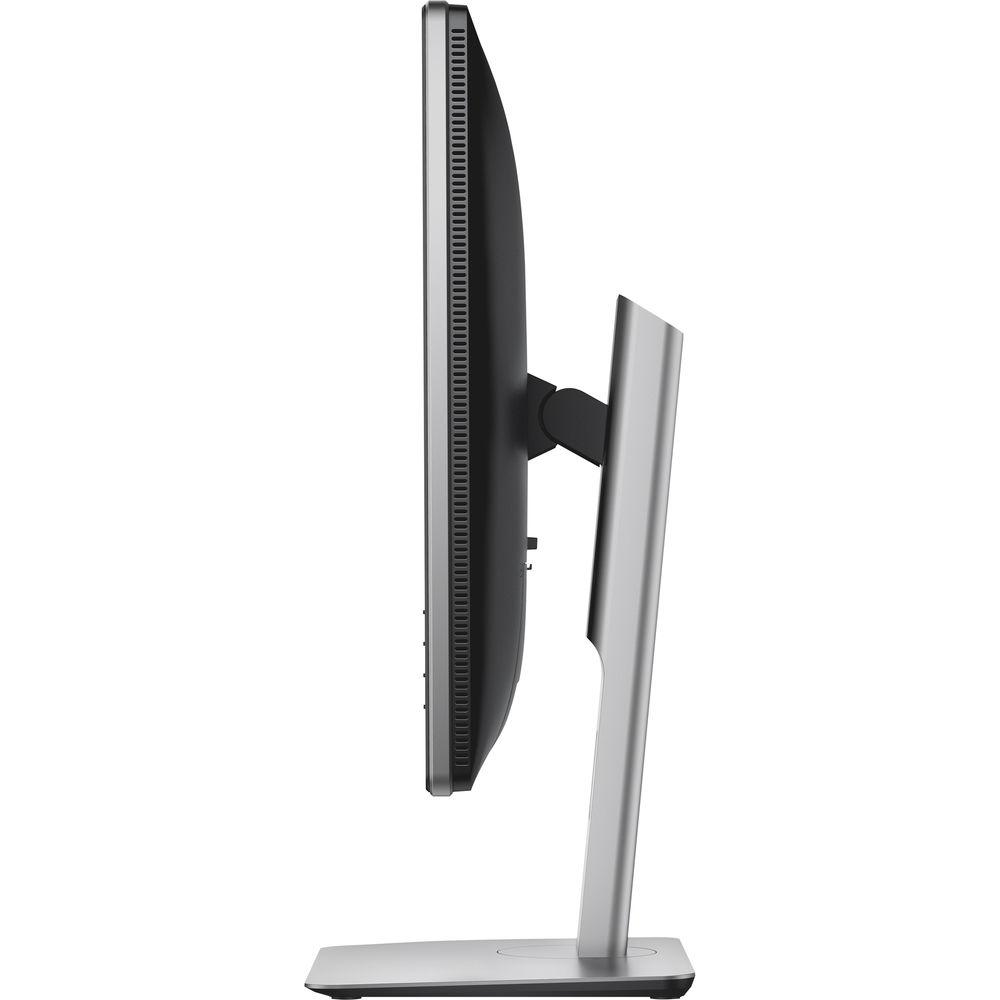

- The included stand enables tilt (5° forward or 21° backward), pivot, swivel, and even provides built-in cable-management.
- Customize your viewing experience with a height-adjustable stand, or save desktop space by detaching the stand for wall mounting with an optional VESA-compatible 100 x 100mm wall mount kit.

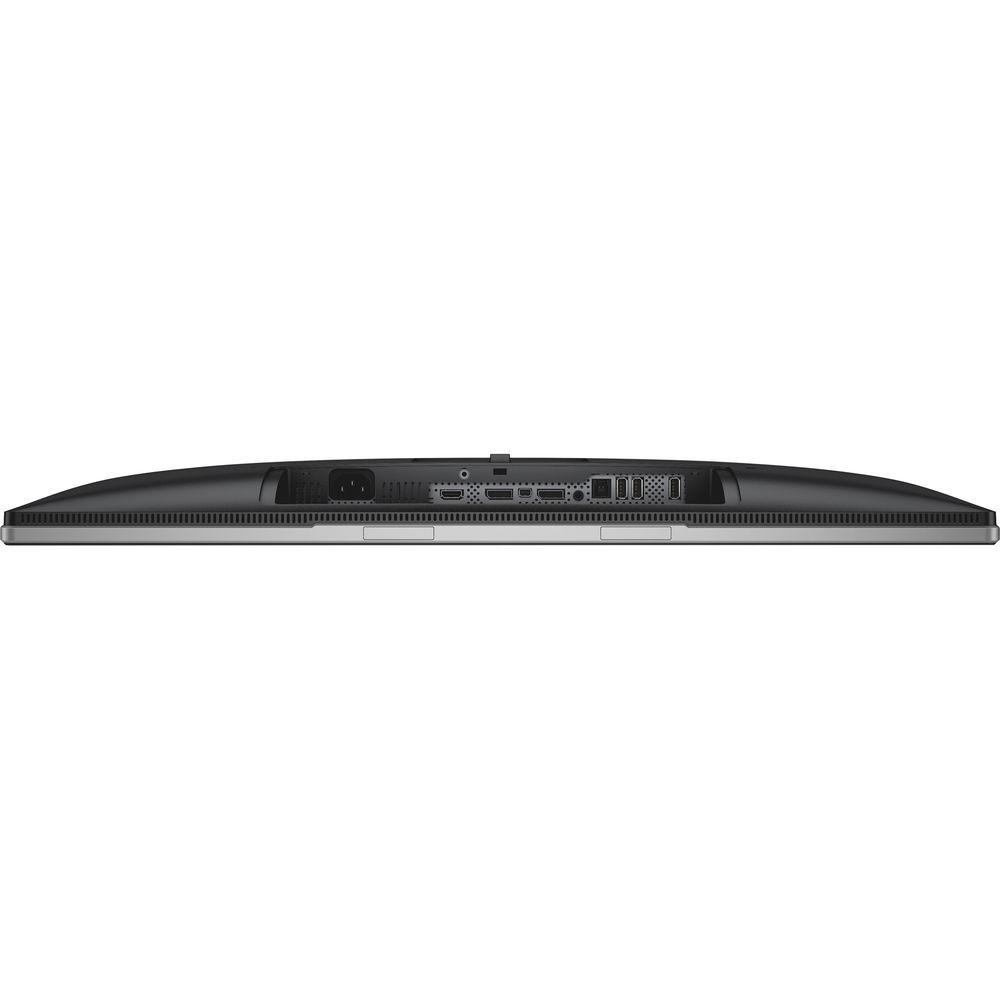

- All-Digital Connectivity
- Connect easily with other peripherals simultaneously, and view content from your handheld devices on the monitor screen - all without compromising picture quality.
- With DisplayPort 1.2, you can daisy-chain two monitors side by side by connecting via the DP-in and DP-out ports, eliminating the need to link every one of your monitors to the PC and reducing cable clutter.
- Charge or power BC1.2-compatible and other USB devices with a high-speed USB 3.0 charging port.
- Connect to MHL compatible smartphone or tablet and display content directly on the larger monitor screen via MHL.
- Eco-Conscious Design
- The Dell P2715Q 27 Ultra HD 4K Monitor meets regulatory and environmental standards.
- ENERGY STAR Qualified
- EPEAT Gold Rated
- TCO Certified Displays
Made with premium-quality materials, this Ultra HD 4K monitor is BFR/PVC-free (excluding external cables) and has arsenic-free glass, a mercury-free LED panel, and a chassis made of more than 25 percent post-consumer recycled materials. UPC: 884116162230 In the Box Dell P2715Q 27" Ultra HD 4K Monitor Power Cables DisplayPort to Mini DisplayPort Cable USB Upstream Cable Cable Cover Limited 3-Year Warranty User Manual PDF 6.5mb More from Manufacturer More info from Dell Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell P2715Q 27" Ultra HD 4K Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell P2715Q Specs | | | Size | 27" | | Screen Area | 23.5 x 13.2" / 59.7 x 33.6 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 2,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Response Time | 9 ms (GtG)
6 ms (Overdrive) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.1554 x 0.1554 mm | | | | Connectivity | 1 x 3.5 mm Output
1 x USB Type-B Input
1 x USB Type-A (USB 3.1 Gen 1) Output
1 x DisplayPort Input
1 x DisplayPort Output
1 x Mini DisplayPort Input
1 x HDMI (MHL) | | | | Power Consumption | 0.5 W (Standby)
95 W (Maximum)
50 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.8 A | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 90% | | Operating Altitude | 0 to 16,400' / 0 to 4999 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | ENERGY STAR, EPEAT GOLD, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 4.5" / 11.4 cm | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 25.2 x 16.7 x 8.0" / 64.1 x 42.4 x 20.4 cm
25.2 x 15.0 x 2.0" / 64.1 x 38.0 x 5.2 mm (Without Stand) | | Weight | 11.1 lb / 5 kg (Without Stand) | | | | Package Weight | 23.0 lb | | Box Dimensions (LxWxH) | 29.0 x 19.0 x 9.0" |
