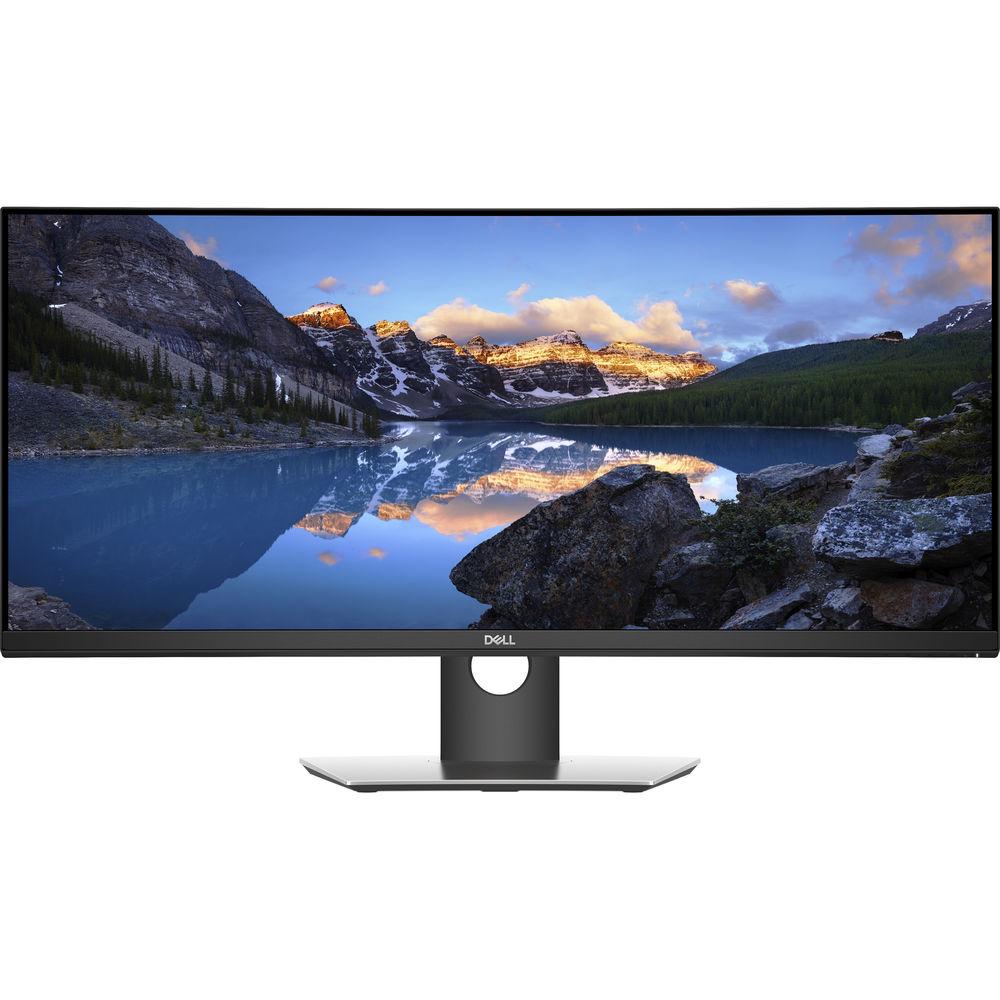

User Manual for Dell P3418HW 34" 21:9 IPS Curved Monitor Click to enlarge the picture
Contents of the user manual for the Dell P3418HW 34" 21:9 IPS Curved
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell P3418HW 34" 21:9 IPS Curved contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

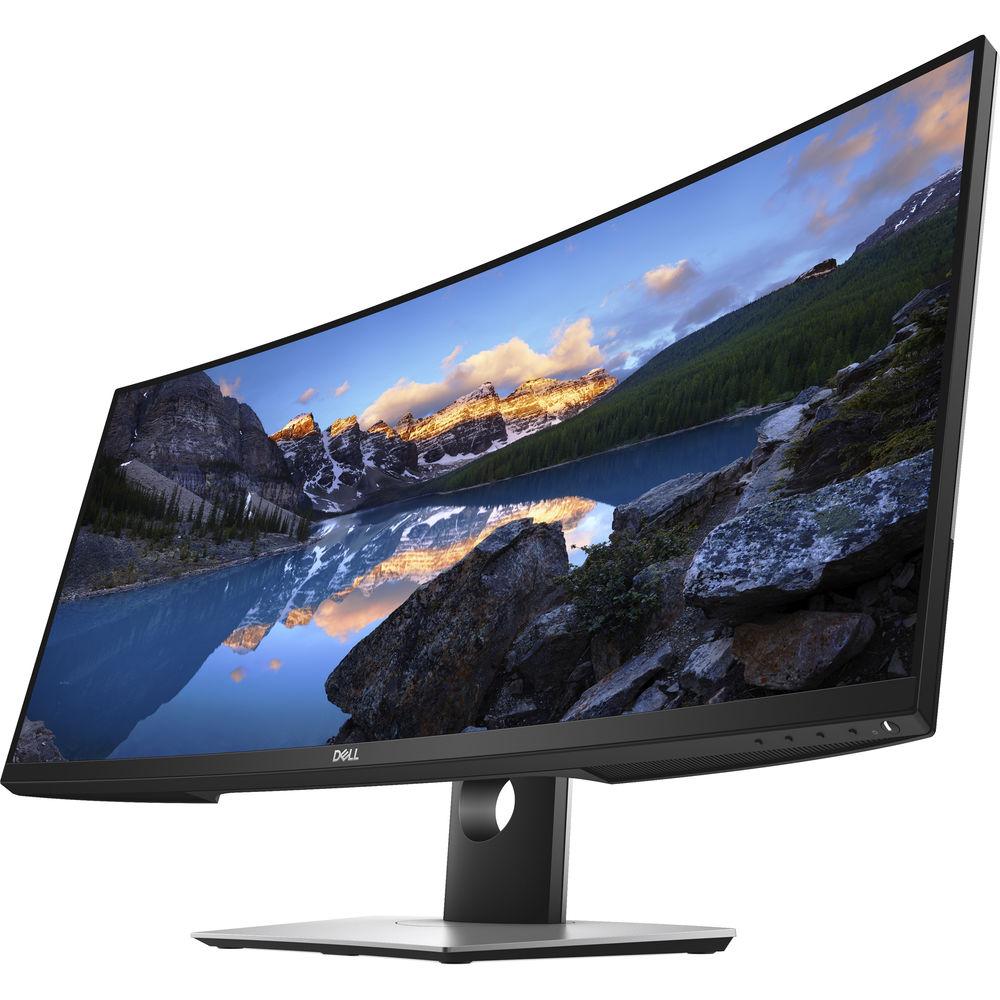

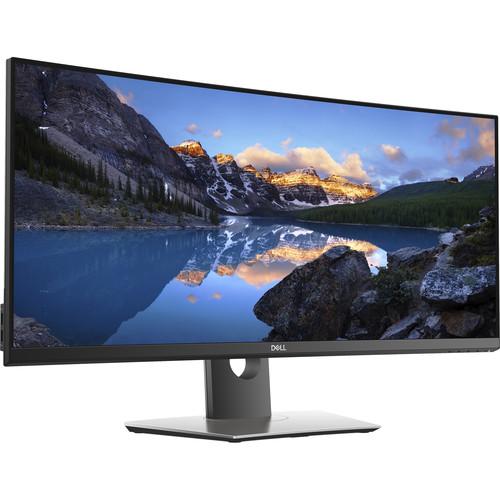

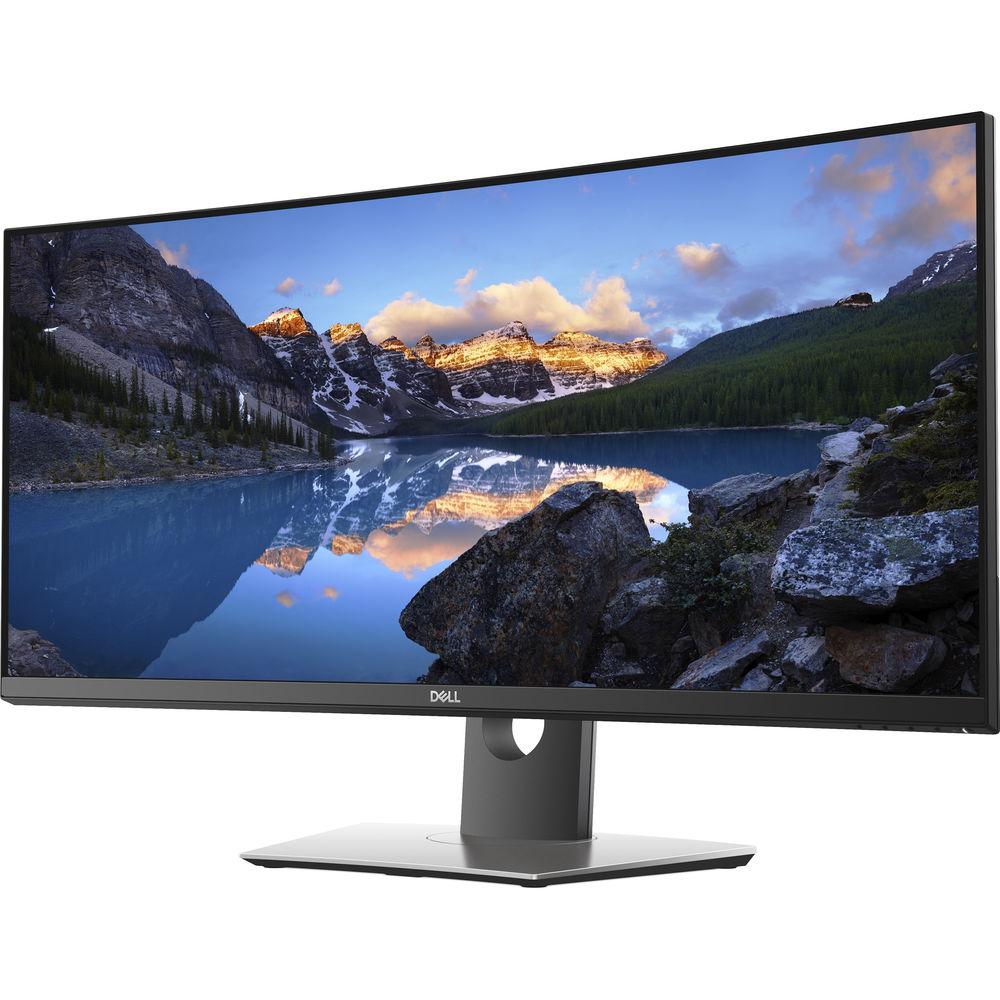

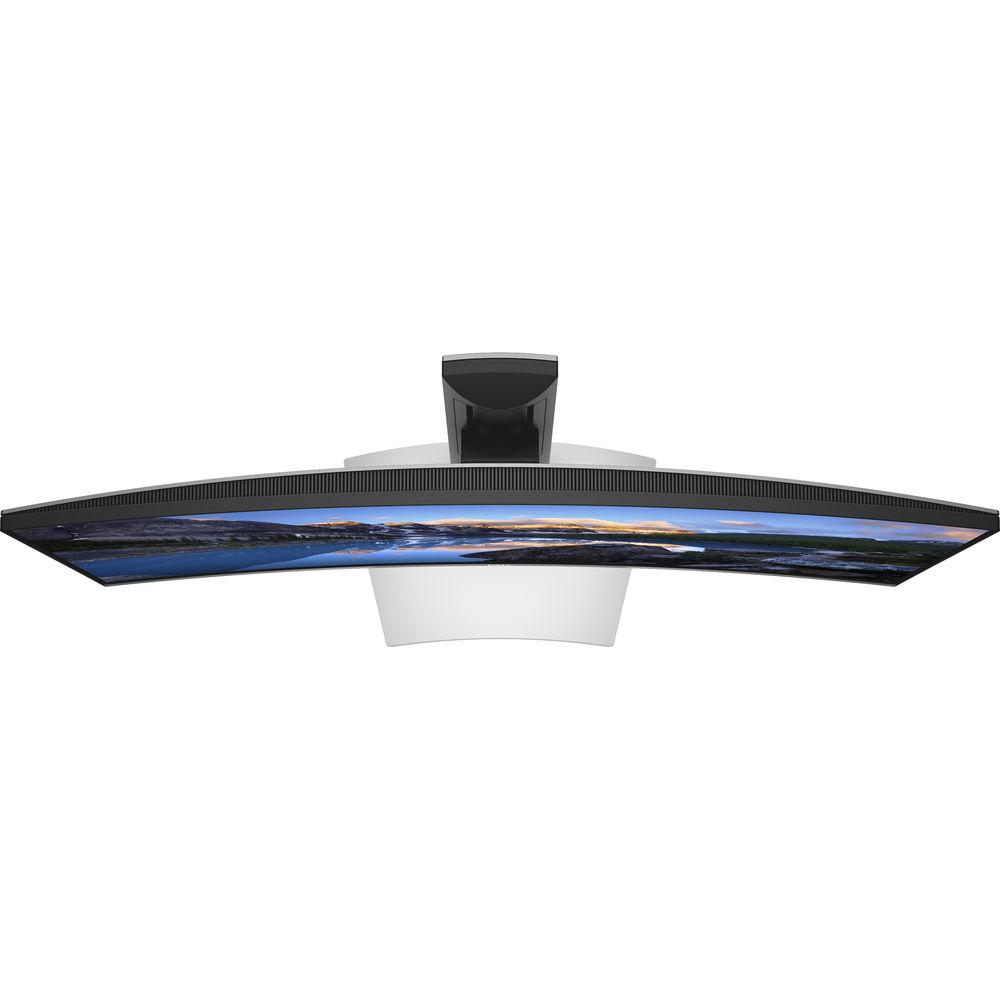

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Display content at up to 2560 x 1080 resolution using the P3418HW 34" 21:9 IPS Curved Monitor from Dell. This monitor features a curved display with a panoramic view and a more uniform focal distance, meaning that you won't have to move your eyes as much as with a flat screen monitor. The integrated adjustable stand allows you to tilt, swivel, and adjust the height of your monitor for optimal working conditions. The monitor also features IPS (In-Plane Switching) technology, a widescreen 21:9 aspect ratio, a typical contrast ratio of 1000:1, 300 cd/m² brightness, and a 5 ms response time.
This display features strong color reproduction with 16.7 million colors and has two HDMI 1.4 connectors, one DisplayPort 1.2 connector, and one Mini DisplayPort connector. It also has a built-in USB 3.0 hub with four USB 3.0 downstream ports. Additionally, this display features dual built-in 9W speakers and can be mounted to a wall using a VESA 100mm mount. Picture-by-Picture and Picture-in-Picture functionality allows you to display content from two computer sources simultaneously. - 34" wide full-HD curved screen with 2560 x 1080 resolution minimizes peripheral distractions, reduces eye movement, and improves viewing comfort
- Approximately 33% increase in extended view versus a 27" full-HD flat screen monitor
- Organize multiple applications with Dell Easy Arrange, or use Picture-by-Picture and Picture-in-Picture to simultaneously display content from two computer sources

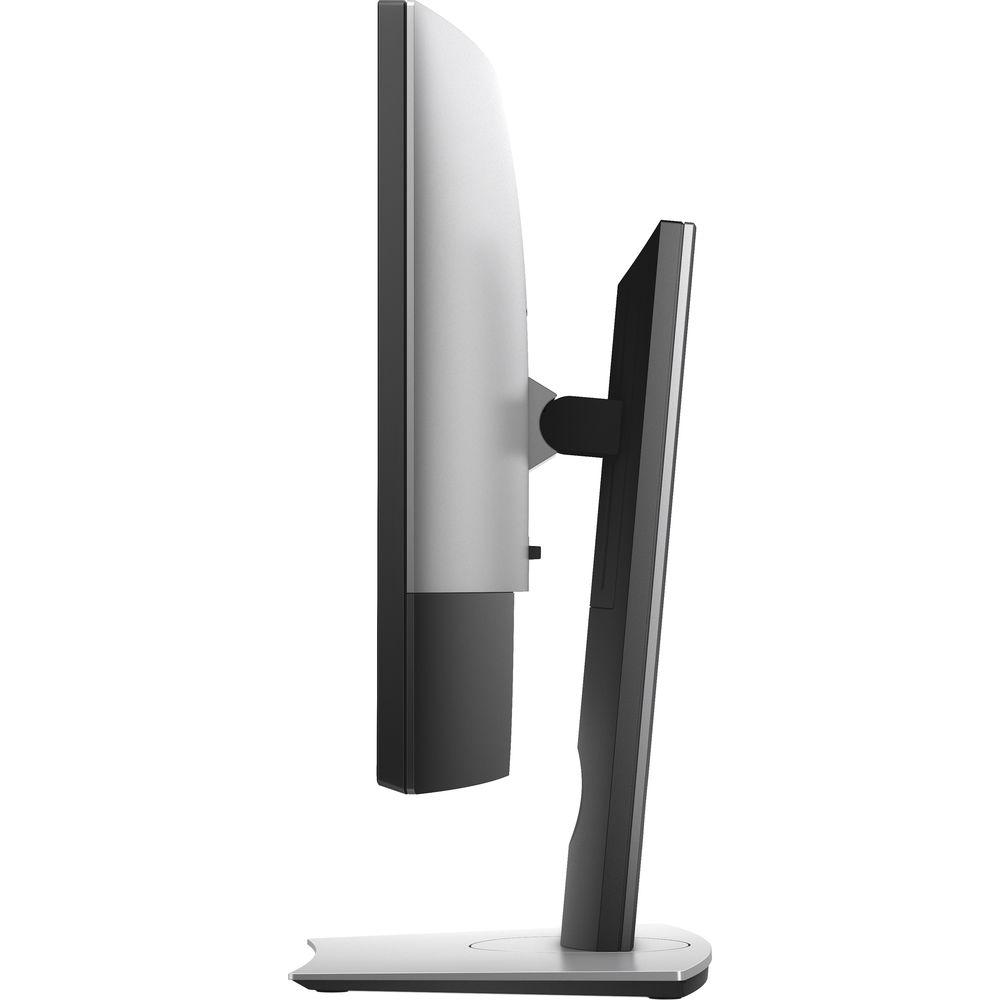

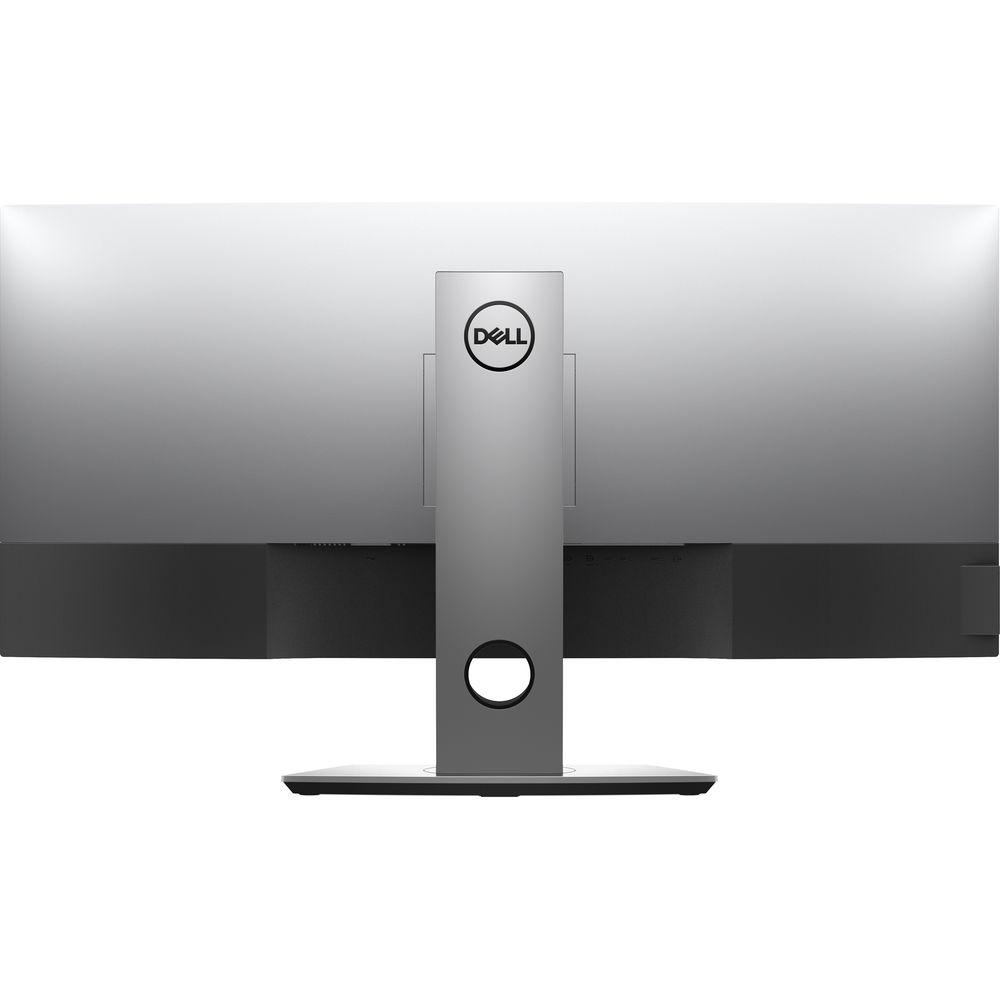

- Adjustable stand allows you to tilt, swivel, and adjust the height of your monitor
- Compatible with various stands and mounts via 100mm VESA interface

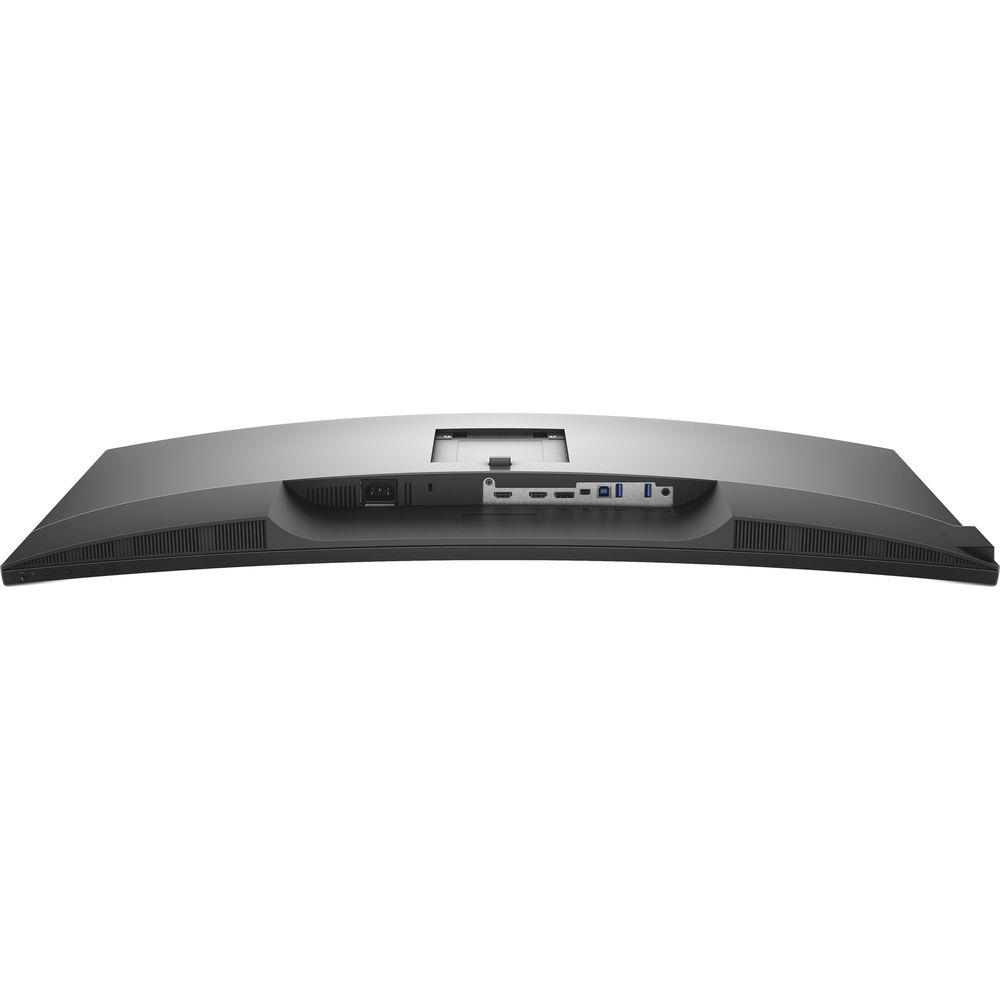

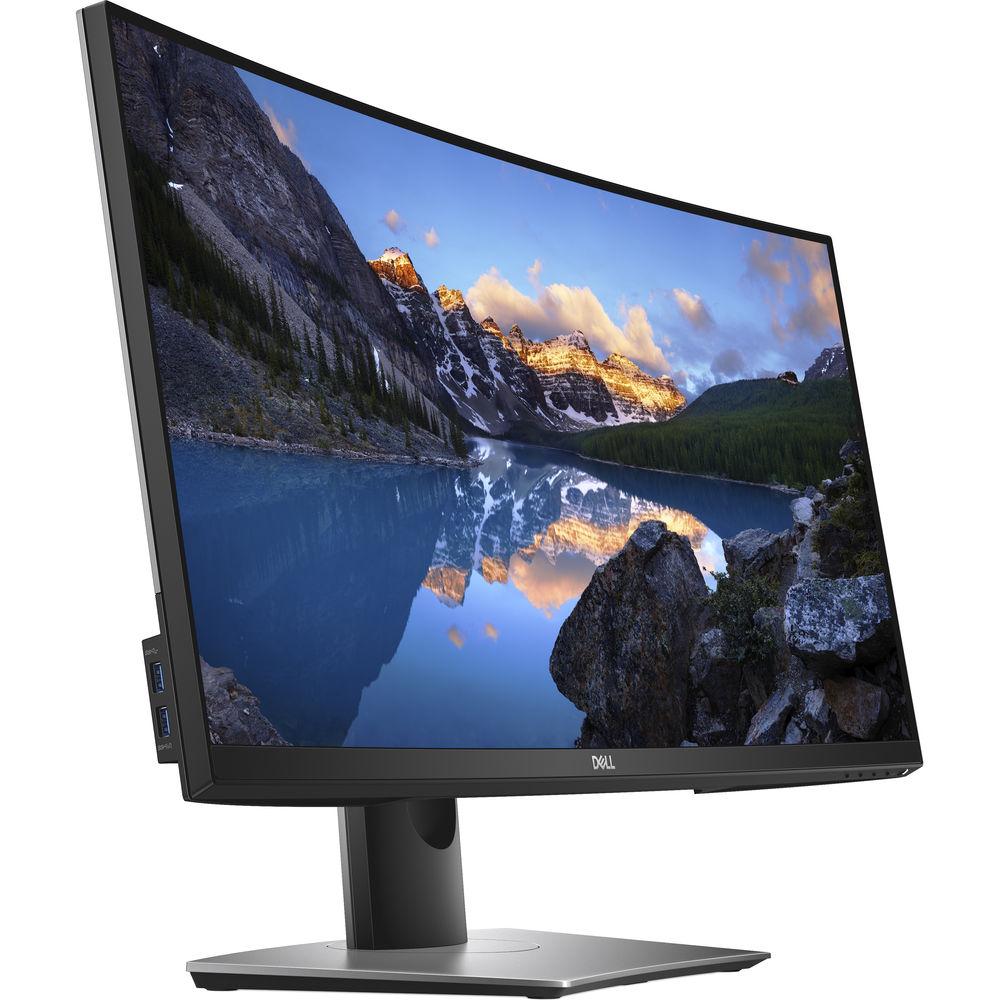

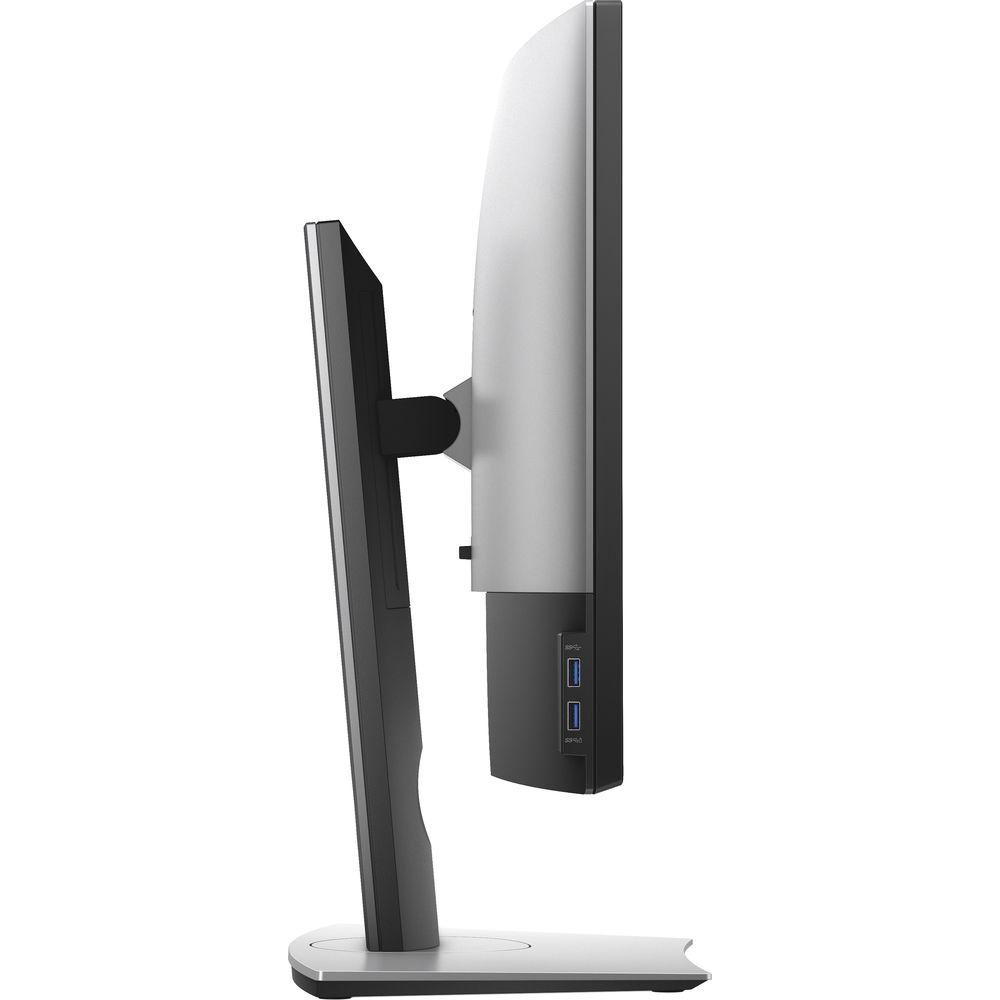

- Multiple connectivity ports on bottom and side of monitor allow you to easily connect to other devices
- A three-sided ultra-thin bezel creates an expansive view
- 99% coverage on the sRGB spectrum provides consistent and precise colors
- TUV-certified flicker-free screen with ComfortView enhances eye comfort by reducing blue light emissions
- Built-in dual 9W speakers
UPC: 884116288503 In the Box Dell P3418HW 34" 21:9 IPS Curved Monitor Power Cable Mini DisplayPort to DisplayPort Cable USB 3.0 Upstream Cable Limited 3-Year Warranty User Manual PDF 3.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell P3418HW 34" 21:9 IPS Curved Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell P3418HW Specs | | | Size | 34" | | Screen Area | 31.49 x 13.18" / 799.85 x 334.77 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1080 | | Aspect Ratio | 21:9 | | Pixels Per Inch (ppi) | 82 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | Color Gamut | 99% sRGB | | Response Time | 8 ms
5 ms (GtG) | | Dot Pitch | 0.312 x 0.310 mm | | | | Connectivity | 2 x HDMI 1.4
1 x DisplayPort 1.2
1 x Mini DisplayPort
1 x 3.5 mm Output
4 x USB Type-A (USB 3.1 Gen 1)
1 x USB Type-B (USB 3.1 Gen 1) | | HDCP Support | Yes, Version 1.4 | | Built-In Speakers | Yes, 2 x 9 W | | | | Power Consumption | 40 W (Typical)
120 W (Maximum)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 90% | | Operating Altitude | 12,000' / 3657 m | | Storage Altitude | 40,000' / 12,192 m | | Certifications | RoHS, as per Manufacturer | | | | Height Adjustment | 4.53" / 115 mm | | Rotation Adjustment | None | | Swivel Adjustment | 60° (-30 to 30°) | | Tilt Adjustment | -5 to 21° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 32.0 x 21.0 x 8.9" / 813.9 x 532.6 x 226.4 mm (With Stand)
32.0 x 14.5 x 2.0" / 813.9 x 368.1 x 51.3 mm (Without Stand) | | Weight | 22.24 lb / 10.09 kg (With Stand)
15.01 lb / 6.81 kg (Without Stand) | | | | Package Weight | 32.95 lb | | Box Dimensions (LxWxH) | 36.0 x 17.0 x 10.0" |
