User Manual for Dell Precision 3420 Small Form Factor Workstation Click to enlarge the picture
Contents of the user manual for the Dell Precision 3420 Small Form Factor
- Product category: PC Workstations Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell PC Workstations
 |
User manual for the Dell Precision 3420 Small Form Factor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|
Product description Built to deliver professional performance, the Precision 3420 Small Form Factor Workstation from Dell is a fully configurable and ISV-certified system. This system is powered by a 3.7 GHz Intel Xeon E3-1240 v6 Quad-Core processor, which will allow you to run multiple applications simultaneously. The 16GB of 2400 MHz DDR4 ECC RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs. While the current memory configuration is 2 x 8GB, there are four 288-pin DIMM memory slots that will allow the RAM to be upgraded to 64GB, using one 16GB module in each of the four memory slots.

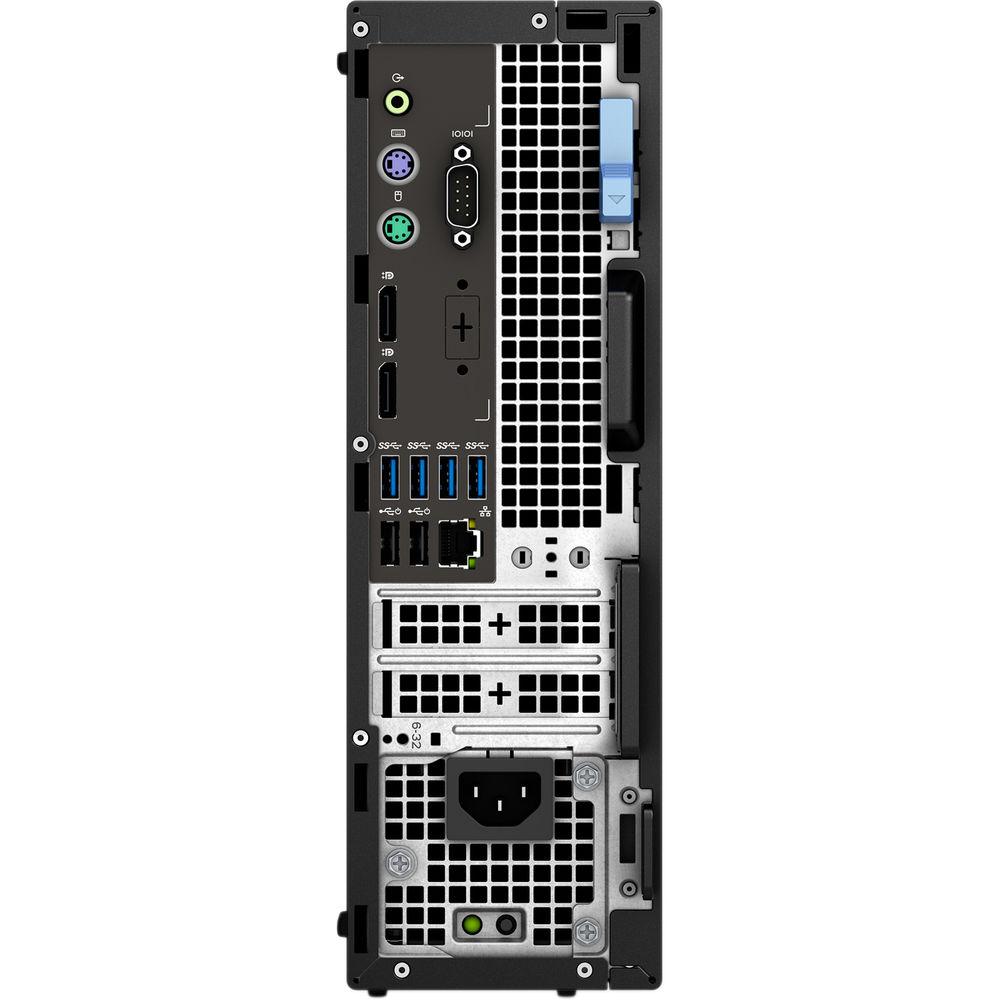

For storage of your files, a 256GB NVMe PCIe M.2 SSD offers quick access to your data. If you want to add external storage drives or other peripherals, the Precision 3420 features six USB 3.0 (3.1 Gen 1) Type-A ports (2 front, 4 rear), four USB 2.0 Type-A ports (2 front, 2 rear), two PS/2 ports, and a serial port. For users who wish to add additional components or upgrade the drive bays, there is one internal 3.5" drive bay that can fit one 3.5" drive or two 2.5" drives, plus a PCIe Gen 3 x4 slot. The dedicated NVIDIA Quadro P600 graphics hard has 2GB of GDDR5 video memory and delivers a sharp, clear picture at resolutions up to 5120 x 2880 @ 60 Hz. It can support up to four simultaneous displays using its four mini DisplayPort 1.4 outputs. Whether you are listening to music, watching a movie, or playing a game, the integrated Realtek HD ALC3234 audio codec outputs high-definition audio and delivers higher fidelity than standard audio controllers.
The Precision 3420 Small Form Factor Workstation includes Dell's KB216 USB keyboard, MS116 USB mouse, and a power cord. It operates using a 240W 85% efficient power supply. The installed operating system is Windows 10 Pro for Workstations (64-bit). General Features - Powerful Performance
- Power through intensive tasks with a 3.7 GHz Intel Xeon E3-1240 v6 Quad-Core processor for fast and stable performance.
- Independent Software Vendor (ISV) Certification
- Precision Workstations are tested to ensure that high-performance applications you rely on every day run smoothly. Dell ISV certifications cover popular independent software applications. A complete list is available on Dell's website.
- Small Form Factor
- This small form factor workstation is compact with a design to help leave a reduced environmental footprint.
- Security
- You can choose your level of security with a number of beneficial options, including: Dell Data Protection, Security Tools + Dell ControlVault, Encryption Personal Edition, or Enterprise Edition.
- Up to 64GB Memory
- Store and access large and complex 3D, multimedia, and video project files with the speed and reliability of up to 64GB of 2400 MHz DDR4 memory.
- Lock and Key
- Separately-sold FIPS-certified self-encrypting drives (SEDs) can help reduce security risks and unauthorized access to your data.
- Dell Precision Optimizer
- Different applications have different system requirements. Let the Dell Precision Optimizer take the guesswork out of customizing settings by automatically adjusting system settings. Free with your Precision workstation, the Dell Precision Optimizer, with SCCM centralized management, automatically tunes your Workstation to run some popular Independent Software Vendor (ISV) applications at fast speeds, enhancing productivity. The Dell Precision Optimizer generates real-time performance reports for processor, storage, memory, and graphics utilization, as well as send a system report to IT for analysis.
Windows 10 Pro for Workstations (64-Bit) - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 884116319979 In the Box Dell Precision 3420 Small Form Factor Workstation KB216 Multimedia Keyboard Dell MS116 Wired Mouse Power Cord Limited 3-Year Hardware Warranty with Onsite/In-Home Service After Remote Diagnosis Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell Precision 3420 Small Form Factor Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell Precision 3420 Specs | Operating System | Windows 10 Pro for Workstations (64-Bit) | | | | CPU Socket | LGA 1151 | | CPU | 3.7 GHz Intel Xeon E3-1240 v6 Quad-Core | | Maximum Boost Speed | 4.1 GHz | | L3 Cache | 8 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 16 GB | | Memory Configuration | 2 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 64 GB | | Memory Slot Type | 288-Pin DIMM | | Available Memory Slots | 2 | | ECC Memory | Yes | | Graphics Type | Dedicated | | GPU | NVIDIA Quadro P600 with 2 GB GDDR5 VRAM | | | | Total Drive Bays | 1 x 2.5/3.5" (Internal) | | Solid State Storage | 1 x 256 GB M.2 PCIe | | PCI Expansion | 1 x PCIe Gen 3 x4 | | Optical Drive | 8x-Speed Tray-Load SuperMulti DVD Burner with Dual Layer Support | | | | Ports | 6 x USB Type-A (USB 3.1 Gen 1)
4 x USB Type-A (USB 2.0)
2 x PS/2
1 x DE-9 (Serial) | | Display | 4 x Mini DisplayPort 1.4 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
1 x 1/8" / 3.5 mm Line Output | | Built-In Speakers | 1 | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | | | Keyboard | Full-Size Keyboard with Number Pad | | Pointing Device | USB Mouse | | | | Power Supply | 240 W | | Dimensions | 3.7 x 11.4 x 11.5" / 9.4 x 29 x 29.2 cm | | Weight | 11.7 lb / 5.3 kg |
