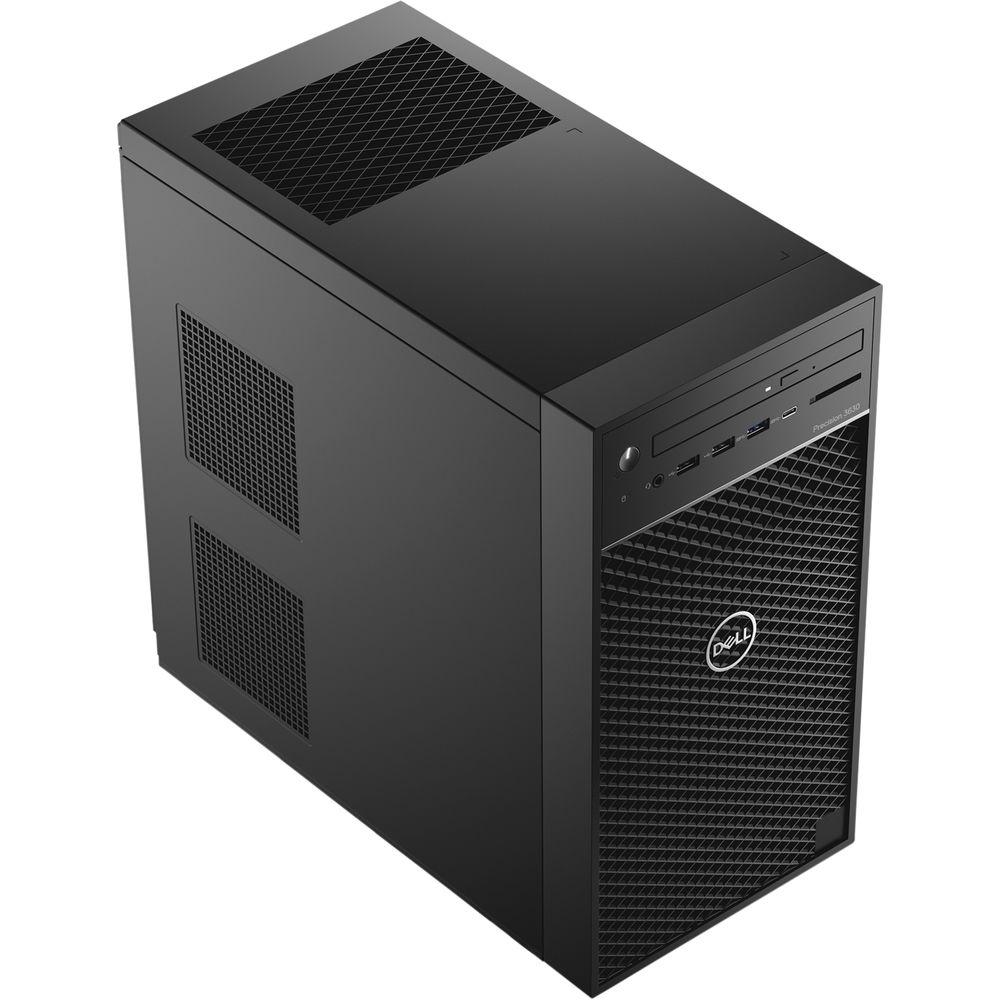

User Manual for Dell Precision 3620 Tower Workstation Click to enlarge the picture
Contents of the user manual for the Dell Precision 3620 Tower Workstation
- Product category: PC Workstations Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell PC Workstations
 |
User manual for the Dell Precision 3620 Tower Workstation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|
Product description Power through intensive tasks, ranging from large and complex 3D, multimedia, and video projects with the Precision 3620 Tower Workstation from Dell. This system is powered by a 3.4 GHz Intel Core i7-6700 Quad-Core processor which will allow you to run multiple applications simultaneously. If more power is needed, the CPU can deliver extra performance by increasing its clock speed up to 4.0 GHz utilizing Intel's Turbo Boost 2.0 technology. There is also 8GB of 2400 MHz DDR4 RAM that comes in a 2 x 4GB configuration and can be upgraded to 64GB by using a 16GB module in each of the four 288-pin DIMM slots.

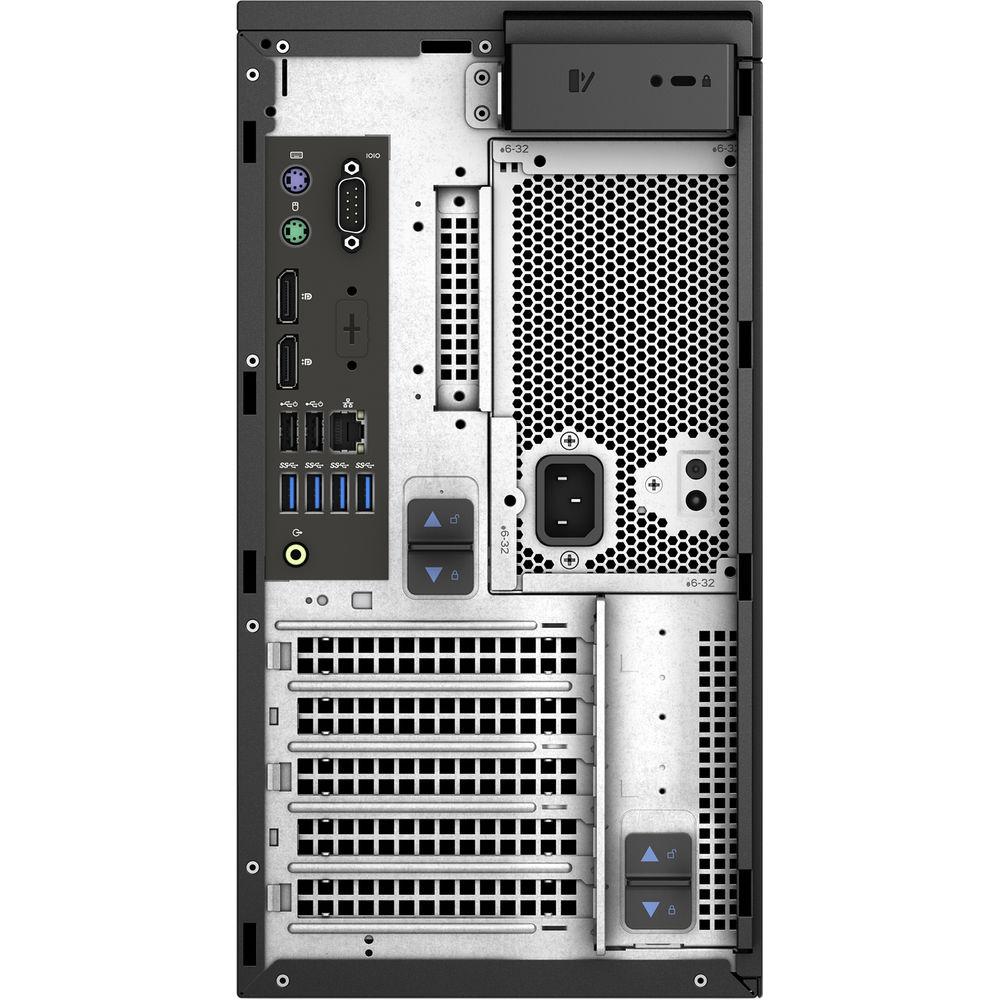

For storage of your files, this system is equipped with a 1TB 7200 rpm SATA 3.5" hard drive. If you want to add external storage drives, optical drives, printers, memory card readers, or other peripherals, the 3620 features six 5 Gb/s USB 3.0 Type-A ports (2 front, 4 rear), four USB 2.0 Type-A ports (two front and two rear), one serial port, and two PS/2 ports. The integrated Intel HD Graphics 530 chipset delivers a sharp, clear picture, and takes advantage of one HDMI and two DisplayPort outputs. Whether you are listening to music, watching a movie, or playing a game, the integrated Realtek ALC3861 audio controller outputs high-definition audio and delivers higher fidelity than standard audio controllers. Network connectivity is achieved using the integrated Gigabit Ethernet port and Dell's 16x DVD±RW Drive can be used to read from and write to optical media.
Dell's Precision 3620 Tower Workstation operates using an internal 365W power supply. Includes is Dell's KB216 USB keyboard, MS116 USB mouse, and a power cord. The installed operating system is Windows 10 Pro (64-bit). General Features - Intel Core i7 Processor
- A 3.4 GHz Intel Core i7-6700 Quad-Core processor powers through intensive tasks and features a boost speed of up to 4.0 GHz.
- Your Work Can Count on It
- Precision Workstations are tested to ensure the high-performance applications you rely on every day run smoothly. Dell Independent Software Vendor (ISV) certifications cover popular independent software applications.
- Mini Tower Form Factor
- The mini tower's compact size gives you the option to expand as your business needs grow, making this suitable for a space-saving system that doesn't sacrifice power or potential.
- Security
- You can choose your level of security with a number of beneficial options including optional Dell Data Protection, Security Tools + Dell ControlVault, and Encryption Personal Edition or Enterprise Edition.
- Large Memory
- Easily store and access large and complex 3D, multimedia, and video project files with the speed and reliability of up to 64GB of 2400 MHz DDR4 memory.
- Lock and Key
- Available FIPS-certified self-encrypting drives (SEDs) can reduce security risks and unauthorized access to your data.
- Big files? No Problem
- Large file transfers of data and video are quick and easy with optional Thunderbolt 2 connectivity, as well as optional PCIe M.2 SSD storage.
- Drive Bays
- Two internal 3.5" bays support two 3.5" drives or four 2.5" drives. There are also two 5.25" external drive bays and one internal M.2 2280 slot. A second SSD can be supported using the separately-sold Dell Precision Ultra-Speed drive add-in card.
- PCIe Slots
- 1 x PCIe 3.0 x16/x16
1 x PCIe 3.0 x4/x16
1 x PCIe 3.0 x4/x4
1 x PCI Windows 10 Pro - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana, can answer your questions with information gleaned from both your device and the Internet at large. You can type or even talk with her, if your system has a microphone. Using her Laptop, Cortana keeps track of your needs and wants, and she learns over time to improve her information-gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 884116320036 In the Box Dell Precision 3620 Tower Workstation KB216 Multimedia Keyboard Dell MS116 Wired USB Mouse Power Cord Limited 3-Year Hardware Warranty with Onsite/In-Home Service After Remote Diagnosis Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell Precision 3620 Tower Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell Precision 3620 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | Chipset | Intel C236 | | CPU Socket | LGA 1151 | | CPU | 3.4 GHz Intel Core i7-6700 Quad-Core | | Maximum Boost Speed | 4.0 GHz | | L3 Cache | 8 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 8 GB | | Memory Configuration | 2 x 4 GB (User-Replaceable) | | Maximum Memory Capacity | 64 GB | | Memory Slot Type | 288-Pin DIMM | | Available Memory Slots | 2 | | Graphics Type | Integrated | | GPU | Intel HD Graphics 530 | | | | Total Drive Bays | 2 x 2.5/3.5" (Internal)
2 x 5.25" (External) | | SSD Slots | 1 x M.2 PCIe (Available) | | Total Installed Capacity | 1 TB | | Hard Disk Storage | 1 x 1 TB 3.5" SATA (7200 rpm) | | PCI Expansion | 1 x PCIe Gen 3 x16 (x16 Mechanical)
1 x PCIe Gen 3 x4 (x16 Mechanical)
1 x PCIe Gen 3 x4 (x4 Mechanical)
1 x PCI | | Optical Drive | 16x-Speed Tray-Load SuperMulti DVD Burner with Dual Layer Support | | | | Ports | 6 x USB Type-A (USB 3.1 Gen 1)
4 x USB Type-A (USB 2.0)
2 x PS/2
1 x DE-9 (Serial) | | Display | 2 x DisplayPort
1 x HDMI | | Audio | 1 x 1/8" / 3.5 mm Microphone Input
1 x 1/8" / 3.5 mm Microphone/Line Input/Output
1 x 1/8" / 3.5 mm Headphone Output
1 x 1/8" / 3.5 mm Line Output | | Built-In Speakers | 1 | | Built-In Microphones | None | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | None | | Bluetooth | None | | | | Keyboard | USB Full-Size Keyboard with Number Pad | | Pointing Device | USB Mouse | | | | Power Supply | 365 W | | Dimensions | 17.1 x 14.2 x 6.9" / 43.43 x 36.07 x 17.53 cm | | Weight | 20.1 lb / 9.1 kg |
