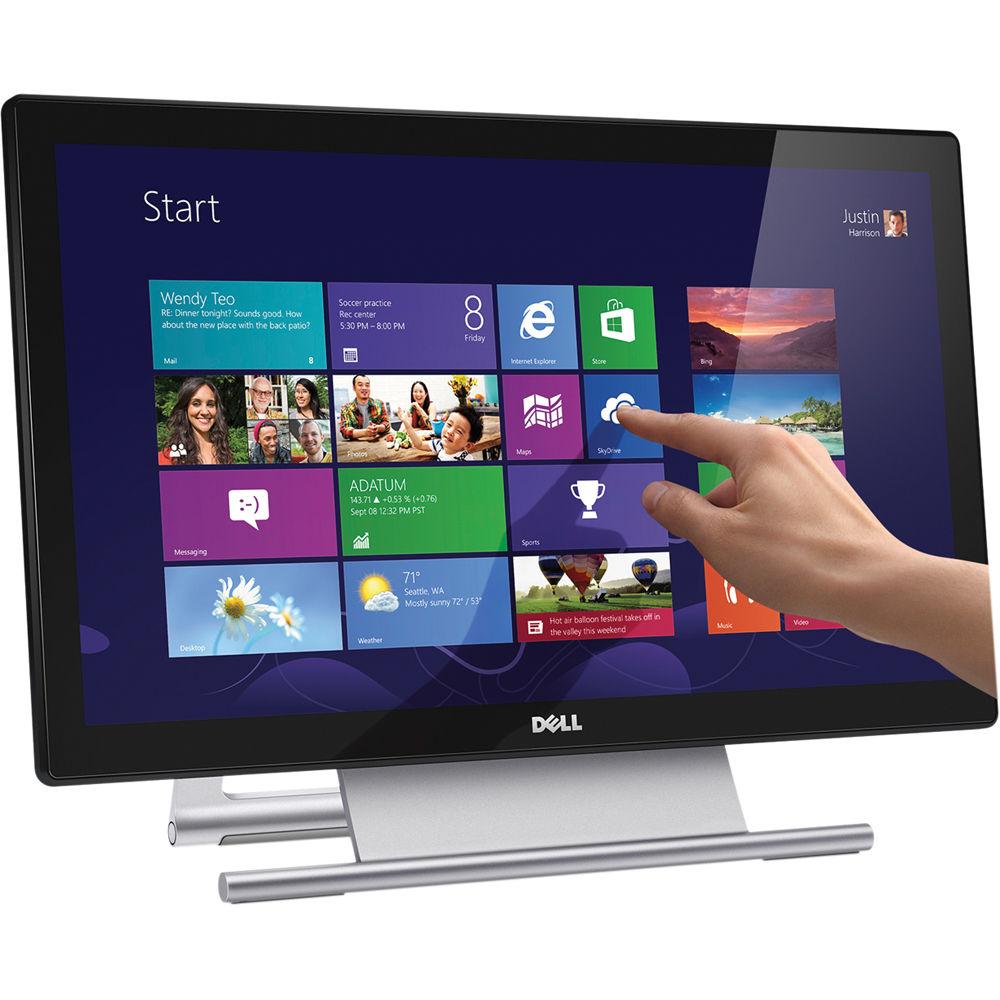

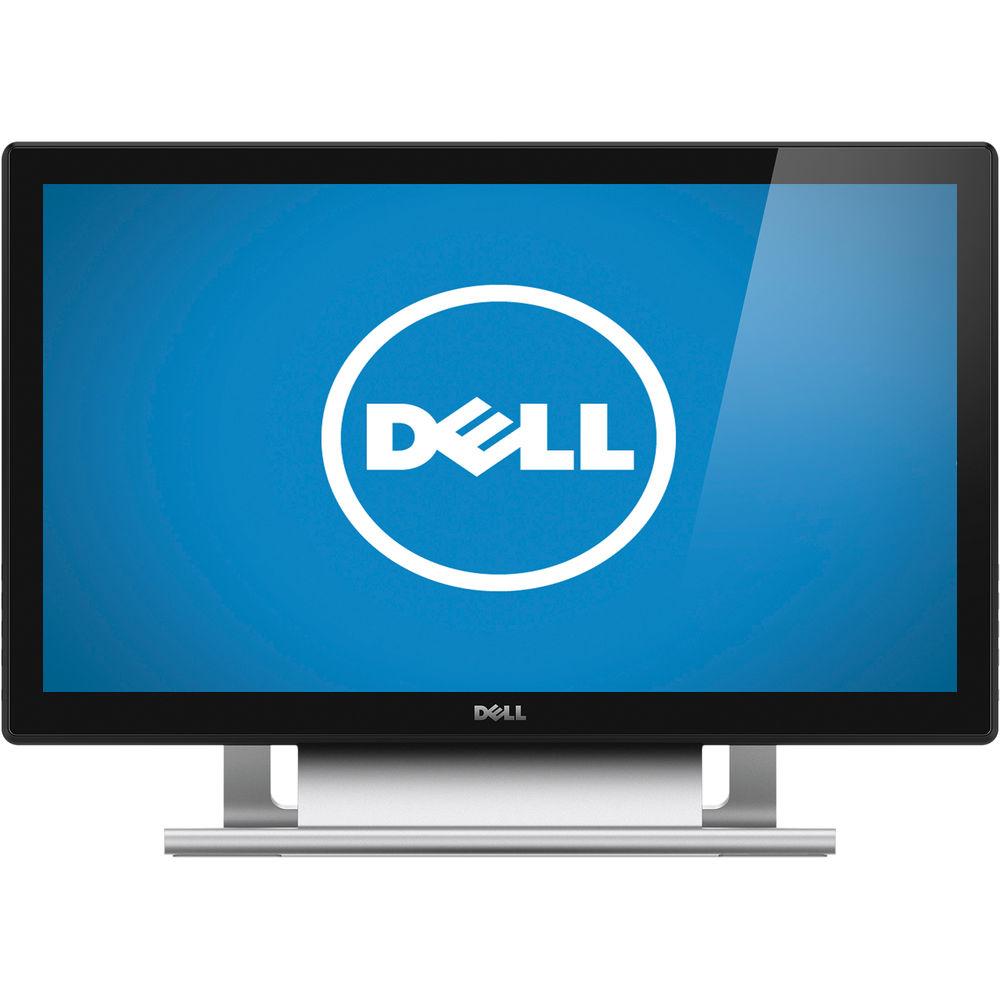

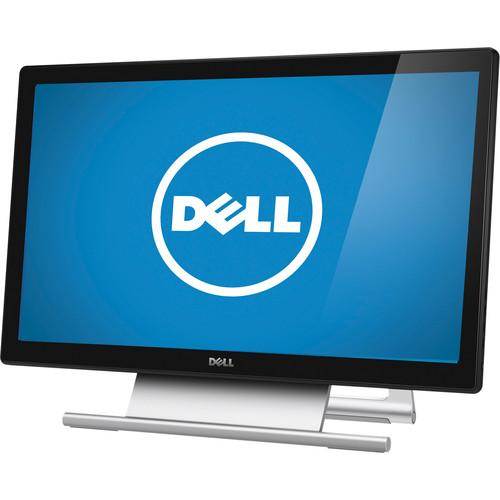

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The S2240T 21.5" Widescreen LED Backlit LCD Touch Monitor from Dell is a Windows 8 Certified, 10-point multi-touch, capacitive display designed to provide an interactive touch experience. With a 1920 x 1080 resolution, widescreen 16:9 aspect ratio, 3,000:1 contrast ratio, and a 12 ms response time, you can view all of your applications, movies, pictures, and more in Full HD quality.

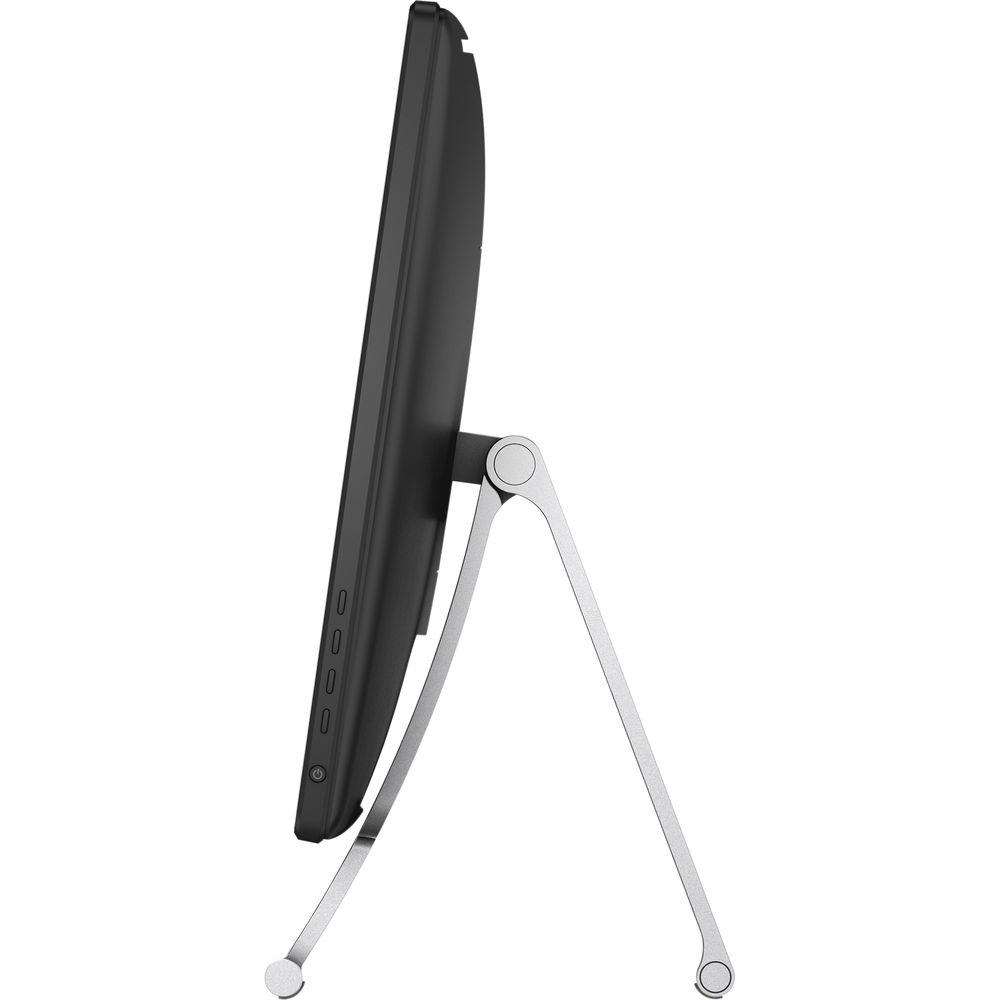

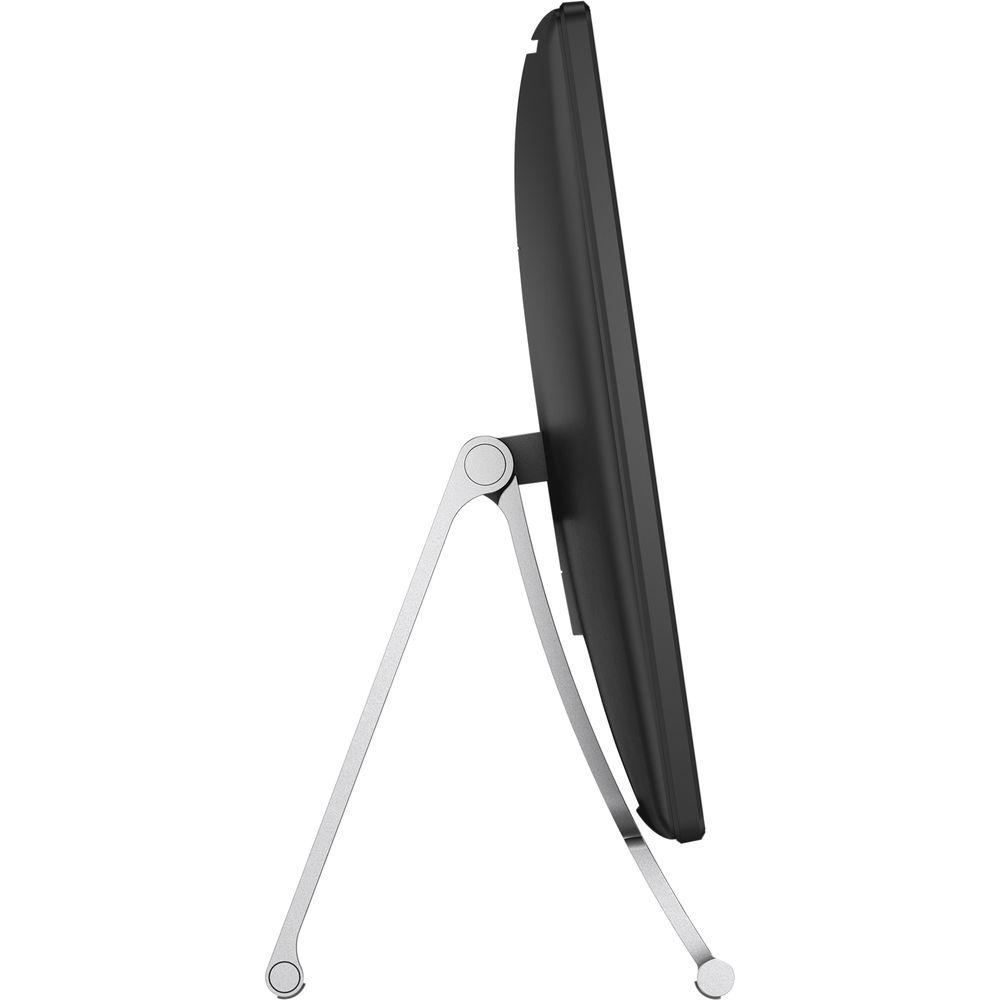

Mount the S2240T to the wall using a VESA-compatible mount or use the included ergonomic stand to tilt the display up to 60° for enhanced viewing comfort. With 178° horizontal and vertical viewing angles, the screen can be viewed from nearly any angle with little to no distortion.

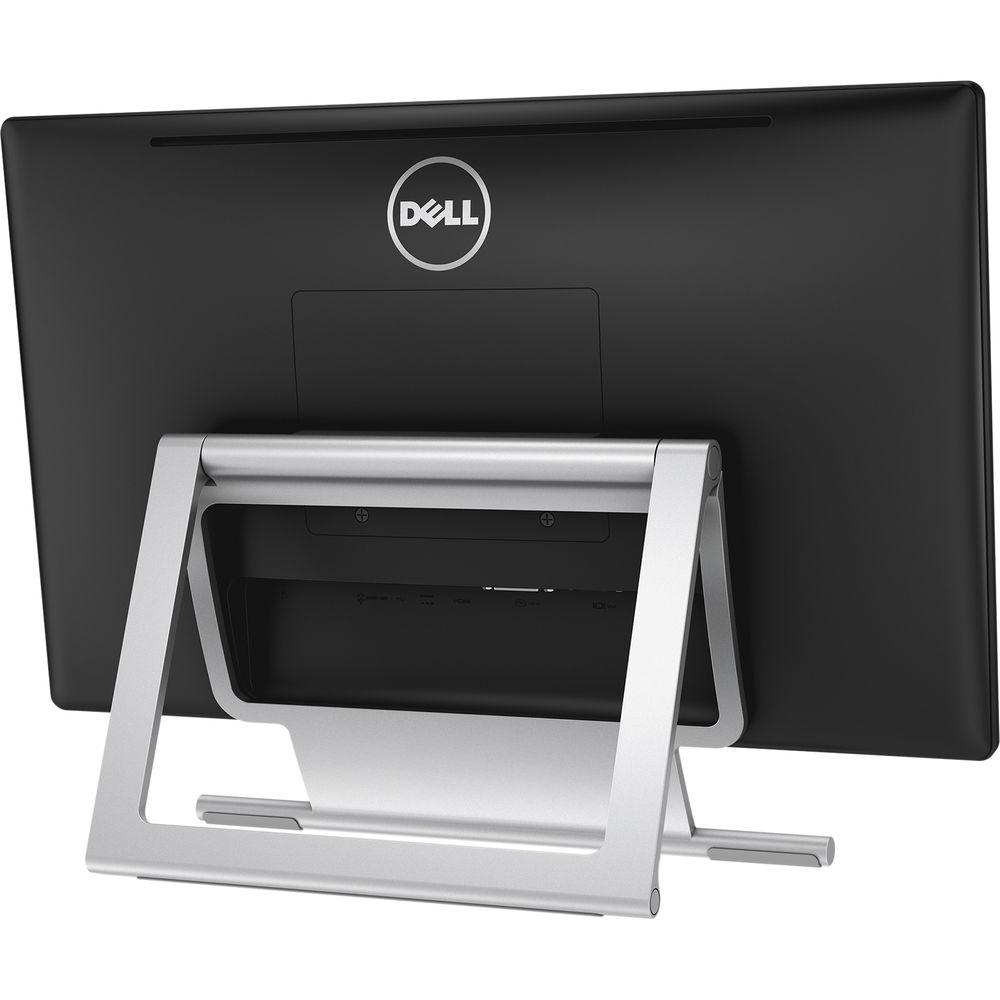

Setup and configuration of this 21.5" LED Touch Monitor has also been simplified as it supports HDMI, DVI, and VGA inputs. You can also utilize the USB upstream port to connect the monitor directly to your PC. Once configured, the energy efficient design and power saving features allow for reduced power consumption as the S2240T comes ENERGY STAR qualified and EPEAT Silver rated. Enhanced Usability - Ergonomic Stand

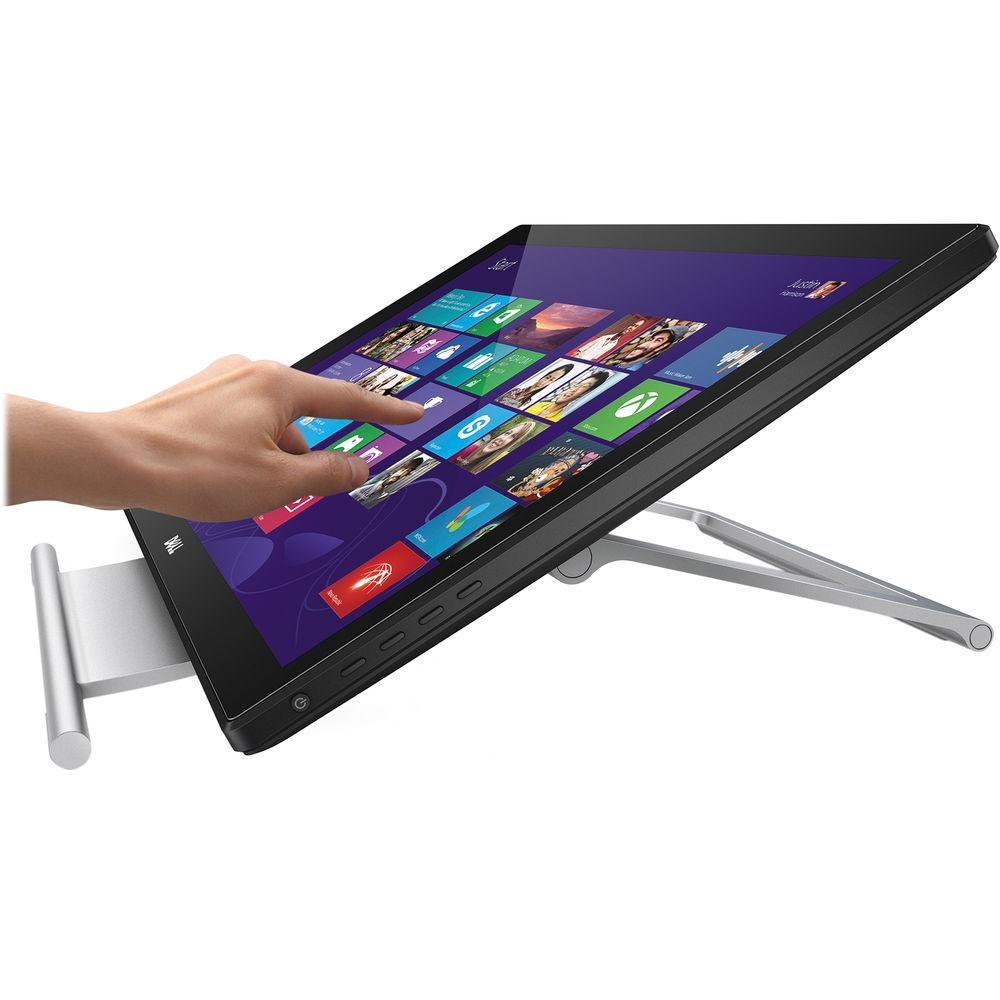

- Slide your display toward you smoothly and naturally to touch and type while tilting as much as 60°.

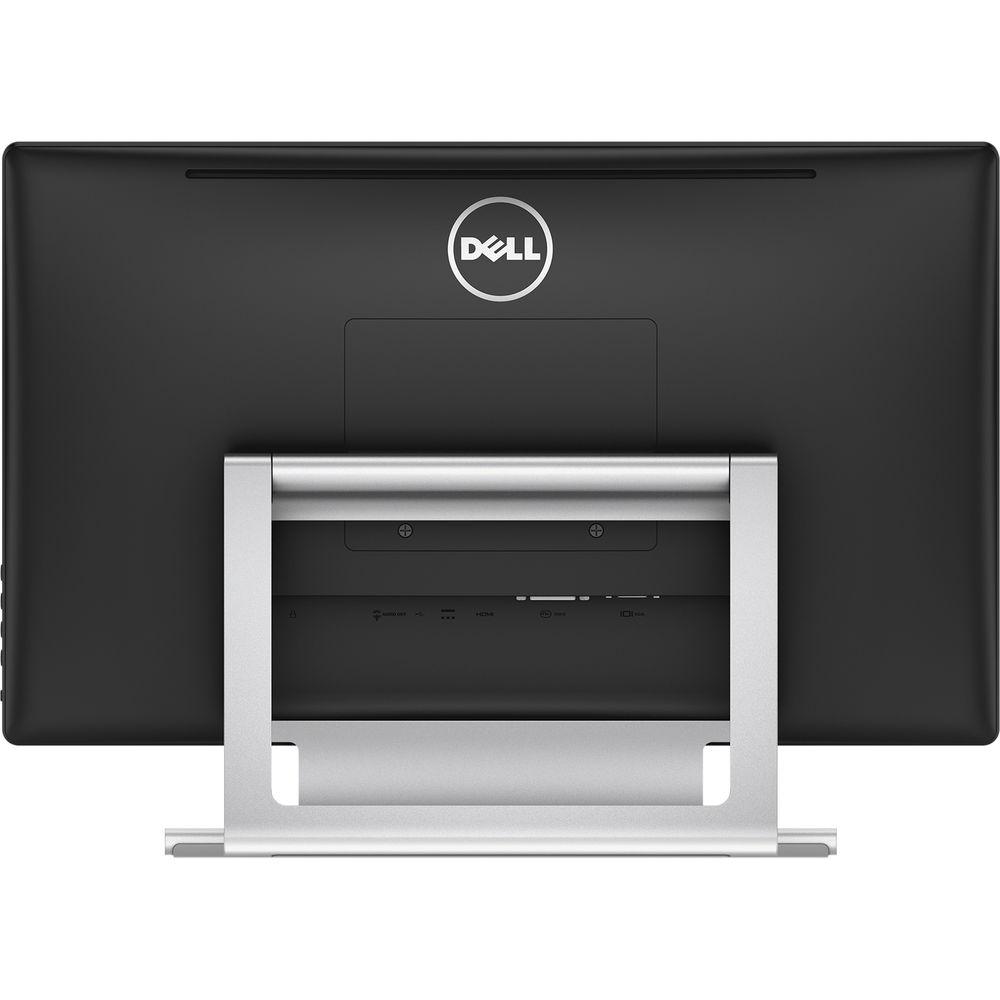

- VESA Compatibility
- You can choose to mount your monitor on the wall or attach it to the Dell Single Monitor ARM to take advantage of greater viewing flexibility.
Please note that the Dell Single Monitor ARM is sold separately - Integrated Connectivity

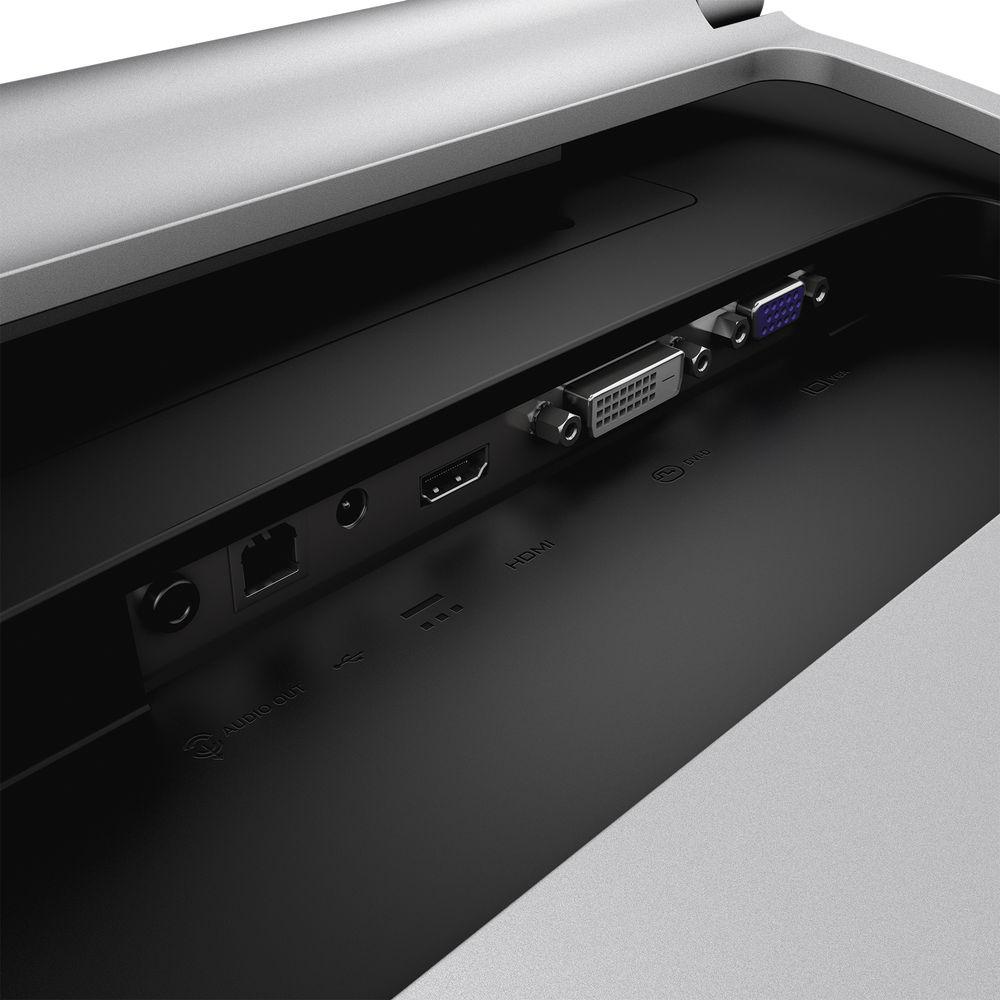

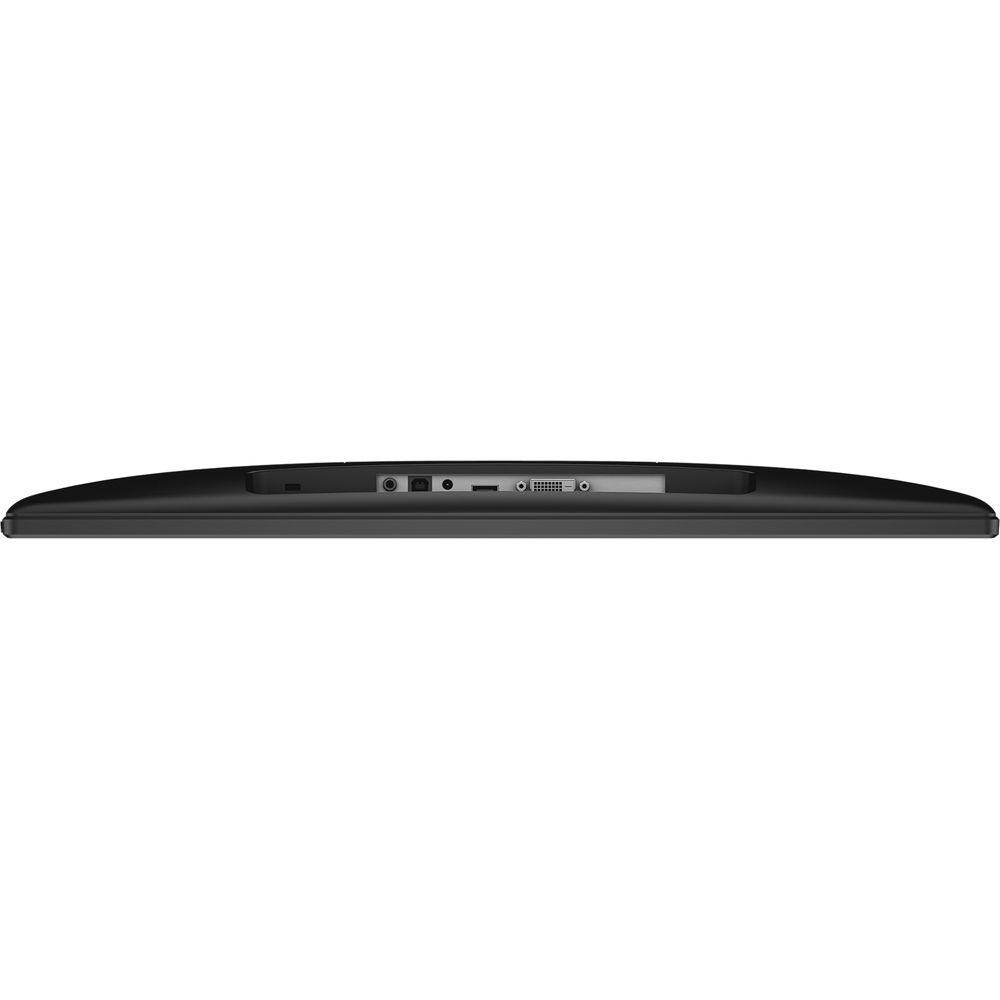

- HDMI, DVI, and VGA ports enable direct connections to your desktop, laptop, camera, phone and other electronic devices.
- Image Projection
- Connect the USB cable from your PC to the monitor's USB upstream port, and use either a HDMI, DVI, or VGA cable to project images onscreen.
Natural Touch & Enhanced Image Clarity - Screen Clarity
- This 16:9 widescreen display features a Full HD 1920 x 1080 resolution along with a 3,000:1 contrast ratio, and 178°/178° viewing angles.
- Edge-to-Edge Glass
- With a big panel you benefit from a smooth touch experience plug Image Enhance designed to sharpen images, improve color hues and boost color contrast.
- Dell Display Manager
- With features like Auto Mode, you can choose from preconfigured color settings to optimize the appearance of individual applications.
Efficient Design - 20 W Typical Power Consumption
- Energy use is up to 28.57 percent lower than the previous-generation Dell Touch Monitor.
- Power-Saving Features
- Dynamic dimming lowers brightness of predominately white screens. PowerNap, when enabled, dims the monitor when not in use.
- High Environment Standards
- ENERGY STAR qualified and EPEAT Silver rated, the Dell 21.5" Touch Monitor also features arsenic-free glass and a mercury-free LED panel.
In the Box Dell S2240T 21.5" Widescreen LED Backlit LCD Touch Monitor Power Cable Power Adapter HDMI Cable USB Upstream Cable Cleaning Cloth Hook-and-Eye Strap Drivers and Documentation Media Limited 1-Year Manufacturer Warranty (USA & LAR) Limited 3-Year Manufacturer Warranty (International) User Manual PDF 1.2mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell S2240T 21.5" Widescreen LED Backlit LCD Touch Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell S2240T Specs | | | Viewable Image Size | 21.5" / 54.6 cm (diagonal)
Horizontal: 18.77" / 47.68 cm
Vertical: 10.56" / 26.82 cm | | Maximum Resolution | 1920 x 1080 at 60 Hz | | Aspect Ratio | 16:9 | | Pixel Pitch | 0.248 x 0.248 mm | | Brightness | 250 cd/m² | | Color Support | Color Gamut: 84% (typical)
Color Depth: 16.7 million colors | | Viewing Angles | Horizontal: 178°
Vertical: 178° | | Response Time | 12 ms with overdrive | | Panel Type | VA | | Panel Backlight | LED | | | | Panel Technology | Projected capacitive system | | Sensor Stack Thickness | 1.1 mm | | Cover Glass Thickness | 1.1 ± 0.2 mm | | Touch Method | Fingers and thin gloves | | Touch Point | 10 touch-points | | Response Time | 25 ms | | Supported Operating System | Windows 8 Certified | | | | Connectors | DVI-D (HDCP), HDMI, VGA | | USB Port | USB 2.0 upstream port (for touch enablement) | | Audio Line Out | Yes | | | | Input Voltage | 100 to 240 VAC / 50 or 60 Hz + 3 Hz / 1.2 A (typical) | | Power Consumption | Normal: 20 W
Active-Off Mode: <0.5 W | | | | Green Compliance | ENERGY STAR
EPEAT Silver | | | | Tilt | Up to 60° | | Security | Security lock slot | | VESA Compatibility | 100 x 100 mm | | Dimensions (HxWxD) | With Stand: 15.07~7.69 x 20.57 x 3.05~16.57" / 38.28~19.53 x 52.25 x 7.75~42.09 cm | | Weight | With Stand: 12.78 lb / 5.80 kg
Without Stand: 7.49 lb / 3.4 kg | | | | Package Weight | 16.25 lb | | Box Dimensions (LxWxH) | 24.0 x 18.8 x 6.0" |
