User Manual for Dell S2319HN 23" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell S2319HN 23" 16:9 IPS Monitor
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell S2319HN 23" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

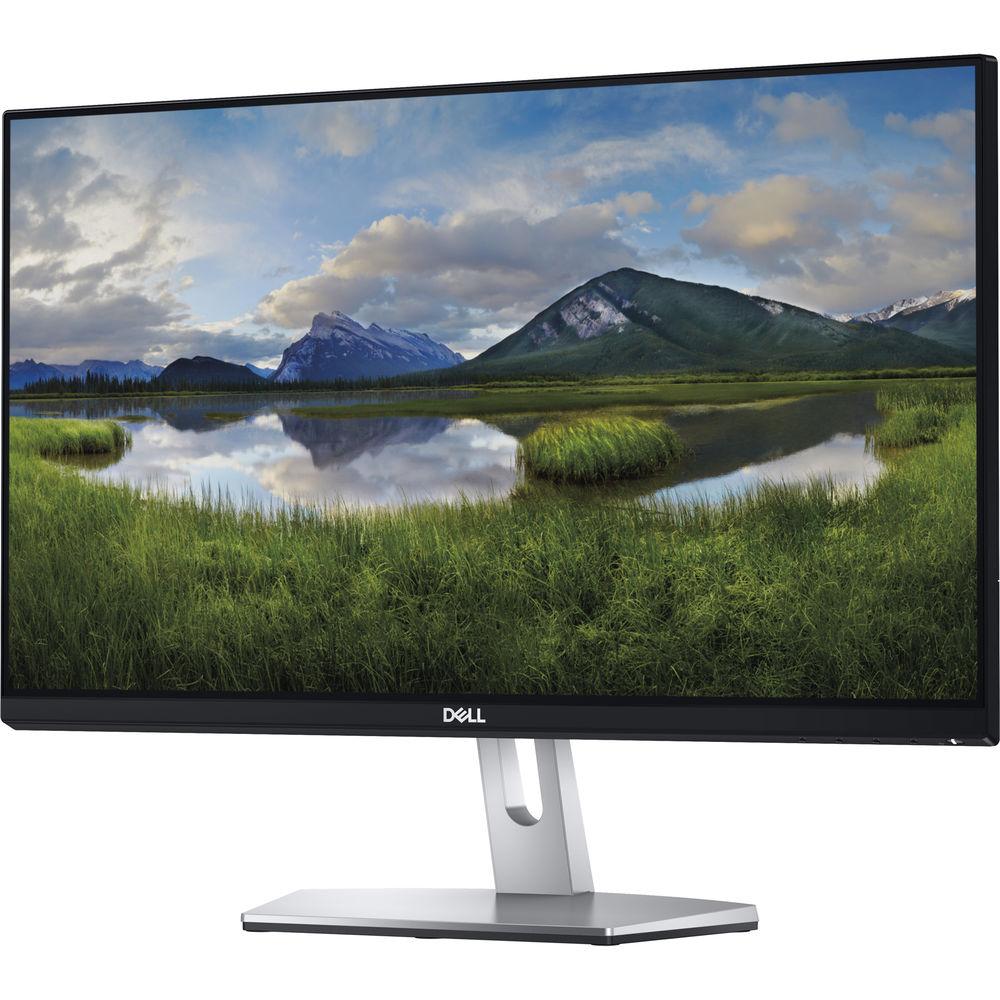

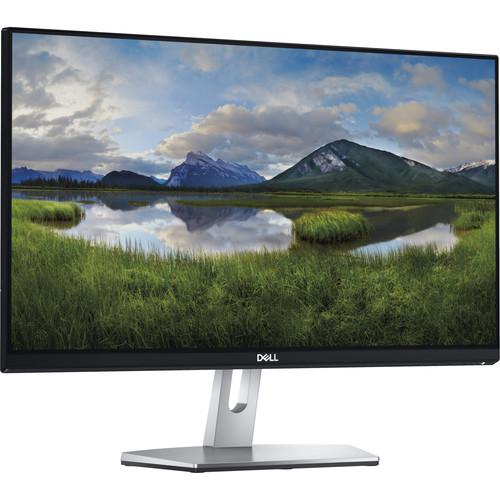

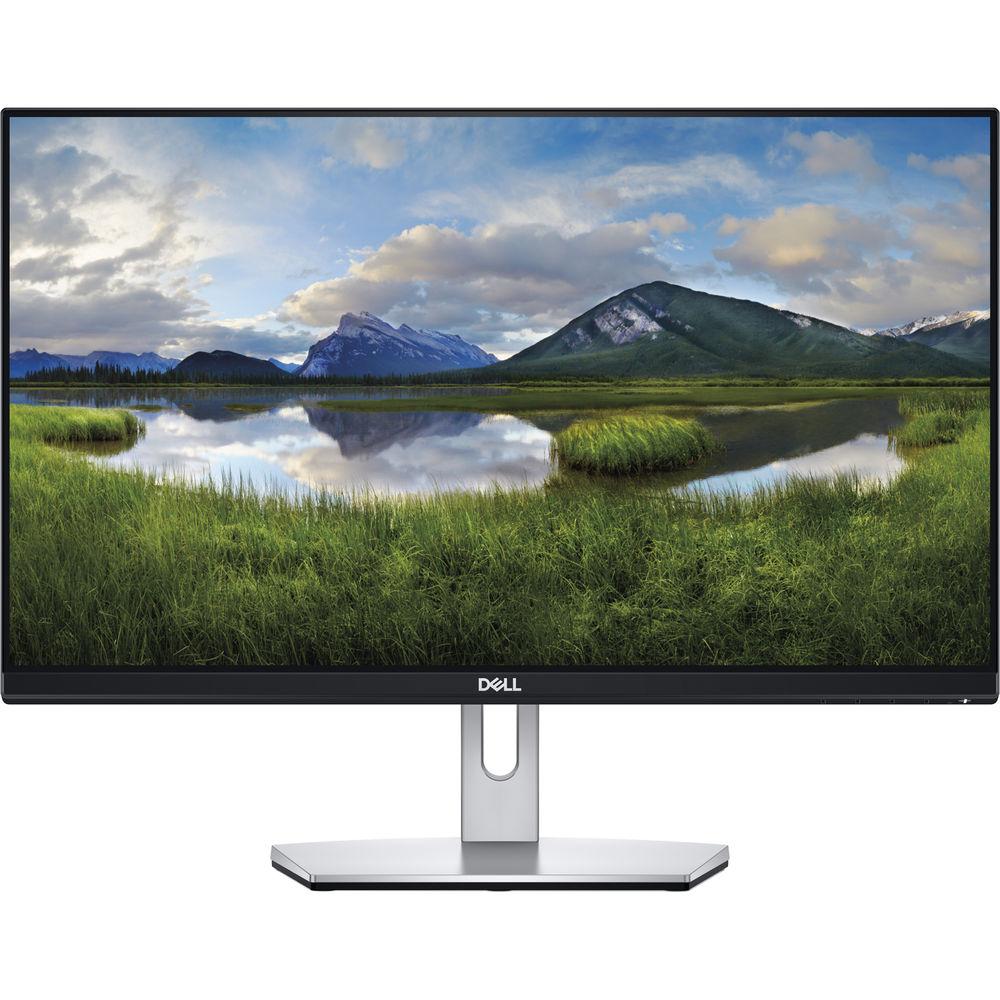

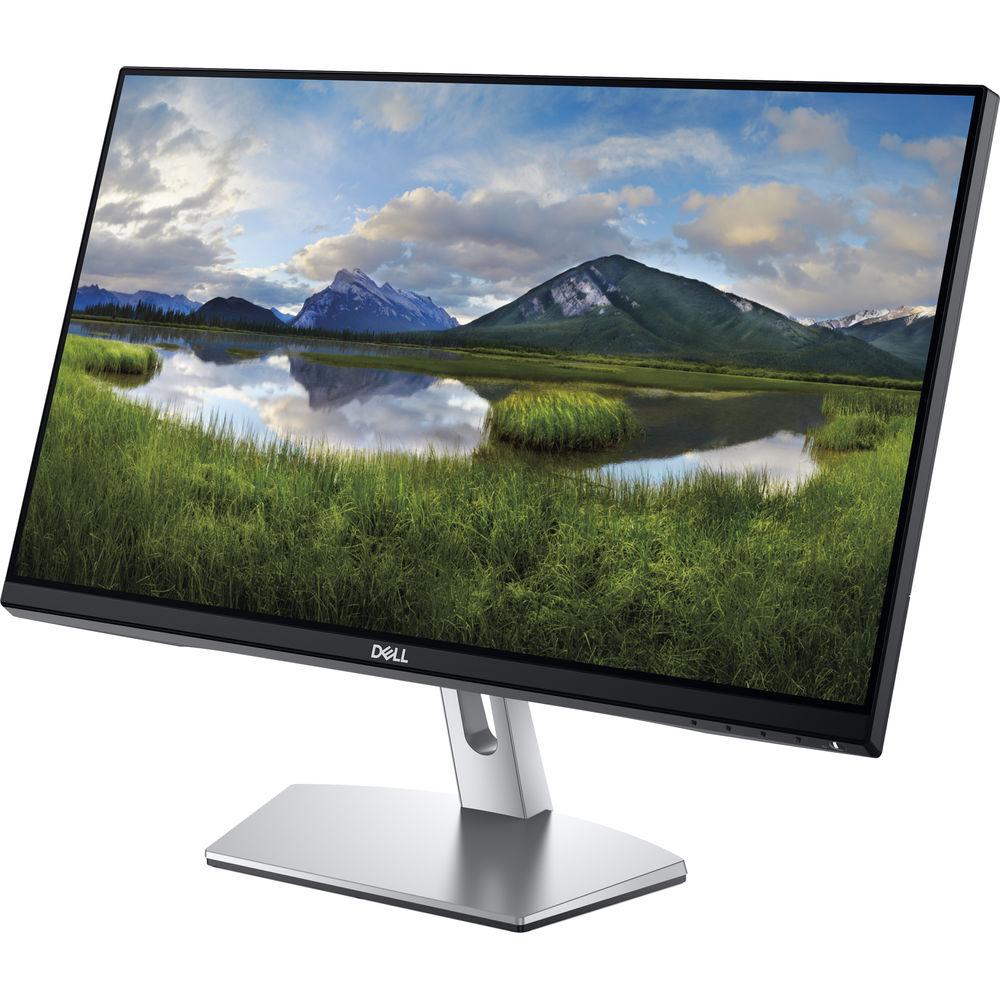

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With an ultra-thin bezel, the S2319HN 23" 16:9 IPS Monitor from Dell lets you focus on your project, document, photo, or whatever else you may be viewing. In addition to the narrow bezel, this display features a Full HD 1920 x 1080 resolution, a 1000:1 contrast ratio, a 250 cd/m² brightness rating, a 5 ms response time, and support for up to 16.7 million colors.

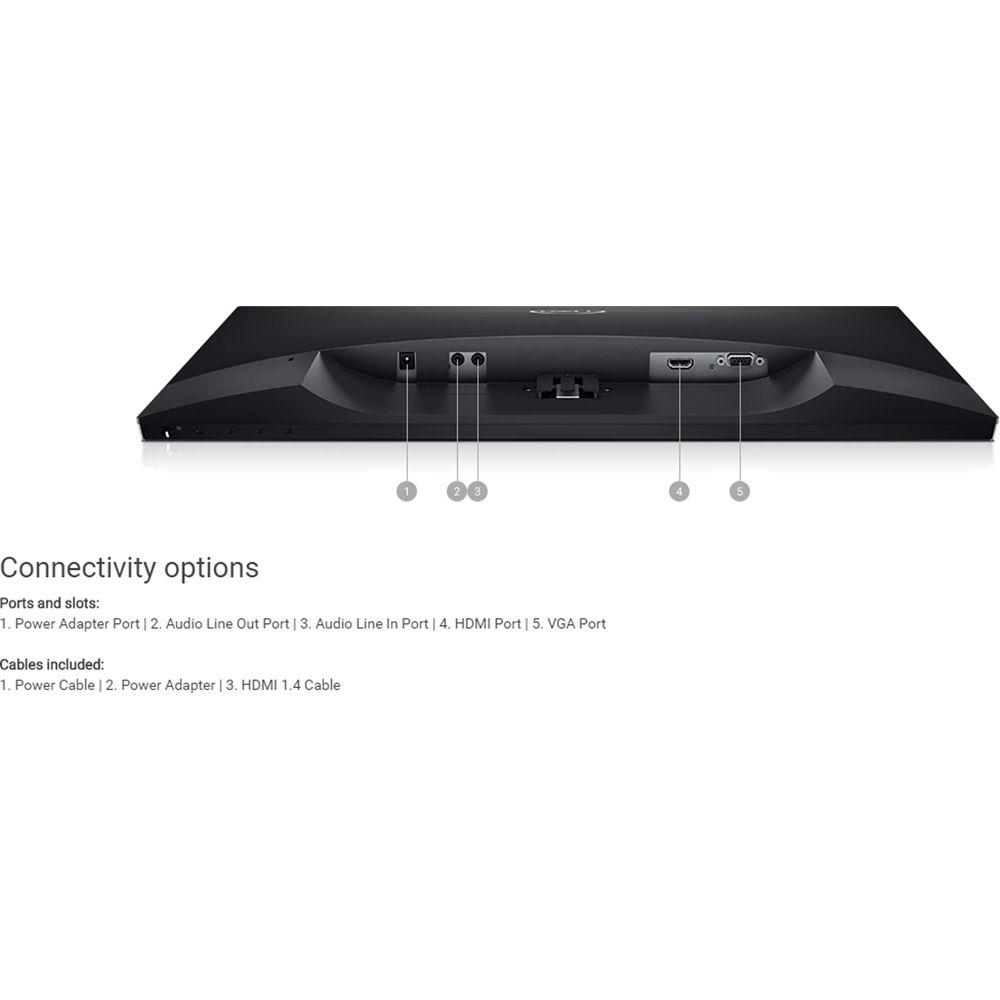

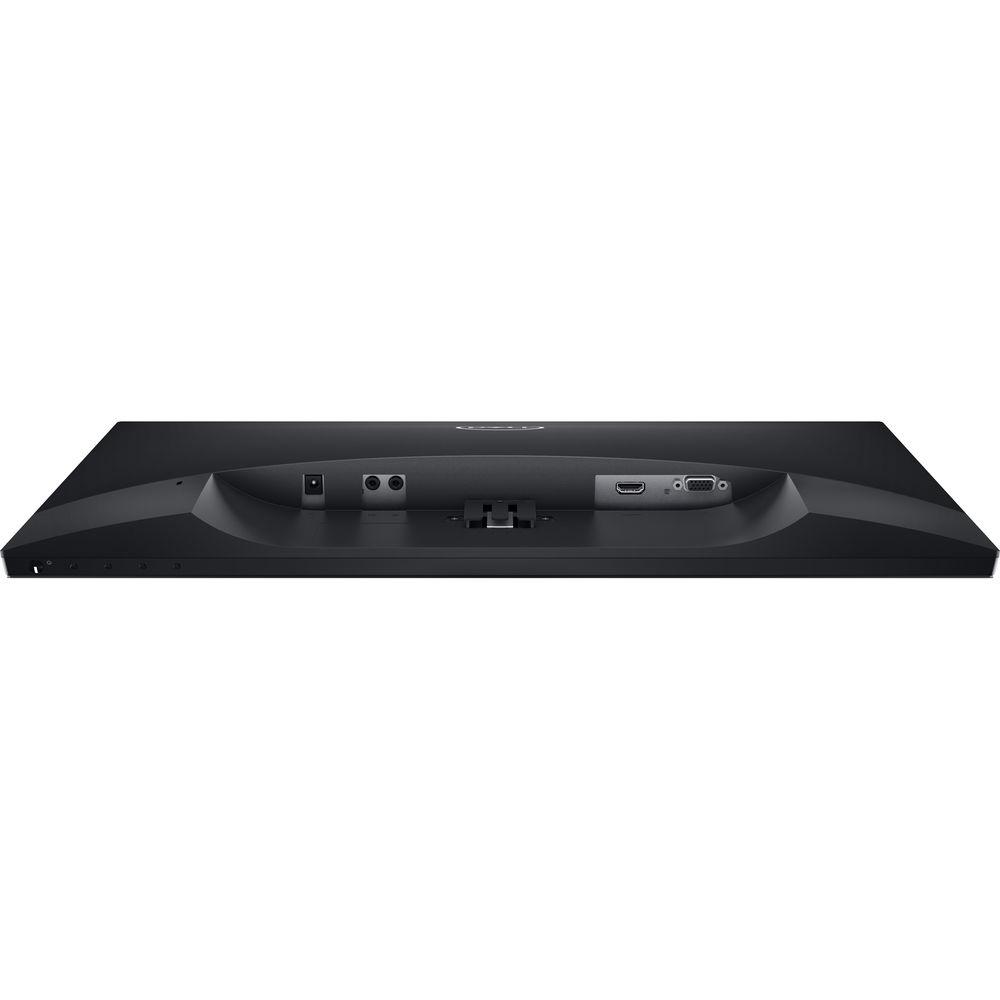

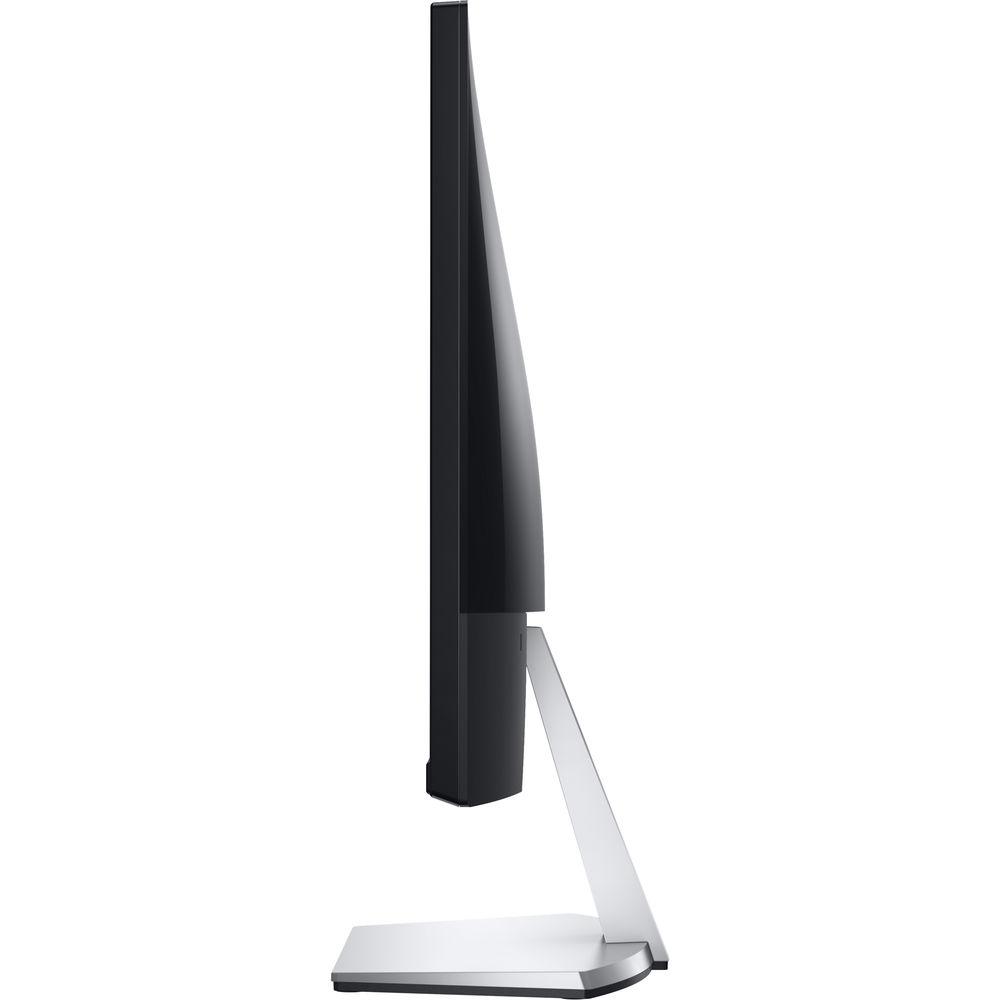

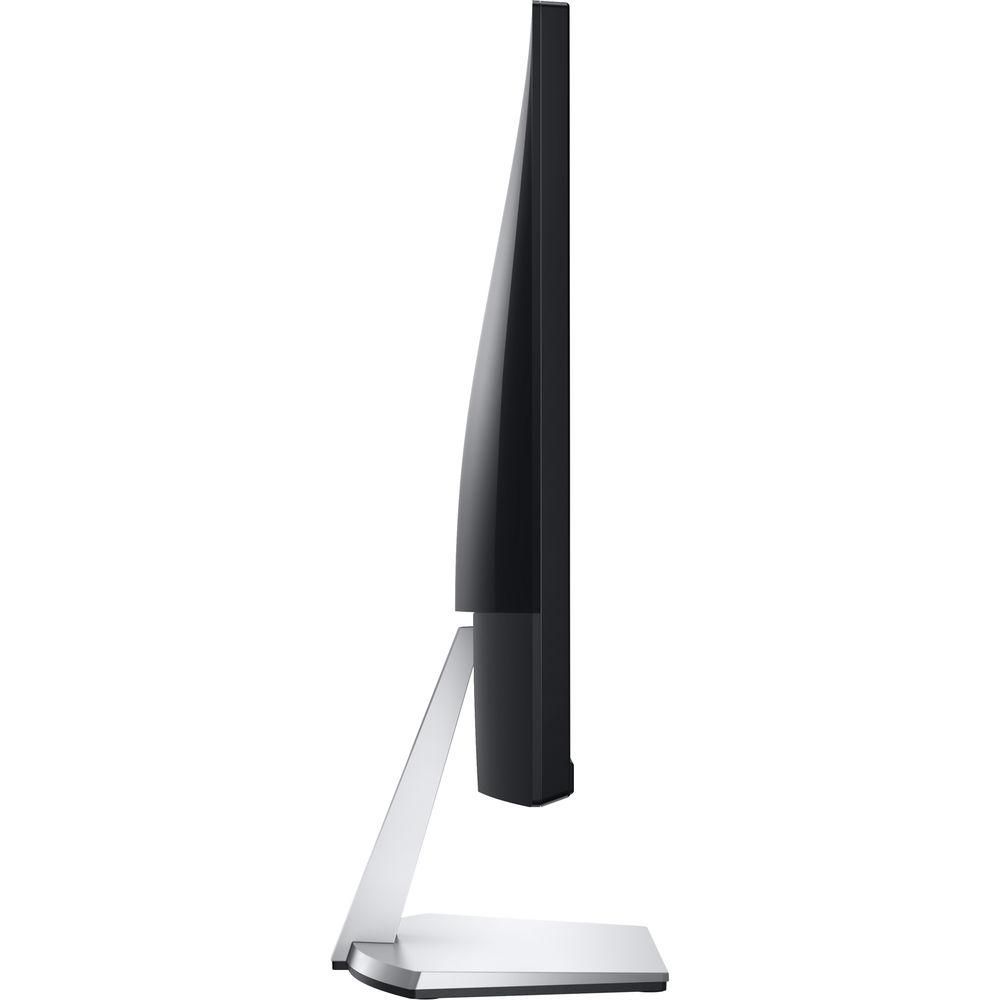

Installation is simple as this display comes equipped with both HDMI and VGA inputs, making it easy to connect the monitor to a variety of computer configurations. In addition to video inputs, this Dell display also comes equipped with 3.5mm audio connectivity to plug speakers or headphones directly to the monitor. Once configured, viewers can take advantage of improved color representation as the monitor covers up to 72% of the CIE 1931 color space and up to 83% of the CIE 1976 color space, which is essential for tasks such as photo or video editing. To complete the viewing experience this S2319HN Dell Monitor features an ergonomic stand that allows the display to be tilted from -5 to 21° to take full advantage of the 178° horizontal and vertical viewing angles. - Striking Looks
-
- The ultra-thin bezel design lets you enjoy the HD screen with less distraction

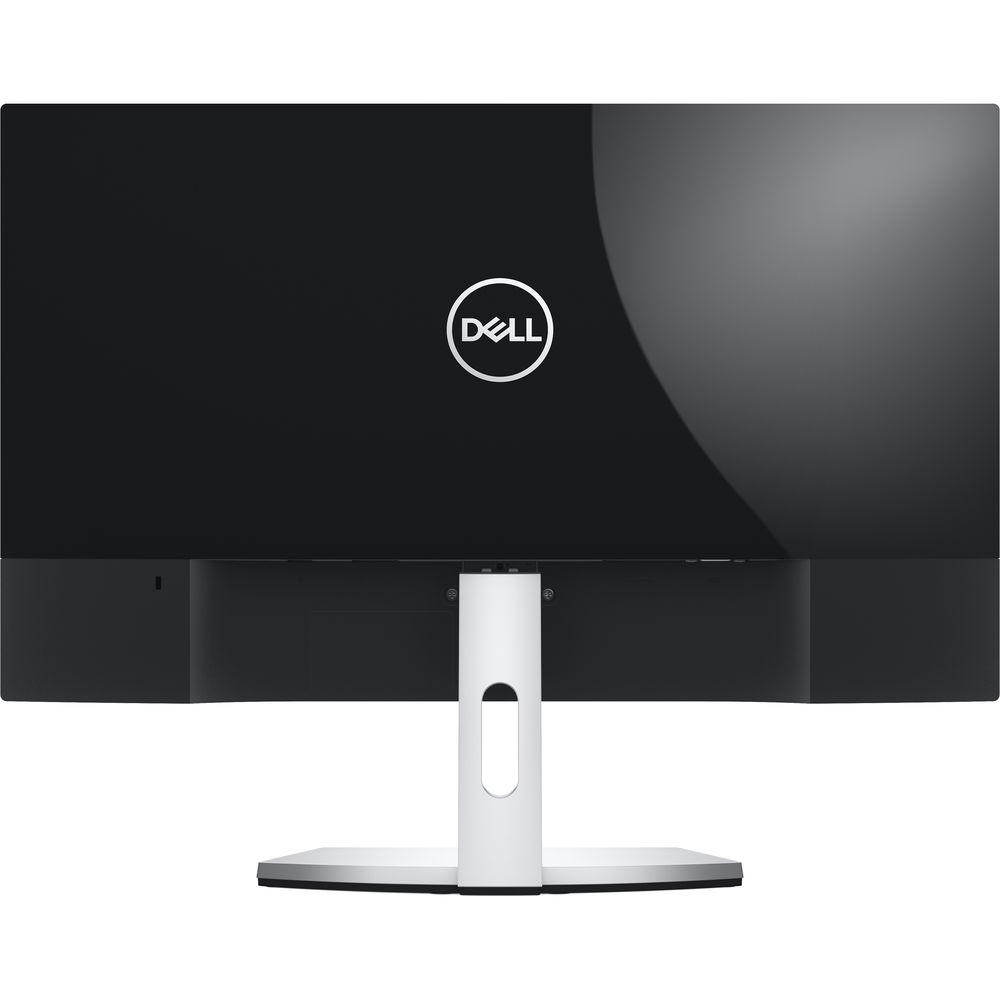

- Complement your desk with a modern and chic design. From the widescreen display to the glossy back cover, every inch was designed with style in mind
- Color Your World
-
- Experience the enhanced screen clarity that comes with the Full HD (1920 x 1080) resolution display
- A wide viewing angle enabled by In-Plane Switching (IPS) technology lets you see vibrant colors - no matter where you sit
- Thrill Your Senses
-
- This TUV Certified monitor has a flicker-free screen with ComfortView, a feature that filters out harmful blue light emissions. It's designed to optimize eye comfort even over extended viewing–like your next movie marathon
UPC: 884116302629 In the Box Dell S2319HN 23" 16:9 IPS Monitor - Stand Riser
- Stand Base
- Power Cable
- Power Adapter
- HDMI Cable
- Limited 3-Year Warranty
User Manual PDF 5.2mbdstbxbfeyvrzyeeubufxcwwvcwybsrsaeezbv Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell S2319HN 23" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell S2319HN Specs | | | Size | 23" | | Screen Area | 20.05 x 11.28" / 50.93 x 28.65 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 96 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 72% CIE1931
83% CIE1976 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.265 x 0.265 mm | | | | Connectivity | 1 x HDMI 1.4 Input
1 x VGA Input
1 x 3.5 mm Input
1 x 3.5 mm Output | | HDCP Support | Yes, Version 1.4 | | Built-In Speakers | None | | | | Power Consumption | 23 W (Typical)
34 W (Maximum)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 to 1.2 A | | Power Adapter Type | External | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 90% | | Operating Altitude | 0 to 16,400' / 0.00 to 4998 m | | Storage Altitude | 0 to 40,000' / 0.00 to 12,192 m | | Certifications | ENERGY STAR, TCO Certified, TUV, WEEE, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 21° | | Lock Slot | Yes | | Dimensions (W x H x D) | 20.6 x 15.9 x 6.0" / 52.2 x 40.4 x 15.3 cm (With Stand)
20.6 x 12.3 x 1.9" / 52.2 x 31.2 x 4.9 cm (Without Stand) | | Weight | 8.47 lb / 3.84 kg | | | | Package Weight | 12.75 lb | | Box Dimensions (LxWxH) | 23.0 x 14.5 x 5.0" |
