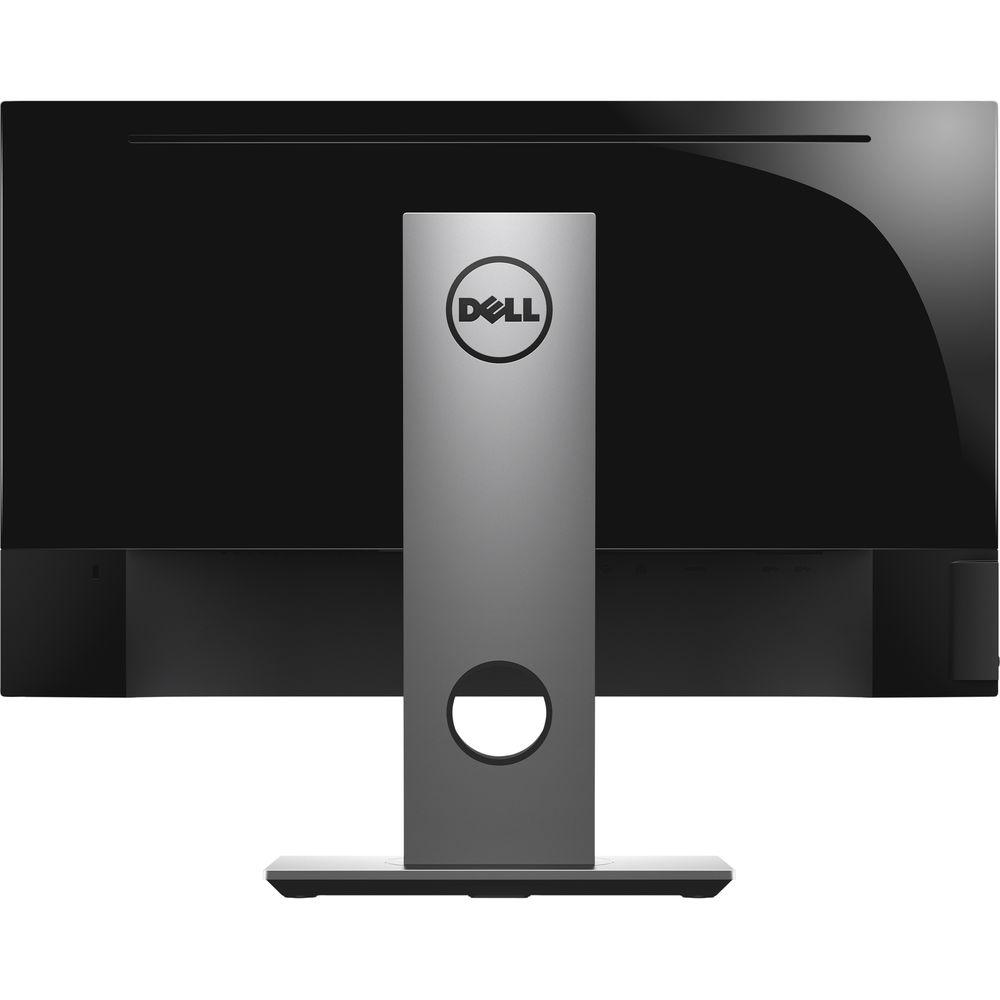

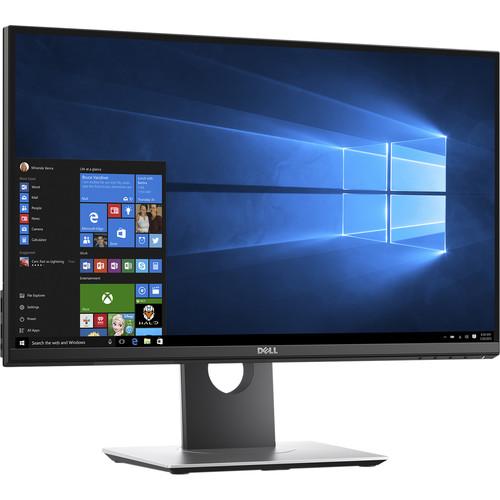

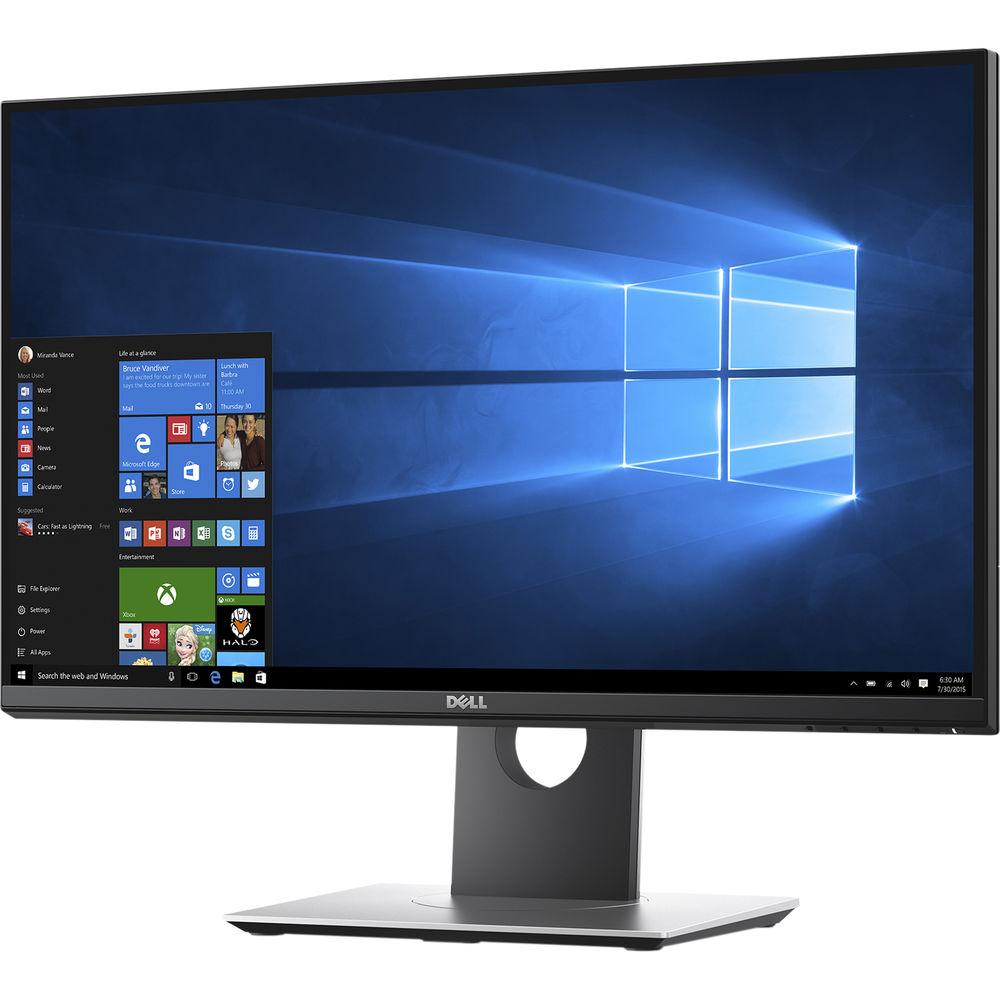

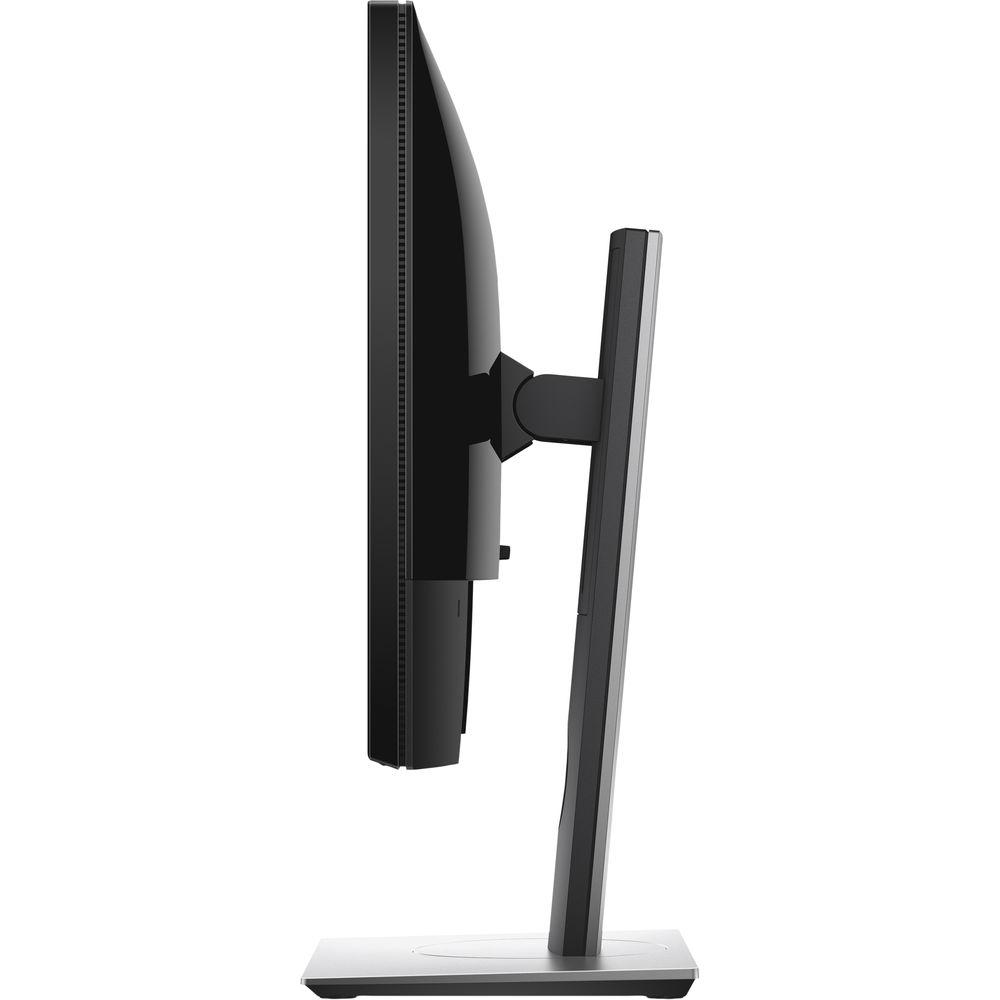

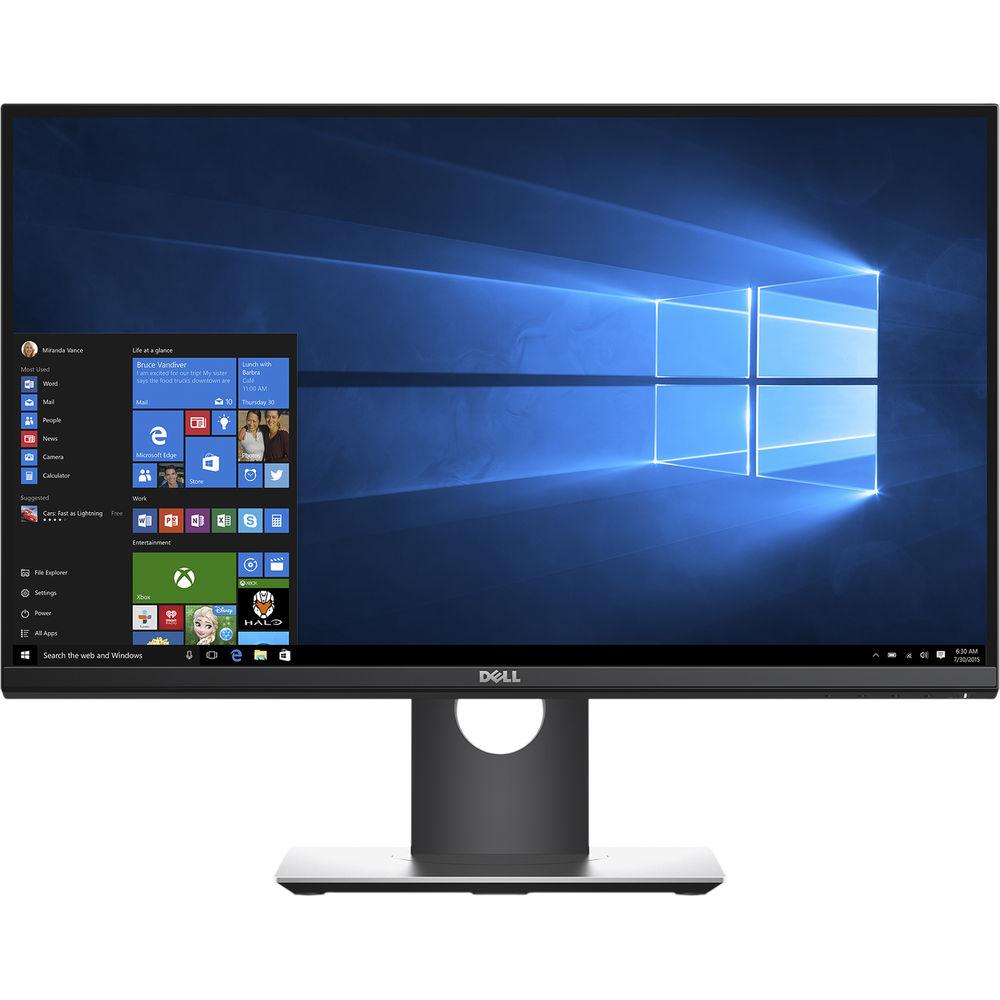

User Manual for Dell S2417DG QHD 23.8" 16:9 LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the Dell S2417DG QHD 23.8" 16:9 LCD
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell S2417DG QHD 23.8" 16:9 LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a fast 165 Hz refresh rate, the S2417DG QHD 23.8" 16:9 LCD Gaming Monitor from Dell is designed to offer smooth gameplay and crisp picture quality. In addition to the enhanced refresh rate, this monitor also supports NVIDIA G-Sync technology to sync the frame rate of the display with that of compatible graphics cards. To further enhance gameplay, the Dell S2417DG supports a 1 ms response time, which greatly reduces ghosting and stuttering during fast moving videos and game sequences.

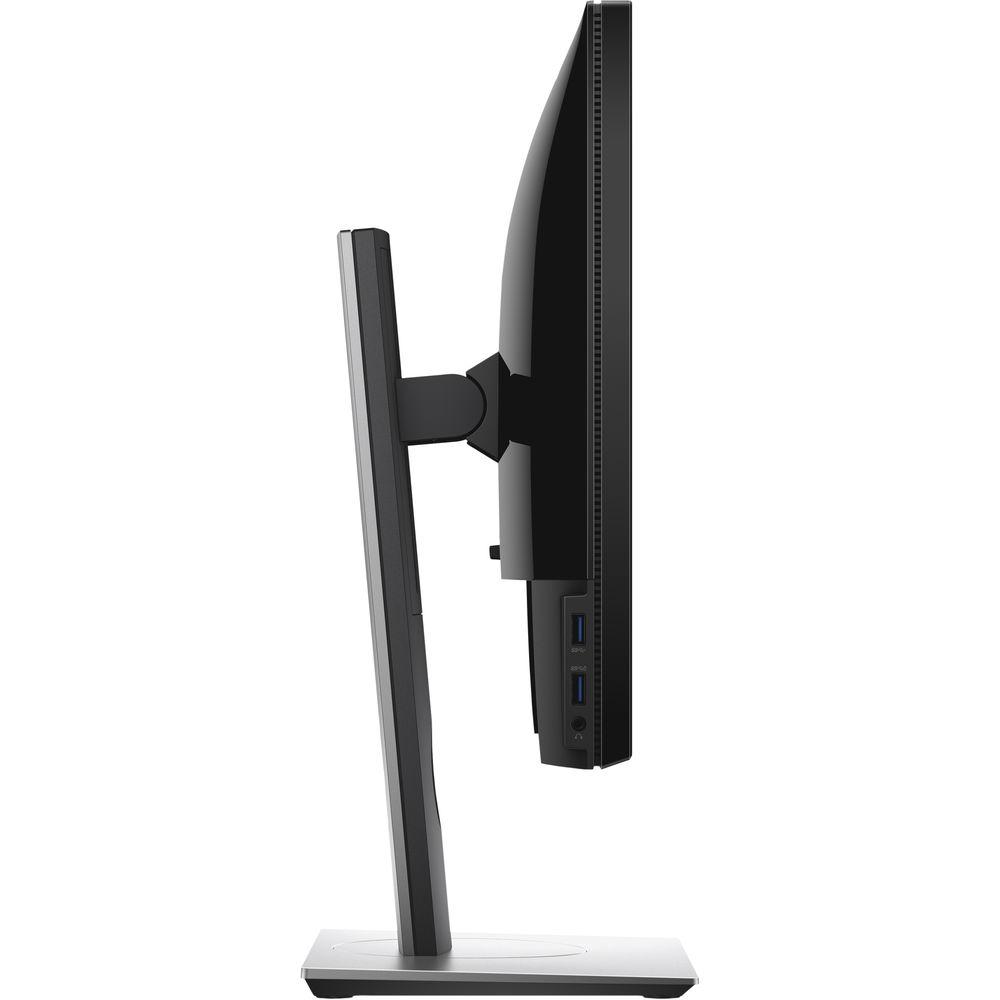

Setting up the S2471DG is simple as it comes equipped with both DisplayPort and HDMI inputs. In addition to video inputs, users can take advantage of a USB hub to connect USB compatible peripherals directly to the display as well as an audio line-out port located at the bottom of the monitor.
Once configured, the monitor offers a QHD 2560 x 1440 resolution @165 Hz (with overclock), supports a 1,000:1 contrast ratio, and 350 cd/m² for a more dynamic picture with improved brightness. You can also tilt, pivot, swivel, and adjust the height of the display to take full advantage of the 170° horizontal and 160° vertical viewing angles. - 165 Hz Refresh Rate & NVIDIA G-Sync Technology
- See gameplay with crisp clarity thanks to the 165 Hz refresh rate and NVIDIA G-Sync technology. No screen tearing, no stuttering and no ghost images means there is nothing to get in the way of your performance.
- Enhanced Response Time
- Experience swift and real-time gameplay with a rapid, 1 ms panel response time.
- QHD Resolution
- With a QHD 2560 x 1440 resolution and a 3.68 million pixel display you can see games with enhanced clarity.
- Preset Modes
- Preset modes for RPG, FPS or RTS let you find the optimal visual setting with a click. Plus, with such an easy setup, you can spend more time gaming and less time reconfiguring your settings.

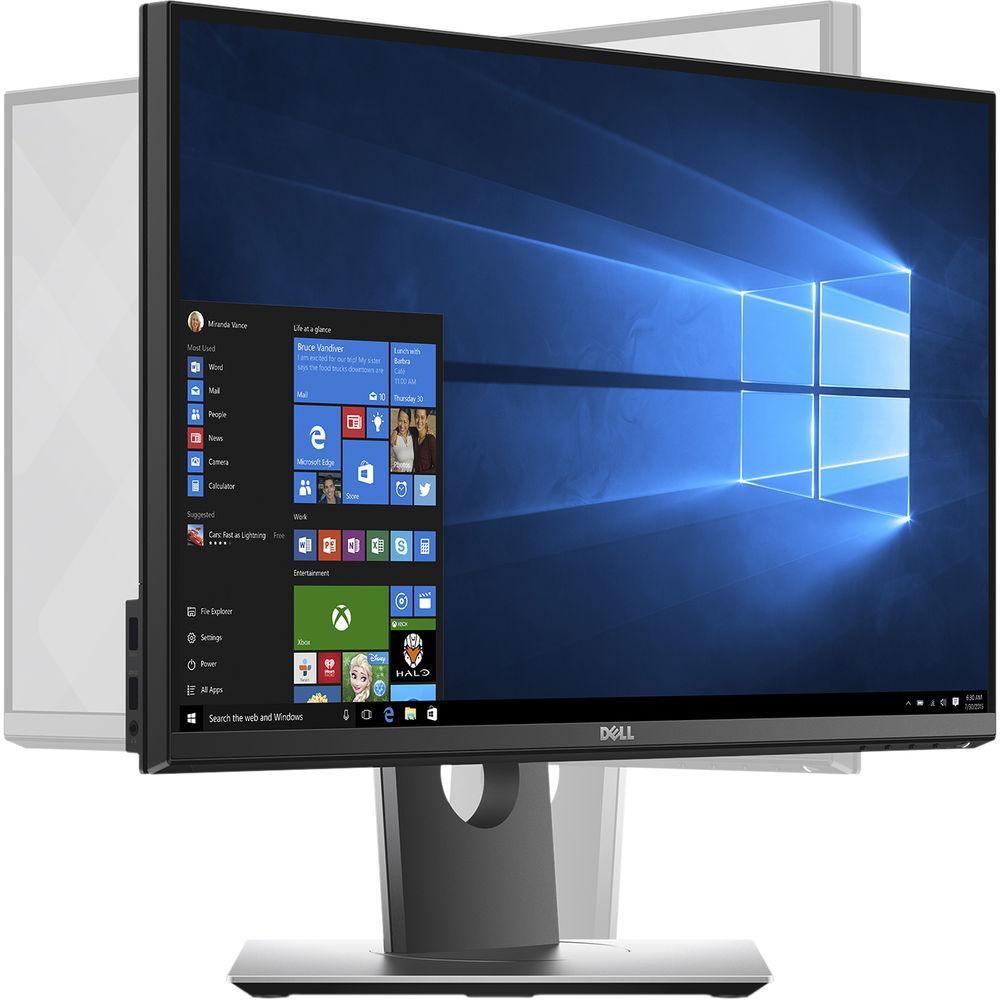

- Ergonomic Stand

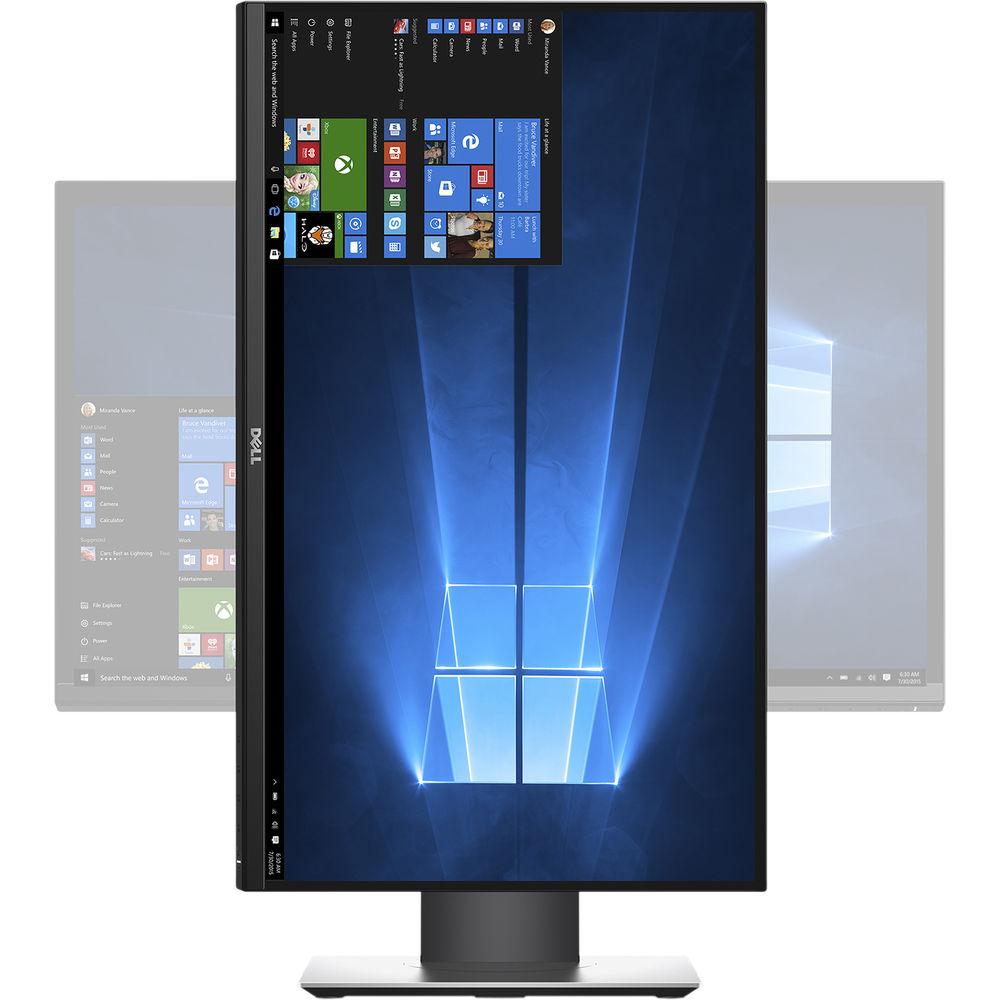

- Tilt, pivot, and adjust your monitor to just the right position for ergonomic comfort and enhanced game play.
- Switch Between Systems
- Changing between systems has been greatly simplified with a wide range of connectivity ports, letting you switch from PC gaming to your secondary gaming console without rearranging cords.
UPC: 884116234494 In the Box Dell S2417DG QHD 23.8" 16:9 LCD Gaming Monitor Power Cable DisplayPort Cable USB Upstream Cable Driver CD Limited 3-Year Warranty User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell S2417DG QHD 23.8" 16:9 LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell S2417DG (GAMING) Specs | Diagonal Viewing Size | 23.8" (60.47 cm) | | Panel Type | TN | | Preset Display Area (H x V) | 20.74 x 11.67" (526.85 x 296.35 mm)
242.04 in² (1561.32 cm²) | | Resolution | 2560 x 1440 at 165 Hz (with overclock) | | Contrast Ratio | 1000:1 (typical) | | Aspect Ratio | 16:9 | | Backlight Technology | LED | | Brightness | 350 cd/m² (typical) | | Response Time | 1 ms | | Viewing Angle | 170°/160° (H/V) | | Color Support | Color Gamut: 82% (CIE1976) / 72% (CIE1931)

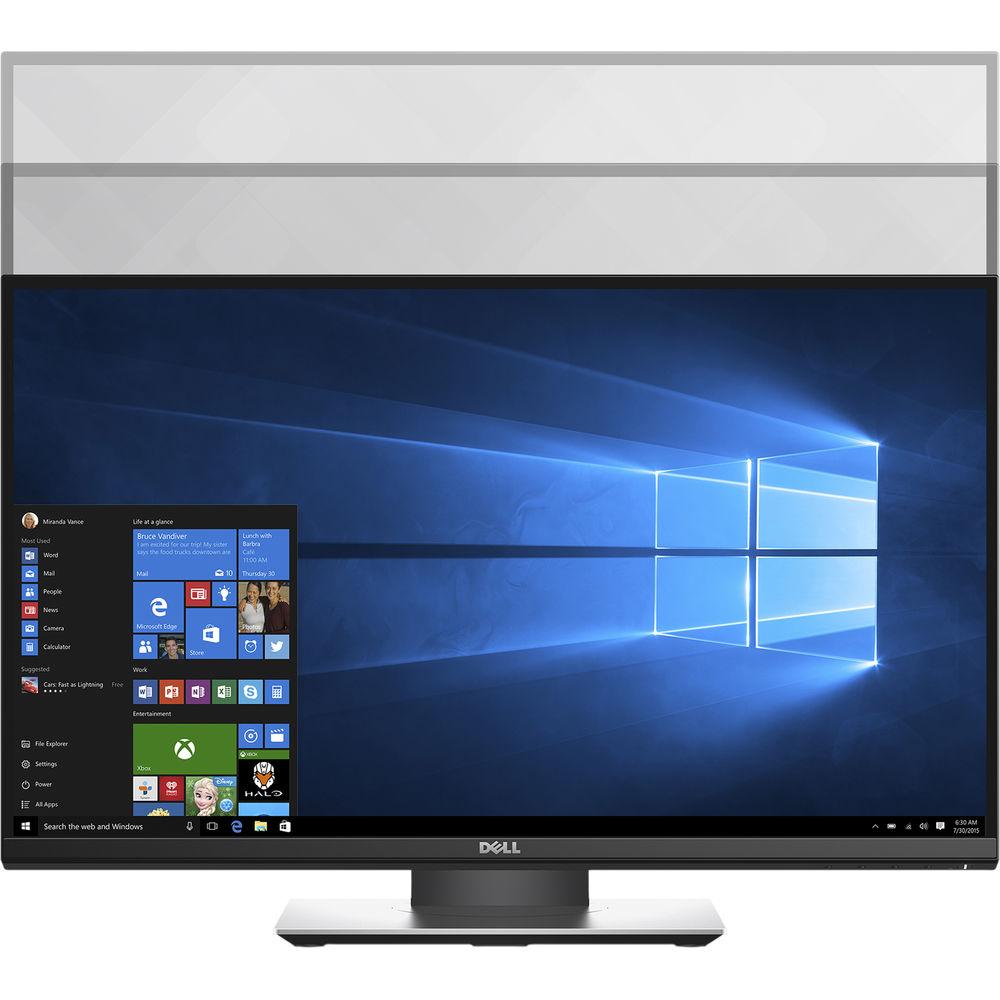

Color Depth: 16.7 million colors | | Pixel Pitch | 0.2058 x 0.2058 mm | | Display Screen Coating | Anti-Glare with 3H hardness | | Bezel | 0.3" (7.35 mm) | | Pixel per Inch | 123 | | VESA Compatibility | 100 x 100 mm | | Stand | Height Adjustable Stand: 0 to 5.1" (0 to 130 mm)

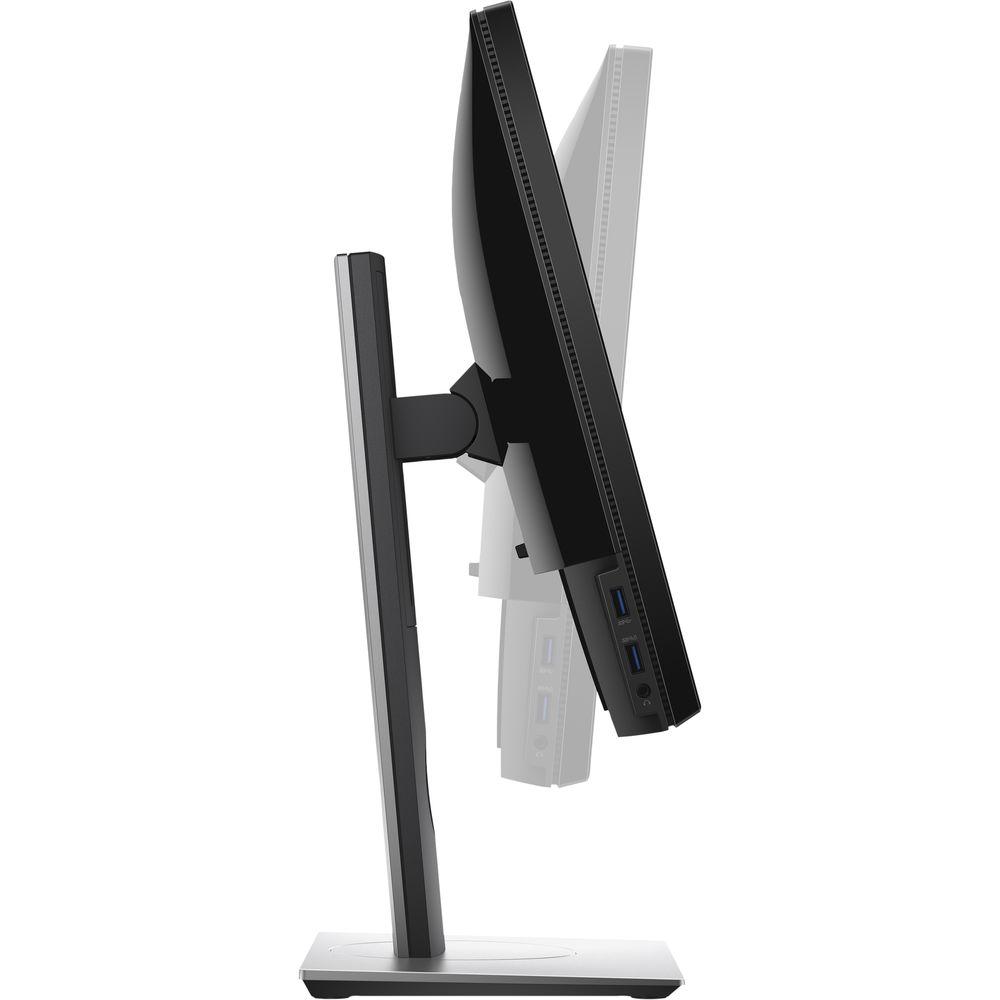

Tilt:-5 to 21°
Swivel: -45 to 45°
Pivot: -90 to 90° | | Connectivity | 1 x DP (ver. 1.2)
1 x HDMI (ver. 1.4)
1 x USB 3.0 port (upstream)
2 x USB 3.0 ports (side)
2 x USB 3.0 ports (bottom)
1 x audio line-out jack (bottom) | | Security | Security lock slot (cable lock sold separately) | | Voltage Required | 100 to 240 VAC / 50 or 60 Hz (+ 3 Hz) / 1.5 A (typ.) | | Power Consumption (Operational) | Typical: 33 W
Maximum: 70 W
Stand-By / Sleep: Less than 0.5 W / Less than 0.3 W | | Temperature Range | Operating: 32 to 104°F (0 to 40°C)
Non-operating
Storage: -4 to 140°F (-20 to 60°C) | | Humidity Range | Operating: 10 to 80% (noncondensing)
Non-operating
Storage: 5 to 90% (noncondensing) | | Altitude | Operating: Maximum 16,400' (5000 m)
Non-operating: Maximum 40,000' (12,192 m) | | Compliant Standards | RoHS compliant, arsenic-free glass and mercury-free for the panel only | | Dimensions | With Stand: 21.28 x 14.33-19.44 x 7.09" (54.04 x 37-49.4 x 18 cm)
Without Stand: 21.28 x 12.7 x 2.2" (54.04 x 32.3 x 5.58 cm) | | Weight | Without Stand: 8.32 lb (3.78 kg) | | | | Package Weight | 19.1 lb | | Box Dimensions (LxWxH) | 24.75 x 15.6 x 7.5" |
