User Manual for Dell S2418H 23.8" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell S2418H 23.8" 16:9 IPS Monitor
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell S2418H 23.8" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With 178° horizontal and vertical viewing angles, the S2418H 23.8" 16:9 IPS Monitor from Dell allows viewers to see the screen from virtually any angle. Along with enhanced viewing angles, this display features a Full HD 1920 x 1080 resolution along with a 250 cd/m² brightness rating, and a contrast ratio of 1000:1, producing a clear picture with more dynamic color contrast. For a complete multimedia experience, this Dell monitor comes equipped with Waves Maxx Audio technology through the dual front-firing 6W speakers. - InfinityEdge display for edge-to-edge viewing experience
- Dell HDR (high dynamic range) for creating clear and accurate images
- 178°/178° wide viewing angles enabled by In-Plane switching (IPS) technology
- AMD FreeSync technology delivers responsive, stutter- and tear-free visuals for gaming
- TUV-certified monitor features ComfortView filters to keep out harmful blue light emissions and optimize eye comfort for extended viewing durations

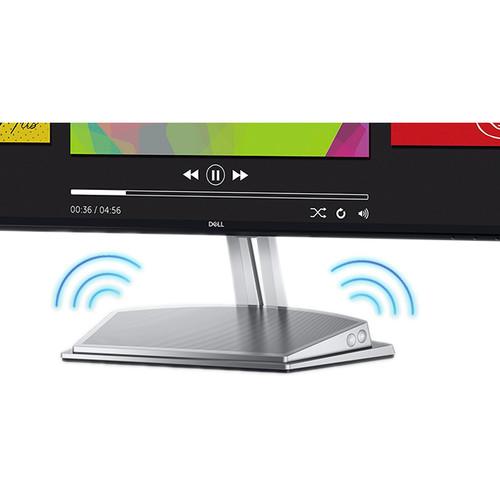

- Waves Maxx Audio with integrated dual front-firing 6W speakers
- Compatible with Dell Display Manager software
UPC: 884116267904 In the Box Dell S2418H 23.8" 16:9 IPS Monitor Power Cable and Adapter HDMI Cable Cable Holder Limited 3-Year Warranty User Manual PDF 7.1mb More info from Dell Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell S2418H 23.8" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell S2418H Specs | Screen Size | 23.8" (60.5 cm) | | Panel Type | In-Plane Switching (IPS) | | Resolution | Full HD 1920 x 1080 at 60 Hz | | Contrast Ratio | 1000:1 (typical), 8,000,000:1 (DCR) | | Aspect Ratio | 16:9 | | Backlight Technology | LED | | Brightness | 250 cd/m² (typical) | | Stand | Tilt: -5 to 21°
Built-in cable-management | | Response Time | 6 ms (GtG, typical) | | Viewing Angle (H/V) | 178°/178° | | Color Support | Color Gamut: 99% of sRGB
Color Depth: 16.7 million colors | | Pixel Pitch | 0.2745 x 0.2745 mm | | Display Screen Coating | Anti-glare treatment of the front polarizer (3H) | | Panel | 6-bit + FRC panel | | Audio Output | 2 x 6 W speakers | | Connectivity | 1 x VGA
1 x HDMI (2.0)
1 x audio line-in
1 x audio line-out
1 x speaker port | | Security | Security lock slot (cable lock sold separately) | | Voltage Required | 100 to 240 VAC / 50 or 60 Hz (±3 Hz) / 1.7 A (maximum) | | Power Consumption | Operational: 26 W (typical), 45 W (maximum)
ENERGY STAR: 14.32 W (typical)
Standby / Sleep: Less than 0.5 W | | Temperature Range | Operating: 32 to 104°F (0 to 40°C)
Non-operating
Storage: -4 to 140°F (-20 to 60°C) | | Humidity Range | Operating: 10 to 80% (noncondensing)
Non-operating
Storage: 5 to 90% (noncondensing) | | Altitude | Operating: Maximum 16,400' (5000 m)
Non-operating: Maximum 40,000' (12,192 m) | | Thermal Dissipation | Maximum: 153.6 BTU/hour
Typical: 88.7 BTU/hour | | Compliant Standards | ENERGY STAR
Arsenic-free glass and mercury-free for the panel only | | Dimensions (H x W x D) | 16.2 x 21.2 x 6.4" (41.2 x 53.9 x 16.2 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 23.622 x 16.457 x 6.221" |
