Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More - Dell 27 Ultrathin Monitor - S2718D

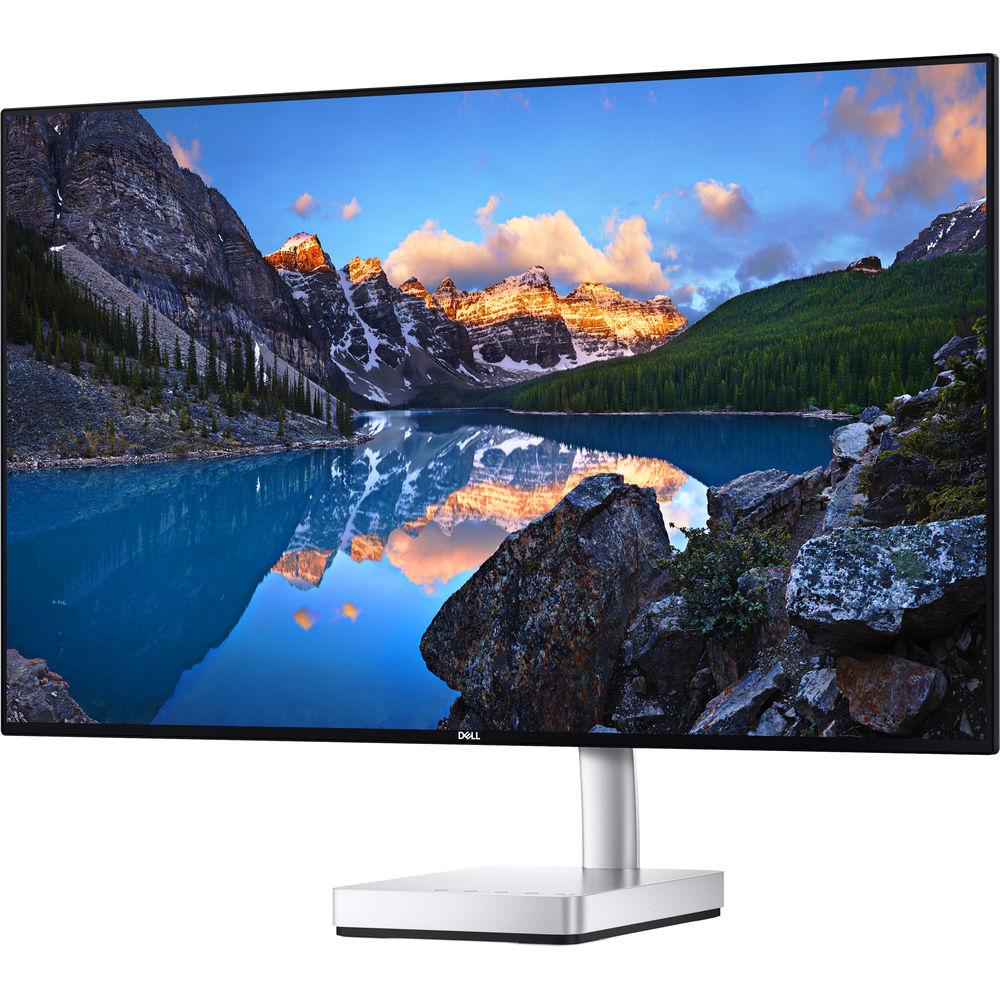

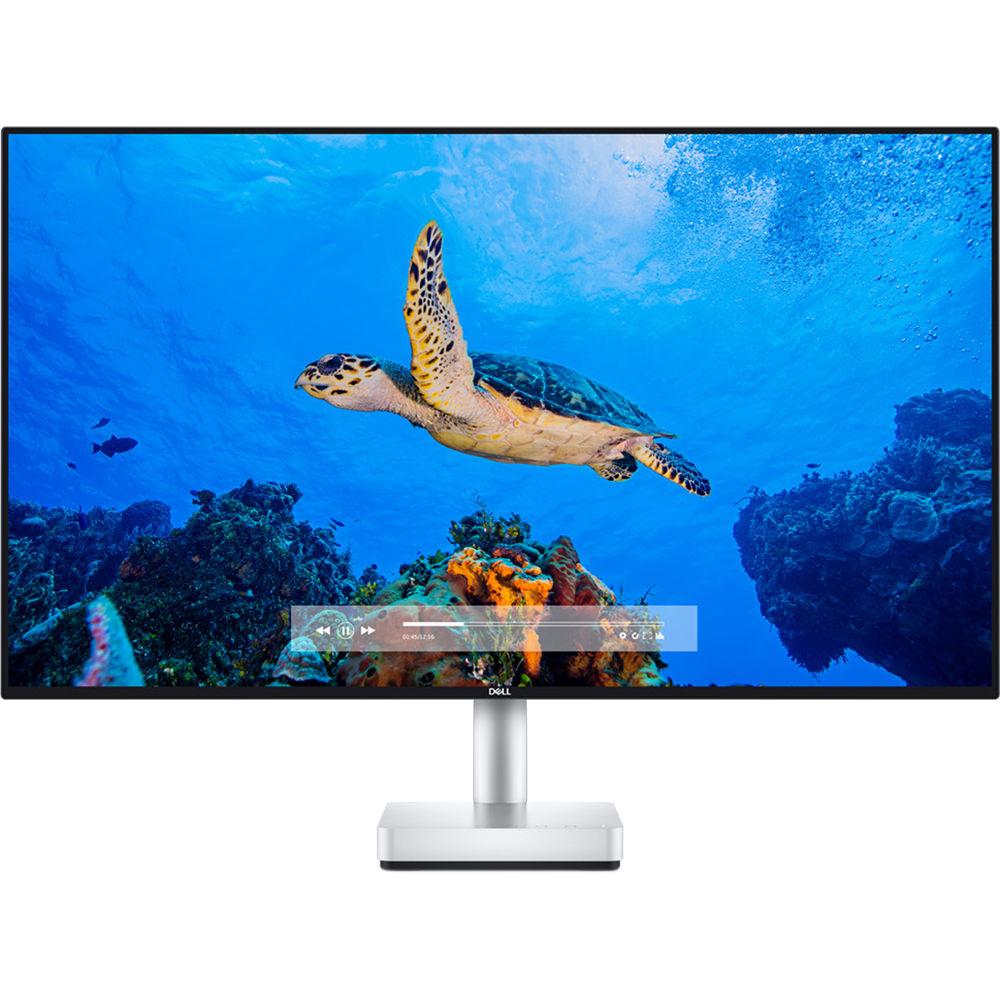

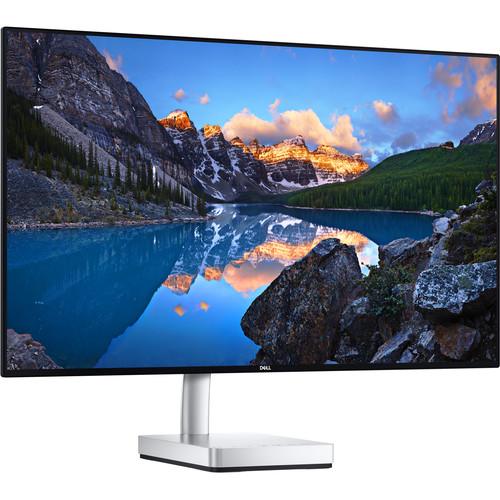

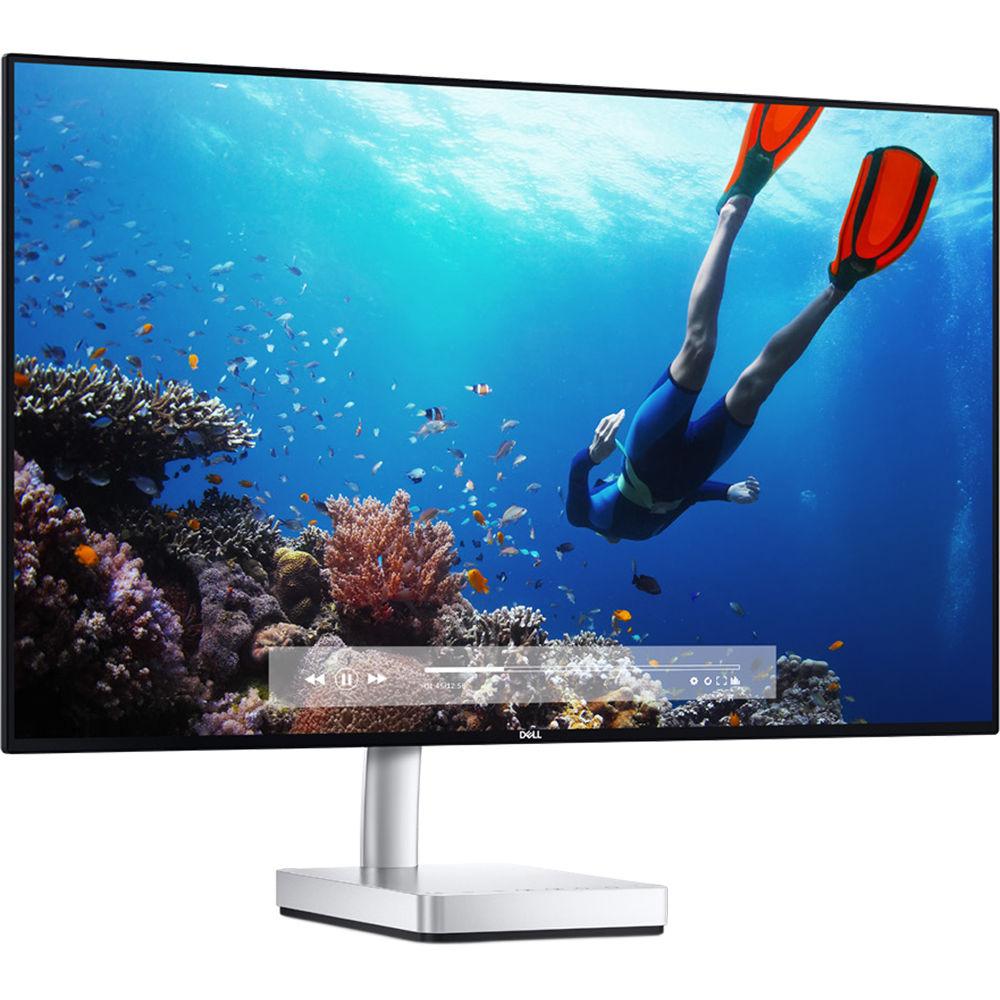

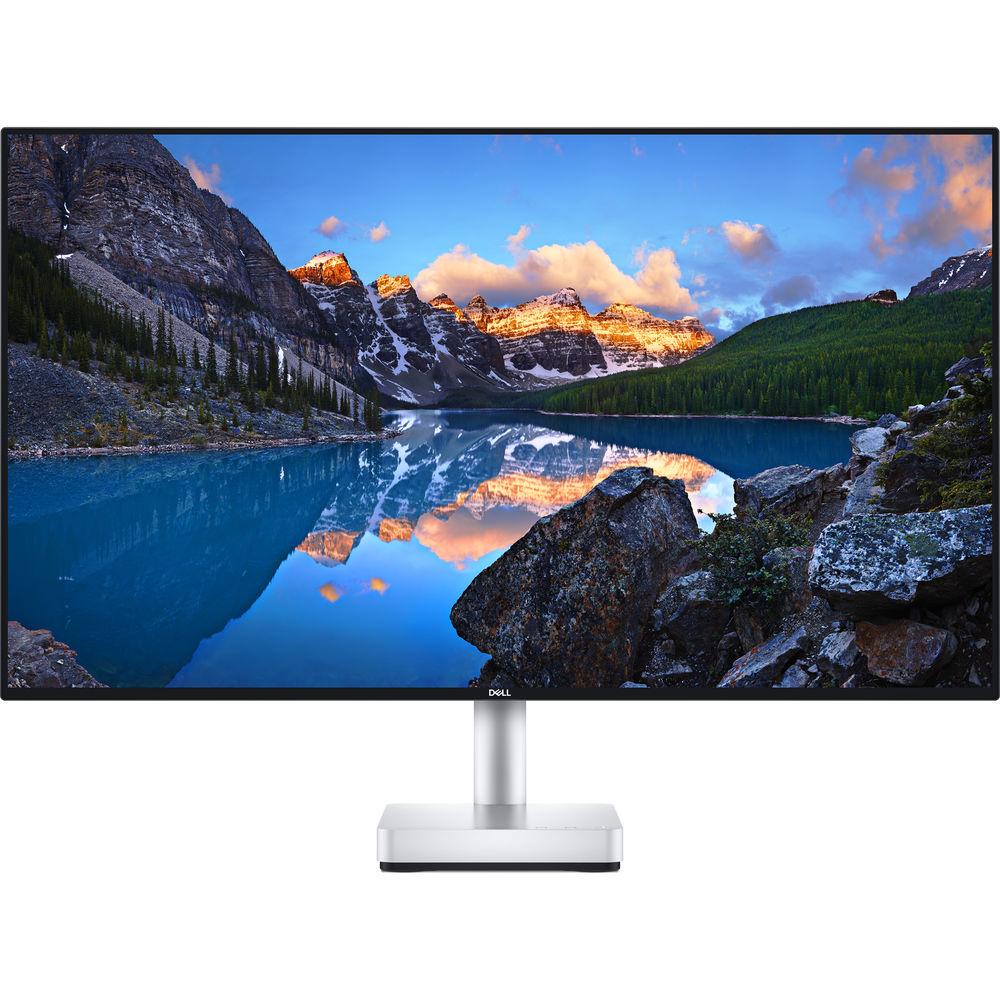

With a slim metallic design, the S2718D 27" 16:9 Ultrathin IPS Monitor from Dell is not only aesthetically pleasing, it helps to enhance your workflow. This monitor comes equipped with HDMI, USB Type-C, and standard USB connectivity allowing you to connect various computers and peripherals directly to the base of the monitor.
Once configured, viewers can marvel at Dell's InfinityEdge display featuring a 2560 x 1440 resolution, a 1000:1 contrast ratio, a 300 cd/m² brightness rating, and support for up to 16.7 million colors. This monitor also supports HDR (High Dynamic Range) imaging for a clear image complete with an increased depth of colors and high contrast range of shades. The IPS (In-Plane Switching) display even covers 99% of the sRGB color spectrum making this monitor suitable for use in graphic design, photo editing, and other jobs where color accuracy is a must.
Whether you're editing a photo, viewing movies, or browsing the web, the Dell S2718D monitor has you covered. This IPS panel supports 178° horizontal and vertical viewing angles and can be tilted and swiveled into place for maximum viewing comfort. - Unmatched Design
- With Dell's InfinityEdge display, you'll enjoy an expansive entertainment experience without borders. An edge-to-edge viewing experience on this virtually borderless display ensures that you'll be immersed in the visuals, not distracted by the frame.
- Enhanced Visuals with Dell HDR
- Dell HDR (high dynamic range) combines greater depth of colors, remarkable clarity and a high contrast range of shades - from the brightest whites to the deepest blacks - to create accurate images.
This Dell monitor features wide viewing angles enabled by In-Plane Switching (IPS) technology and more than 99% coverage on the sRGB spectrum lets you see rich colors, greater depth, and a wider range of shades no matter where you sit. Plus, you'll see it all in stunning Quad HD (2560 x 1440) resolution.
Whether you're watching a movie, playing a game, or working on a presentation, you'll see superb visuals. HDR10 movies shine like they were meant to. Even your HDR games and photos will boast a lifelike experience. - Intuitive Build
- USB Type-C connectivity ensures the added convenience of all-in-one cable management. Connect your laptop to the monitor and charge from a single source. Meet all your video, data, and power needs while reducing cable clutter at the same time.

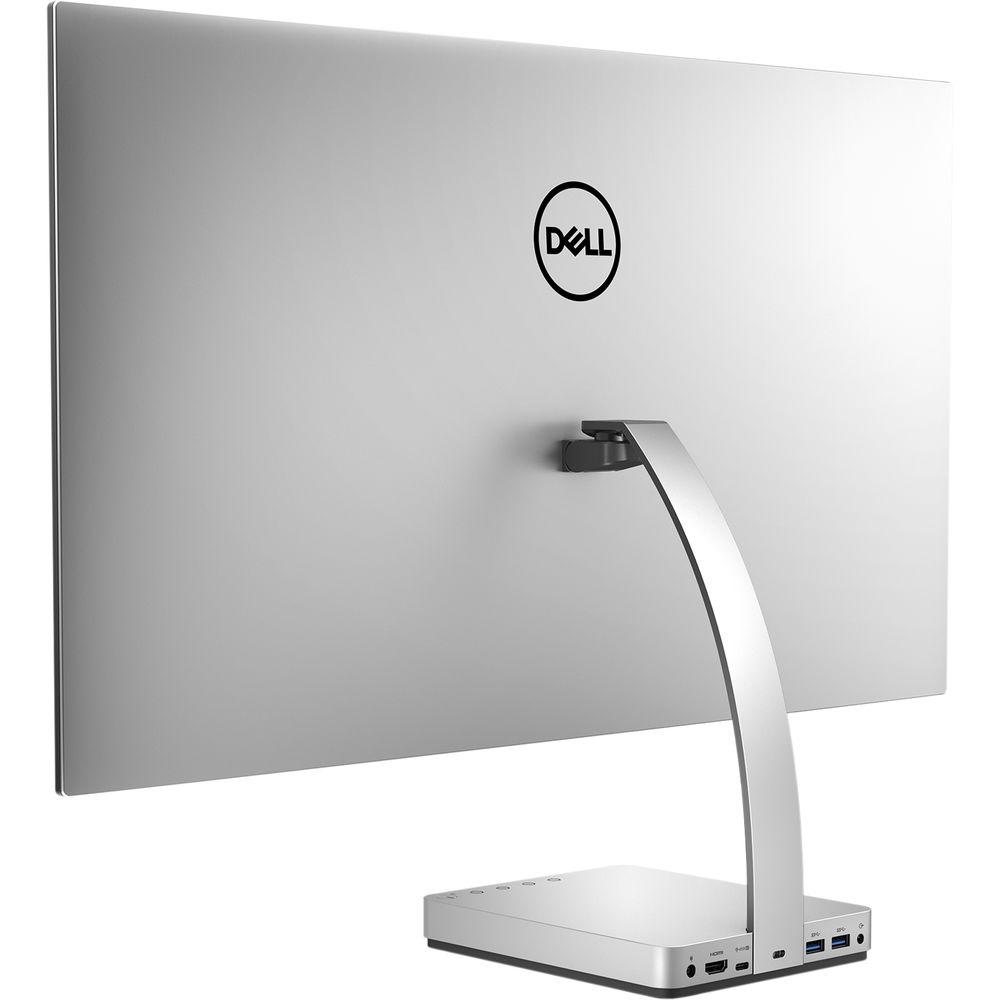

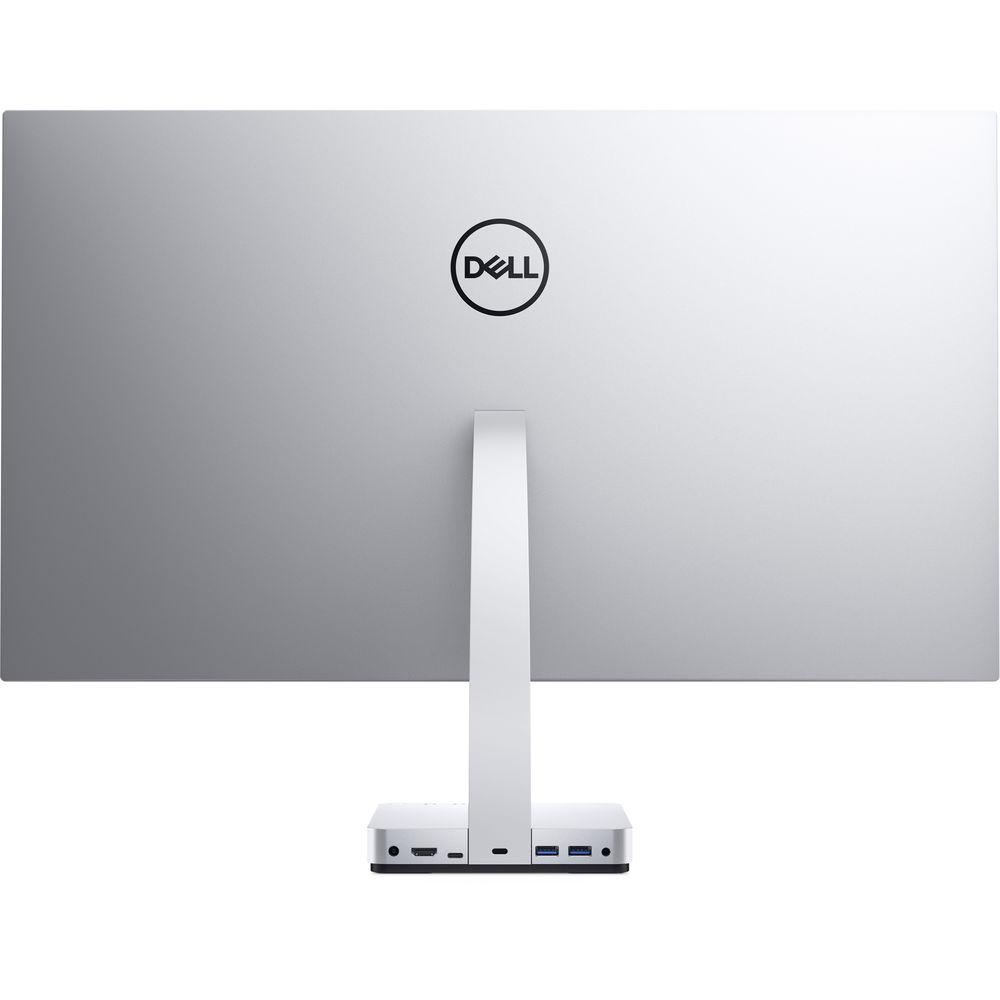

Designed as a smart cable management system, all of your connection ports and slots are cleverly placed at the rear of the slim base.
This TUVi Certified monitor has a flicker-free screen with ComfortView, a feature that filters out harmful blue light emissions. It's designed to optimize eye comfort even over extended viewing - like your next movie marathon.

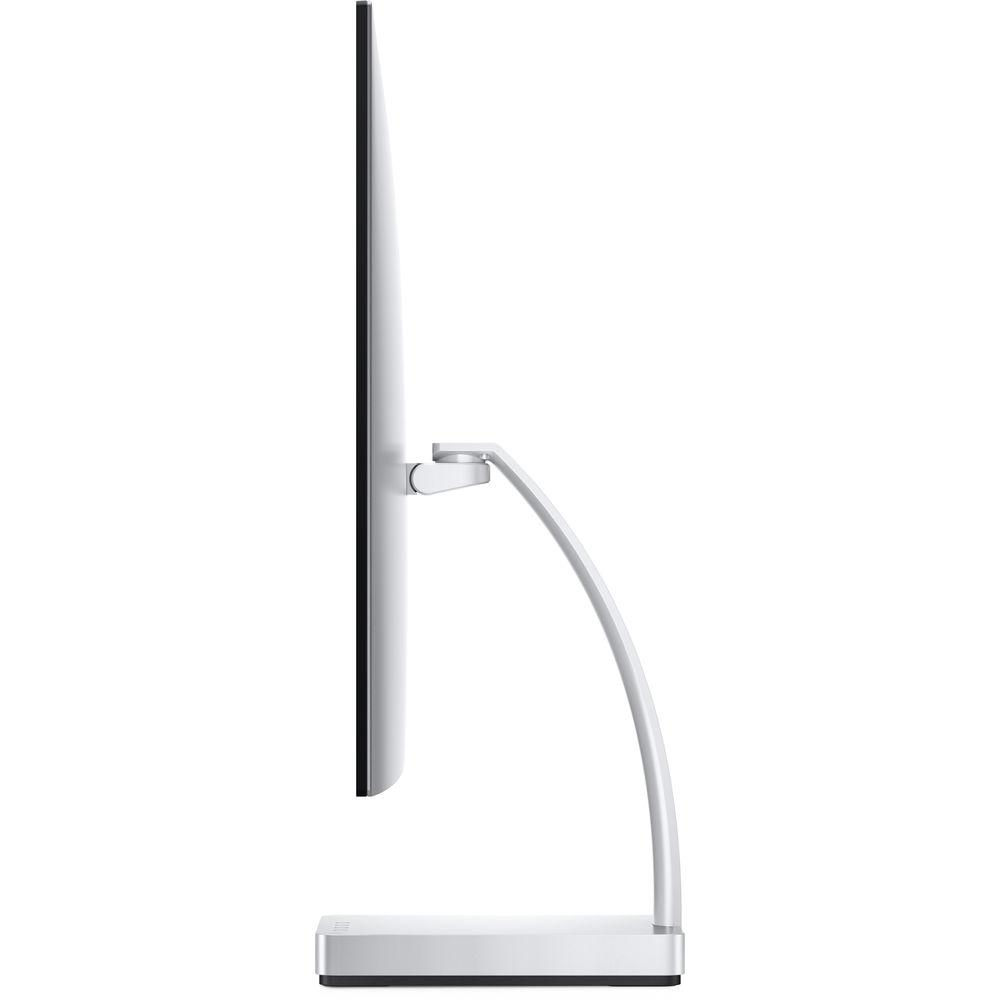

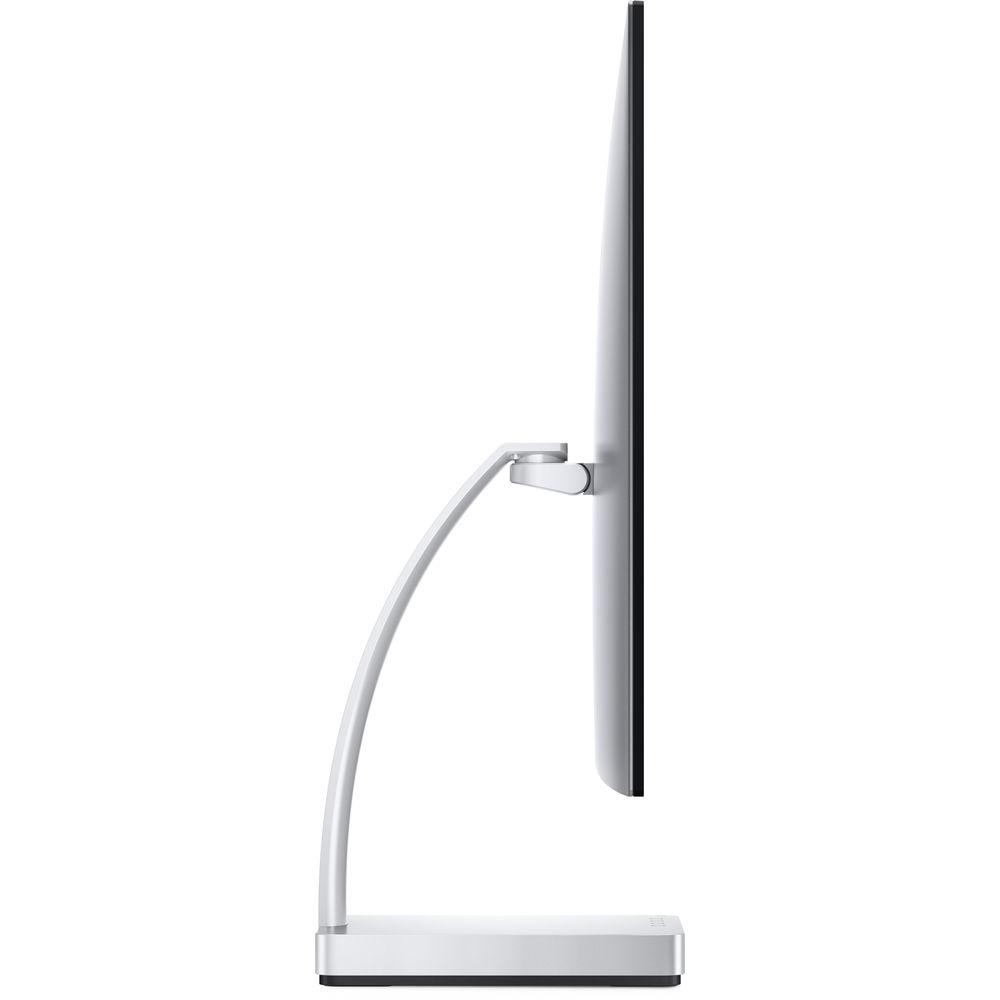

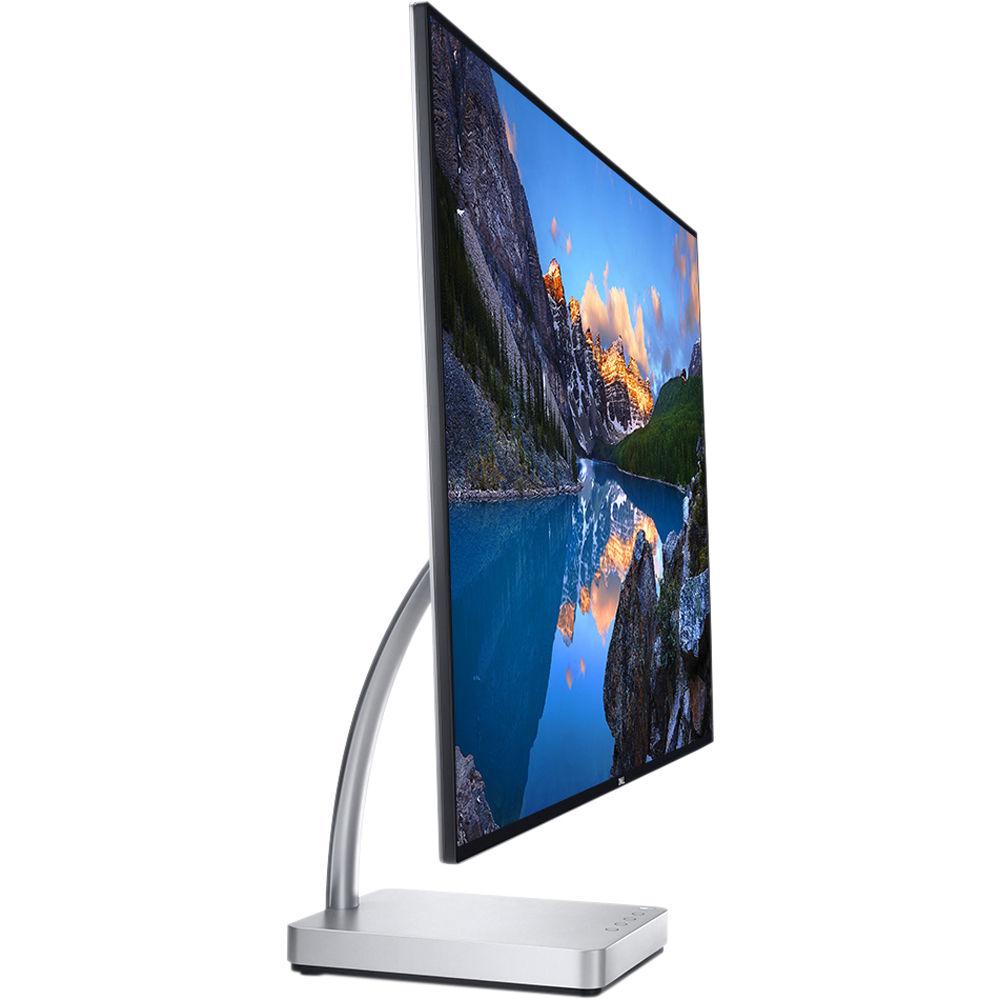

A smart hinge design lets you tilt and swivel the monitor for a comfortable viewing position. UPC: 884116267898 In the Box Dell S2718D 27" 16:9 Ultrathin IPS Monitor Power Cable Power Adapter HDMI Cable USB Type-C Cable Stand Limited 1-Year Warranty More info from Dell Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell S2718D 27" 16:9 Ultrathin IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell 27 Ultrathin S2718D Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 109 ppi | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 8,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 140 kHz | | Vertical Frequency | 48 to 75 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | HDR10 | | Color Gamut | 99% sRGB | | Response Time | 8 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2331 x 0.2331 mm | | | | Connectivity | 1 x HDMI Input
1 x USB Type-C Input
2 x USB Type-A (USB 3.1 Gen 1) Output
1 x 3.5 mm Output | | Built-In Speakers | None | | | | Power Consumption | 30 W (Typical)
0.5 W (Standby) | | AC Input Power | 120 to 230 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 80% | | Certifications | ENERGY STAR, EPEAT GOLD, RoHS, TCO Certified, TUV, WEEE, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 21° | | Lock Slot | Yes | | Dimensions (W x H x D) | 24.1 x 17.8 x 7.1" / 61.2 x 45.2 x 18.0 cm (With Stand)
24.1 x 13.8 x 0.8" / 61.2 x 35.1 x 2.0 cm (Without Stand) | | Weight | 15.1 lb / 6.85 kg (With Stand) | | | | Package Weight | 23.4 lb | | Box Dimensions (LxWxH) | 27.0 x 20.0 x 8.22" |
