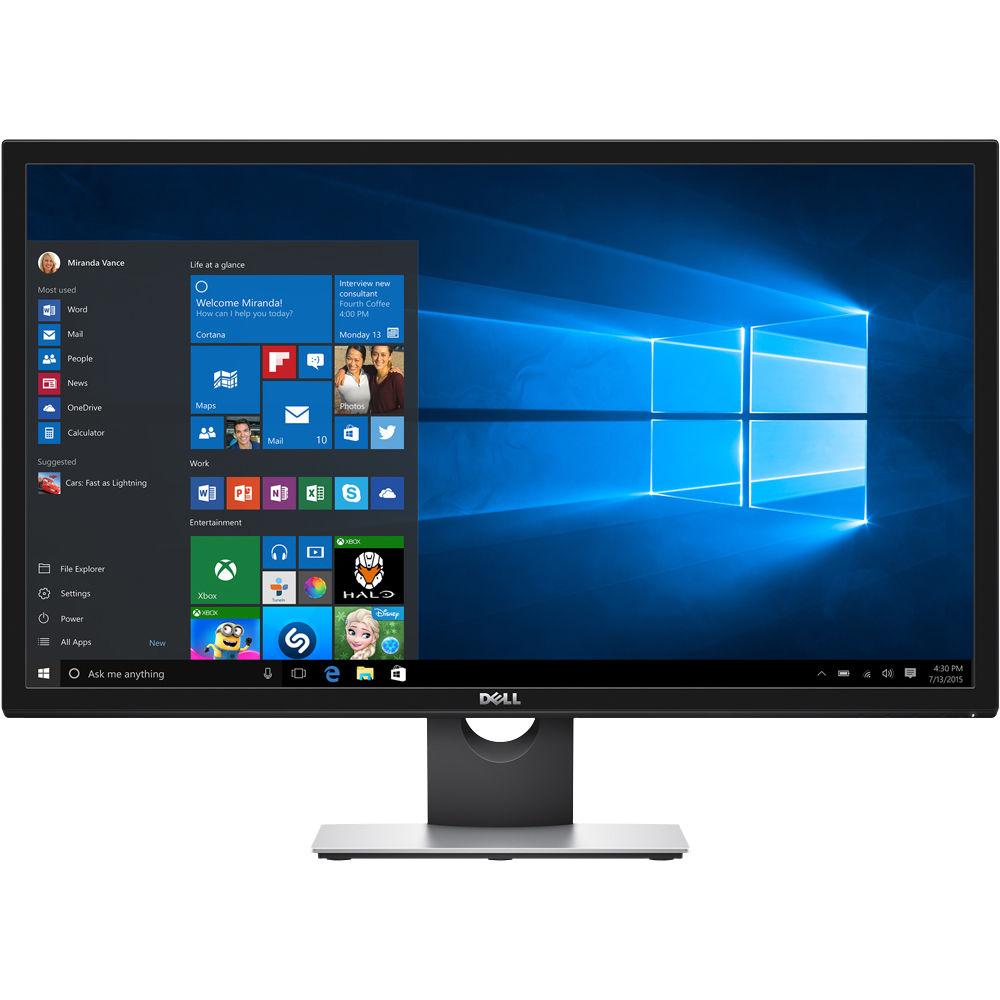

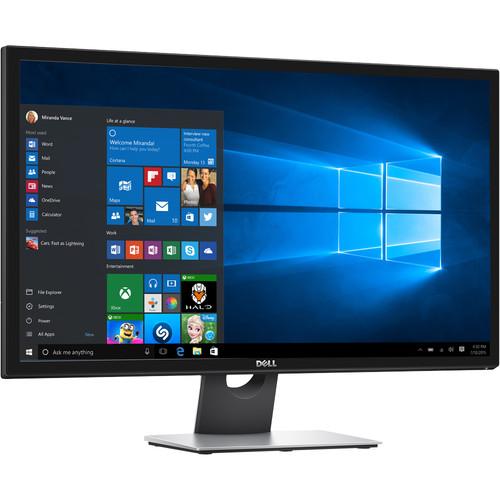

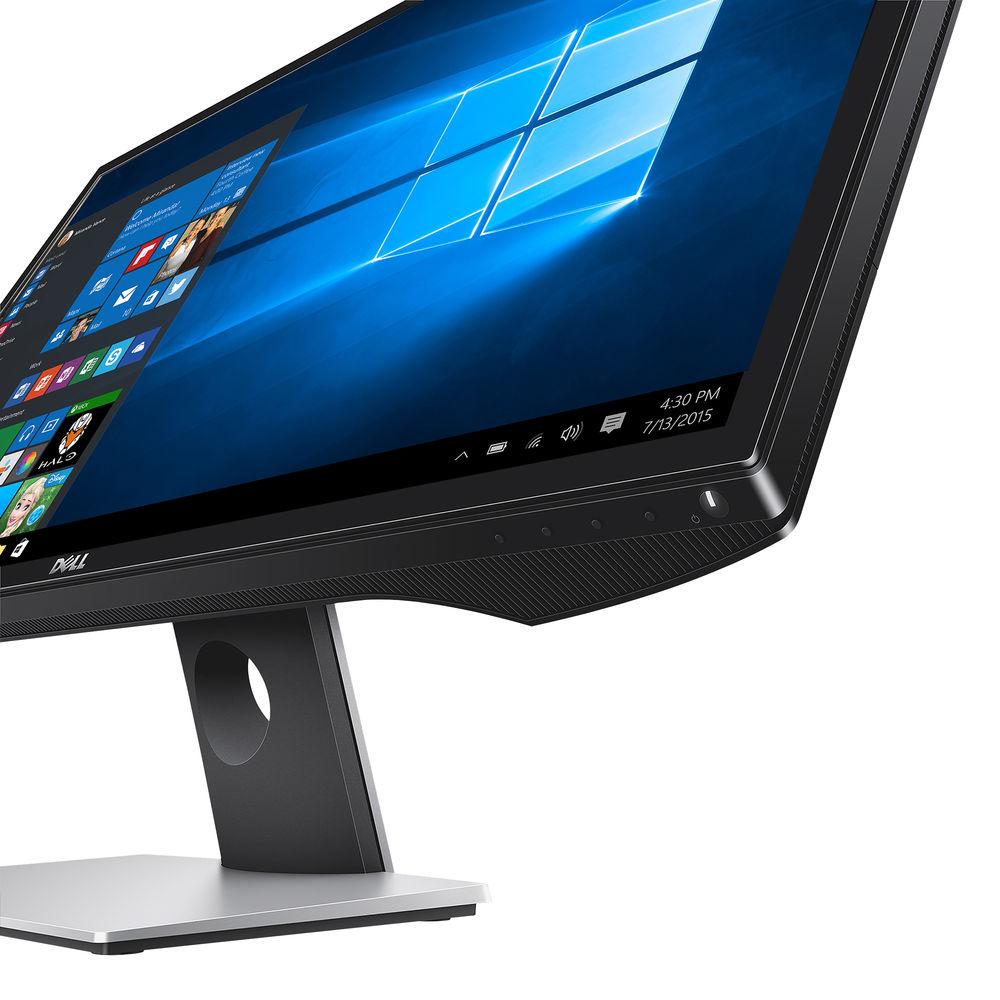

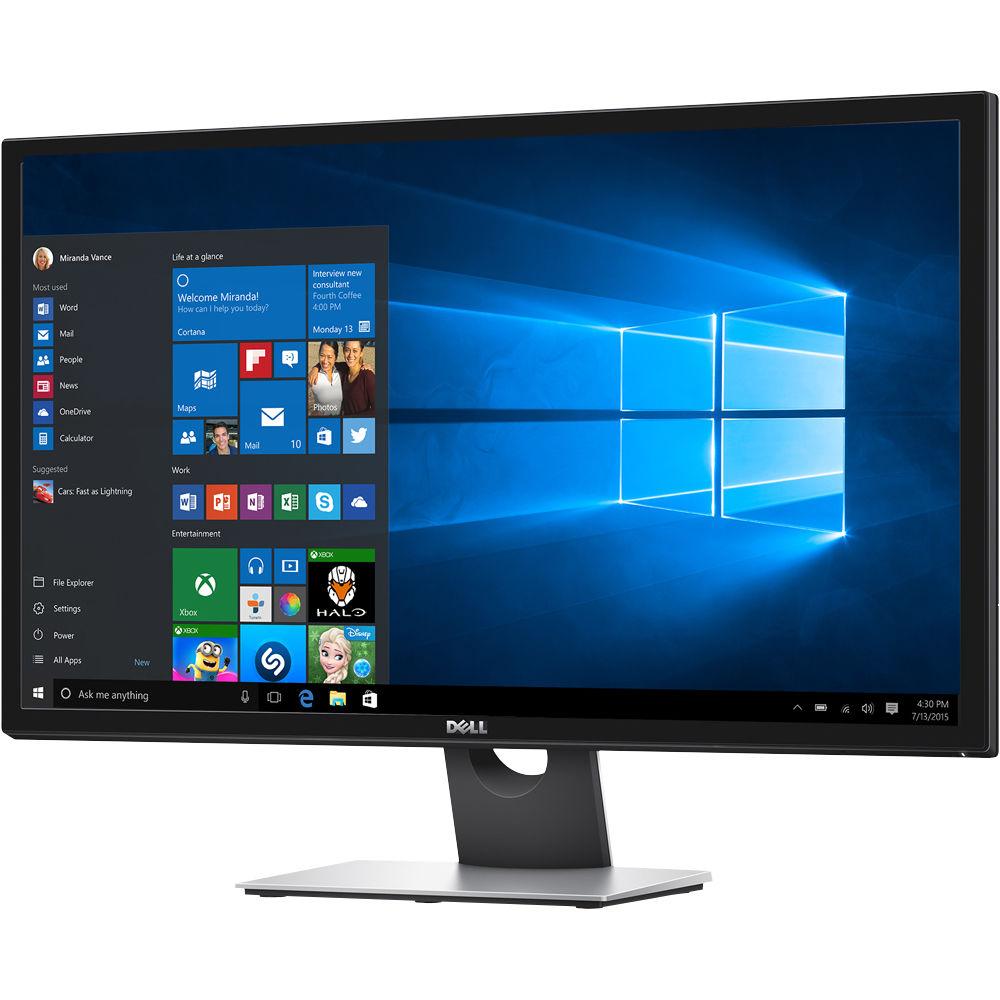

User Manual for Dell S2817Q 28" 16:9 4K LCD Monitor Click to enlarge the picture
Contents of the user manual for the Dell S2817Q 28" 16:9 4K LCD
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell S2817Q 28" 16:9 4K LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

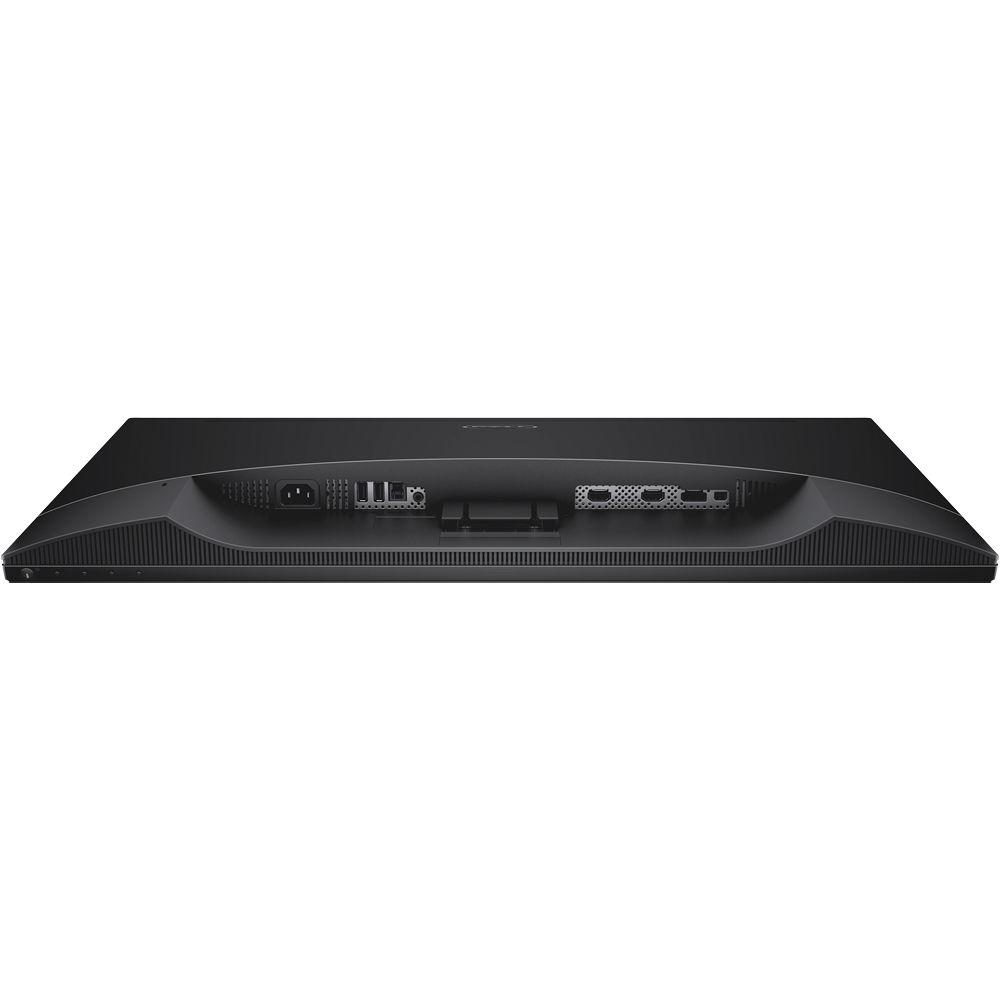

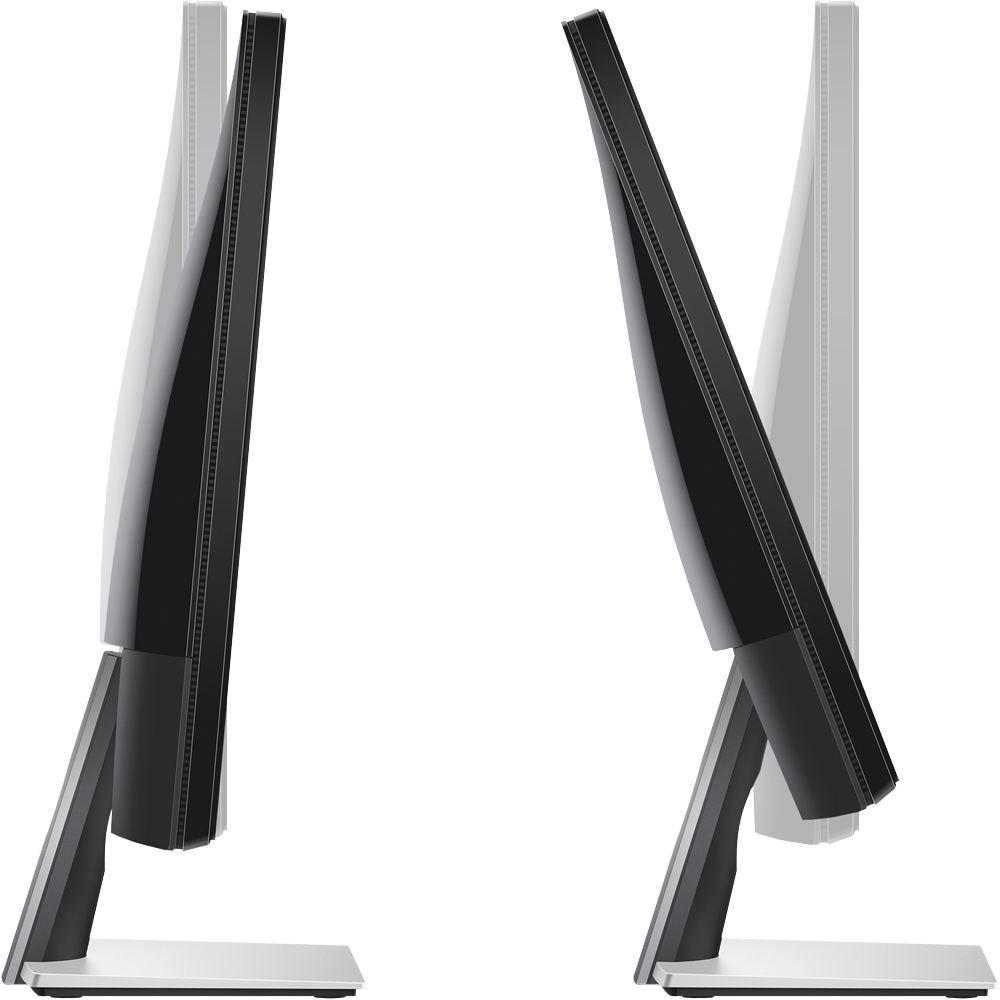

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The S2817Q 28" 16:9 4K LCD Monitor from Dell features a 4K UHD resolution of 3840 x 2160 for crisp and clear pictures and videos. Built with an anti-glare TN (Twisted Nematic) panel, it offers high brightness, low power draw, and fast response times, making it good for gaming. This display supports 1.07 billion colors and has a static 1,000:1 contrast ratio that further enhances colors, providing you with darker blacks and brighter bright colors. A 2 ms response time delivers lag-free content reproduction for fluid action scenes and gaming. The S2817Q connects to your system via HDMI, DisplayPort, or Mini DisplayPort and tilts to your viewing preference. - 28" 4K UHD Display
- Enjoy 28 inches of the spacious 4K UHD 3840 x 2160 resolution. That's over 8 million pixels or four times more than a Full HD display. High pixel density reveals extremely fine details onscreen so you can view and edit higher resolution photos and more.
In the Box Dell S2817Q 28" 16:9 4K LCD Monitor Power Cable HDMI 2.0 Cable USB 3.0 Upstream Cable DisplayPort to Mini-DisplayPort Cable Limited 1-Year Warranty User Manual PDF 6.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell S2817Q 28" 16:9 4K LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell S2817Q Specs | | | Size | 27.9" | | Screen Area | 24.5 x 13.4" / 62.1 x 34.1 cm | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 8,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Color Gamut | 72% NTSC | | Response Time | 2 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.16 x 0.16 mm | | | | Connectivity | 1 x 3.5 mm Output
2 x USB Type-A (USB 3.1 Gen 1) Output
1 x USB Type-A (USB 3.1 Gen 1) Input
1 x DisplayPort Input
1 x Mini DisplayPort Input
2 x HDMI (MHL) | | | | Power Consumption | 0.5 W (Standby)
35 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.6 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 90% | | Operating Altitude | 0 to 16,404' / 0 to 5000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | ENERGY STAR, EPEAT Silver, RoHS, TCO Certified, as per Manufacturer | | | | Dimensions (W x H x D) | 25.9 x 18.5 x 7.3" / 65.8 x 47.1 x 18.5 mm (With Stand)
25.9 x 15.1 x 2.5" / 65.8 x 38.2 x 6.3 mm (Without Stand) | | Weight | 11.1 lb / 5.1 kg (Without Stand) | | | | Package Weight | 20.9 lb | | Box Dimensions (LxWxH) | 30.0 x 18.0 x 6.0" |
