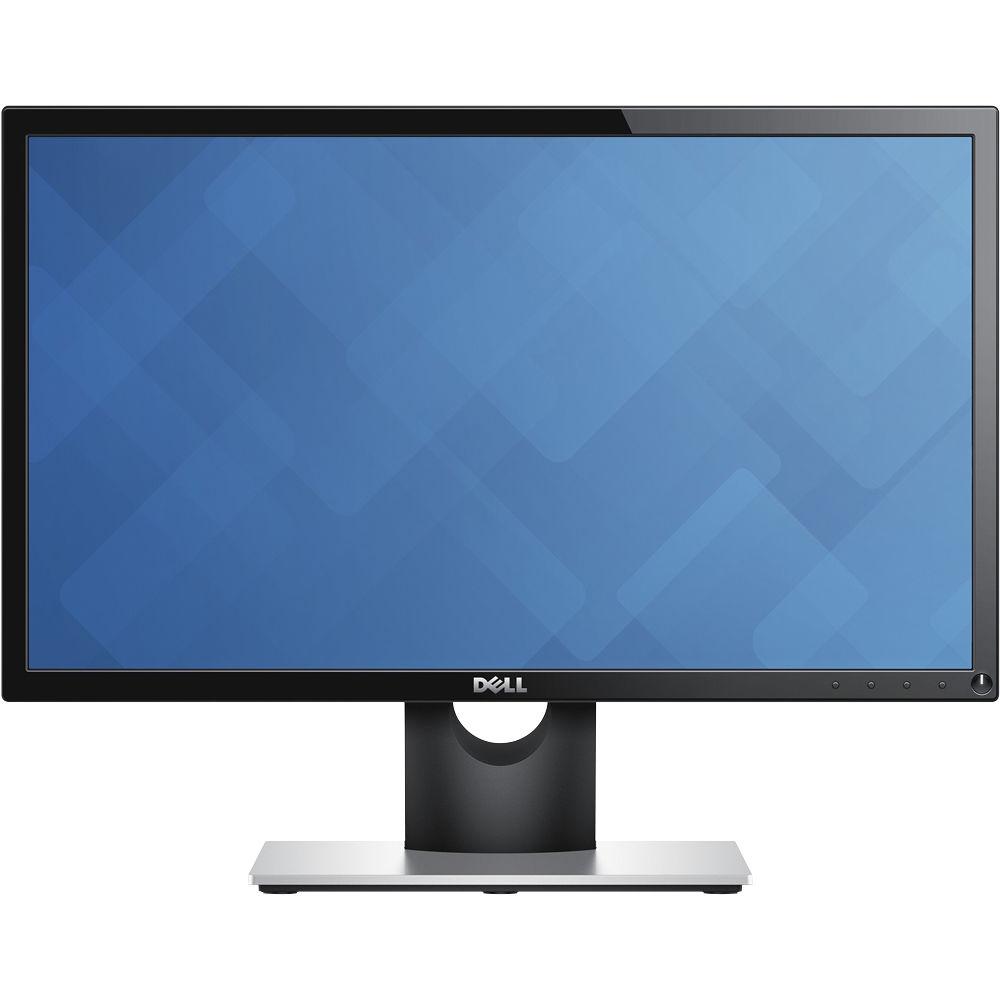

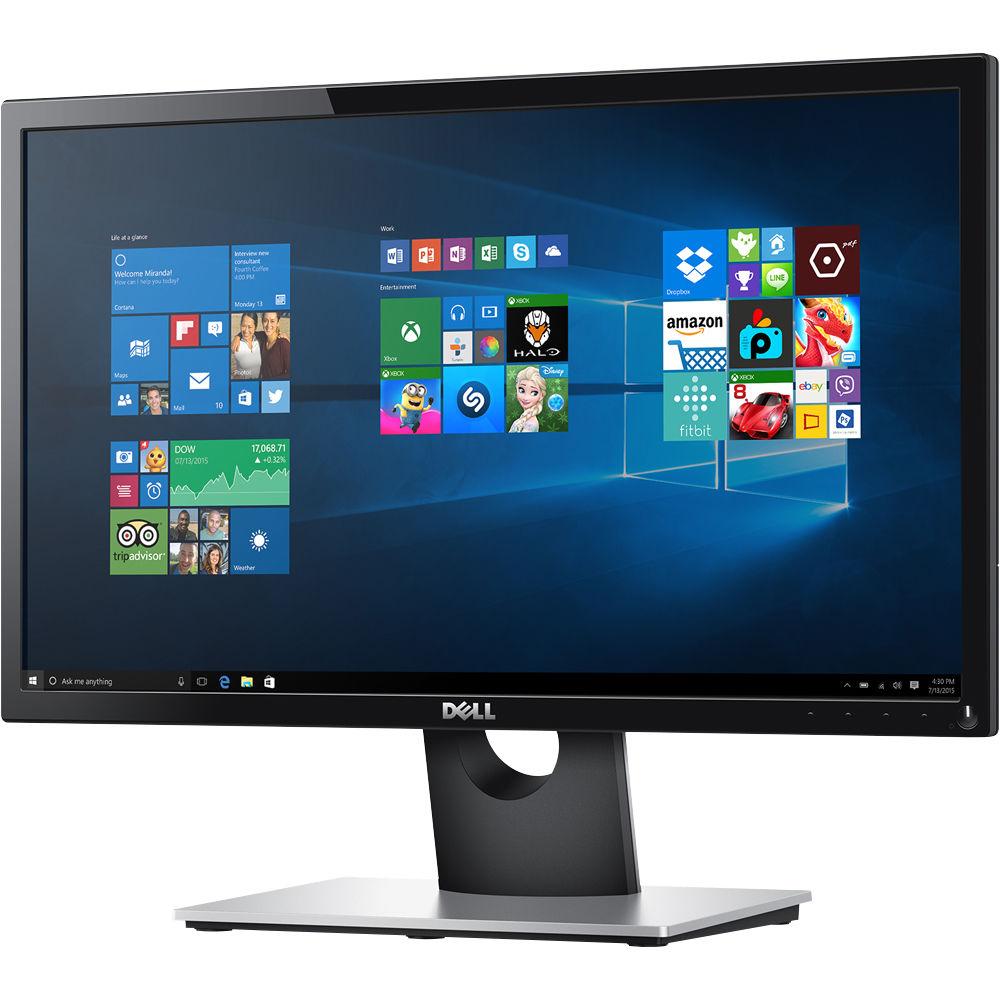

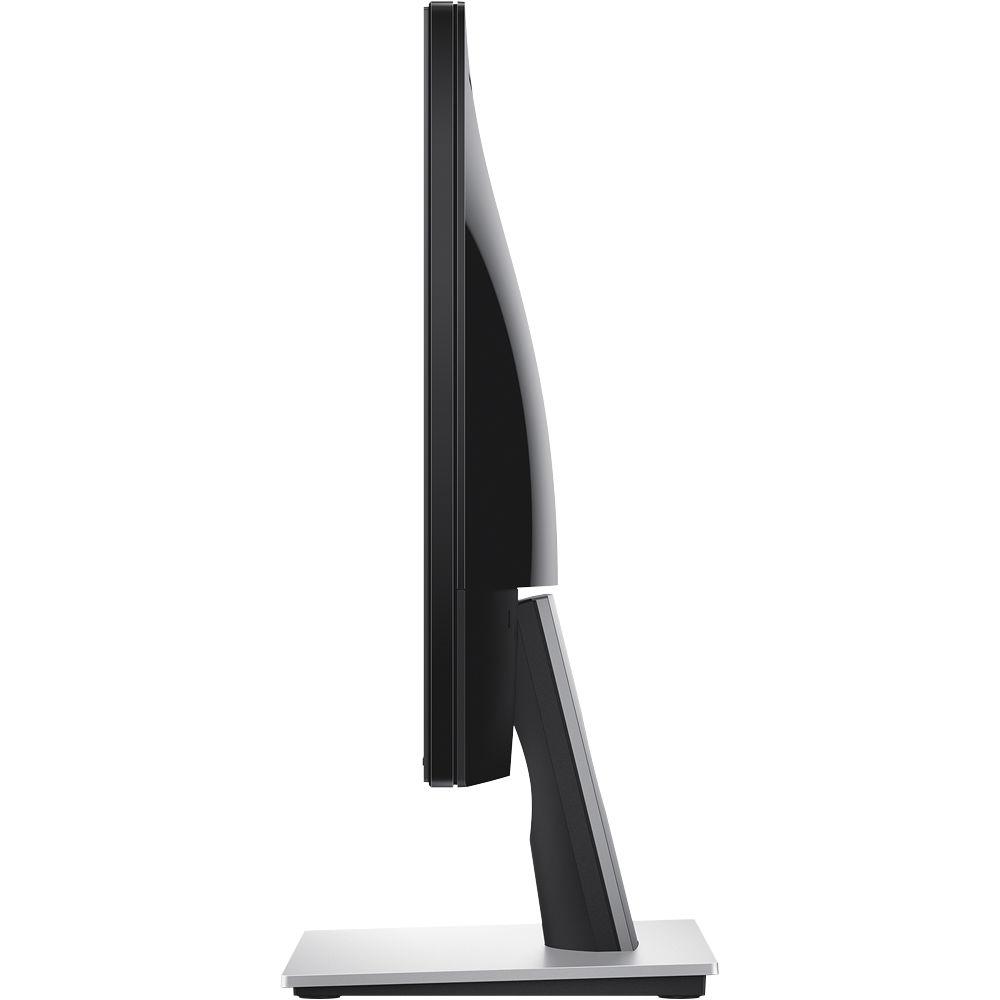

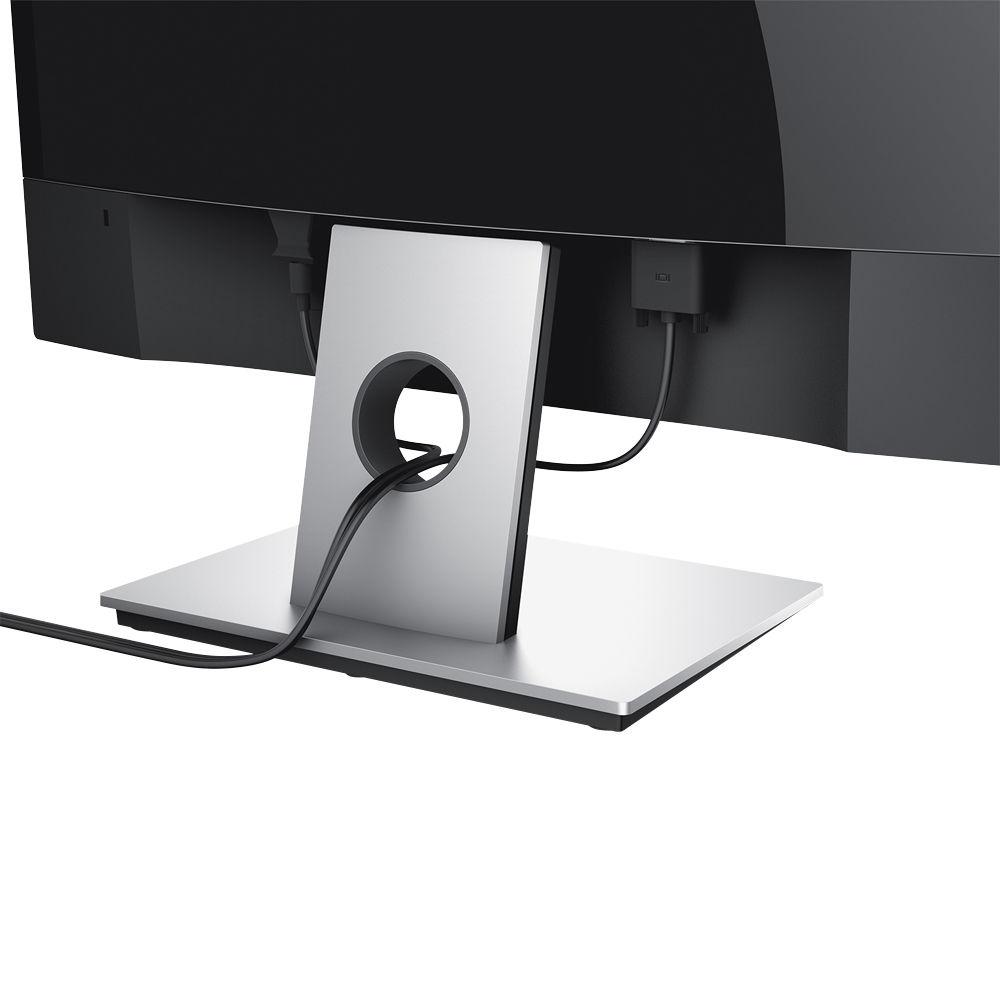

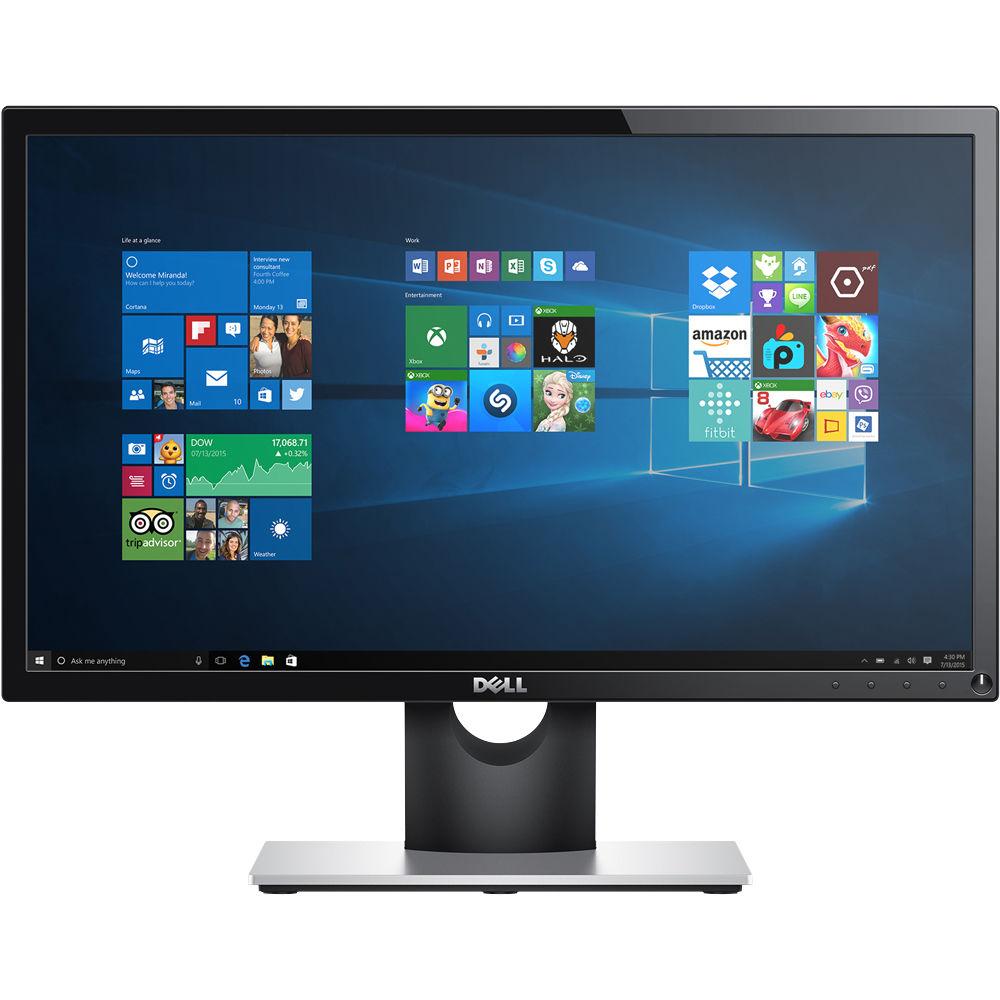

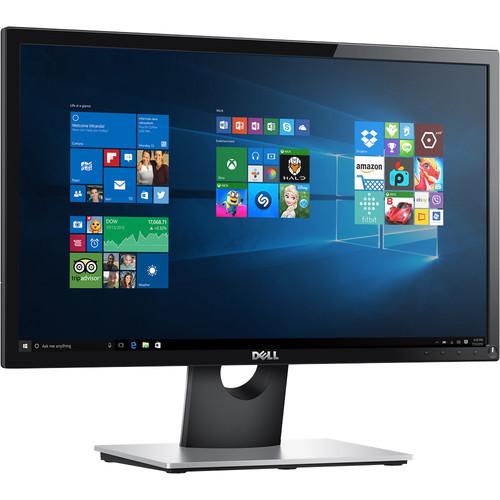

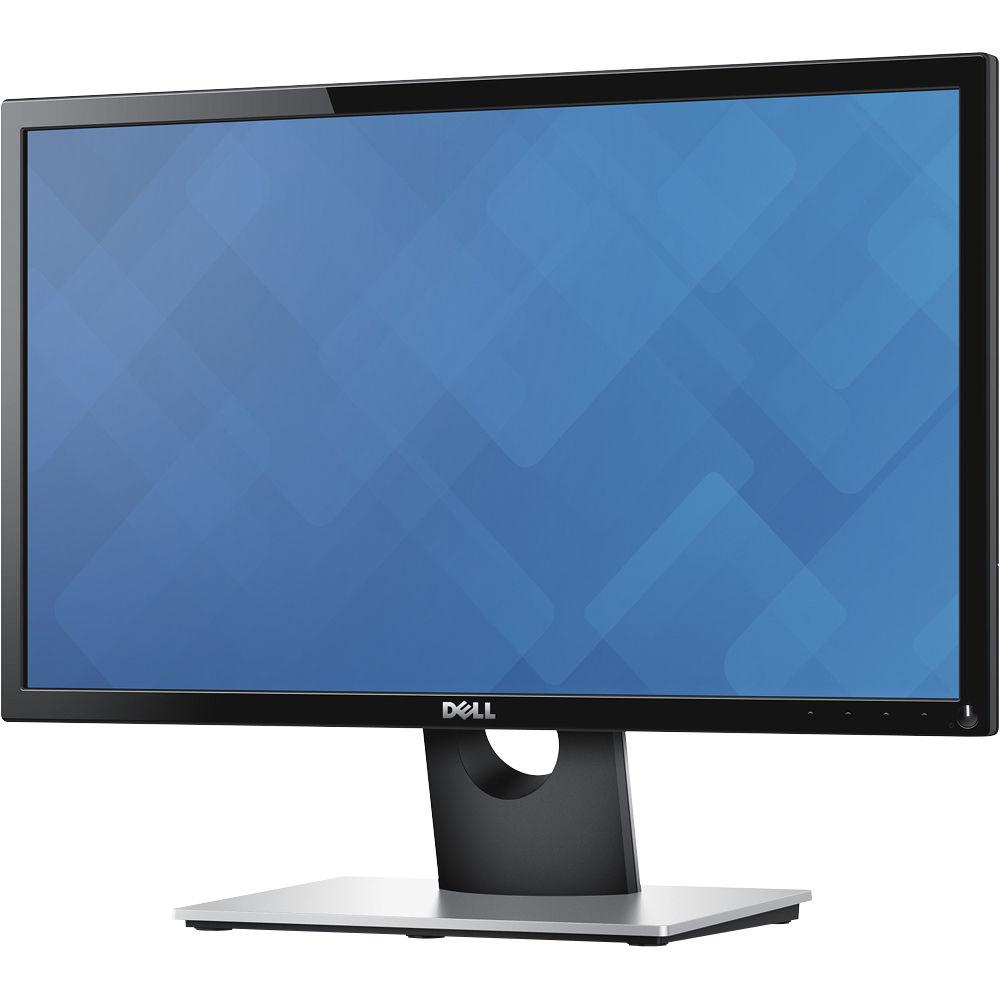

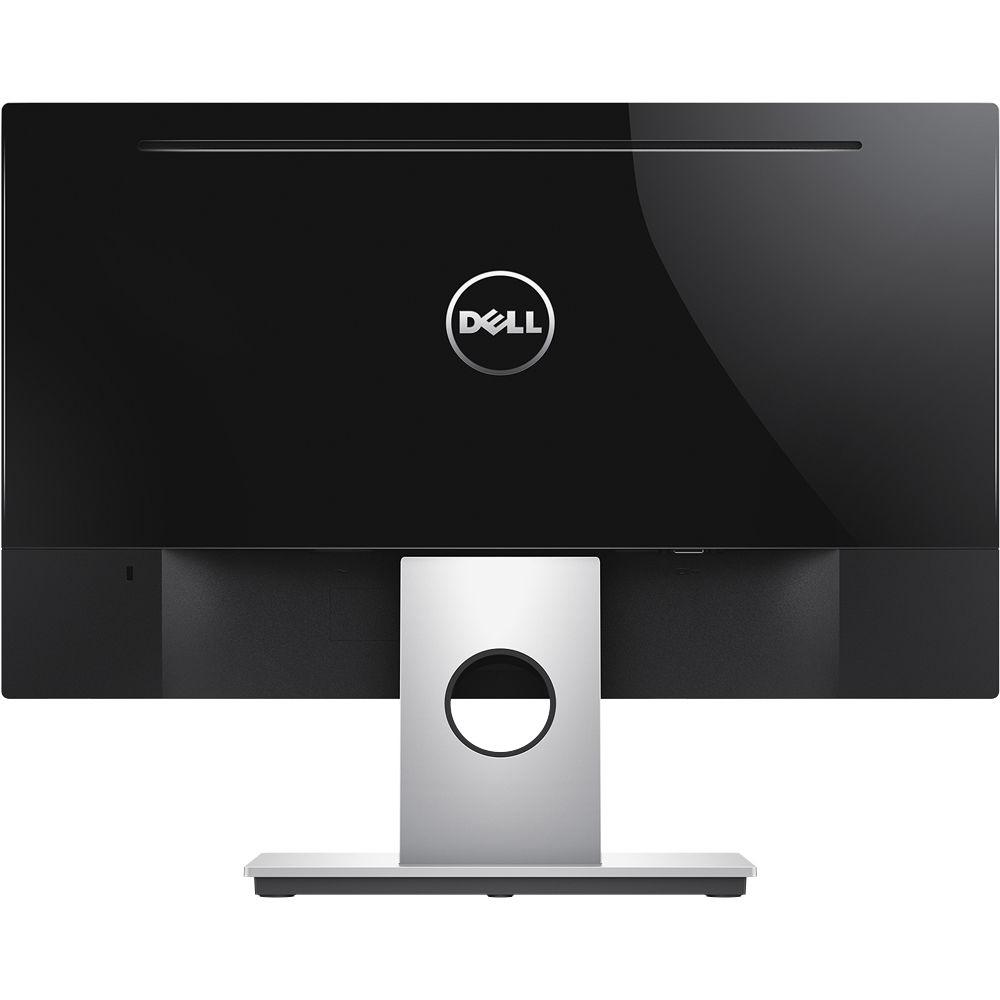

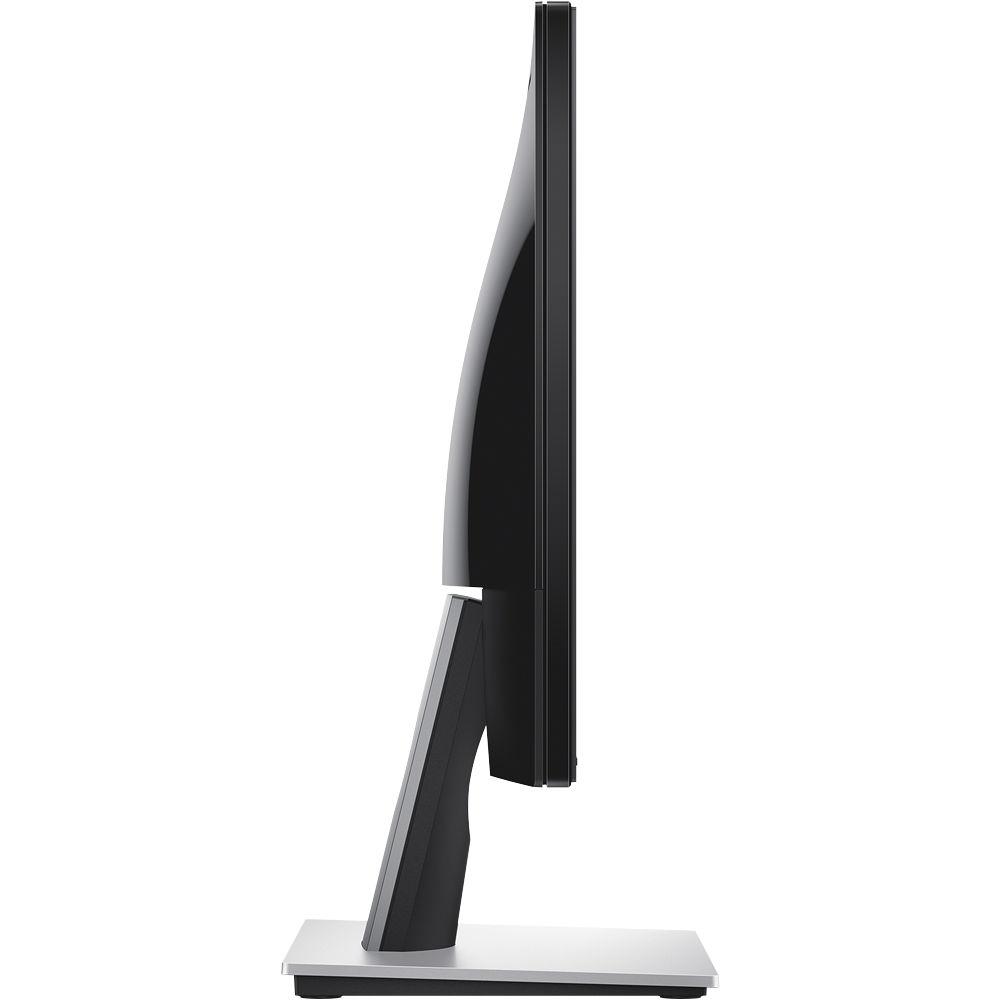

User Manual for Dell SE2216HV 21.5" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the Dell SE2216HV 21.5" 16:9 LCD Monitor
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell SE2216HV 21.5" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

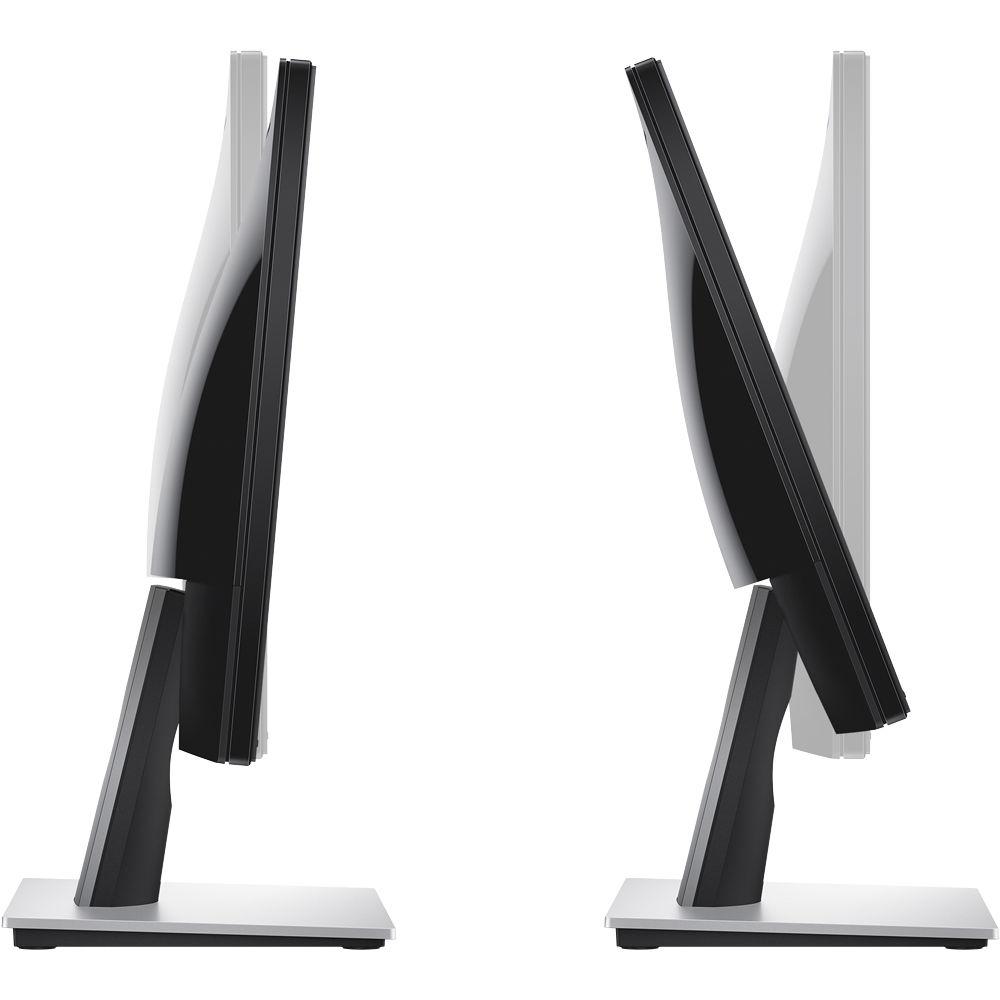

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The SE2216HV 21.5" 16:9 LCD Monitor from Dell features a Full HD resolution of 1920 x 1080 and an aspect ratio of 16:9, allowing you to enjoy crisp and clear pictures and videos at 1080p without any letterboxing. Built with an anti-glare VA (Vertical Alignment) panel, it offers better viewing angles and color reproduction compared to TN (Twisted Nematic) panels. Supporting 16.7 million colors, the SE2216HV has a static 3,000:1 contrast ratio that further enhances colors, providing you with darker blacks and brighter bright colors. Connect this monitor to your system via VGA and tilt it to your viewing preference. UPC: 884116191568 In the Box Dell SE2216HV 21.5" 16:9 LCD Monitor Stand Riser Stand Base Power Cable VGA Cable Limited 3-Year Warranty User Manual PDF 2.6mb More info from Dell Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell SE2216HV 21.5" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell SE2216HV Specs | | | Size | 21.5" | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 8,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 56 to 76 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 84% CIE1976
72% CIE1931 | | Response Time | 12 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.248 x 0.248 mm | | | | Connectivity | 1 x 3.5 mm Output
1 x VGA | | | | Power Consumption | 24 W (Maximum)
18 W (Typical)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 90% | | Operating Altitude | 0 to 16,404' / 0 to 5000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | | | Dimensions (W x H x D) | 19.9 x 15.6 x 7.1" / 50.6 x 39.6 x 18.0 mm (With Stand)
19.9 x 11.9 x 2.2" / 50.5 x 30.2 x 5.6 mm (Without Stand) | | Weight | 8 lb / 3.6 kg (With Stand) | | | | Package Weight | 10.82 lb | | Box Dimensions (LxWxH) | 22.1 x 13.9 x 5.3" |
