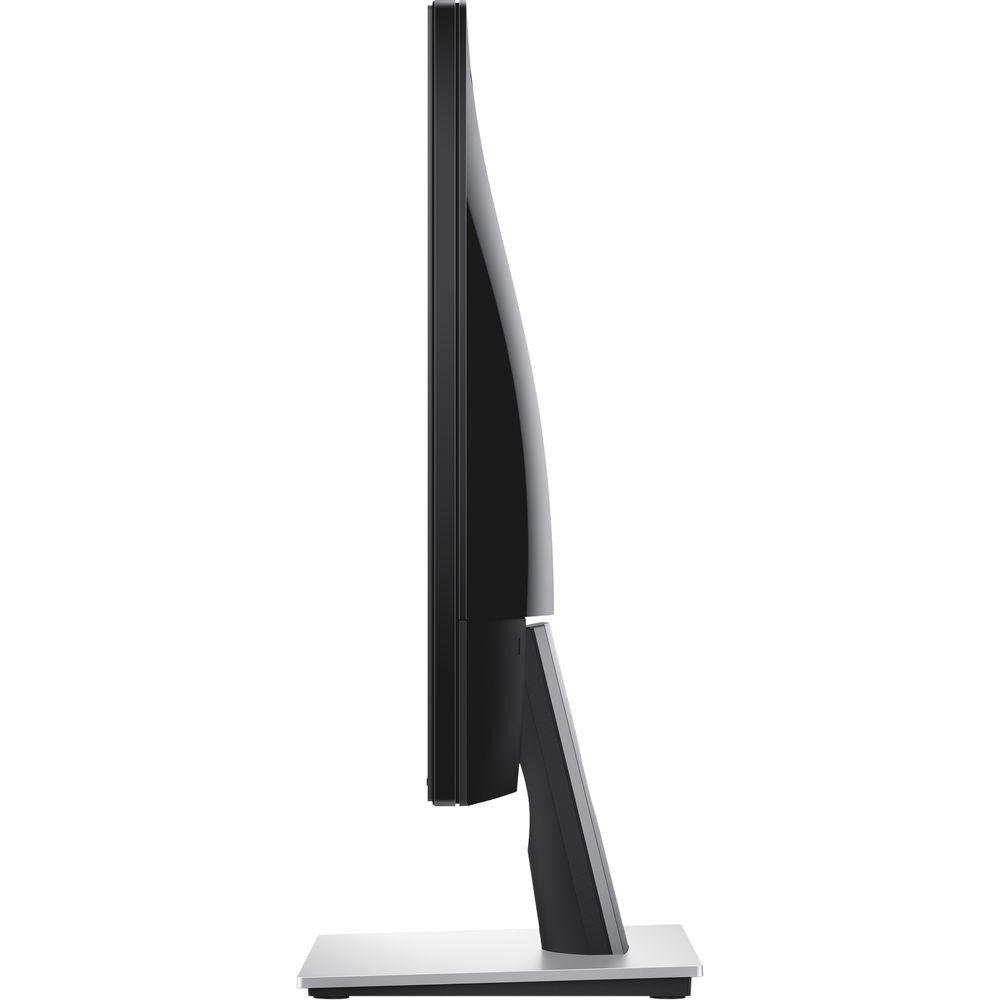

User Manual for Dell SE2416H 24" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell SE2416H 24" 16:9 IPS Monitor
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell SE2416H 24" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

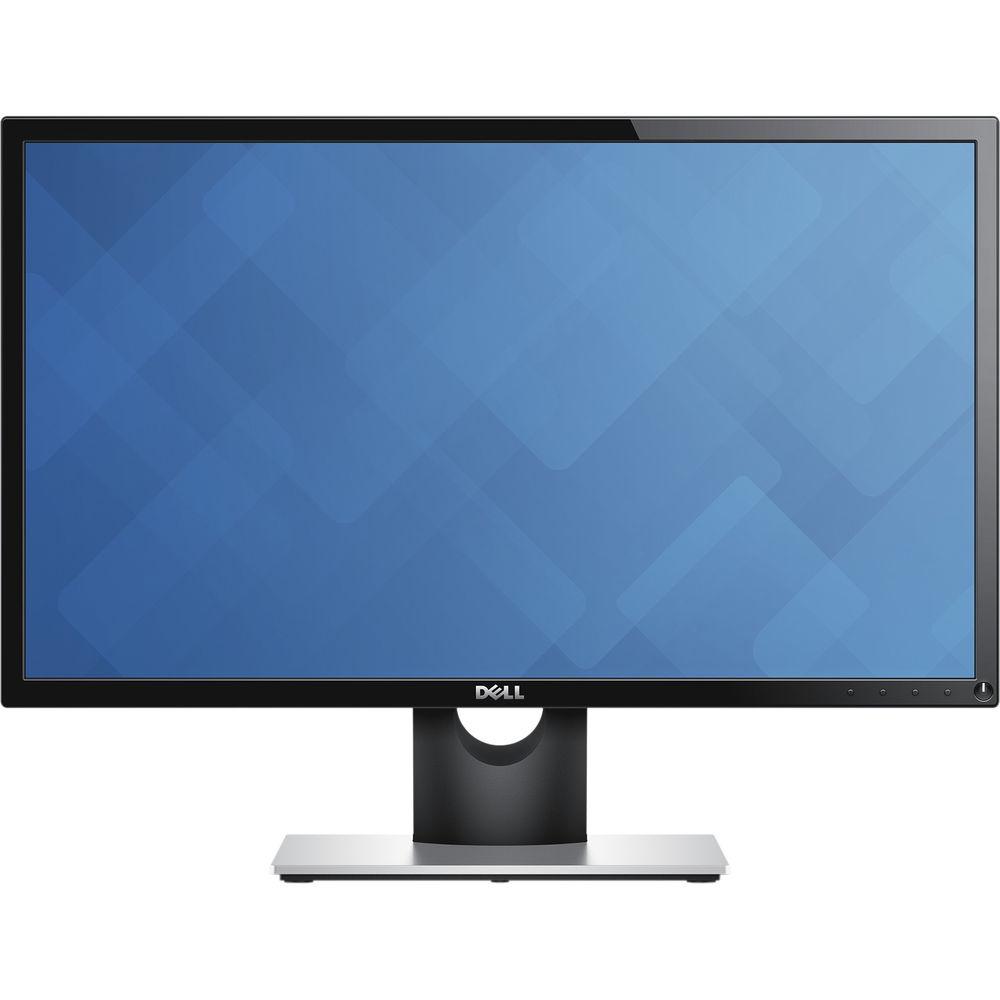

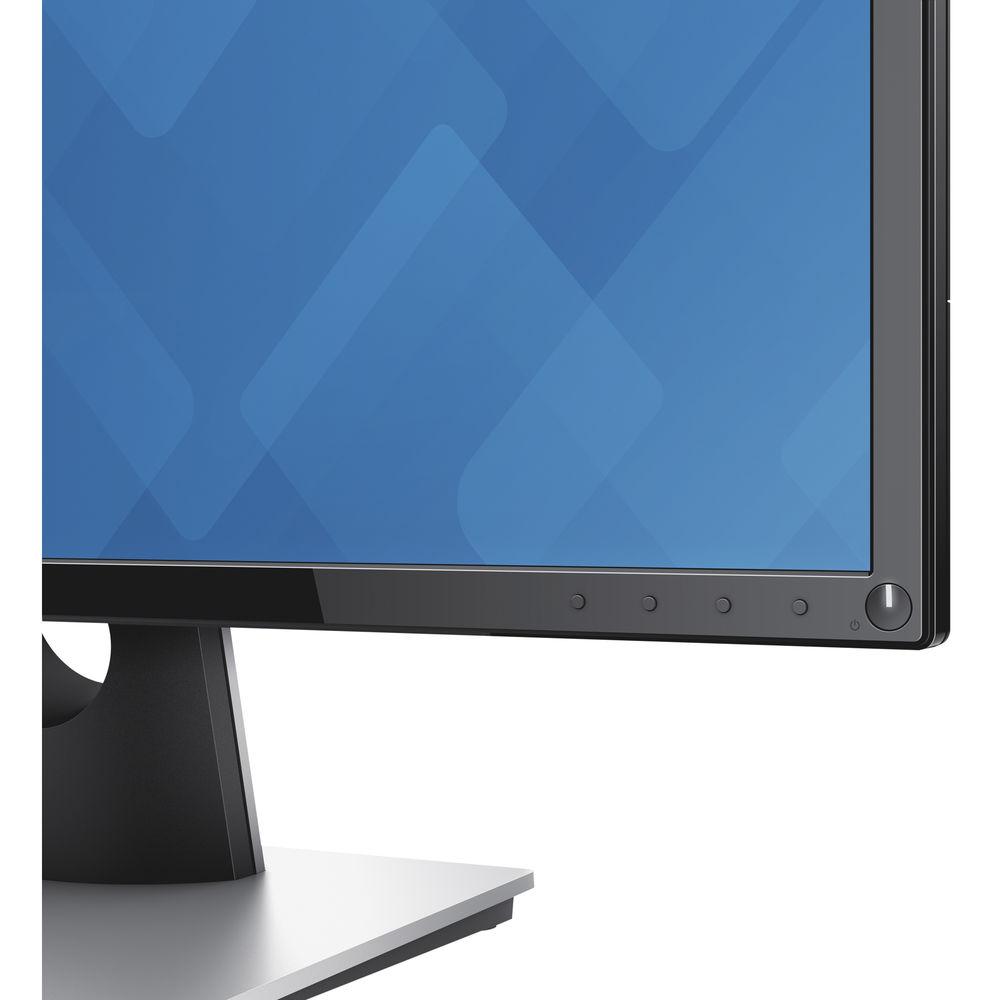

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Reduced size bezels, easy access buttons, and consistent color representation make the SE2416H 24" 16:9 IPS Monitor from Dell suitable for a variety of tasks from work to viewing multimedia content and more.

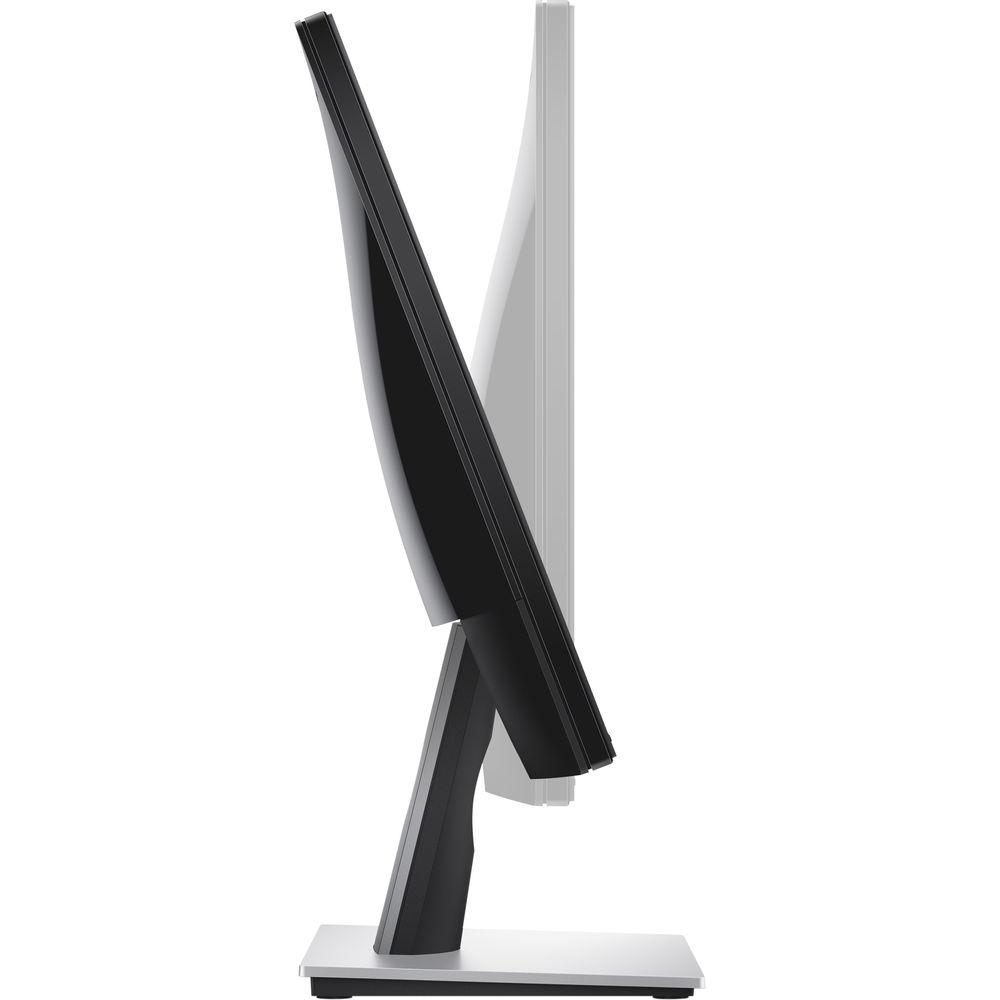

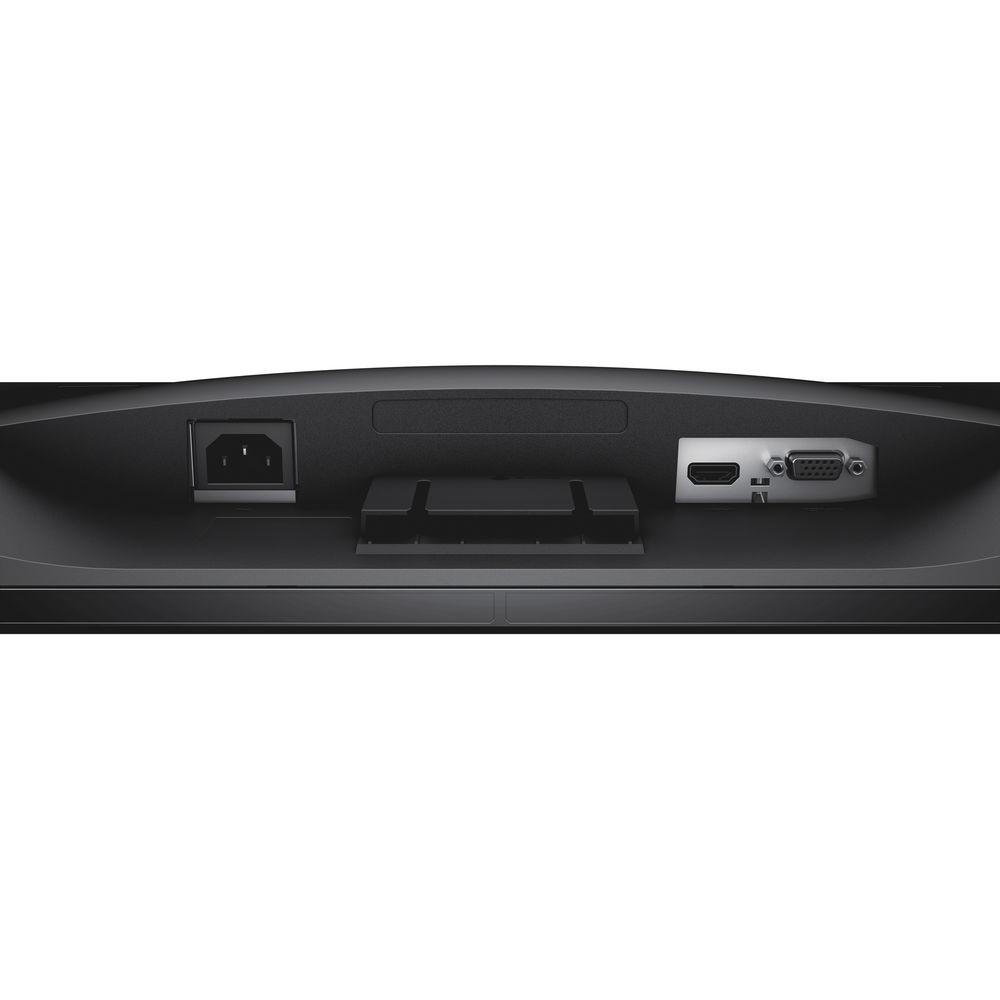

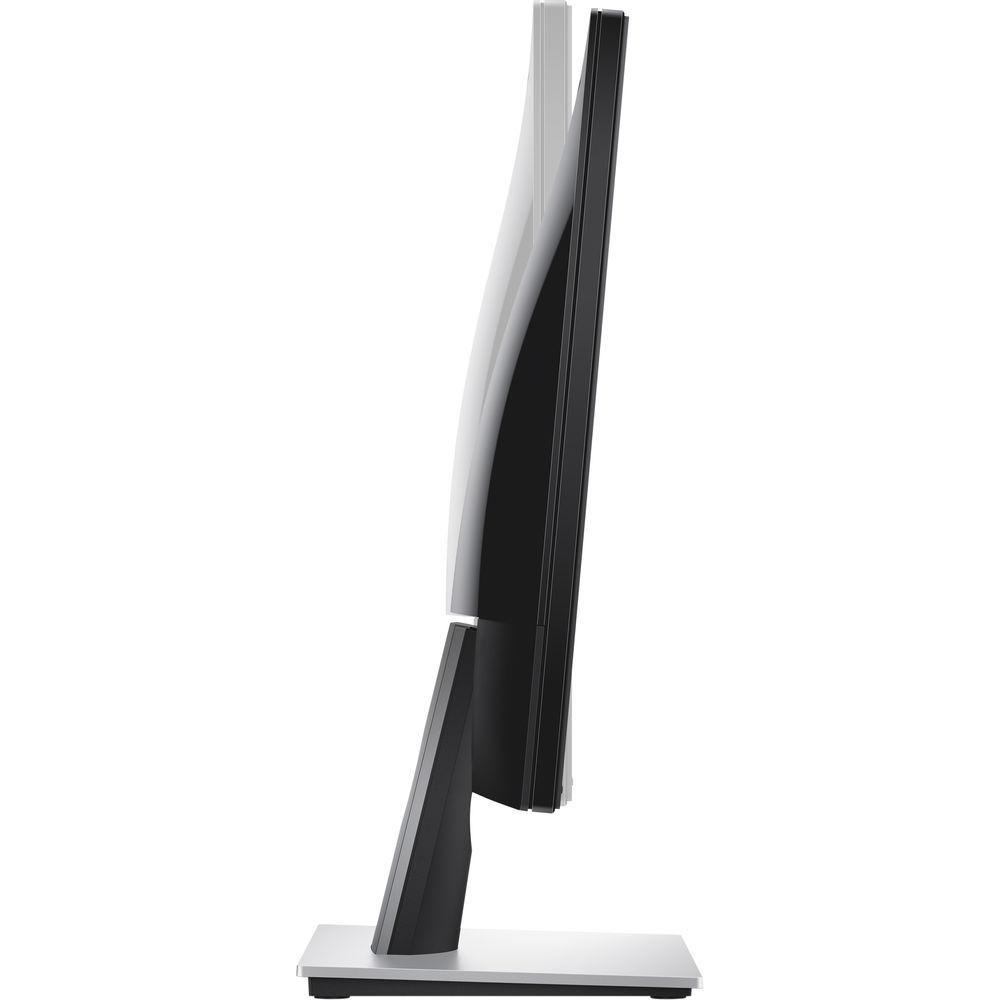

The SE2416H features a Full HD 1920 x 1080 resolution, a 1000:1 contrast ratio, a 250 cd/m² brightness rating, and a 6 ms response time to produce a crisp, clear picture. Setup has also been simplified as this monitor comes equipped with both HDMI and VGA connectors. Once configured, this Dell display can be tilted into place to take full advantage of the 178° horizontal and vertical viewing angles. - Full-screen support for lower resolutions
|
Upload User Manual
Have you got an user manual for the Dell SE2416H 24" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell SE2416H Specs | | | Size | 23.8" | | Screen Area | 20.75 x 11.67" / 52.70 x 29.64 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 8,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 56 to 76 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 84% CIE1976
72% CIE1931 | | Response Time | 6 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2745 x 0.2745 mm | | | | Connectivity | 1 x HDMI
1 x VGA | | Built-In Speakers | None | | | | Power Consumption | 20 W (Eco)
25 W (Maximum)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 90% | | Operating Altitude | 16,400' / 4998 m | | Storage Altitude | 40,000' / 12,192 m | | Certifications | ENERGY STAR, EPEAT Silver, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | None | | Lock Slot | Yes | | Dimensions (W x H x D) | 21.9 x 16.7 x 7.1" / 55.6 x 42.4 x 18.0 cm (With Stand)
21.9 x 13.0 x 2.8" / 55.6 x 33.0 x 7.1 cm (Without Stand) | | Weight | 9.48 lb / 4.30 kg (With Stand)
7.05 lb / 3.20 kg (Without Stand) | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 25.6 x 15.9 x 4.9" |
