User Manual for Dell SS2218M 22" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell SS2218M 22" 16:9 IPS Monitor
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell SS2218M 22" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

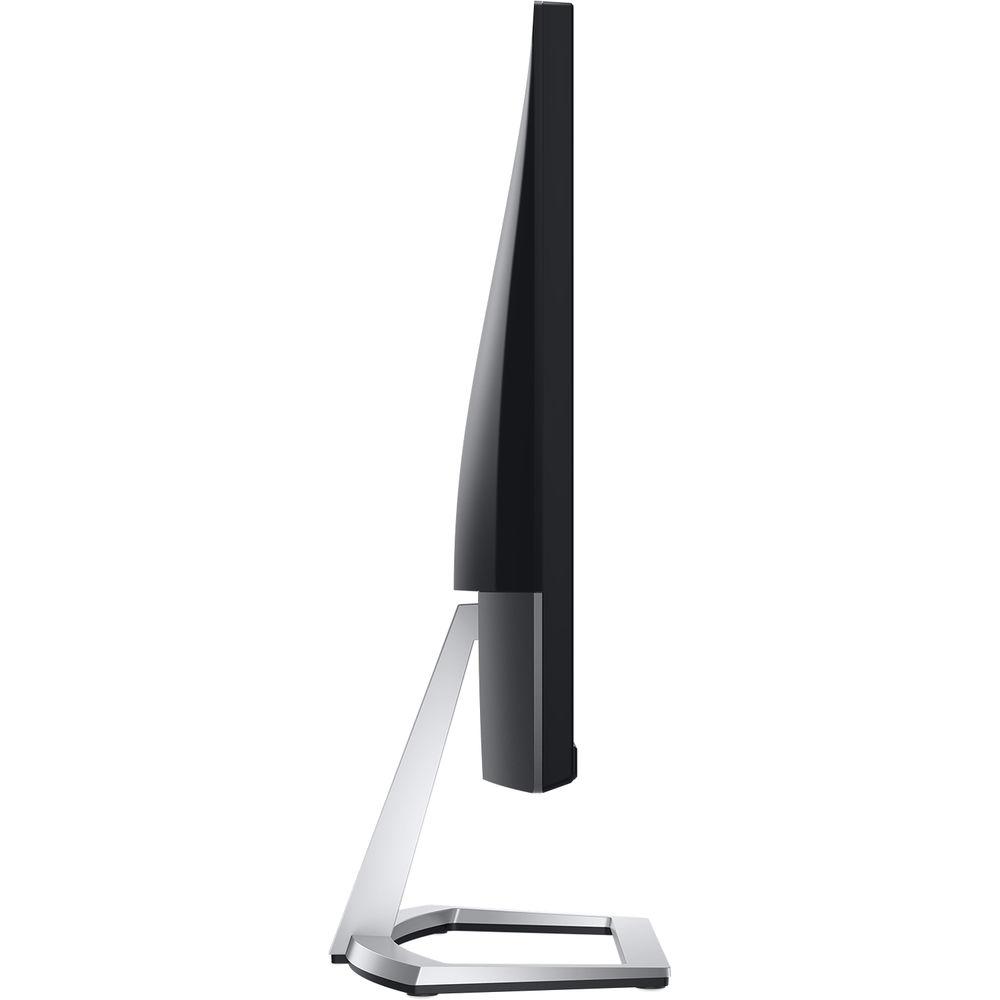

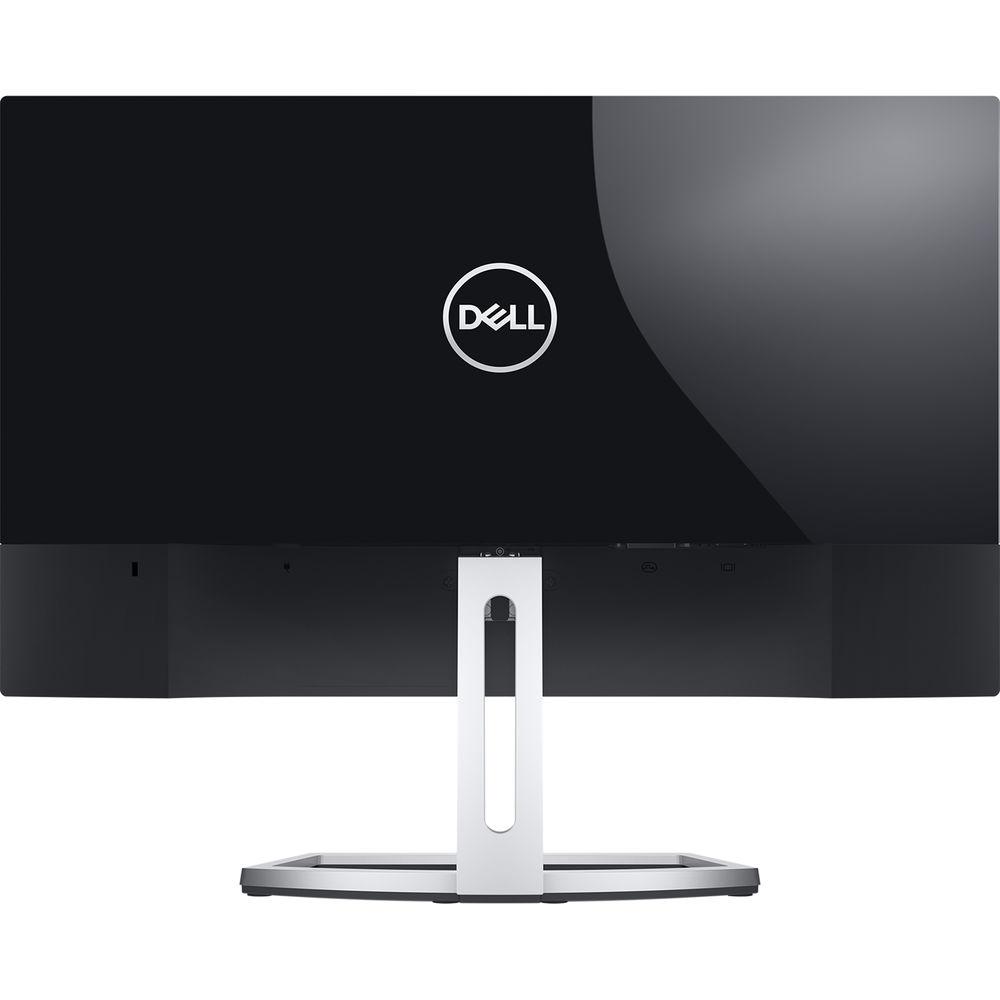

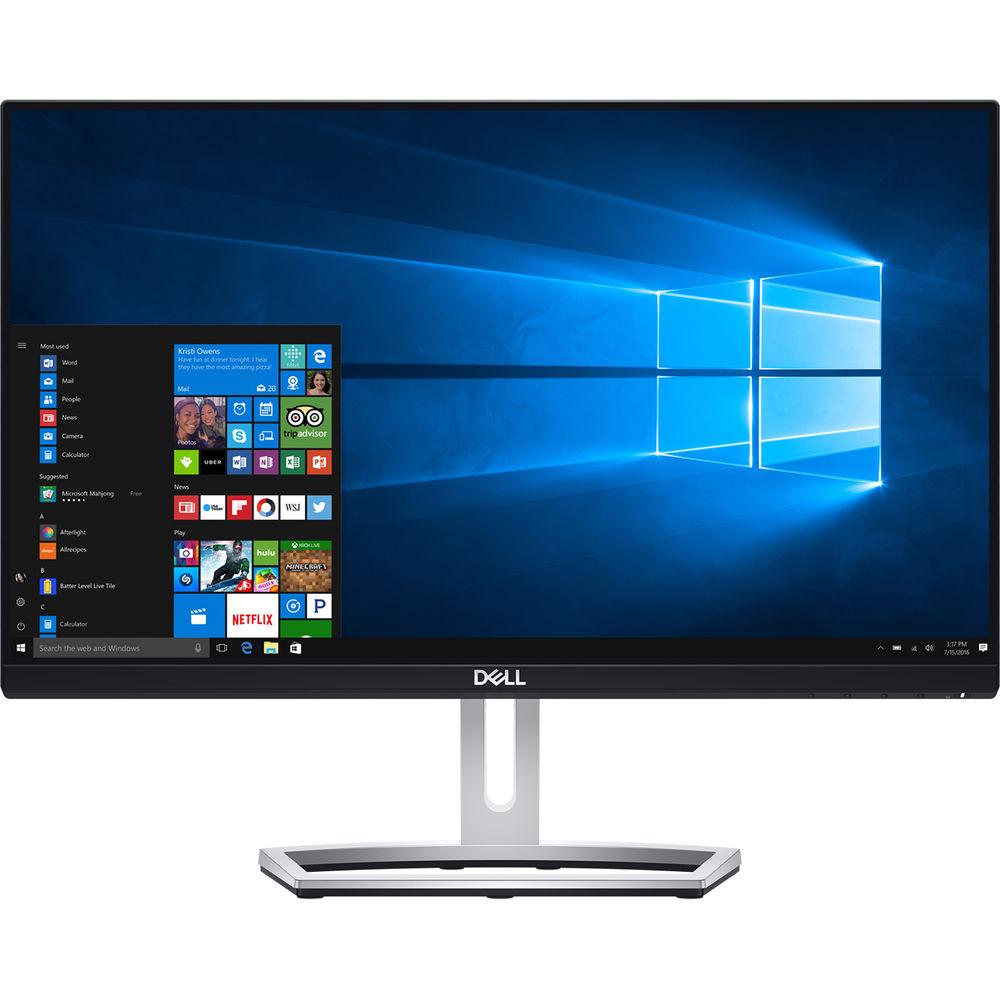

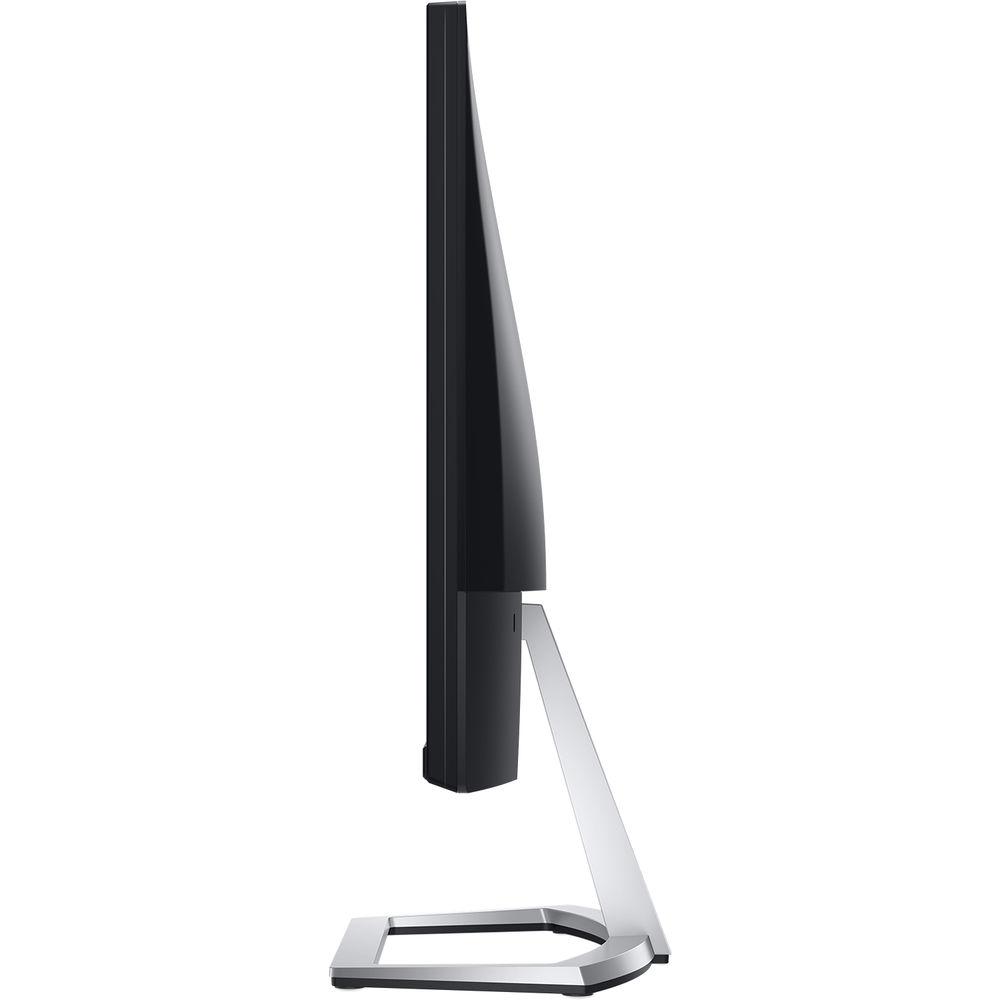

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With versatile 178° horizontal and vertical viewing angles, the SS2218M 22" 16:9 IPS Monitor from Dell is designed to offer a picture that everyone can see from nearly any perspective. In addition to the enhanced viewing angles, this monitor comes equipped with a Full HD 1920 x 1080 resolution screen, a brightness rating of 250 cd/m², and a 1000:1 contrast ratio to provide a crisp, clear picture that is suitable for viewing movies, photos, and more. Additionally, the Dell SS2218M monitor features a 60 Hz refresh rate and a 6 ms response time to help reduce ghosting and blur when viewing fast moving videos and games. -
- A reduced size bezel helps to eliminate distractions
- Glossy back cover
- Full HD resolution
- 178°/178° wide viewing angles enabled by In-Plane Switching (IPS) technology
- This TUV1-certified monitor features ComfortView filters to keep out harmful blue light emissions and optimize eye comfort for extended viewing durations
- Dell Display Manager (DDM) compatibility
- Flicker-free support
In the Box Dell SS2218M 22" 16:9 IPS Monitor Power Cable Power Adapter VGA Cable Drivers Cable Holder Limited 3-Year Warranty User Manual PDF 4.6mb More info from Dell Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell SS2218M 22" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell SS2218M Specs | | | Size | 21.5" | | Screen Area | 18.74 x 10.54" / 47.60 x 26.77 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 102 ppi | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 8,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 72% CIE1931 | | Response Time | 6 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.248 x 0.248 mm | | | | Connectivity | 1 x VGA
1 x DVI-D
1 x 3.5 mm Output | | HDCP Support | Yes | | Built-In Speakers | None | | | | Power Consumption | 21 W (Typical)
23 W (Maximum)
16 W (Eco)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 90% | | Operating Altitude | 16,404' / 5000 m | | Storage Altitude | 39,999' / 12,192 m | | Certifications | ENERGY STAR, TCO Certified, TUV, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 21° | | Mounting-Hole Pattern | None | | Lock Slot | Yes | | Dimensions (W x H x D) | 19.3 x 15.2 x 5.8" / 49.0 x 38.6 x 14.7 cm (With Stand) | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 22.0 x 14.3 x 5.3" |
