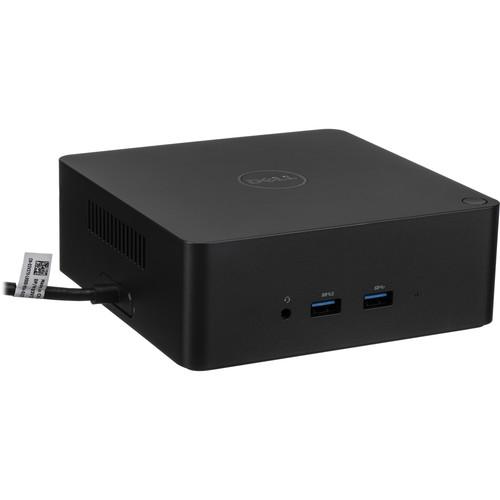

Product description Connect your compatible laptop to USB devices, Gigabit Ethernet, and up to three monitors with the TB16 Business Thunderbolt Dock with 180W Adapter from Dell. This compact dock connects to your Windows or Linux laptop via a Thunderbolt 3 connection, and it comes equipped with three USB 3.0/3.1 Gen 1 Type-A ports, two USB 2.0 Type-A ports, an HDMI port, a DisplayPort, a Mini DisplayPort, a Gigabit Ethernet port, and a pair of audio jacks. The Dell TB16 dock boasts a maximum video resolution of up to 5120 x 2880 at 60Hz on a single display, and up to 2560 x 1600 at 60Hz on three displays. The dock can also supply up to 60W of power to a connected Thunderbolt 3-equipped laptop or device. - One Source for Power
- The Dell Business Thunderbolt Dock can provide power to your laptop (at 19.5V) and can also provide power to attached Thunderbolt 3 peripherals. With the ability to provide up to 60W of power to an external Thunderbolt 3 device, this version is best for Dell Latitude and XPS notebooks and 2-in-1s with a Thunderbolt 3 port that require up to 65W of power.
- Compatibility
- Latitude 7280, 7380, 7480, 7285, 5480, 5580, 5290 2-in-1, 7390 2-in-1, 7290, 7390, 7490, 5491, 5591
Precision 3520, 7520, 7720, 5520, 3530, 5530, 7530, 7730, 5530 2-in-1
XPS 9560, 9360, 9365, 9360, 9575, 9370, 9570 UPC: 884116256809 In the Box Dell TB16 Business Thunderbolt Dock with 180W Adapter USB Type-C Thunderbolt Cable (1.6') 180W AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell TB16 Business Thunderbolt Dock with 180W Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell 5K5RK Specs | | | USB | 2 x USB 2.0 Type-A
3 x USB 3.1 Gen 1 Type-A | | Thunderbolt | 1 x Thunderbolt 3 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x HDMI
1 x DisplayPort
1 x Mini DisplayPort
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone
1 x 1/8" / 3.5 mm Line-Out | | Memory Card Slots | None | | | | System Connection | 1 x Thunderbolt 3 Type-C Female | | Connection Type | Detachable Cable | | | | Number of Displays Supported | 3 | | Maximum Resolution Supported | 5120 x 2880 at 60 Hz (Single Display)
3840 x 2160 at 60 Hz (Dual Display)
2560 x 1600 at 60 Hz (Triple Display) | | Data Transfer Rate | 40 Gb/s Thunderbolt 3 | | Operating System Support | Linux, Windows | | UASP Support | No | | | | Power Source | AC Adapter | | Maximum Power Consumption | 180 W (AC Adapter) | | AC Input Power | 120 to 230 VAC, 50 / 60 Hz | | | | LED Indicator | Activity, Connection, Power | | Lock Slot | Yes, Kensington | | Dimensions | 5.71 x 5.71 x 2.01" / 145 x 145 x 51 mm | | Weight | 26.1 oz / 740 g | | | | Package Weight | 4.31 lb | | Box Dimensions (LxWxH) | 10.65 x 7.7 x 5.85" |
