User Manual for Dell U2415 24" 16:10 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell U2415 24" 16:10 IPS Monitor
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
|
User manual for the Dell U2415 24" 16:10 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

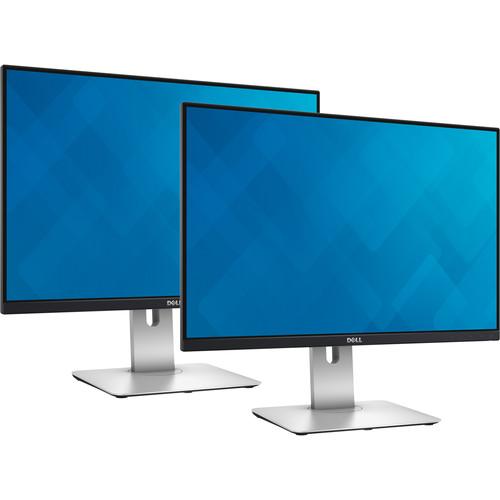

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More bzrrsdas This Kit includes two Dell U2415 24" 16:10 IPS Monitors each featuring an IPS panel with a 1920 x 1200 resolution, a 1000:1 contrast ratio, and reduced-size bezels, making them ideal for a multi-monitor setup. - 2 x Dell U2415 24" Widescreen LED Backlit IPS Monitor This UltraSharp U2415 24" Widescreen LED Backlit IPS Monitor from Dell utilizes in-plane switching technology to produce 178° horizontal and vertical viewing angles. The widescreen display features a 16:10 aspect ratio with a 1920 x 1200 resolution, a 1,000:1 contrast ratio, 300 cd/m² brightness rating, and a 6 ms response time for crisp, clear picture quality.
The U245 comes equipped with a variety of connectors including HDMI, DisplayPort, and Mini DisplayPort inputs to connect this monitor to a variety of computer configurations. Additionally, this Dell monitor features a USB 3.0 hub with five downstream and one upstream port to connect peripherals such as external hard drives, tablets, and more. - The U2415 comes factory tuned right out of the box with consistent 99% sRGB coverage at a deltaE < 3
- Enjoy 24" of enhanced screen clarity on a large 16:10 aspect ratio WUXGA 1920 x 1200 resolution monitor, across an ultra-wide 178° x 178° viewing angle
- Help boost your productivity with a dual or multi-monitor setup and take advantage of the ultra-thin (6.9mm) bezel that allows virtually borderless viewing between monitors
- Easily pivot 90° clockwise or counter-clockwise, placing the thinnest edges side-by-side for an enhanced viewing experience
- The U2415 is VESA-compatible, so you can wall mount your monitor or attach it to a VESA compatible monitor arm
- For easy connections to other devices in your workspace, the U2415 provides two HDMI (MHL) ports, one DisplayPort, and one mini-DisplayPort. Quickly charge BC1.2 compatible and other USB devices with a USB 3.0 port found on the back of the monitor that supplies high-speed charging and powering
- This Dell monitor comes ENERGY STAR Qualified, EPEAT Gold Rated, and TCO Certified
UPC: 884116153061 In the Box - 2 x U2415 24" Widescreen LED Backlit IPS Monitor
- Monitor Stand
- Cable Cover
- Power Cable
- DP Cable (Mini-DP to DP)
- USB 3.0 Upstream Cable (Enables USB Ports on the Monitor)
- Drivers and Documentation Media
- Limited 3-Year Warranty
More from Manufacturer More info from Dell Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell U2415 24" 16:10 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Dell U2415 24" Widescreen LED Backlit IPS Monitor
| | | Size | 24.1" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 2,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 91% CIE1976
99% sRGB | | Response Time | 19 ms
8 ms (GtG)
6 ms (Overdrive) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.27 x 0.27 mm | | | | Connectivity | 1 x 3.5 mm Output
1 x USB Type-B (USB 3.1 Gen 1) Input
5 x USB Type-A (USB 3.1 Gen 1) Output
1 x DisplayPort 1.2 Input
1 x DisplayPort Output
1 x Mini DisplayPort Input
2 x HDMI (MHL) | | | | Power Consumption | 0.5 W (Standby)
75 W (Maximum)
23 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 90% | | Operating Altitude | 0 to 16,404' / 0 to 5000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | | | Height Adjustment | 4.5" / 11.4 cm | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 15.9 x 21.0 x 8.1" / 40.3 x 53.2 x 20.5 mm (With Stand)
13.8 x 21.0 x 1.8" / 35.1 x 53.2 x 4.6 mm (Without Stand) | | Weight | 9.4 lb / 4.3 kg (Without Stand) | | | | Box Dimensions (LxWxH) | 27.0 x 18.0 x 10.0" |
