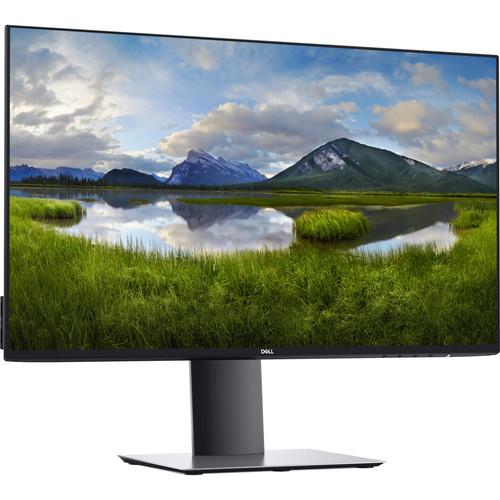

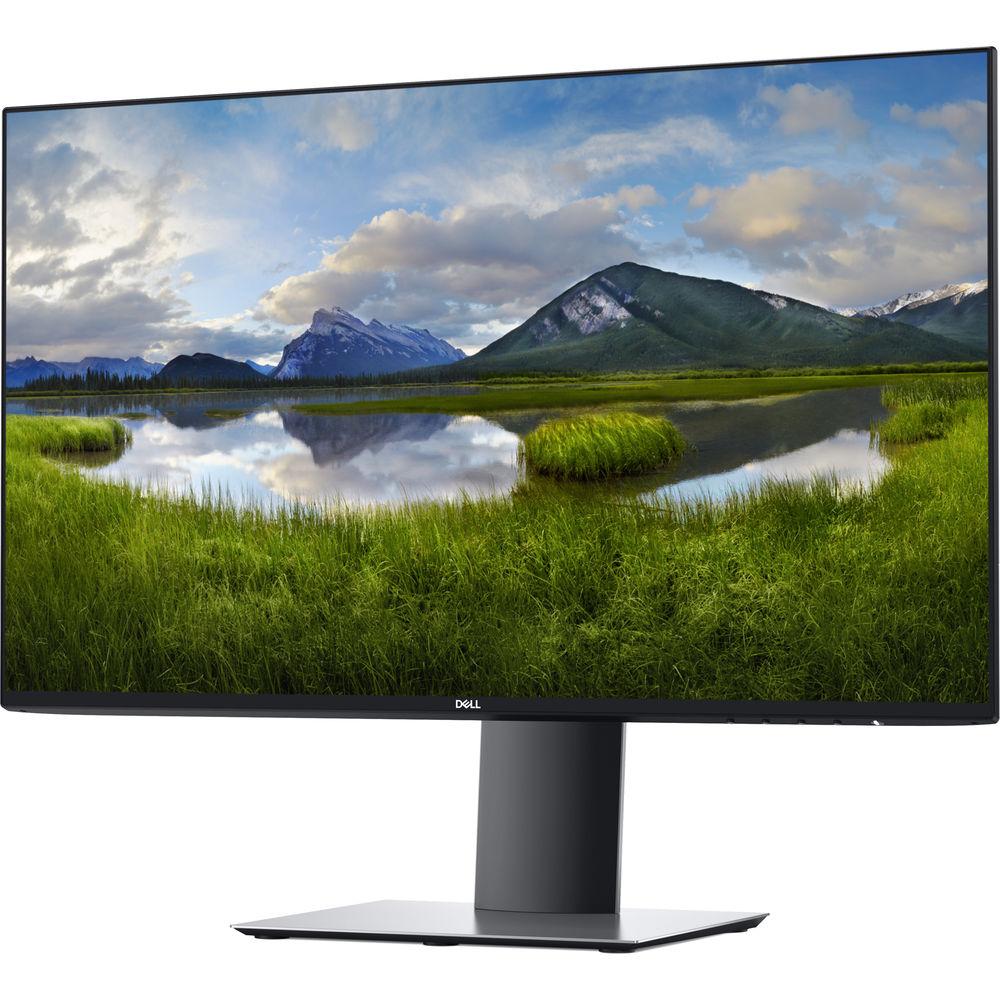

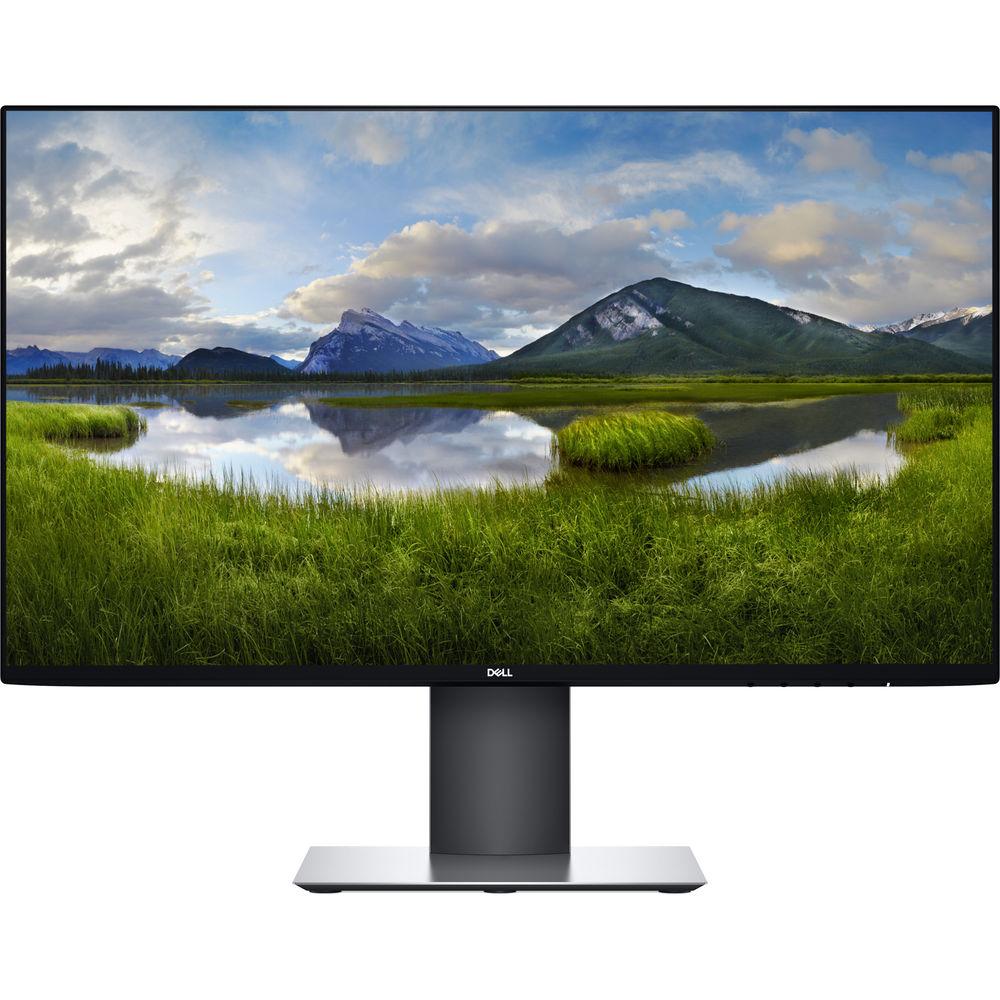

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Experience an immersive viewing experience in a thin design with the U2419HC UltraSharp 24" 16:9 IPS Monitor from Dell, which features a native resolution of 1920 x 1080with a 60 Hz refresh rate, as well as coverage for 99% of the sRGB and Rec. 709 color gamuts, and 85% of the DCI-P3 color gamut. It also features In-Plane Switching (IPS) technology, support for 16.7 million colors, a 16:9 aspect ratio, an anti-glare coating with a 3H hardness rating, a static contrast ratio of 1000:1, a typical brightness level of 250 cd/m2, an 8 ms response time in normal mode, and a 5 ms response time in fast mode. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position.

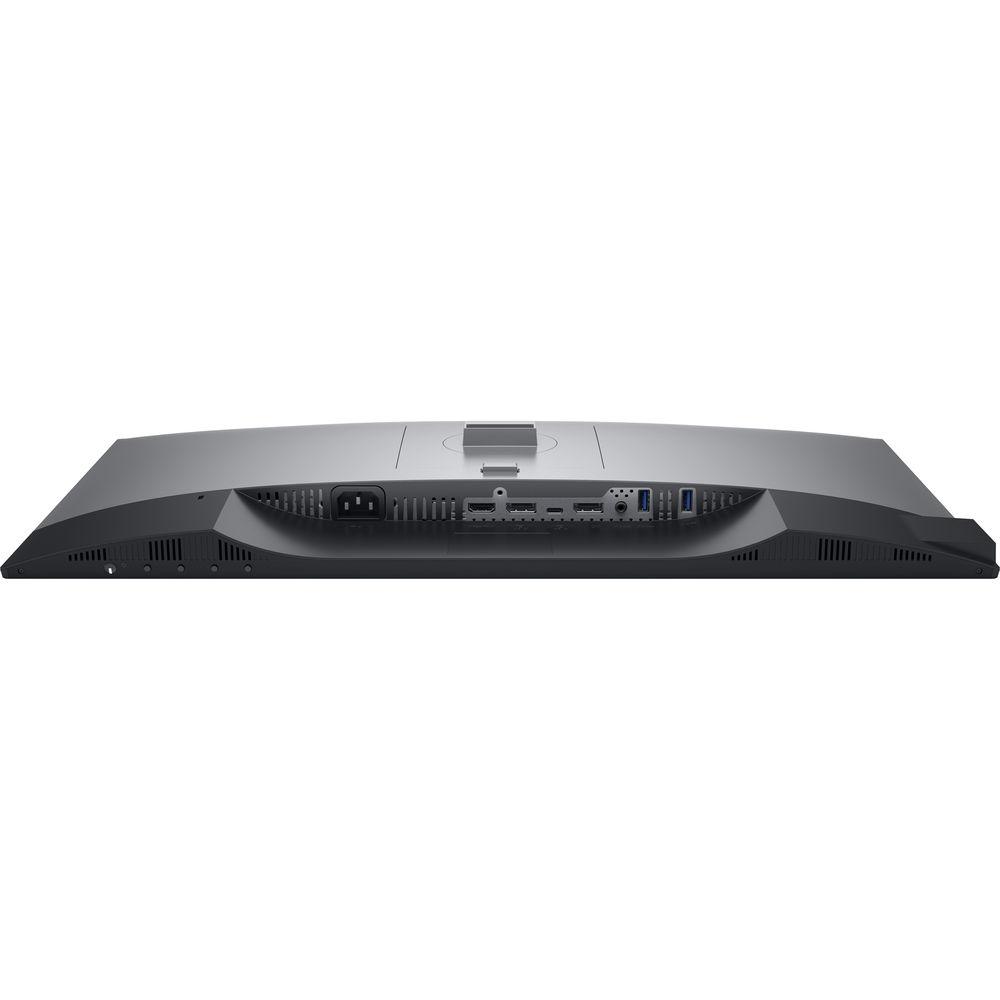

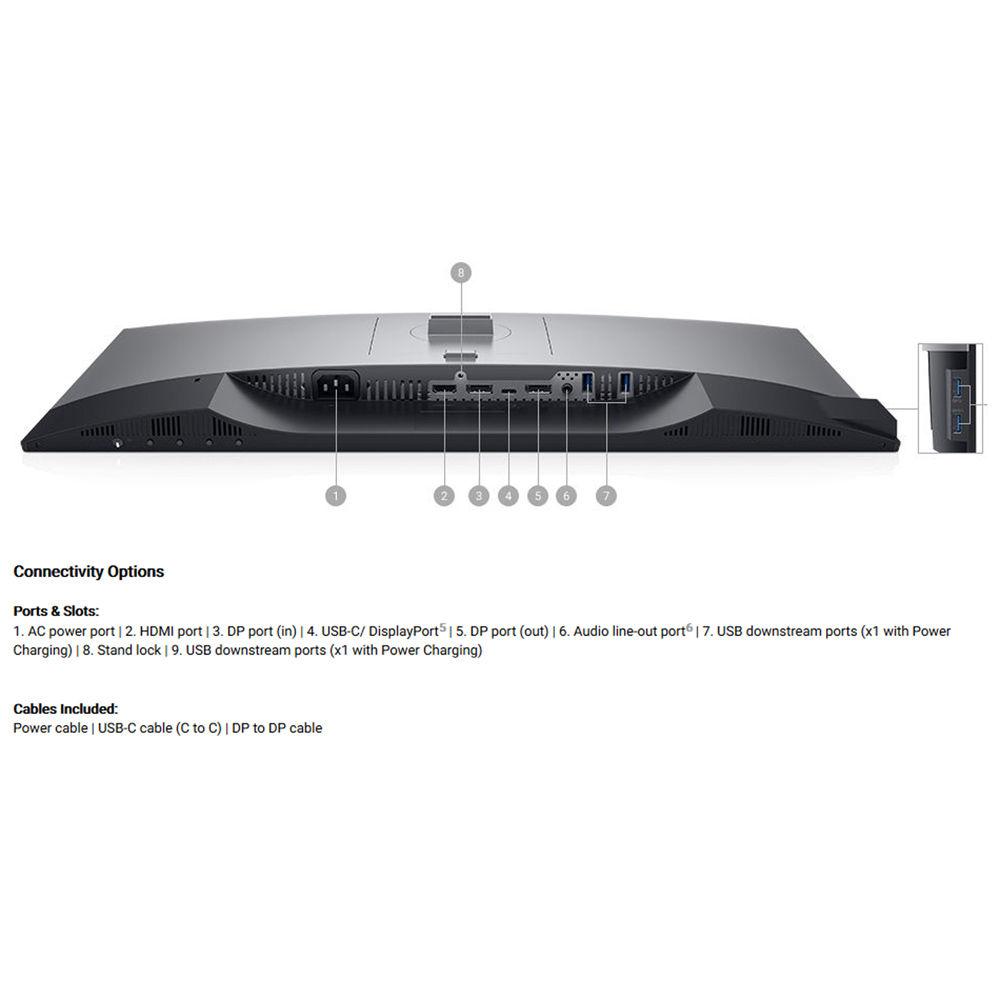

Dell's U2419HC has one USB Type-C port, which supports DisplayPort 1.4 video output, serves as a USB 3.1 input, and delivers up to 65W of power to compatible devices. It also has DisplayPort 1.4 and HDMI 1.4 inputs, a DisplayPort output, and four USB 3.0 Type-A ports, two of which support battery charging via the BC 1.2 spec up to 2A. If you'd like to output audio, there is a 3.5mm line out jack. To further help improve viewing and accessibility, this display features a tilt of -5 to 21°, a swivel of -40 to 40°, and a height adjustment of 5.1", and a 100 x 100mm VESA mount. Visuals - Crisp and Clear Details
- Experience improved screen clarity with Full HD (1920 x 1080) resolution on a 23.8" screen.
- Color Consistency
- Your UltraSharp monitor is factory calibrated at 99% sRGB coverage to an accuracy of Delta-E less than 2, for precise hues right out of the box. Plus, with 99% Rec. 709 and 85% DCI-P3 color coverage, you'll see true-to-life colors in video formats.
- In-Plane Switching (IPS) Technology.
- See consistent, vibrant colors across wide viewing angles of 178°, enabled by In-Plane Switching (IPS) technology.
Design - More Room to Work

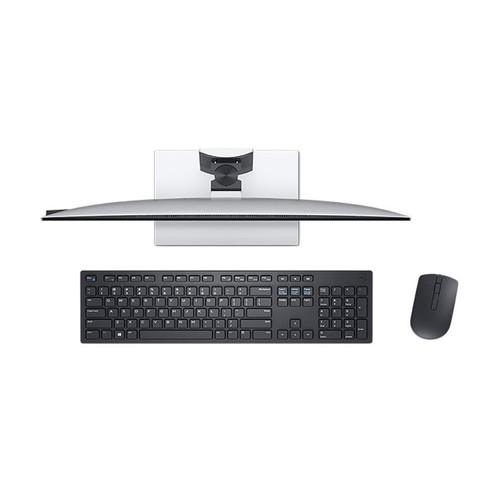

- With a thin panel profile (only 0.3" / 6.5mm at its thinnest) and a compact base that's approximately 30% smaller than its predecessor, you can free up valuable desk space.
- Adjust to Your Comfort

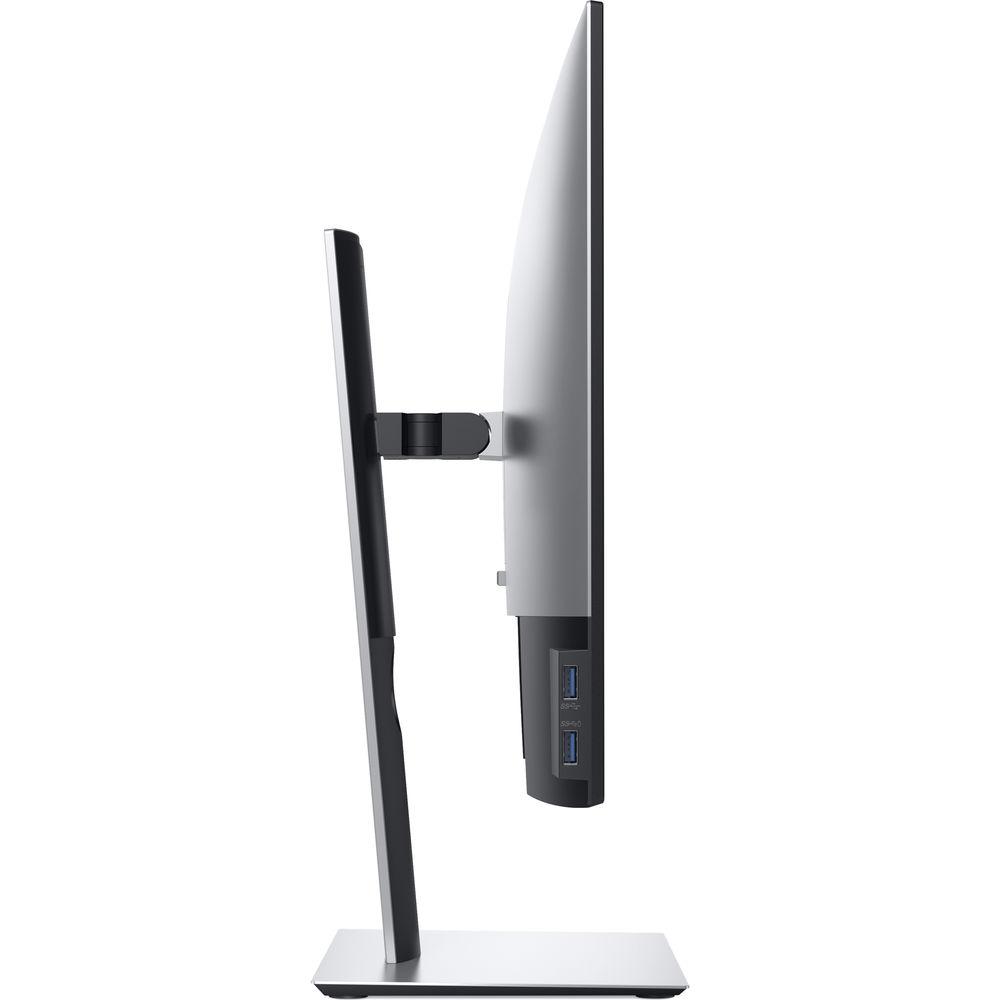

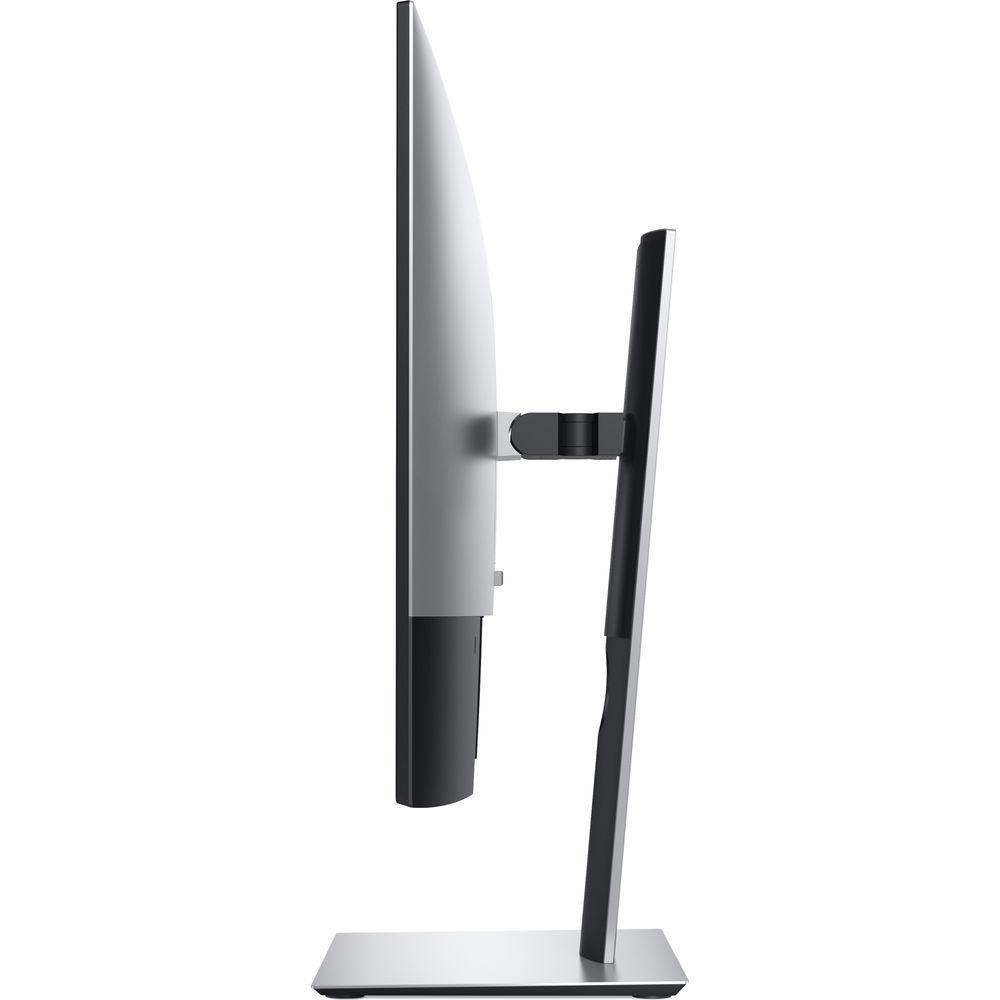

- Pivot, tilt, swivel, and adjust the height of your monitor for a comfortable setup. Dell's improved design, with the hinge on the riser, makes it easier to adjust while keeping the riser in the same place.
- Clean and Clutter-Free
- Focus on your work while hiding away cable clutter with an improved cable management design.
- Easy on the Eyes
- This TUV-certified monitor has a flicker-free screen with ComfortView, a feature that reduces harmful blue light emissions. It's designed to optimize eye comfort, even over an extended period of time.
Convenient Connectivity - All In One

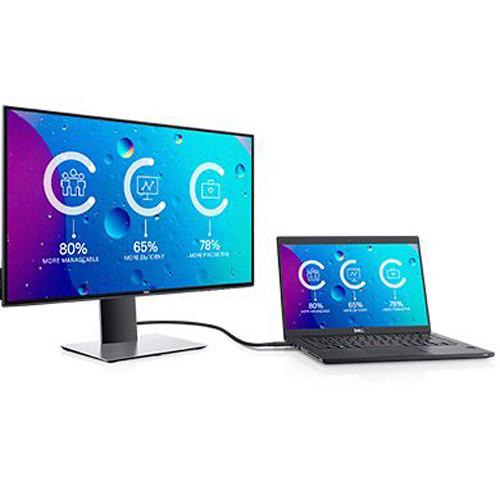

- Declutter your desk with the included USB Type-C cable, a single cable solution that transmits power, data, video, and audio.
- Convenience In One Cable
- Get an easy charge with USB Type-C, the same cable that connects your device to the monitor. Also, as you charge your system with up to 65W of power, protect it with Dell's built-in surge protection.
- Smooth Transitions
- Move from desk to meeting and back again effortlessly with convenient, single-cable connectivity via USB Type-C.
Maximize Your Productivity - Expand Your Efficiency
- The virtually borderless design featuring InfinityEdge lets you enjoy a nearly seamless view of your content across multiple monitors. And, with dual monitors, you can increase your productivity even more.
- More Ways to Multitask
- Easily organize multiple applications using predefined templates or a customized template with the Easy Arrange feature on Dell Display Manager software. Plus, you can conveniently tile your applications across a multi-monitor setup.
- Get Right to Work
- With Auto-restore on Dell Display Manager, you can disconnect, reconnect. and all of your applications will be in the same position where you left off.
UPC: 884116312376 In the Box Dell U2419HC UltraSharp 24" 16:9 IPS Monitor Stand Riser Stand Base Power Cable DisplayPort Cable USB Type-C Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell U2419HC UltraSharp 24" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell UltraSharp 24 U2419HC Specs | | | Size | 23.8" | | Screen Area | 20.75 x 11.67" / 52.70 x 29.64 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 99% sRGB
99% Rec. 709
85% DCI-P3 | | Response Time | 8 ms
5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2745 x 0.2745 mm | | | | Connectivity | 1 x DisplayPort 1.4 Output
1 x DisplayPort 1.4 Input
1 x HDMI 1.4 Input
4 x USB Type-A (USB 3.1 Gen 1) Output
1 x USB Type-C (USB 3.1 Gen 2) Input/Output
1 x 3.5 mm Output | | HDCP Support | Yes, Version 1.4 | | | | Power Consumption | 140 W (Maximum)
17.5 W (Typical)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.8 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 90% | | Operating Altitude | 16,404' / 5000 m | | Storage Altitude | 39,999' / 12,192 m | | Certifications | ENERGY STAR, EPEAT GOLD, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 5.1" / 129.54 mm | | Swivel Adjustment | 80° (-40 to 40°) | | Tilt Adjustment | -5 to 21° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 21.2 x 18.8 x 6.5" / 538.5 x 477.5 x 165.1 mm (With Stand)
21.2 x 12.4 x 1.5" / 538.5 x 315.0 x 38.1 mm (Without Stand) | | Weight | 7.43 lb / 3.37 kg (Without Stand) | | | | Package Weight | 16.5 lb | | Box Dimensions (LxWxH) | 24.0 x 14.5 x 6.5" |
