User Manual for Dell U2718Q 27" 16:9 UltraSharp 4K IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell U2718Q 27" 16:9 UltraSharp 4K
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell U2718Q 27" 16:9 UltraSharp 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

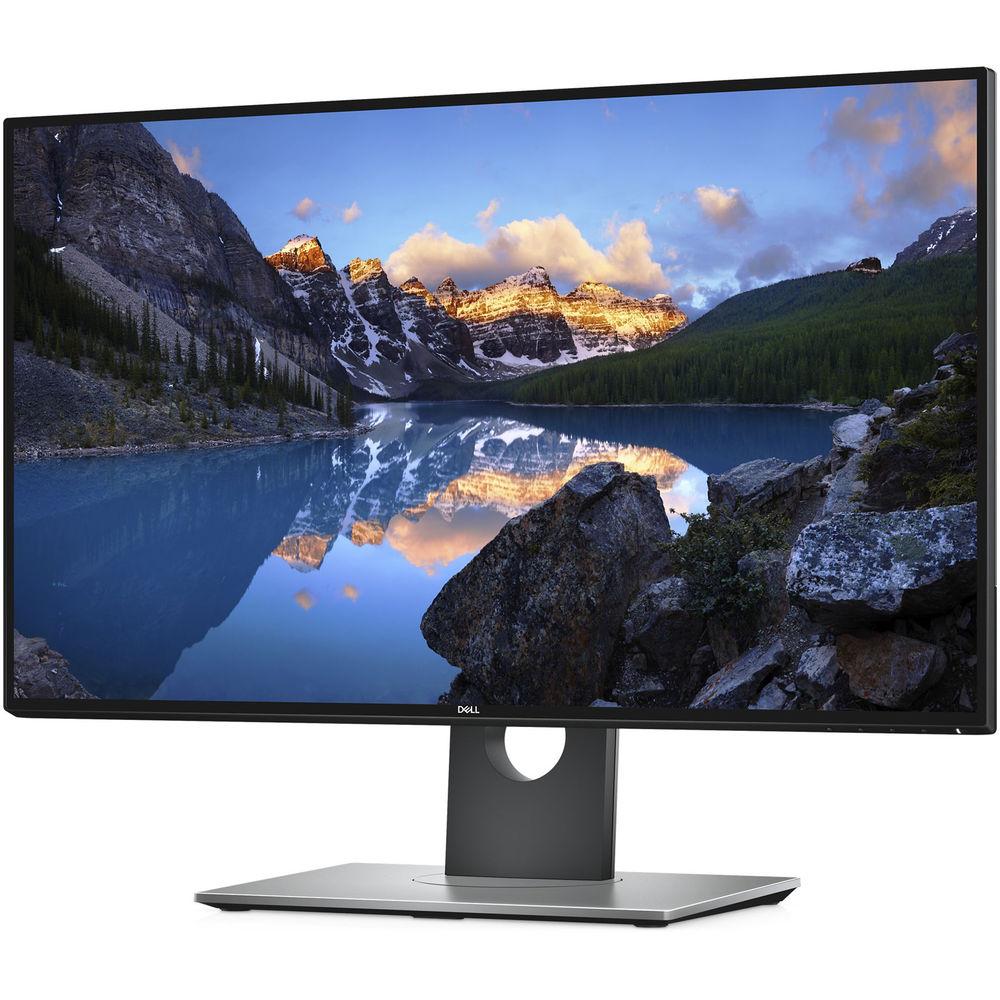

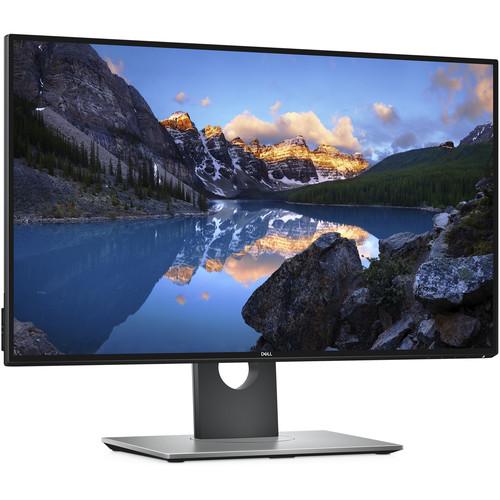

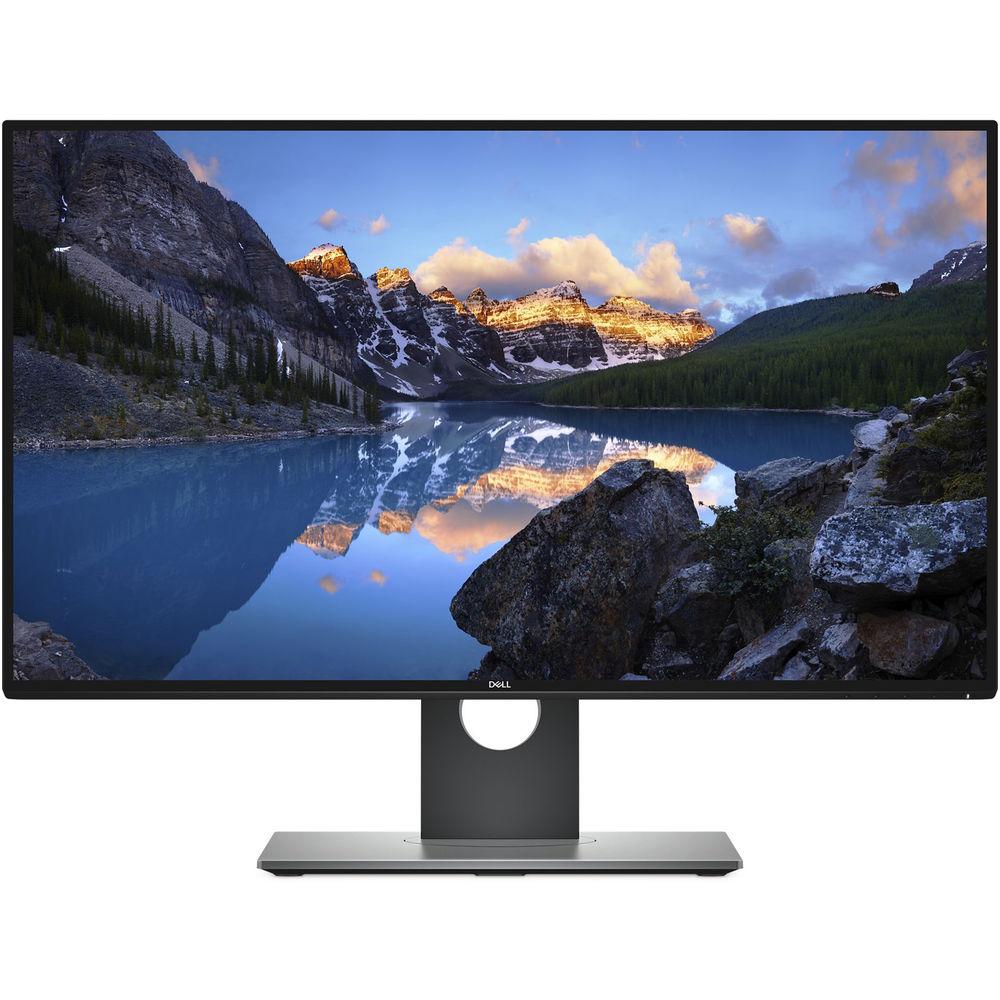

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With support for 1.07 billion colors, the U2718Q 27" 16:9 UltraSharp 4K IPS Monitor from Dell is designed with color accuracy in mind.
This UltraSharp monitor comes color calibrated to Delta E and covers 99% of the sRGB color space, 99.9% of the Rec.709 color space, and 80.7% of the DCI-P3 color space, making it suitable for a variety of color accurate tasks. In addition to enhanced color accuracy, the U2718Q features a 3840 x 2160 resolution accompanied by a 1300:1 contrast ratio, a 350 cd/m² brightness rating, and a 5 ms response time, offering a clear picture with reduced ghosting and blur.

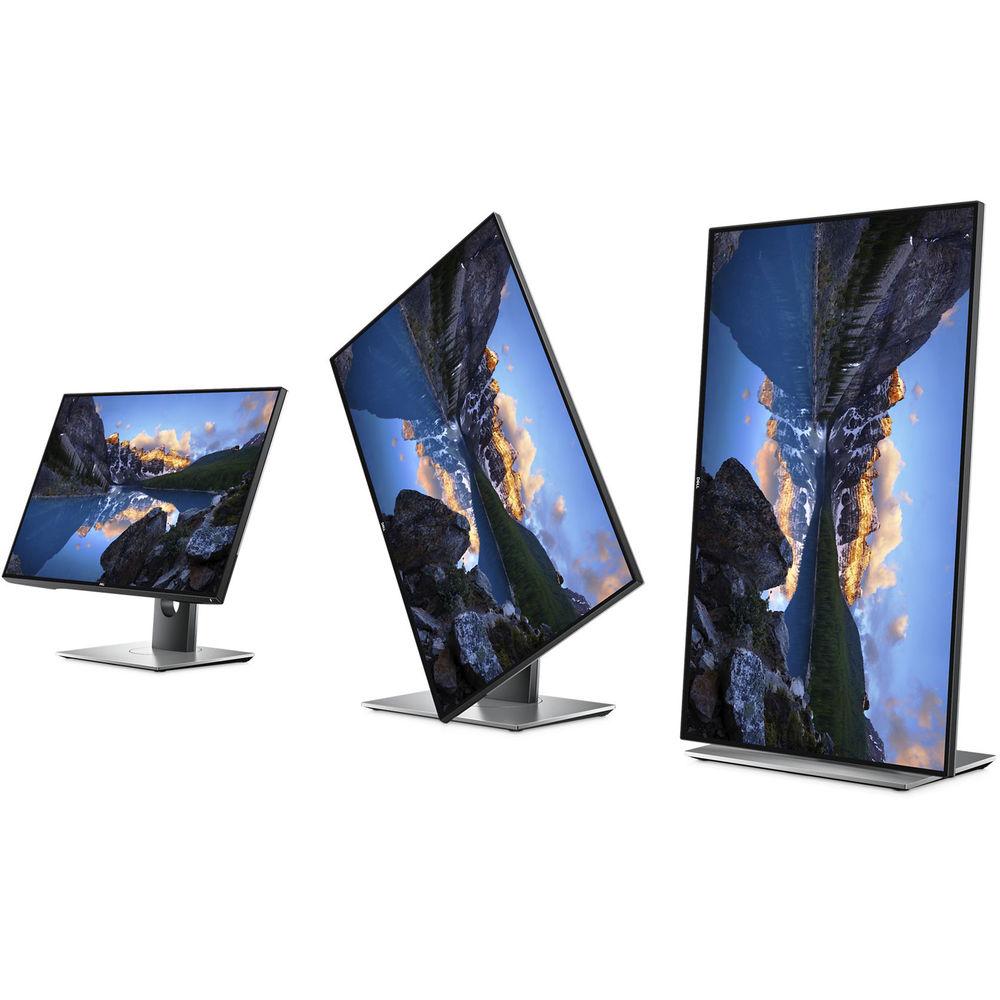

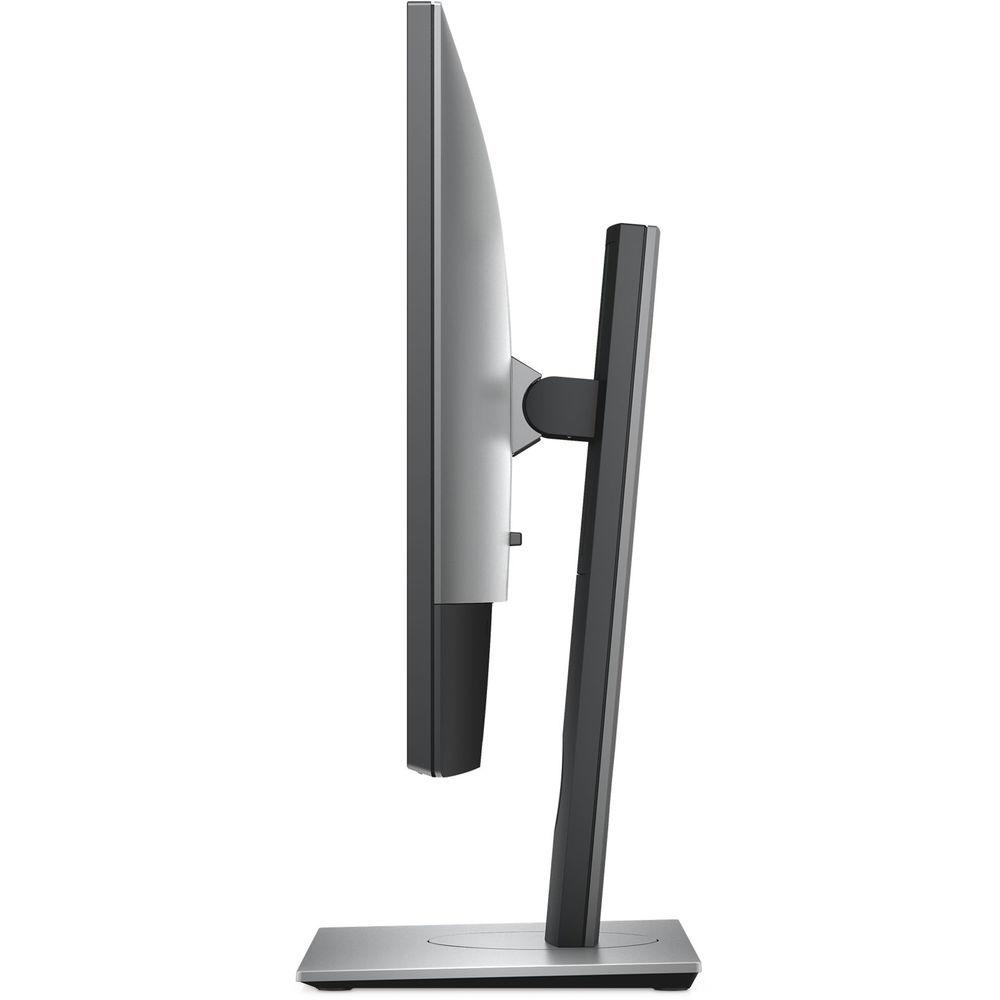

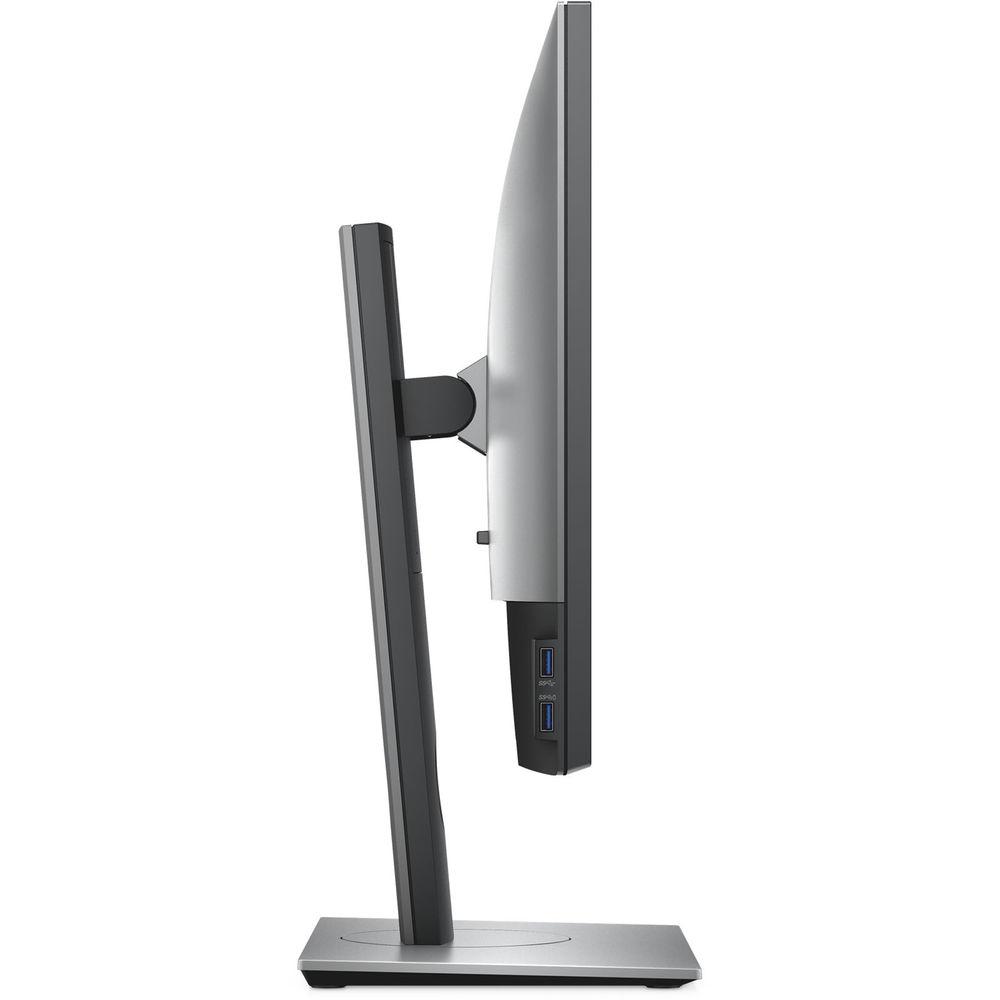

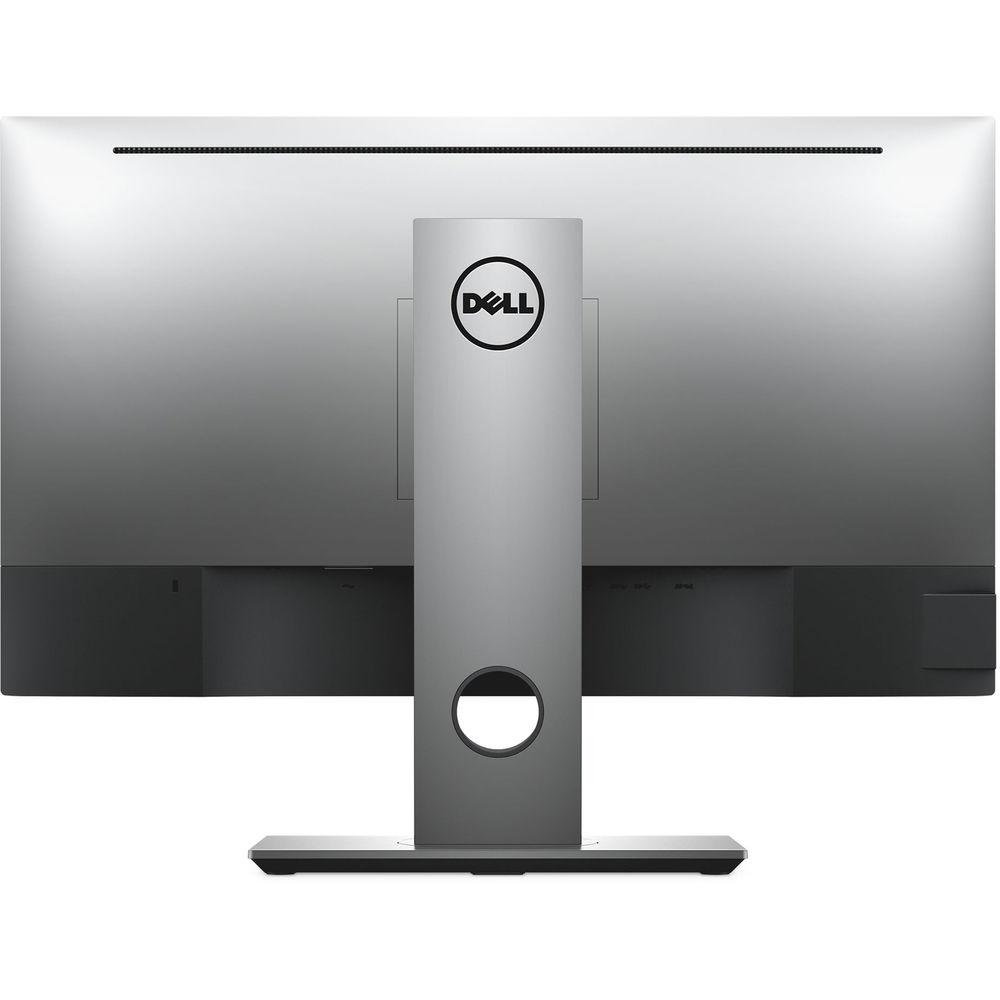

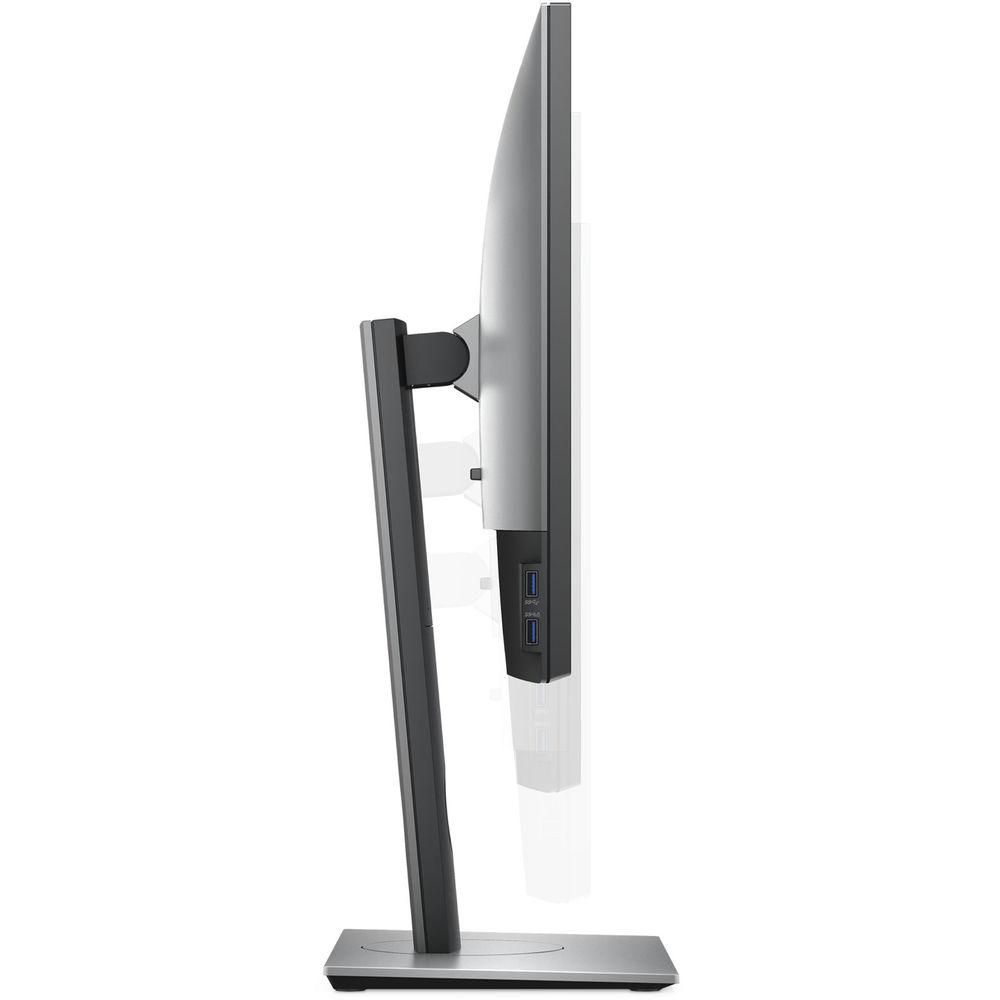

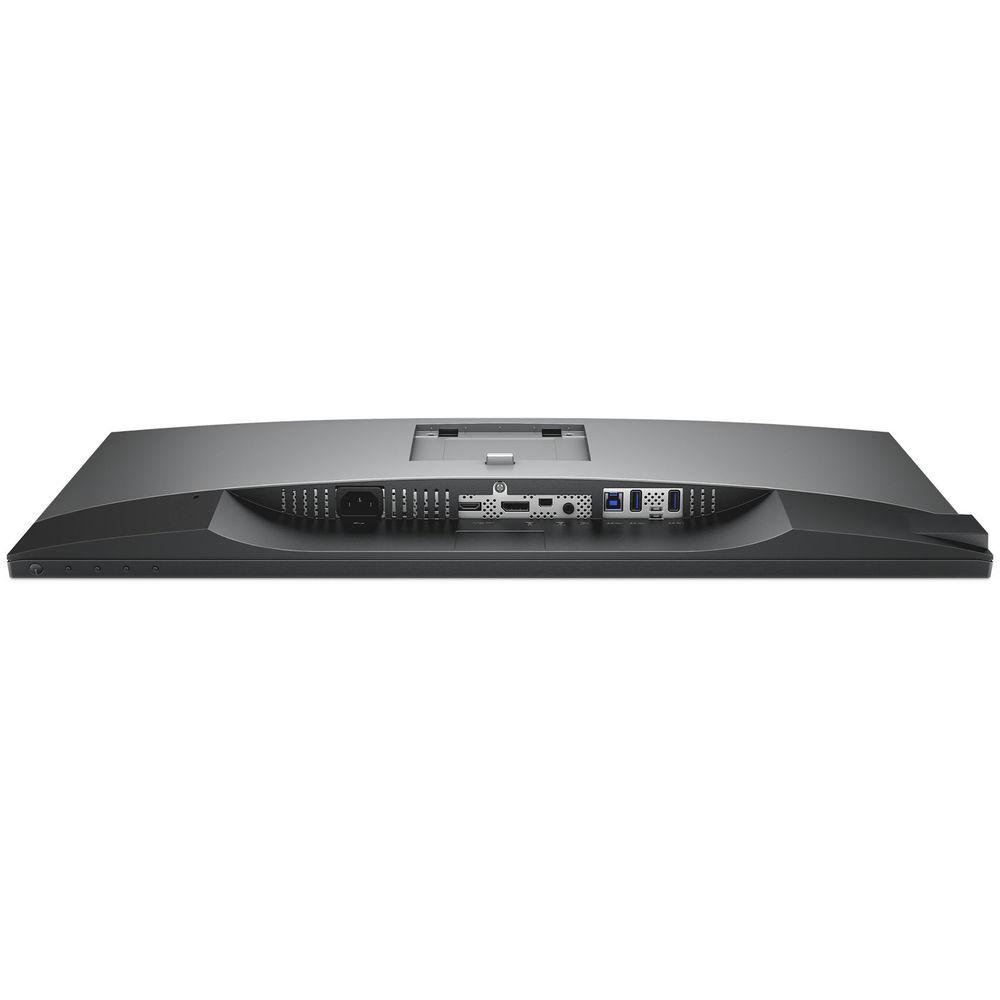

Setup and configuration of this Dell monitor is simple as it comes equipped with DisplayPort, Mini DisplayPort, and HDMI inputs as well as a built-in USB hub complete with fast charging USB ports. The fast charging USB ports allow devices like smartphones and tablets to be plugged directly into the monitor for a quick charge when the battery gets low. Once configured, the display can be tilted, pivoted, swiveled, and the height can be adjusted to take full advantage of the 178° horizontal and vertical viewing angles. If required, you can also install an alternate mount or stand using the 100mm VESA mounting holes on the back of the display. - See the Whole Picture
- With this UltraSharp monitor you get a screen made for multitasking. Featuring a color depth of 1.07 billion colors, your work is presented in enhanced detail, even in dark or brightly lit areas.
- Lifelike Visuals
- A Captivating View
Dell HDR combines a depth of colors, clarity, and a high contrast range of shades to create realistic images.
Color Consistency Comes Standard
This UltraSharp monitor is factory calibrated at 99.9% sRGB coverage to an accuracy of Delta-E less than 2, for precise hues right out of the box. Each monitor features a factory calibration report that guarantees color correctness, so you can trust your projects reflect true color intensity.
Uncompromised Images
View your HDR content like it was meant to be seen. - Get It All Done
- Staying on task doesn't mean sacrificing comfort. Discover the best of both worlds with this TUV-Certified monitor.
UPC: 884116268369 In the Box Dell U2718Q 27" 16:9 UltraSharp 4K IPS Monitor Power Cable Mini DisplayPort Cable USB 3.0 Upstream Cable Limited 3-Year Advanced Exchange Warranty User Guide PDF 3.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell U2718Q 27" 16:9 UltraSharp 4K IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell U2718Q Specs | | | Size | 27" | | Screen Area | 23.49 x 13.21" / 596.74 x 335.66 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 163 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1300:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | HDR Compatibility | None | | Color Gamut | 99.9% sRGB
99.98% Rec. 709 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.1554 x 0.1554 mm | | | | Connectivity | 1 x DisplayPort 1.2
1 x Mini DisplayPort 1.2
1 x HDMI 2.0
1 x 3.5 mm
1 x USB Type-B (USB 3.1 Gen 1) Input
4 x USB Type-A (USB 3.1 Gen 1) Output | | Built-In Speakers | None | | | | Power Consumption | 30 W (Typical)
99 W (Maximum)
24.32 W (Eco)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 80% | | Operating Altitude | 16,404' / 5000 m | | | | Height Adjustment | 5.12" / 130 mm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 21° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 24.1 x 16.1 x 7.9" / 612.1 x 408.9 x 200.7 mm (With Stand)
24.1 x 14.0 x 1.9" / 612.1 x 355.6 x 48.3 mm (Without Stand) | | Weight | 8.16 lb / 3.70 kg (Without Stand) | | | | Package Weight | 21.0 lb | | Box Dimensions (LxWxH) | 27.0 x 17.0 x 8.0" |
