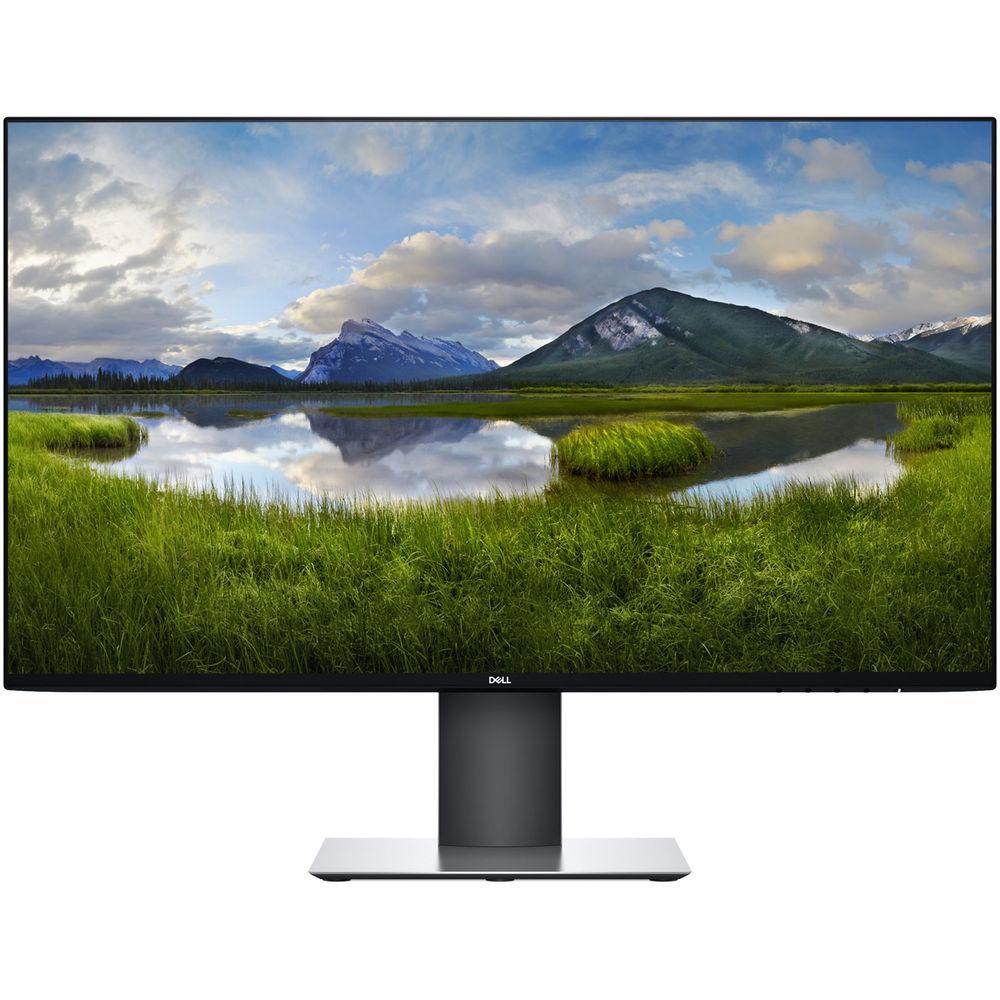

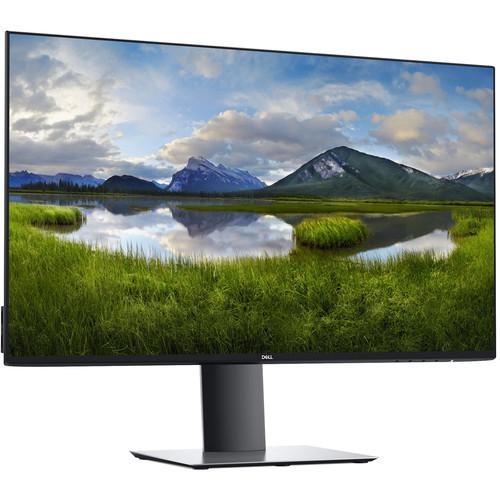

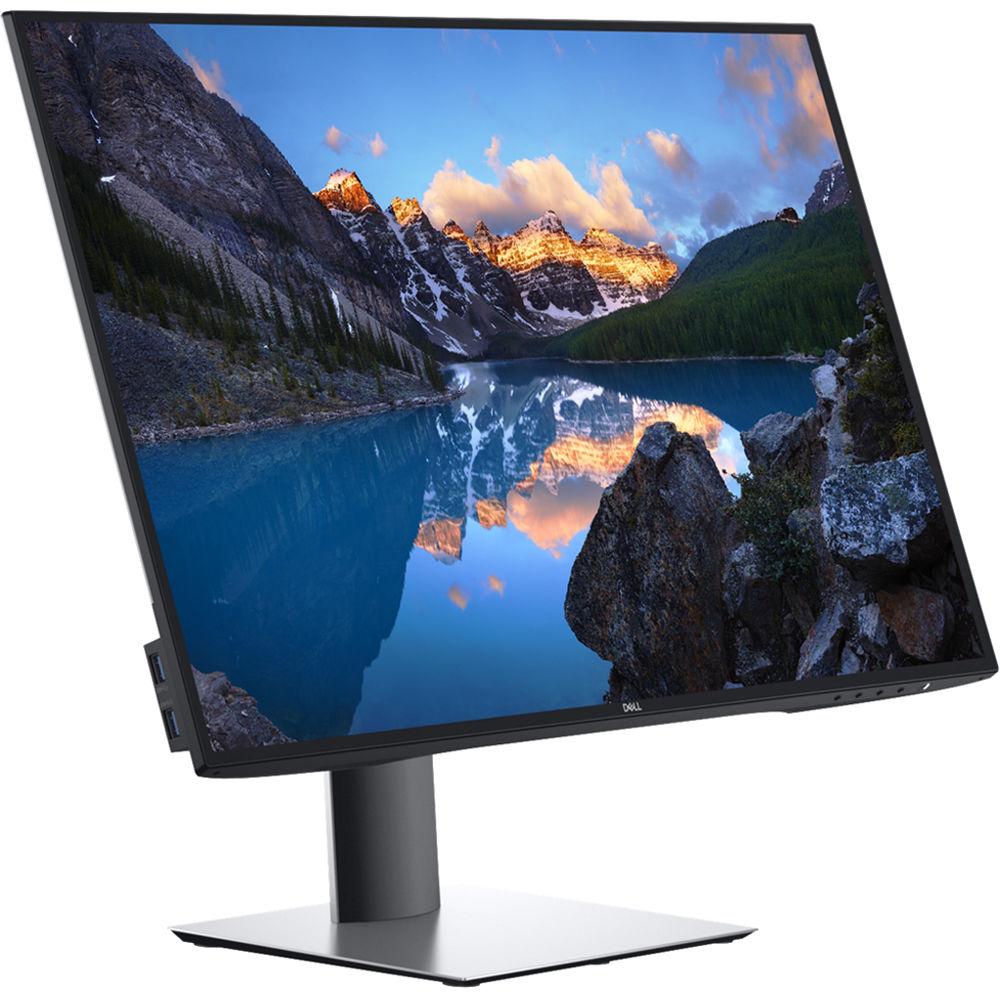

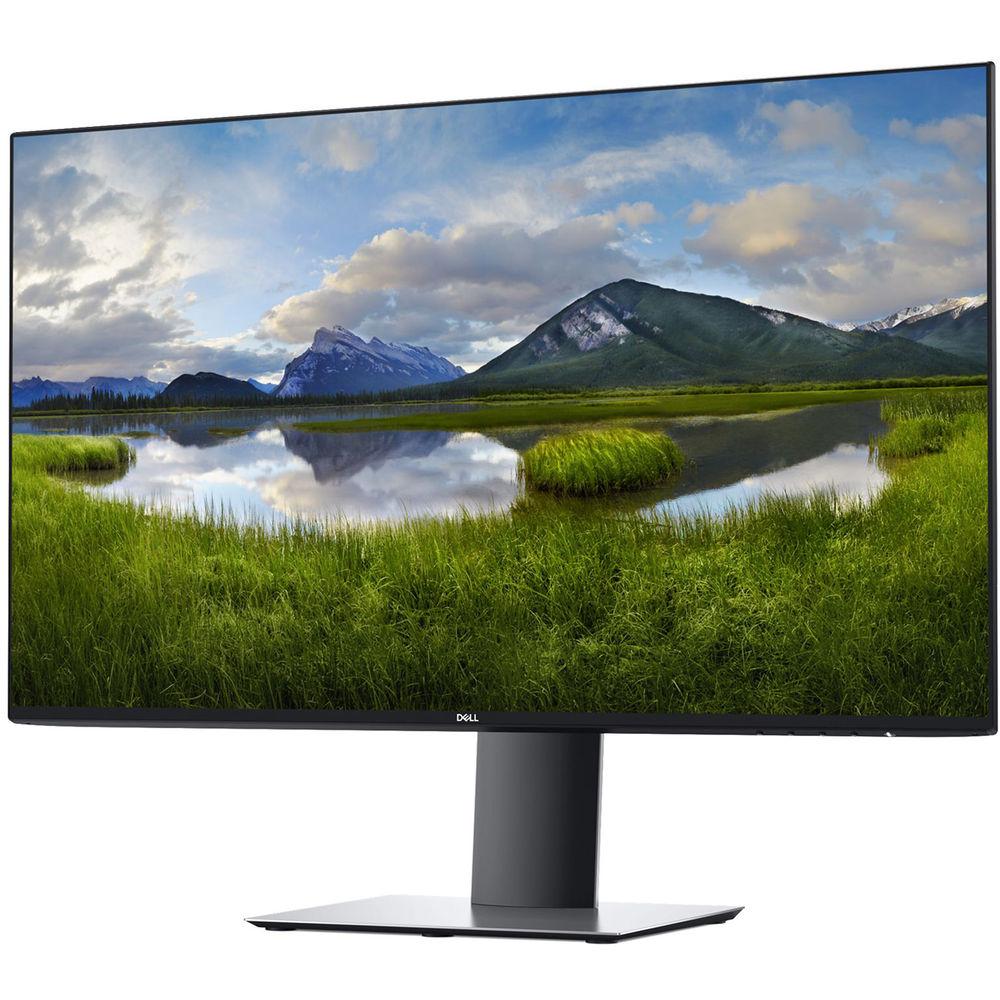

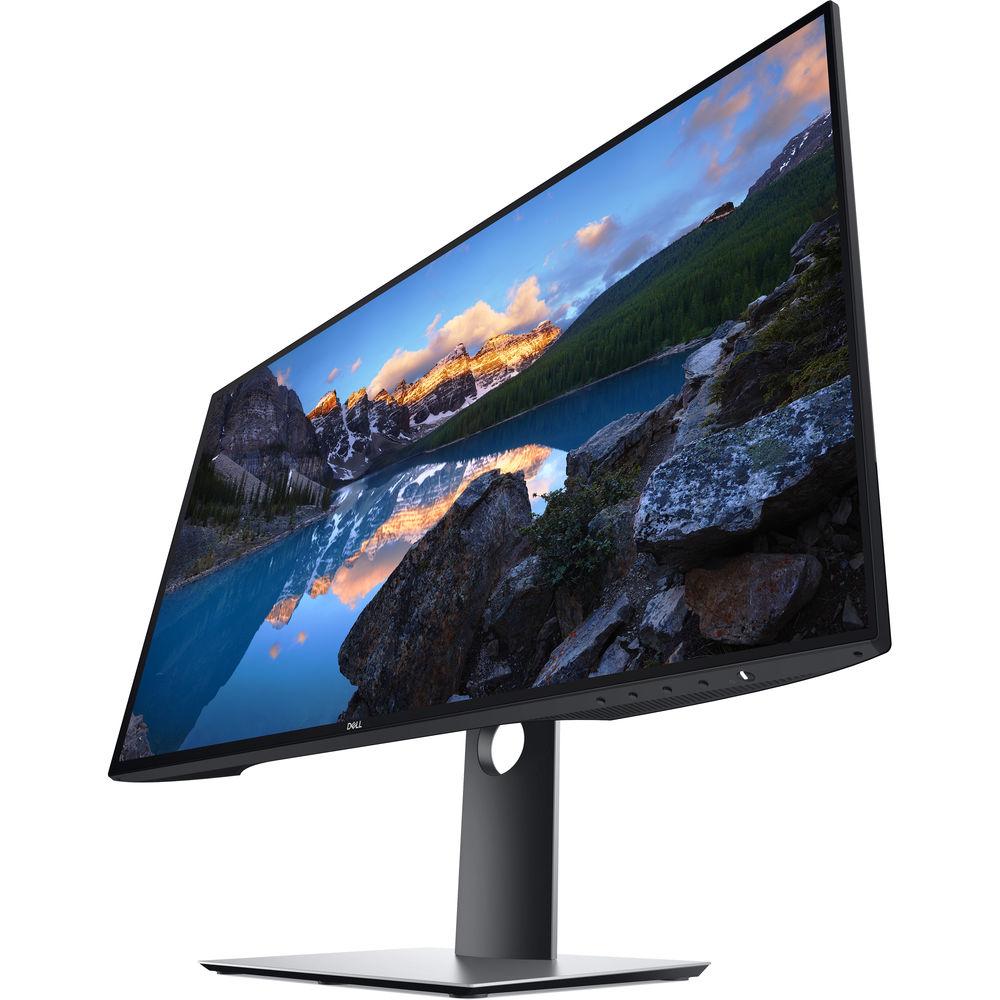

User Manual for Dell U2719D UltraSharp 27" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell U2719D UltraSharp 27" 16:9 IPS
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell U2719D UltraSharp 27" 16:9 IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More See fine details and true-to-life color with the U2719D UltraSharp 27" 16:9 IPS Monitor from Dell, which features a native resolution of 2560 x 1440 with a 60 Hz refresh rate, as well as coverage for 99% of the sRGB and Rec. 709 color gamuts and 85% of the DCI-P3 color gamut. It also features In-Plane Switching (IPS) technology, support for 16.7 million colors, a 16:9 aspect ratio, an anti-glare coating with a 3H hardness rating, a static contrast ratio of 1000:1, a typical brightness level of 350 cd/m2, an 8 ms response time in normal mode, and a 5 ms response time in fast mode. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position.
Dell's U2719D has DisplayPort 1.4 and HDMI 1.4 inputs, a DisplayPort output, four USB 3.0 Type-A ports, two of which support battery charging via the BC 1.2 spec up to 2A, and a USB 3.0 Type-B port for connecting it to your host system. If you'd like to output audio, there is a 3.5mm line out jack. To further help improve viewing and accessibility, this display features a tilt of -5 to 21°, a swivel of -40 to 40°, a height adjustment of 5.1", and a 100 x 100mm VESA mount. General Features Visuals - Crisp and Clear Details
- Images come to life on this 27" screen. With a QHD (2560 x 1440) resolution, you'll get up to 1.77x more details than Full HD.
- Color Consistency
- Your UltraSharp monitor is factory calibrated at 99% sRGB coverage to an accuracy of Delta-E less than 2, for precise hues right out of the box. Plus, with 99% Rec. 709 and 85% DCI-P3 color coverage, you'll see true-to-life colors in video formats.
- In-Plane Switching (IPS) Technology.
- See consistent, vibrant colors across wide viewing angles of 178°, enabled by In-Plane Switching (IPS) technology.
Design - More Room to Work

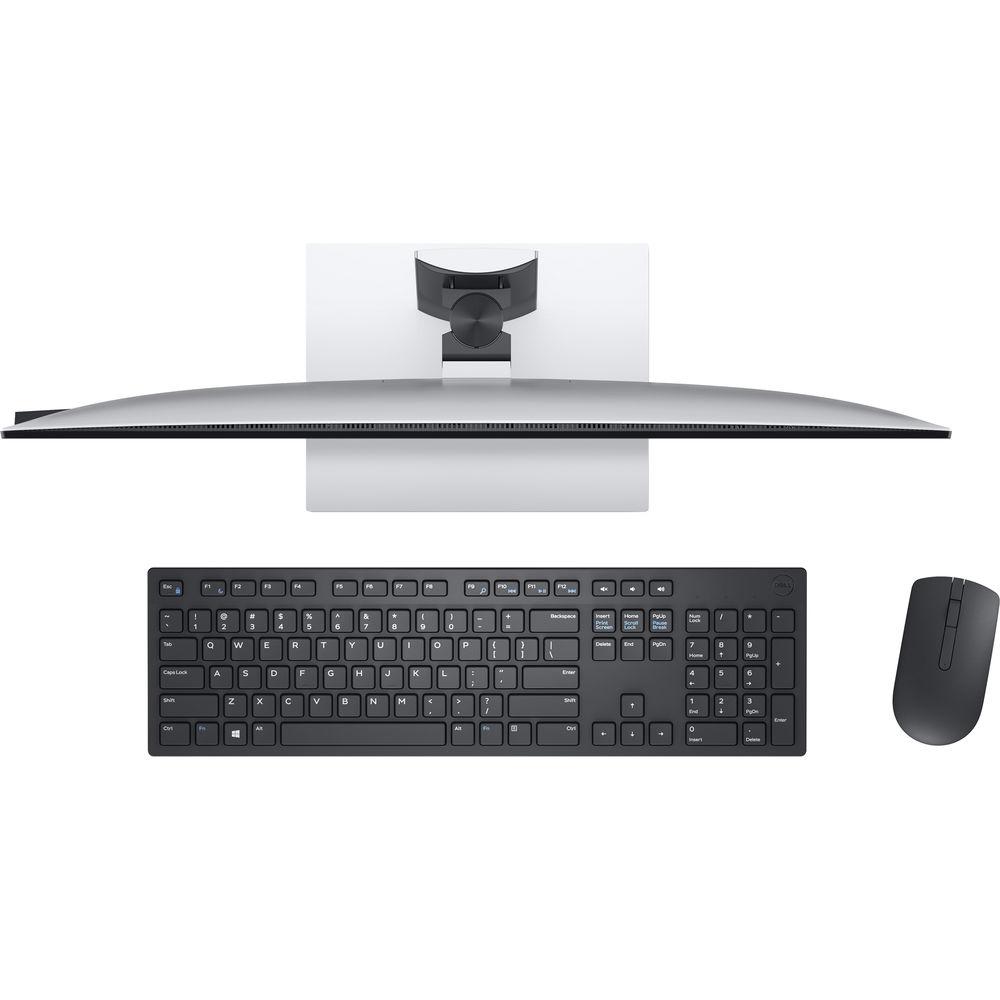

- With a thin panel profile (only 0.3" / 6.5mm at its thinnest) and a compact base that's approximately 29% smaller than its predecessor, you can free up valuable desk space.
- Adjust to Your Comfort

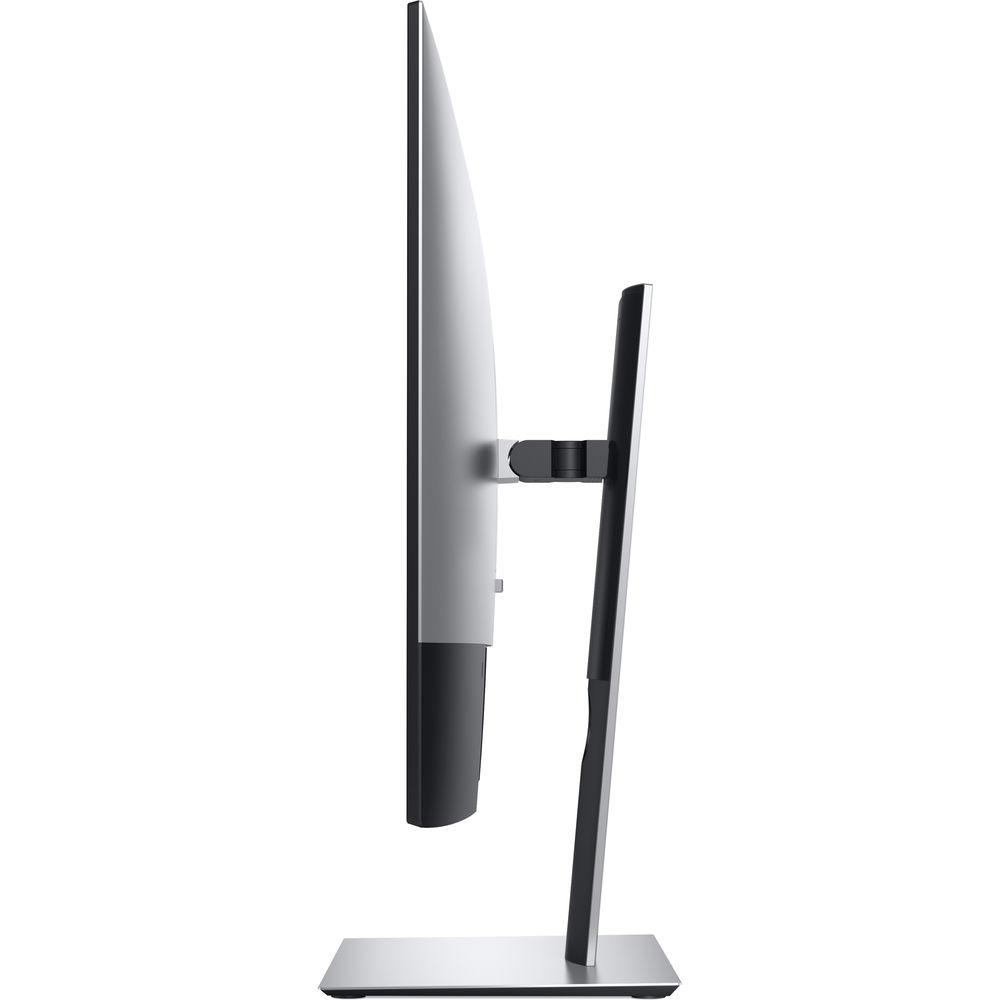

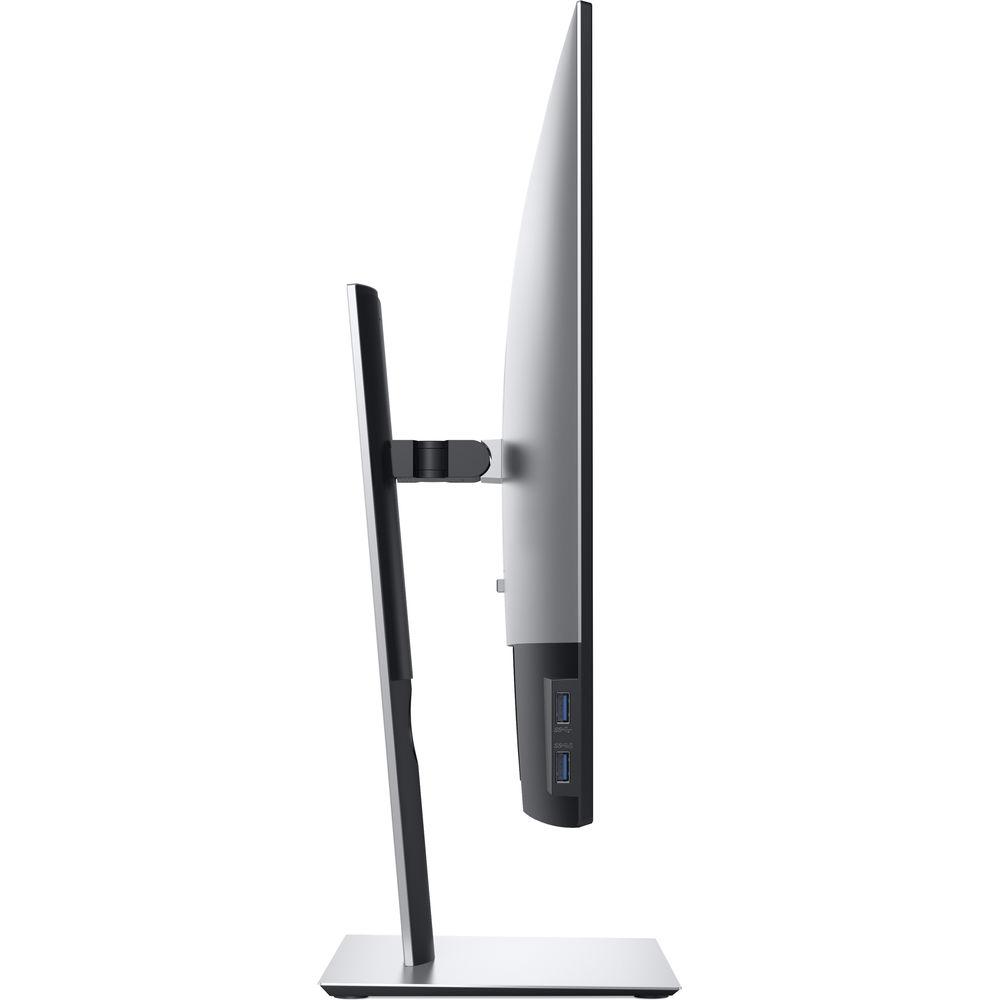

- Pivot, tilt, swivel, and adjust the height of your monitor for a comfortable setup. Dell's improved design, with the hinge on the riser, makes it easier to adjust while keeping the riser in the same place.
- Clean and Clutter-Free

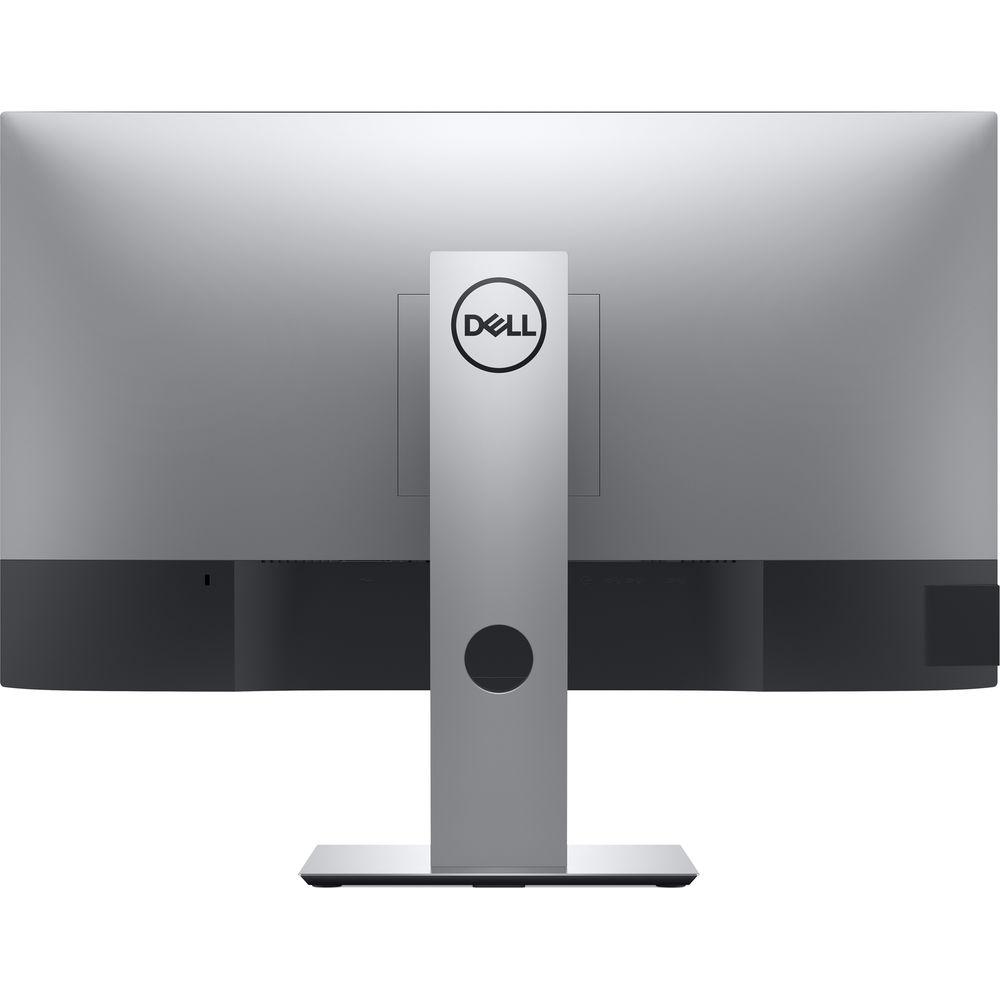

- Focus on your work while hiding away cable clutter with an improved cable management design.
- Easy On the Eyes
- This TUV-certified monitor has a flicker-free screen with ComfortView, a feature that reduces harmful blue light emissions. It's designed to optimize eye comfort, even over an extended period of time.
Maximize Your Productivity - Expand Your Efficiency
- The virtually borderless design featuring InfinityEdge lets you enjoy a nearly seamless view of your content across multiple monitors. And, with dual monitors, you can increase your productivity even more.
- More Ways to Multitask
- Easily organize multiple applications using predefined templates or a customized template with the Easy Arrange feature on Dell Display Manager software. Plus, you can conveniently tile your applications across a multi-monitor setup.
- Get Right to Work
- With Auto-restore on Dell Display Manager, you can disconnect, reconnect. and all of your applications will be in the same position where you left off.
UPC: 884116285403 In the Box Dell U2719D UltraSharp 27" 16:9 IPS Monitor Stand Riser Stand Base Power Cable DisplayPort Cable USB 3.0 Type-B Cable Limited 3-Year Warranty with Advanced Service Exchange and Premium Panel Guarantee User Manual PDF 4.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell U2719D UltraSharp 27" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell U2719D Specs | | | Size | 27" | | Screen Area | 23.49 x 13.21" / 596.74 x 335.66 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 109 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 90 kHz | | Vertical Frequency | 56 to 76 Hz | | Pixel Clock Frequency | 241.5 MHz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 99% sRGB
99% Rec. 709
85% DCI-P3 | | Response Time | 8 ms
5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.233 x 0.233 mm | | | | Connectivity | 1 x DisplayPort Output
1 x DisplayPort 1.4 Input
1 x HDMI 1.4 Input
4 x USB Type-A (USB 3.1 Gen 1) Output
1 x USB Type-B (USB 3.1 Gen 1) Input
1 x 3.5 mm Output | | HDCP Support | Yes, Version 1.4 | | Built-In Speakers | None | | | | Power Consumption | 30 W (Typical)
74 W (Maximum)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.6 A | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 90% | | Operating Altitude | 16,404' / 4999 m | | Storage Altitude | 40,000' / 12,192 m | | Certifications | ENERGY STAR, EPEAT GOLD, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 5.12" / 130 mm | | Swivel Adjustment | 80° (-40 to 40°) | | Tilt Adjustment | -5 to 21° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 24.1 x 20.5 x 7.1" / 61.2 x 52.1 x 18.0 cm (With Stand)
24.1 x 14.0 x 1.5" / 61.2 x 35.6 x 3.8 cm (Without Stand) | | Weight | 8.64 lb / 3.92 kg (Without Stand)
12.43 lb / 5.64 kg (With Stand) | | | | Package Weight | 19.05 lb | | Box Dimensions (LxWxH) | 26.5 x 16.5 x 7.0" |
