User Manual for Dell U3419W UltraSharp 34" 21:9 Curved IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell U3419W UltraSharp 34" 21:9 Curved
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell U3419W UltraSharp 34" 21:9 Curved contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

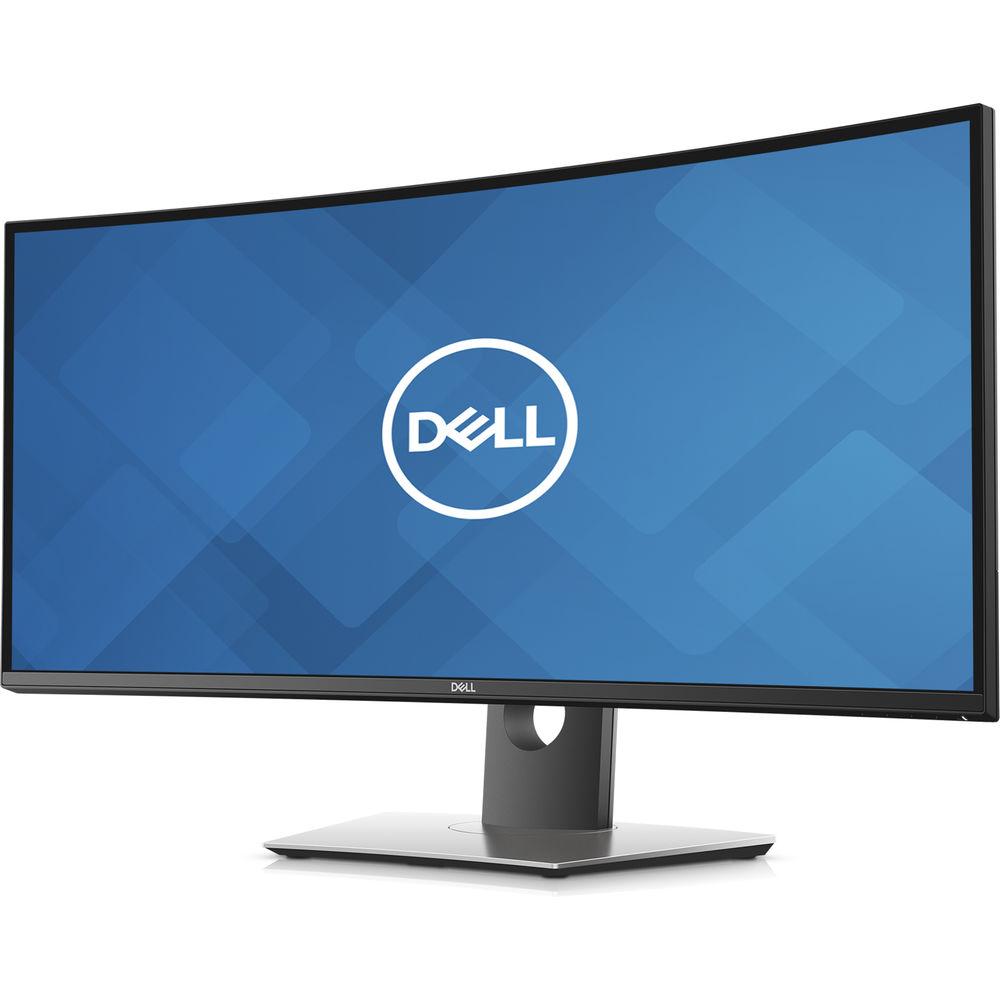

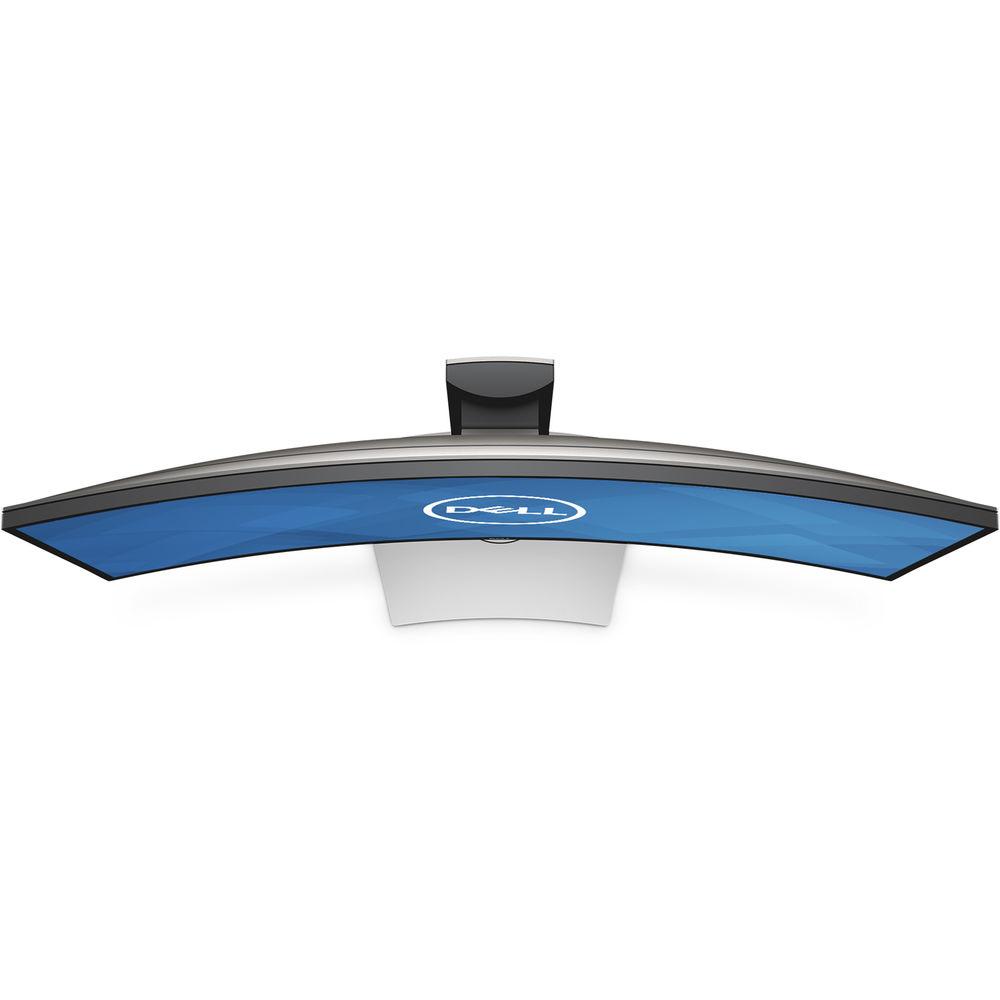

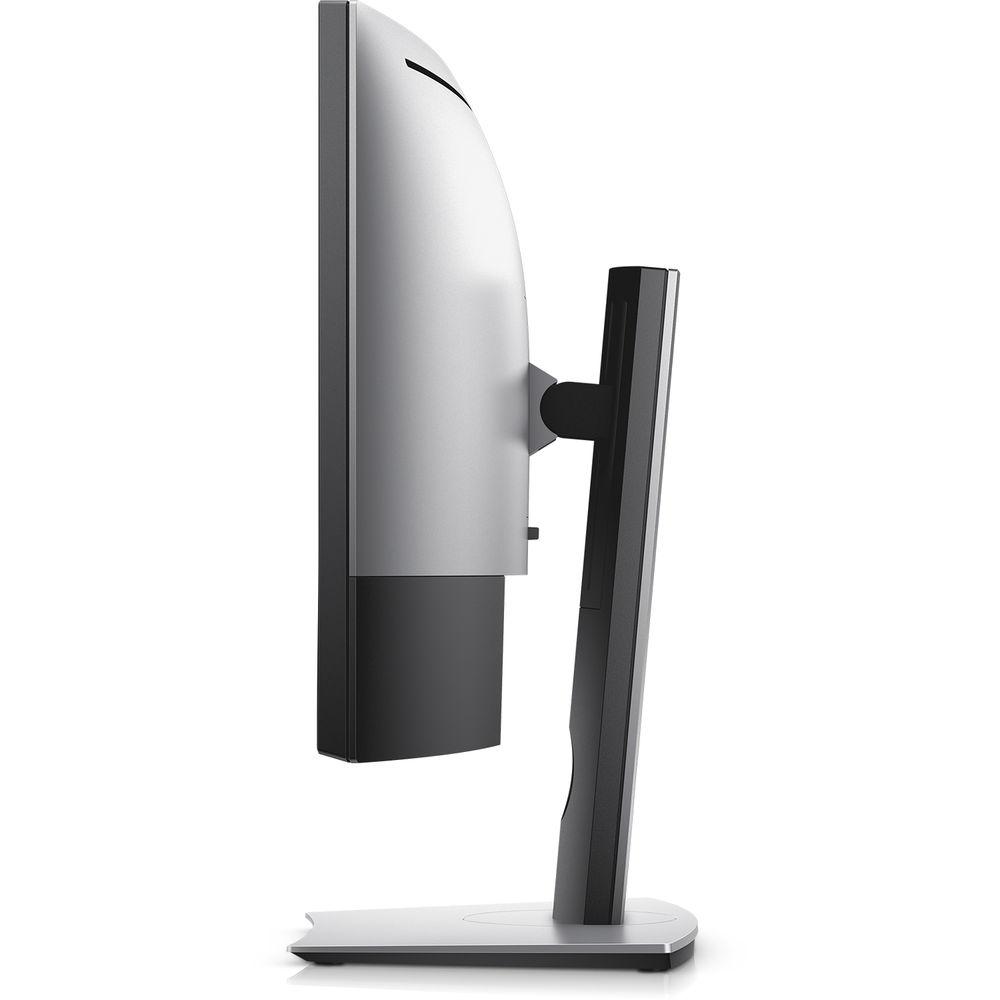

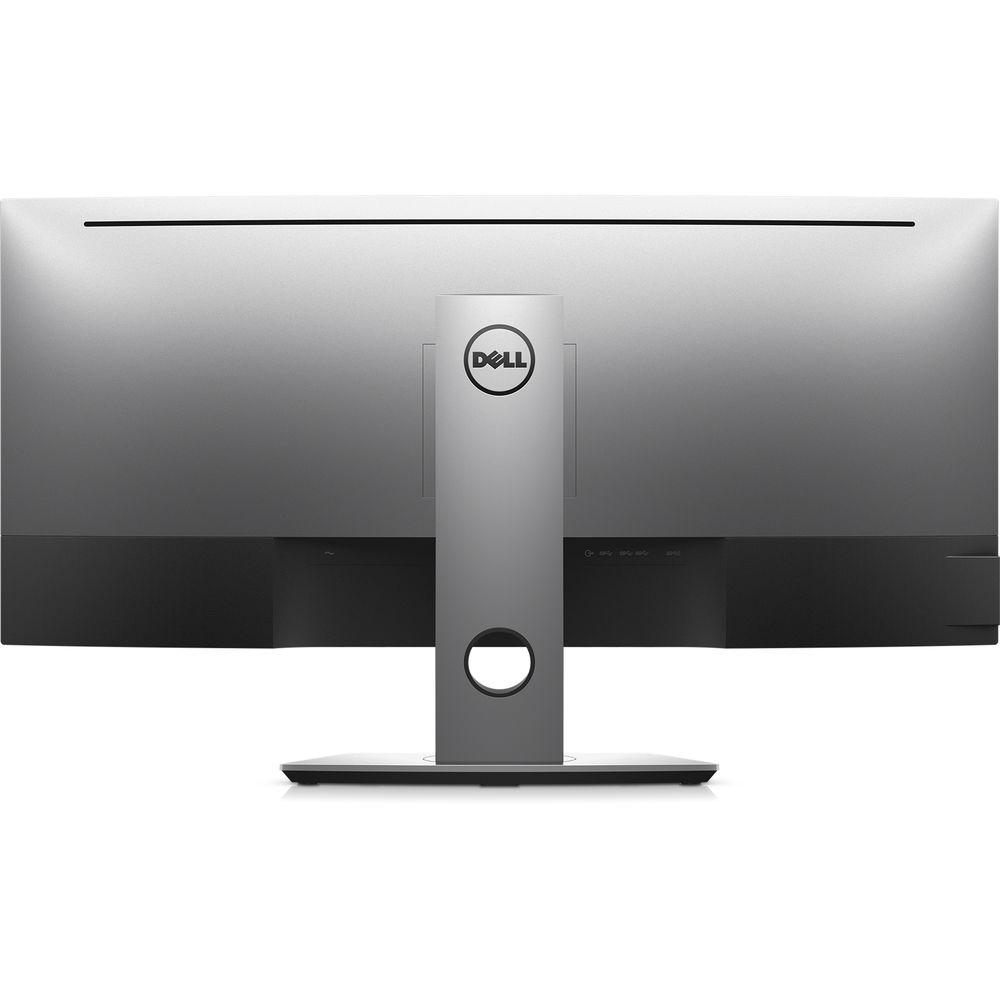

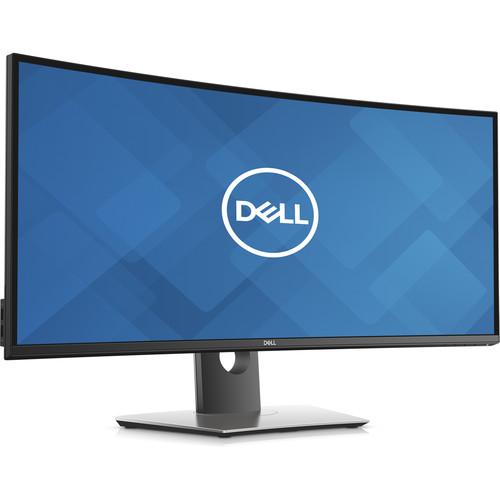

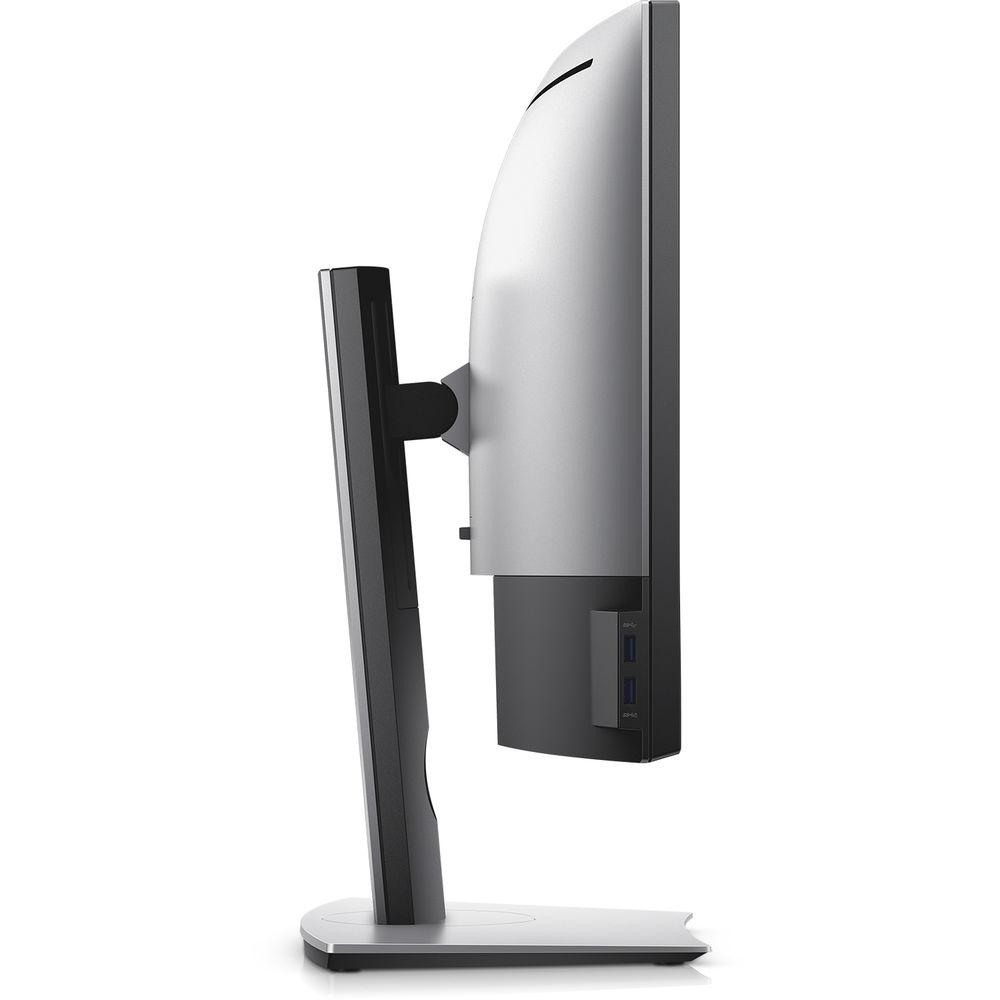

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The U3419W UltraSharp 34" 21:9 Curved IPS Monitor from Dell features a curved display that wraps around your field of view for an immersive viewing experience. Moreover, built with an IPS (In-Plane Switching) panel touting a 3440 x 1440 resolution, this display provides you with crisp and clear details and wide viewing angles. Other specs include a 300 cd/m² brightness rating, a 1000:1 static contrast ratio, and support for 1.07 billion colors for brighter bright colors and deeper blacks. Connect this display to your system via DisplayPort, HDMI, or even USB Type-C thanks to DisplayPort 1.2 alternate mode. Once it's connected, you can adjust it to your preferred viewing position using its adjustable stand, and easily connect peripherals and devices via its integrated USB 3.0 hub. If needed, you can also install your own VESA compatible arm, mount, or stand using the mounting holes on the back - USB Type-C
- The USB Type-C port on this monitor supports 90W of power, and can also be used to transmit data, video, and audio at the same time with DisplayPort 1.2 alternate mode.
- Manage Multiple Tasks
- Utilize the PIP (Picture-in-Picture) and PBP (Picture-by-Picture) modes to view content from two sources simultaneously and multitask efficiently. Additionally, you can use its built-in KVM (Keyboard, Video, and Mouse) features to switch between applications easily.
- Dell Premium Panel Guarantee
- Dell's Premium Panel Guarantee ensures that you will get a free panel replacement during the limited warranty period even if only one bright pixel is found.
- Dell Advanced Exchange Service
- Dell's Advanced Exchange Service provides you with a next-day replacement during the limited warranty period.
UPC: 884116317562 In the Box Dell U3419W UltraSharp 34" 21:9 Curved IPS Monitor Power Cable USB Type-C Cable DisplayPort Cable HDMI Cable USB 3.0 Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell U3419W UltraSharp 34" 21:9 Curved IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell UltraSharp U3419W Specs | | | Size | 34" | | Screen Area | 31.49 x 13.57" / 799.8 x 344.8 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3440 x 1440 | | Aspect Ratio | 21:9 | | Pixels Per Inch (ppi) | 109 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | HDR Compatibility | None | | Color Gamut | 99% sRGB | | Response Time | 8 ms
5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.233 x 0.233 mm | | | | Connectivity | 1 x DisplayPort 1.2
2 x HDMI 2.0
1 x USB Type-C
2 x USB Type-B (USB 3.1 Gen 1)
4 x USB Type-A (USB 3.1 Gen 1)
1 x 3.5 mm | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | Yes, 2 x 9 W | | | | Power Consumption | 54 W (Typical)
0.5 W (Standby)
250 W (Maximum) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 3 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 80% | | Operating Altitude | 16,404' / 5000 m | | Storage Altitude | 39,999' / 12,192 m | | Certifications | RoHS, TCO Certified, WEEE, as per Manufacturer | | | | Height Adjustment | 4.53" / 115 mm | | Rotation Adjustment | None | | Swivel Adjustment | 60° (-30 to 30°) | | Tilt Adjustment | -5 to 21° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 32.0 x 20.9 x 8.9" / 813.6 x 532.0 x 226.4 mm (With Stand)
32.0 x 14.3 x 2.3" / 813.6 x 363.7 x 58.4 mm (Without Stand) | | Weight | 18.08 lb / 8.2 kg | | | | Package Weight | 36.6 lb | | Box Dimensions (LxWxH) | 38.0 x 19.0 x 10.0" |
