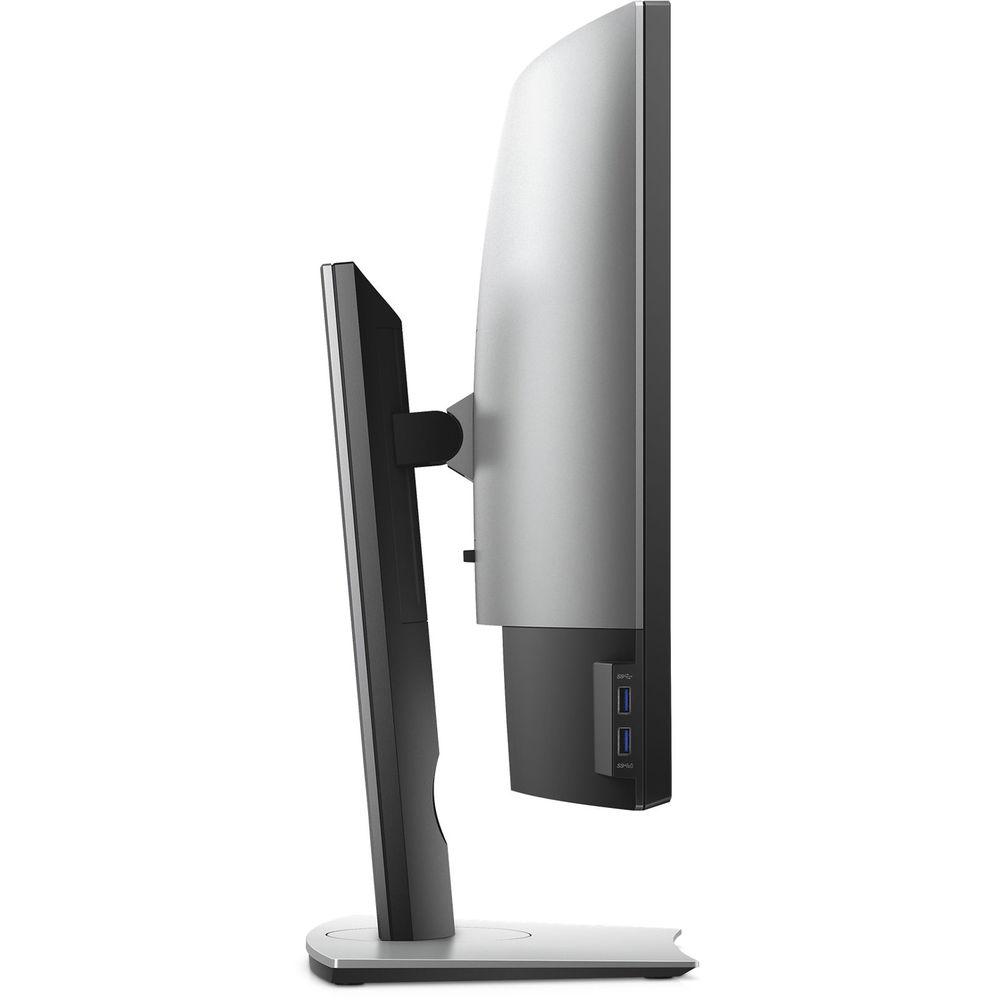

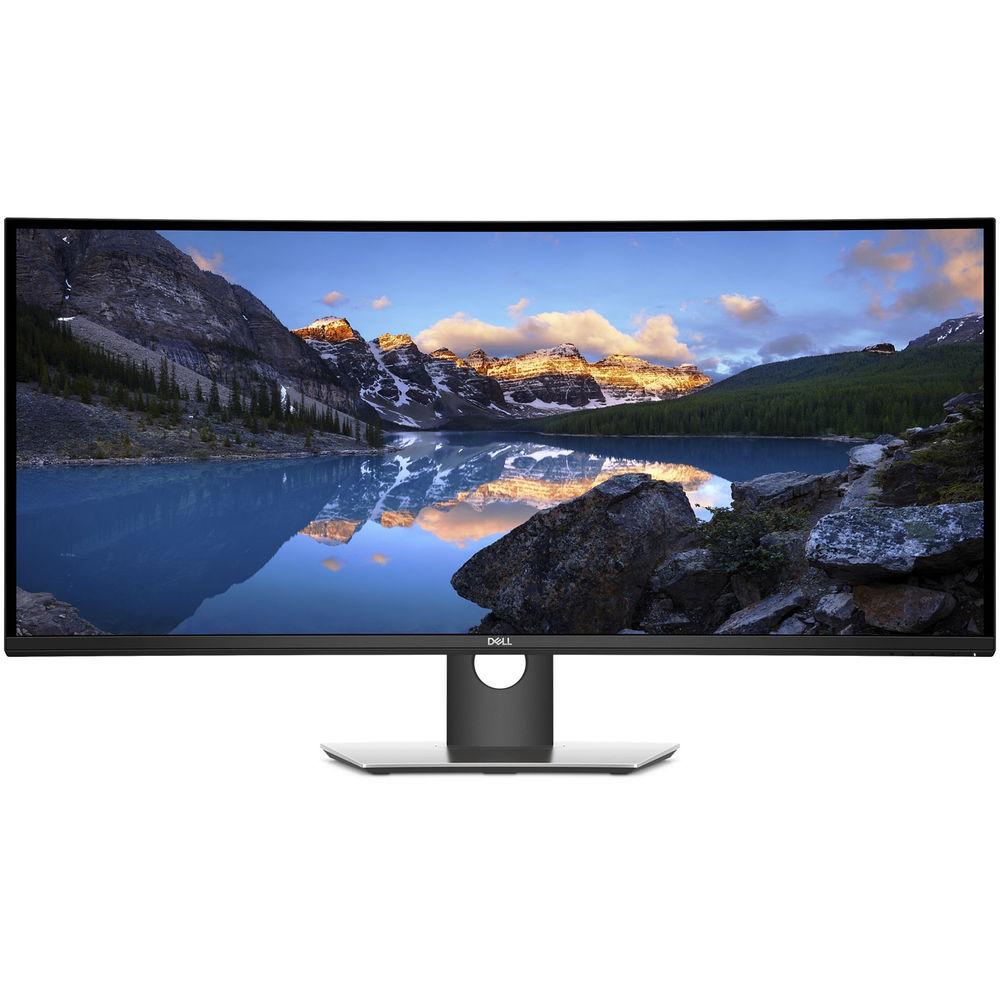

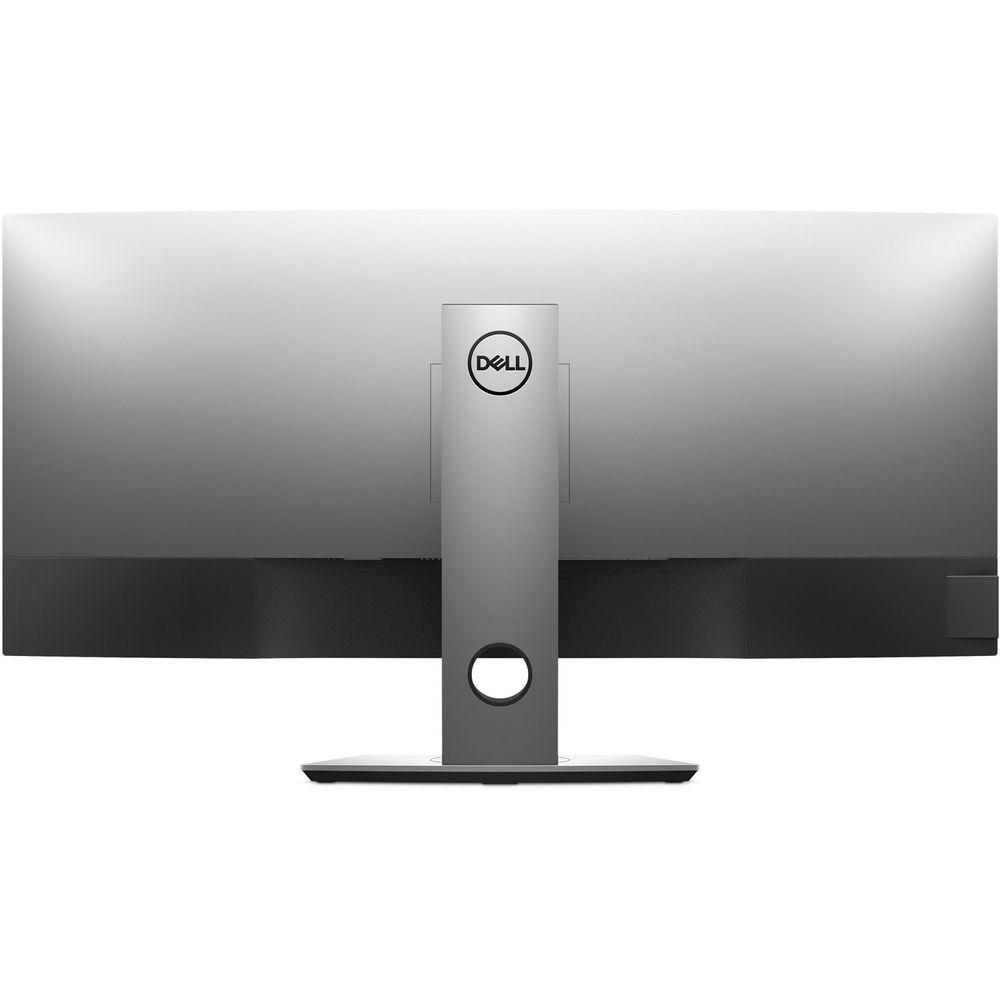

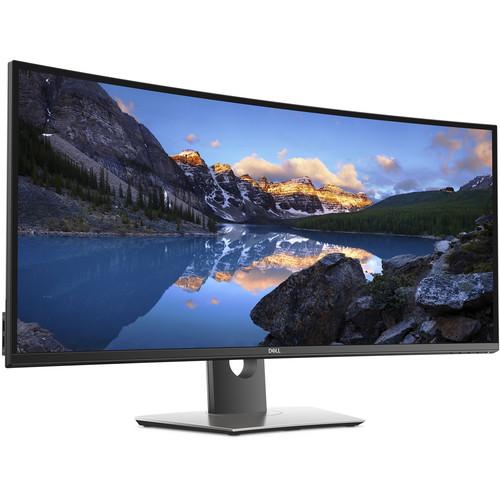

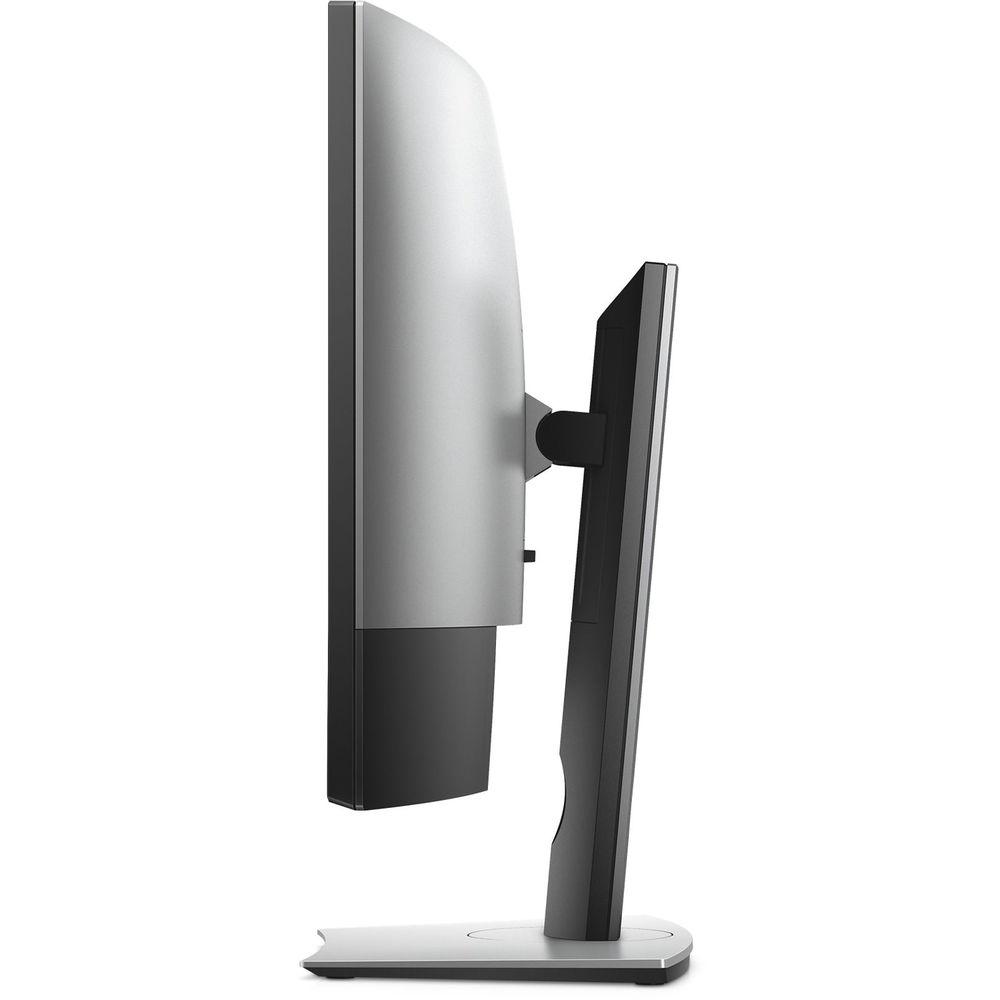

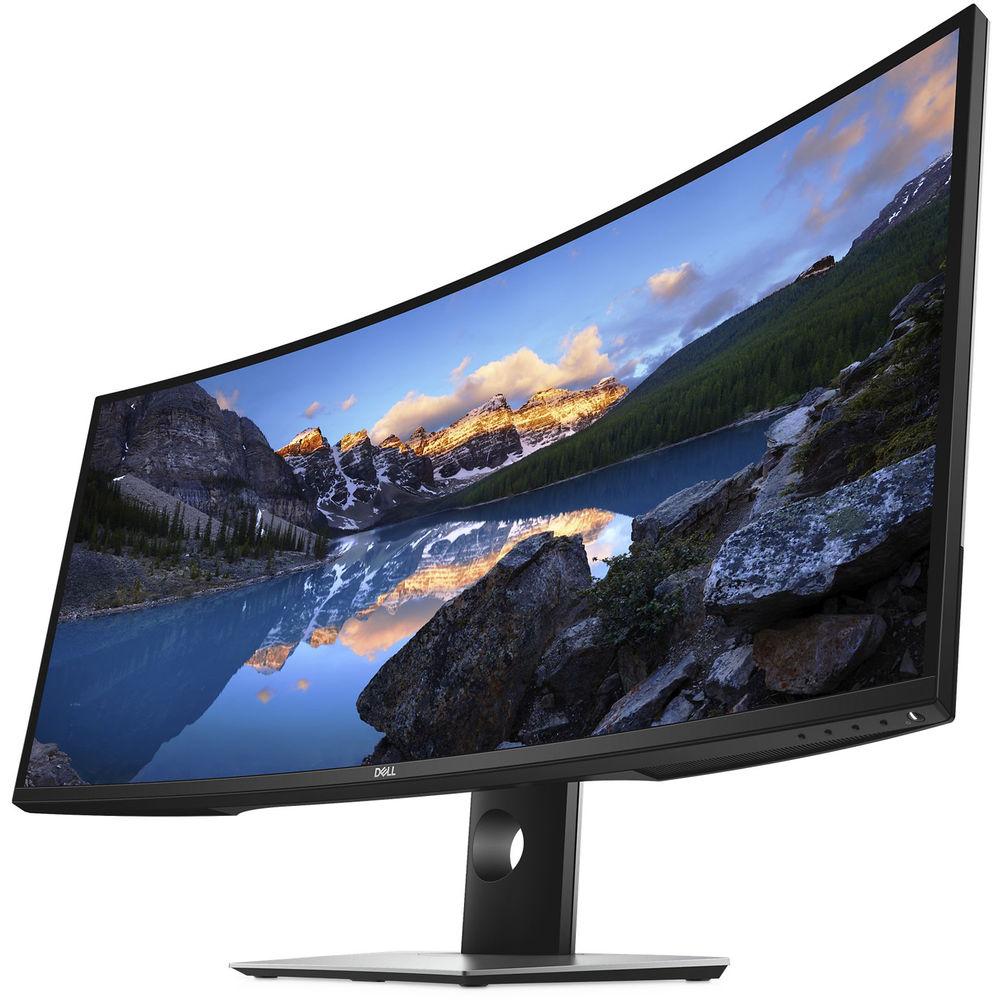

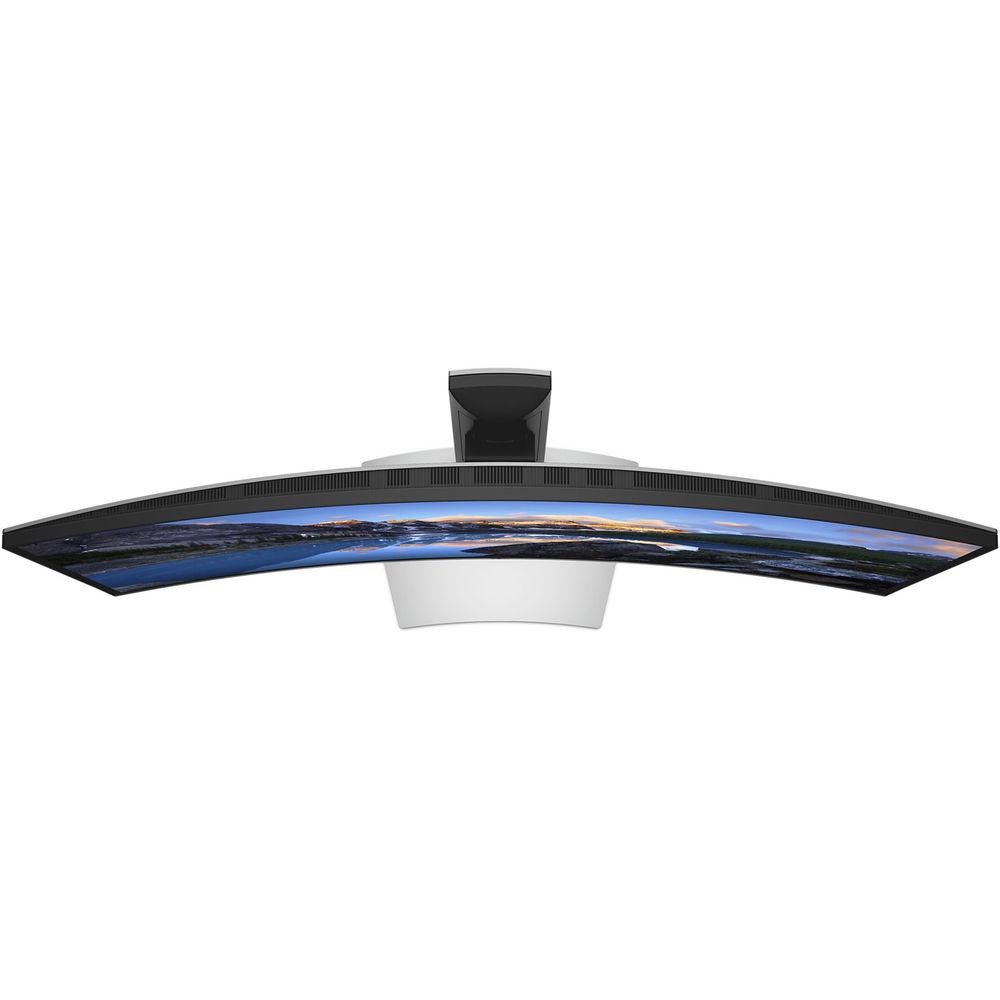

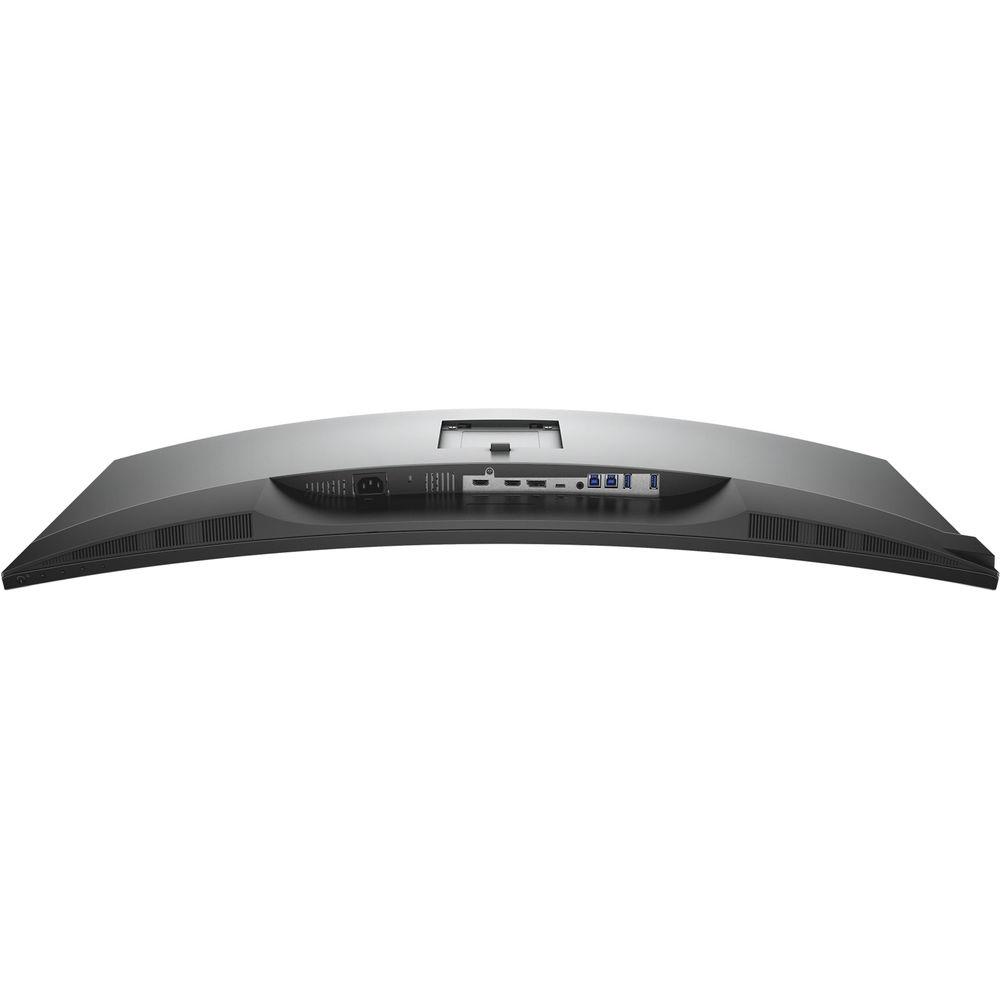

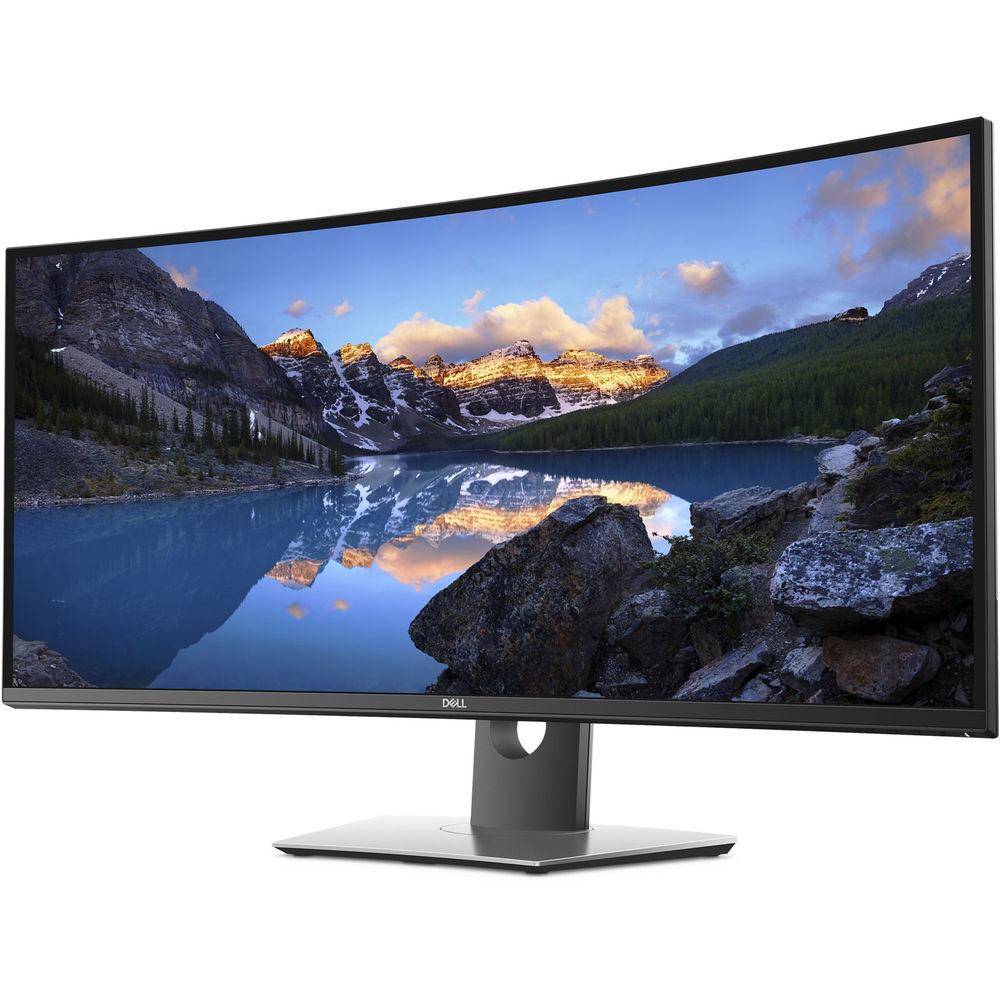

User Manual for Dell U3818DW 37.5" 21:9 Curved IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell U3818DW 37.5" 21:9 Curved IPS
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell U3818DW 37.5" 21:9 Curved IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Immerse yourself in your multimedia content with the U3818DW 37.5" 21:9 Curved IPS Monitor from Dell. With a 21:9 aspect ratio and 2300R curvature, each portion of the screen is at an equal distance from the eye. In addition to the immersive curvature of this IPS (In-Plane Switching) Dell monitor, viewers can take advantage of the 3840 x 1600 resolution along with a 1,000:1 contrast ratio, a 350 cd/m² brightness rating, and a 5 ms response time for enhanced clarity and reduced ghosting and blur. If color accuracy is what you need, the U3818DW covers 99% of the sRGB color space, 99% of the REC 709 color space, and 78.1% of the DCI-P3 color space.
Setup and configuration of the Dell U3818DW is simple as it comes equipped with DisplayPort and HDMI inputs. You can also plug USB compatible peripherals such as hard drives, mice, and keyboards, directly into the displays USB 3.0 ports. Once configured the display can be tilted, swiveled, pivoted, and the height can be adjusted, making it easy to take full advantage of the 178° horizontal and vertical viewing angles. - Expansive Screen
- The expansiveness of this 37.5-inch curved screen paired with virtually borderless InfinityEdge creates a near-complete field view, which provides an almost uniform visual focus that reduces eye movement across the screen.
The curved screen delivers a panoramic viewing experience while integrated 9W speakers bring the quality sound. - Consistent Color & Improved Detail
- You can expect improved detail and consistent color across a wide viewing angle with the WQHD+ 3840 x 1600 screen featuring In-Plane Switching (IPS) technology. Your monitor also comes with 99% sRGB factory calibration for impressively precise color at Delta-E less than 2. This TUV-Certified monitor has a flicker-free screen with ComfortView, a feature that filters harmful blue light emissions to optimize eye comfort.
- Multitask with Ease
- Now you have the screen space, the tools, and the features you need to do everything efficiently.
UPC: 884116268376 In the Box Dell U3818DW 37.5" 21:9 Curved IPS Monitor Stand Power Cable HDMI Cable DP to DP Cable USB 3.0 Upstream Cable USB Type-C Cable Factory Calibration Report Limited 3-Year Warranty User Manual PDF 4.3mbbeyqxfayefsaawezczcfrrfcabvur Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell U3818DW 37.5" 21:9 Curved IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell U3818DW Specs | Diagonally Viewable Size | 37.5" / 95.3 cm | | Preset Display Area (H x V) | 34.63 x 14.43" / 879.67 x 366.53 mm | | Panel Type | IPS | | Resolution | 3840 x 1600 @ 60 Hz | | Curvature | 2300R | | Borders | 0.41" / 10.5 mm (top)
0.39" / 10.0 mm (left/right)
0.78" / 19.8 mm (bottom) | | Viewing Angles (H/V) | 178°/178° | | Pixel Pitch | 0.229 x 0.229 mm | | Pixels Per Inch | 111 | | Contrast Ratio | 1,000:1 (typical) | | Aspect Ratio | 21:9 | | Backlight Technology | White LED edge light system | | Brightness | 350 cd/m² (typical) | | Response Time | 5 ms (typical) for FAST mode
8 ms (typical) for NORMAL mode | | Stand | Height Adjustability: 4.5" / 115 mm
Tilt: -5 to 21°
Swivel: -30 to 30°
Built-in cable management | | Color Gamut | 99% sRGB, 99% Rec 709, 78.1% DCI-P3 | | Color Depth | 1.07 billion colors | | Calibration | sRGB at Delta E | | Audio Output | 2 x 9 W speakers
1 x Analog 2.0 audio line out (3.5 mm jack) | | Display Screen Coating | Anti-glare with 3H hardness | | Connectivity | 1 x DP 1.2 (HDCP 2.2)
2 x HDMI 2.0 (HDCP 2.2) | | Built-In Devices | USB 3.0 Hi-Speed Hub:
2 x USB 3.0 upstream ports
4 x USB 3.0 downstream ports, with 2 x BC 1.2 charging capability at 2 A (max)
USB Type-C (Alternate mode with DP1.2, Power Delivery, and USB 2.0) | | Security | Security lock slot (cable lock sold separately) | | Power | Voltage Required
100 to 240 VAC; 50/60 Hz
60 Hz + 3 Hz / 3 A (typical)
Power Consumption
Operational: 56 W (typical) / 250 W (maximum)
Standby/Sleep: Less than 0.3 W | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
10 to 80% non-condensing
Storage Humidity
5 to 90% non-condensing | | Altitude | Operating
16,404' / 5,000 m
Non-Operating
40,000' / 12,191 m | | Compliance and Standards | RoHS
BFR/PVC Free monitor (excluding external cables) | | Dimensions | With Stand
35.2 x 17-21.54 x 8.91" / 894 x 432-547 x 226.4 mm
Without Stand
35.2 x 15.62 x 2.19" / 894 x 396.8 x 55.5 mm | | Weight | Panel Only for VESA Mount
19.95 lb / 9.05 kg
With Stand Assembly and Cables
26.76 lb / 12.14 kg | | | | Package Weight | 43.0 lb | | Box Dimensions (LxWxH) | 41.0 x 20.5 x 11.0" |
