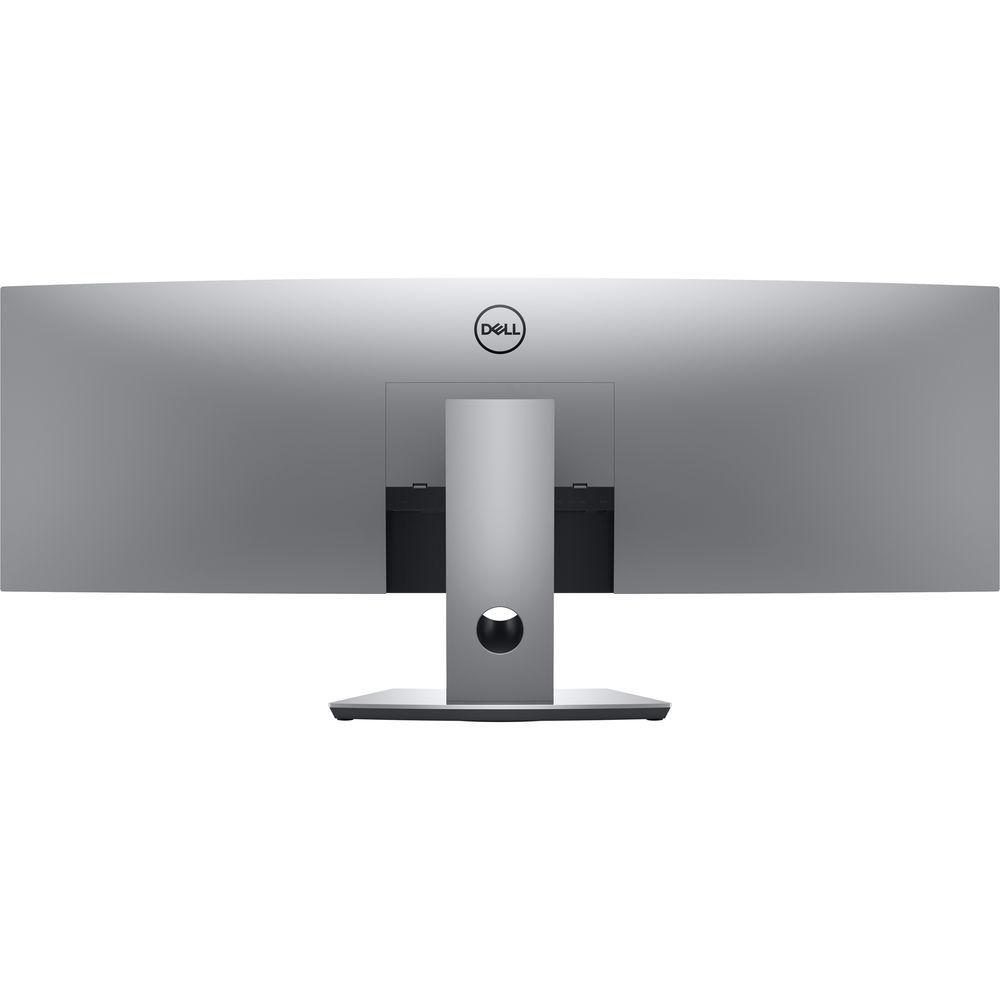

User Manual for Dell U4919DW 49" 32:9 Curved IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell U4919DW 49" 32:9 Curved IPS
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell U4919DW 49" 32:9 Curved IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

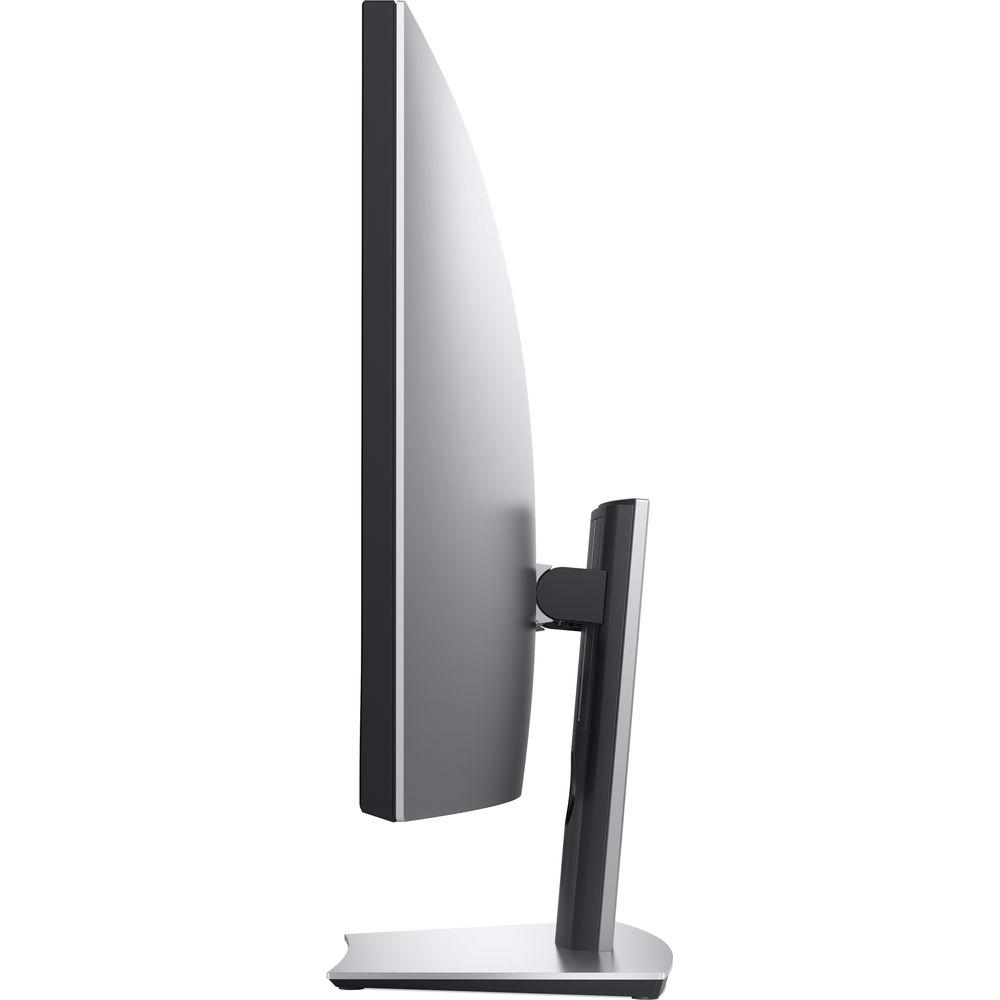

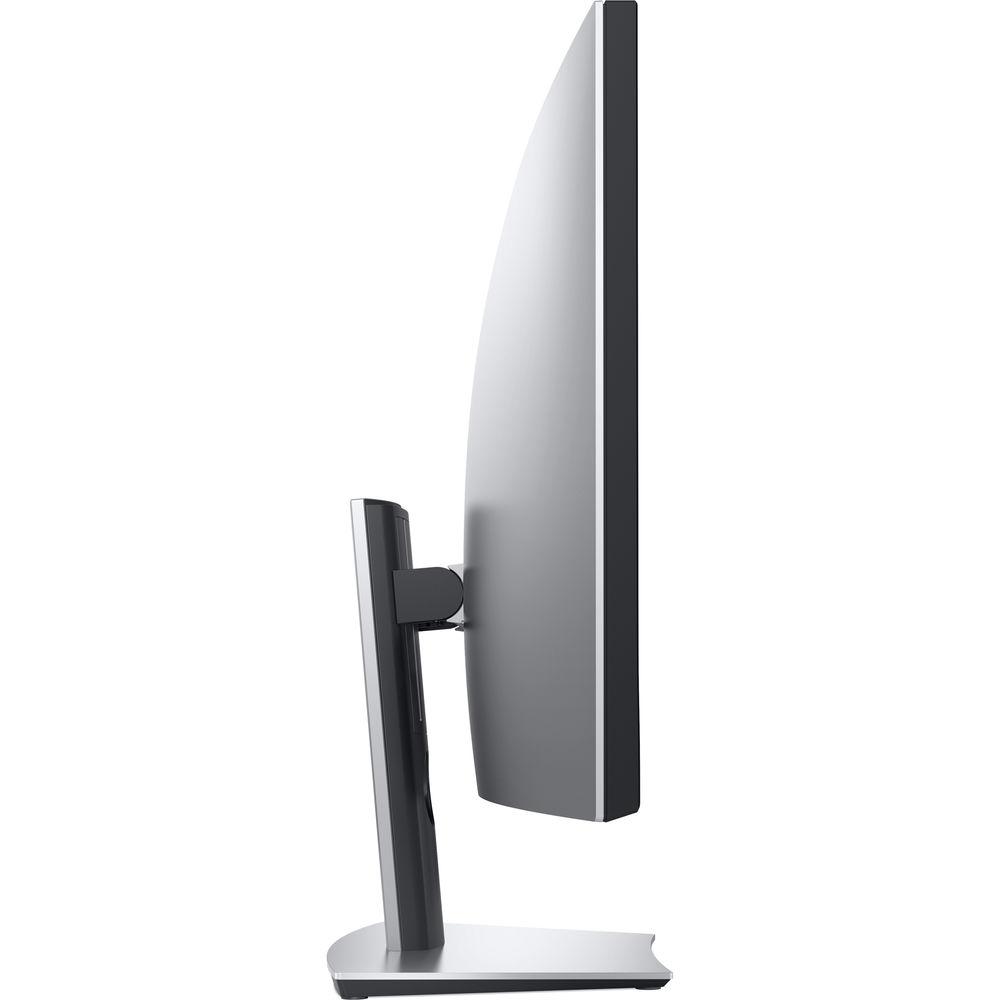

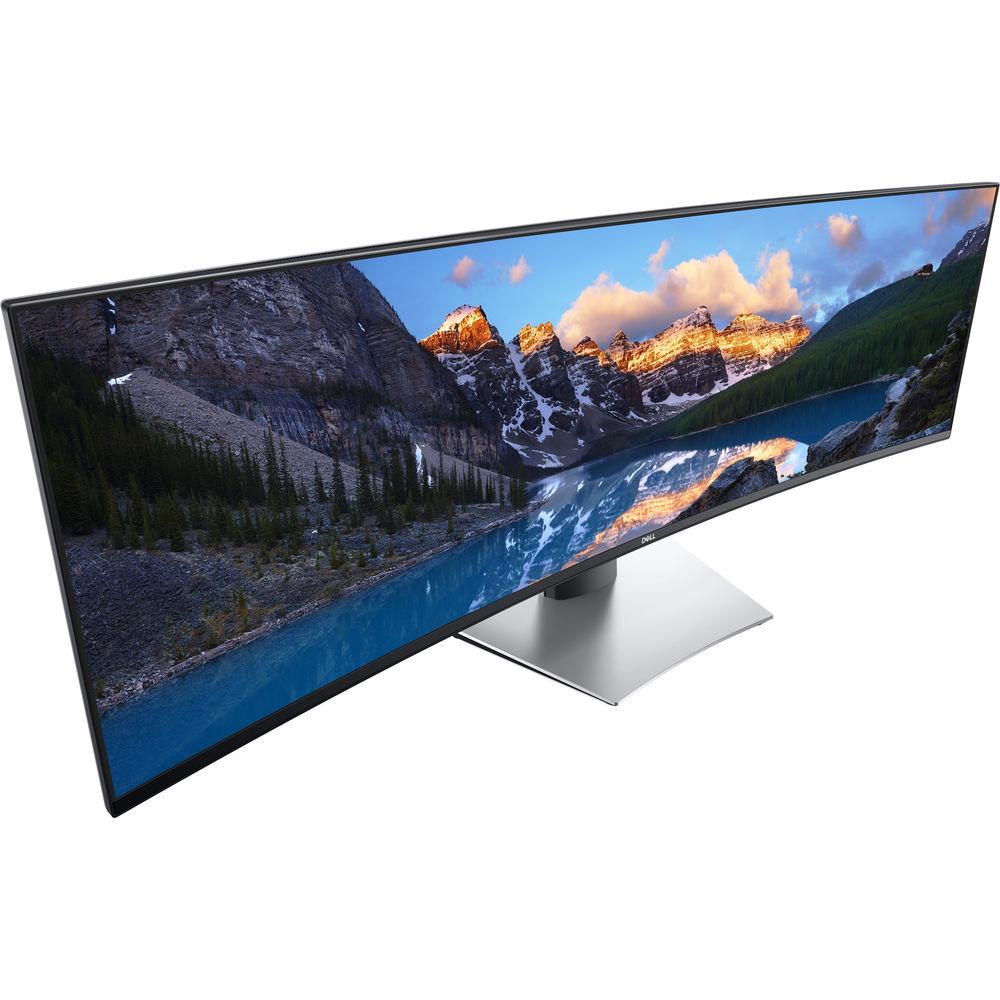

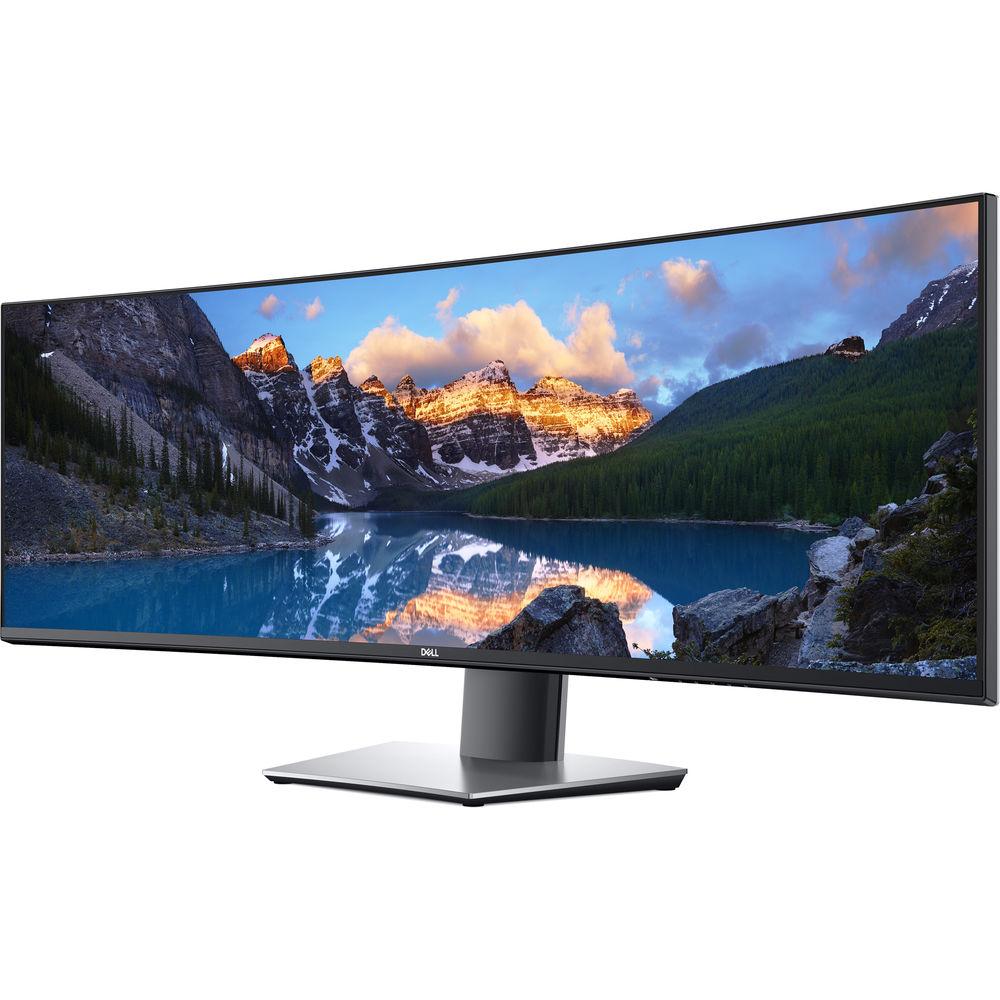

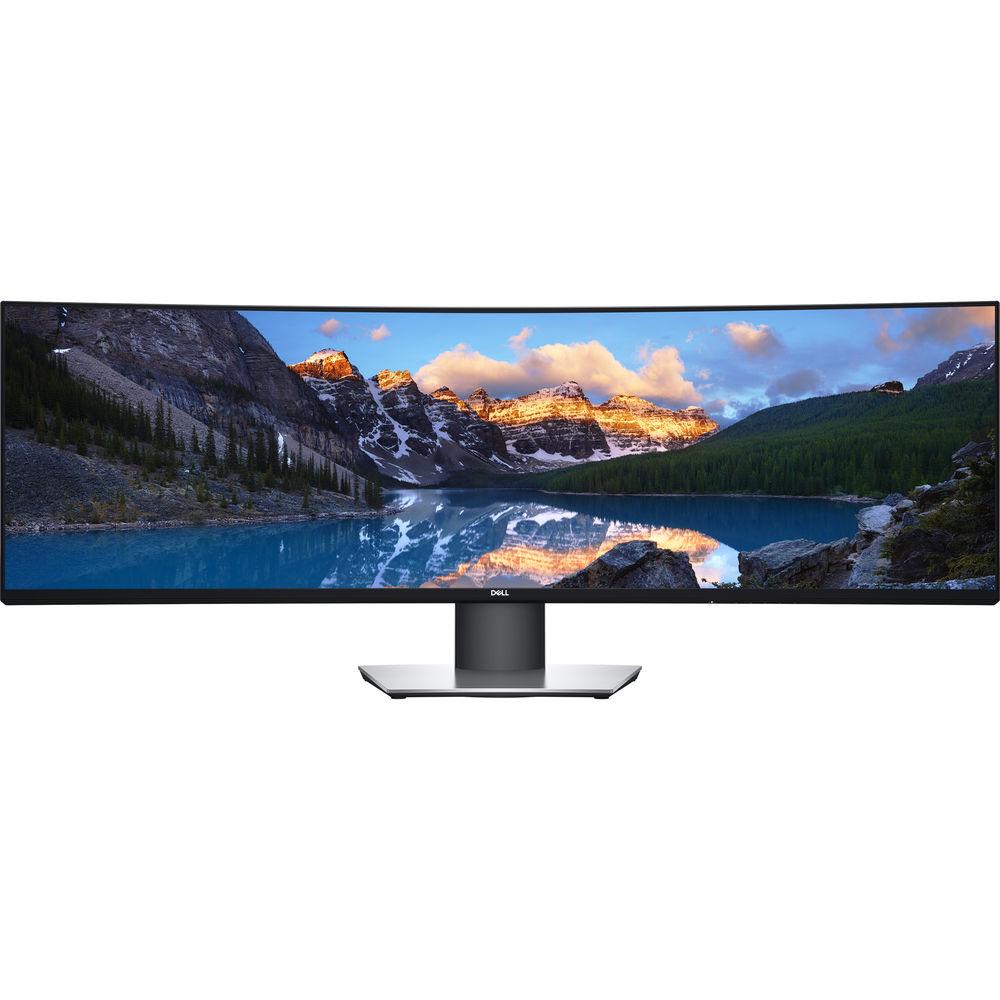

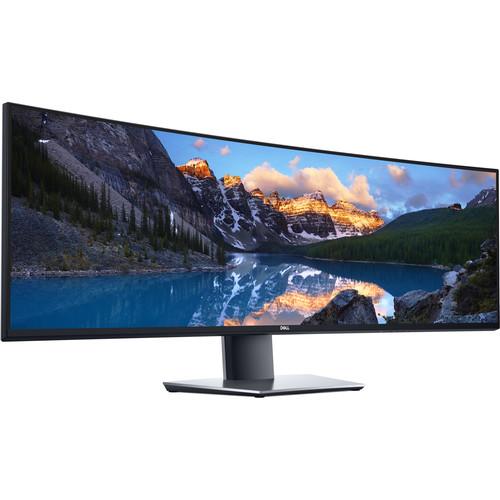

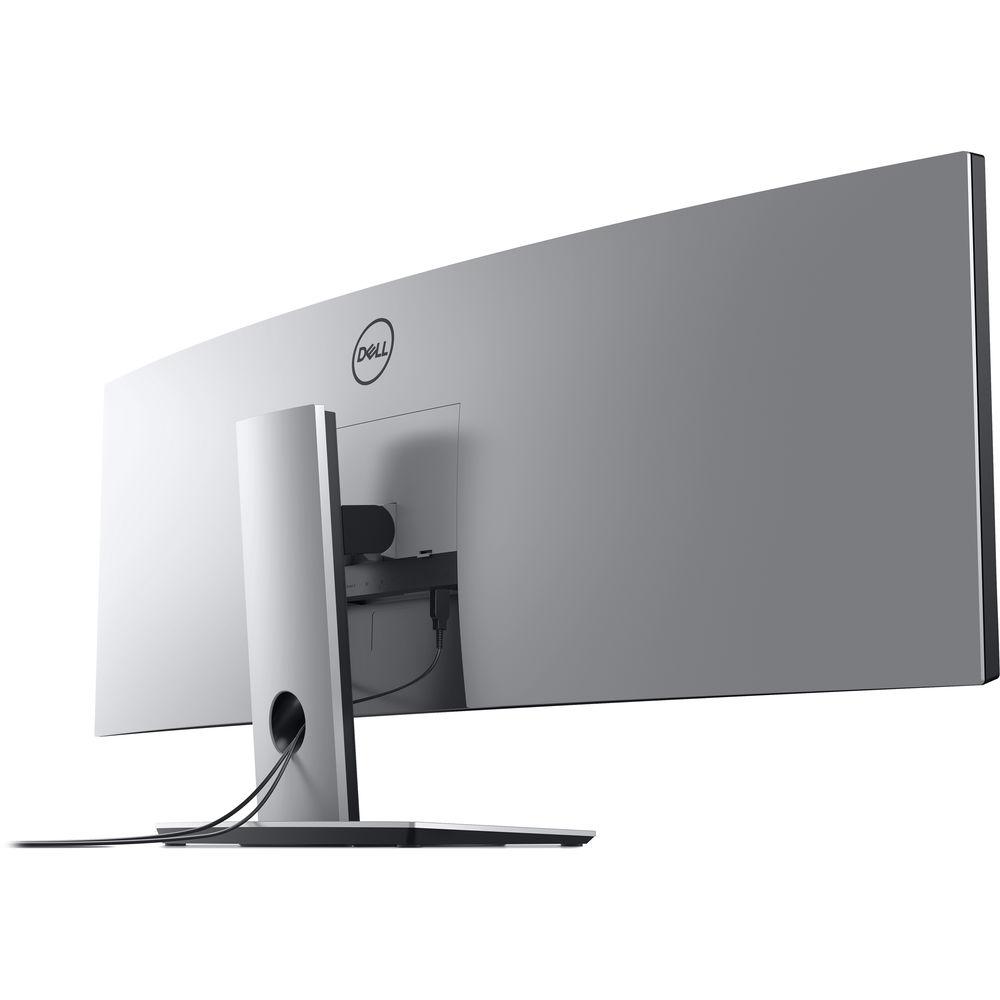

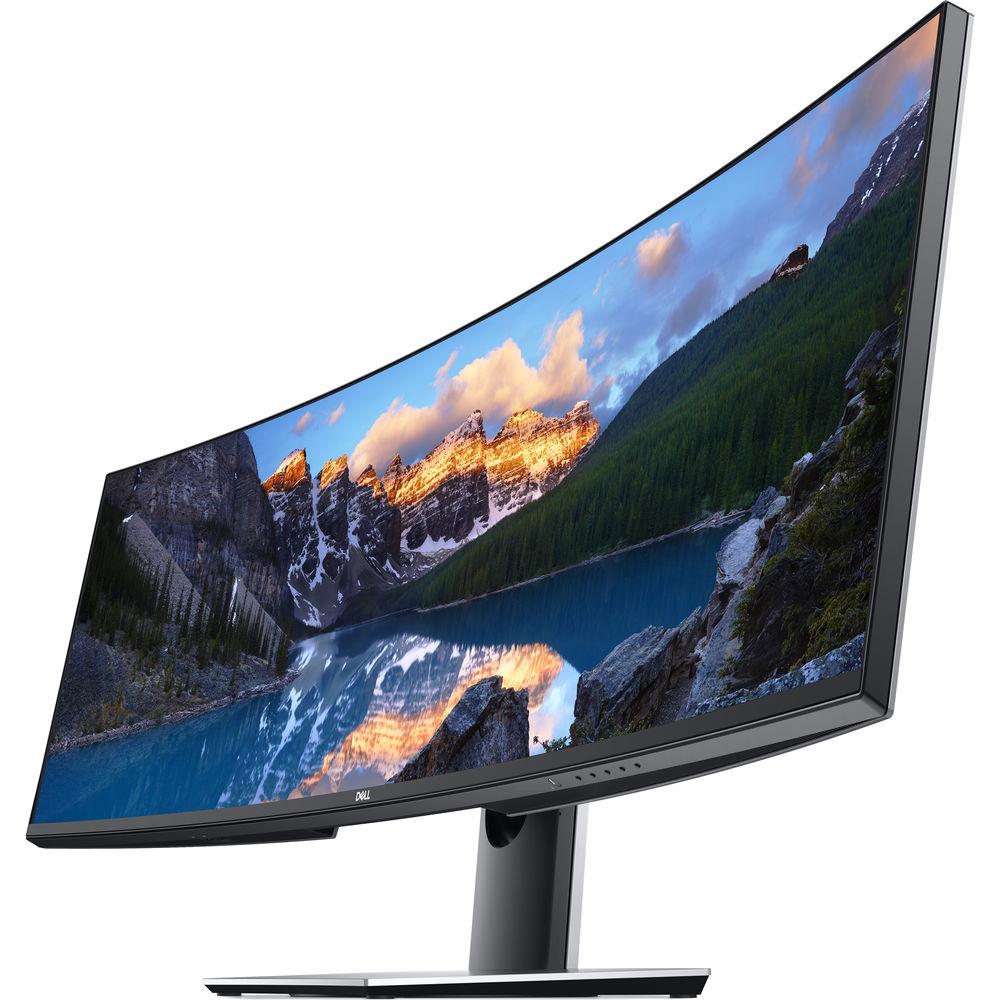

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The U4919DW 49" 32:9 Curved IPS Monitor from Dell is a sizeable monitor, which is essentially two 27" 2560 x 1440 displays stitched together. Moreover, it has a 3800R curvature for improved viewing angles while you're situated in the middle of the screen. Built with an IPS (In-Plane Switching) panel featuring a 5160 x 1440 resolution, a 1000:1 static contrast ratio, a 300 cd/m² brightness rating, as well as support for 1.07 billion colors, this display provides you with crisp, clear details and vivid colors. Connect it to your system via HDMI, DisplayPort, or even USB Type-C, and adjust it to your viewing preference. Alternatively, you can mount it to an optional VESA-compatible mount, stand, or arm if needed. - Double the Display
- Using the Picture-by-Picture (PBP) function, you can view content from two different computer sources side-by-side for enhanced multitasking.
- One Keyboard
- Connect up to two different computers to the available inputs and the built-in Keyboard, Video, and Mouse (KVM) function lets you easily toggle between them as needed.
- Color Accuracy
- This display is factory calibrated with 99% sRGB coverage and a delta E value of less than two.
- Easy on the Eyes
- Built with ComfortView technology, this display reduces blue light emissions and flickering to reduce eyestrain and fatigue over extended viewing periods.
- USB Type-C
- The USB Type-C port on this display can transmit data, video, and up to 90W of power for a one-cable solution.
UPC: 884116306344 In the Box Dell U4919DW 49" 32:9 Curved IPS Monitor Power Cable HDMI Cable DisplayPort Cable USB 3.0 Upstream Cable USB Type-C Cable Limited 3-Year Warranty (Advanced Exchange Service & Premium Panel Guarantee) Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell U4919DW 49" 32:9 Curved IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell U4919DW Specs | | | Size | 49" | | Screen Area | 47.17 x 13.27" / 1198.08 x 336.96 mm | | Panel Type | IPS-Type LCD | | Curvature | 3800R | | Touchscreen | No | | Resolution | 5120 x 1440 | | Aspect Ratio | 32:9 | | Pixels Per Inch (ppi) | 109 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | HDR Compatibility | None | | Color Gamut | 99% sRGB | | Response Time | 8 ms
5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.234 x 0.234 mm | | | | Connectivity | 2 x HDMI 2.0
1 x DisplayPort 1.4
5 x USB Type-A (USB 3.1 Gen 1) Output
2 x USB Type-B (USB 3.1 Gen 1) Input
1 x USB Type-C | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | None | | | | Power Consumption | 60 W (Typical)
230 W (Maximum)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 3 A | | USB Power Delivery | 90 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 80% | | Operating Altitude | 10,000' / 3048 m | | Certifications | ENERGY STAR, EPEAT GOLD, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 3.54" / 90 mm | | Rotation Adjustment | None | | Swivel Adjustment | 340° (-170 to 170°) | | Tilt Adjustment | -5 to 21° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 47.8 x 21.6 x 9.9" / 1215.1 x 548.6 x 252.6 mm (With Stand)
47.8 x 14.6 x 4.3" / 1215.1 x 371.0 x 109.3 mm (Without Stand) | | Weight | 58.27 lb / 26.43 kg (With Stand)
25.13 lb / 11.4 kg (Without Stand) | | | | Package Weight | 58.0 lb | | Box Dimensions (LxWxH) | 55.5 x 21.0 x 12.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
