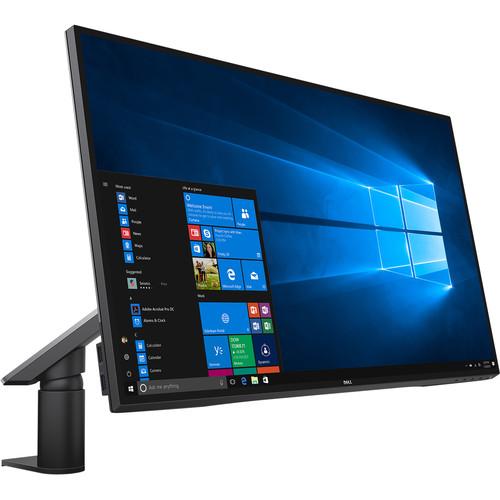

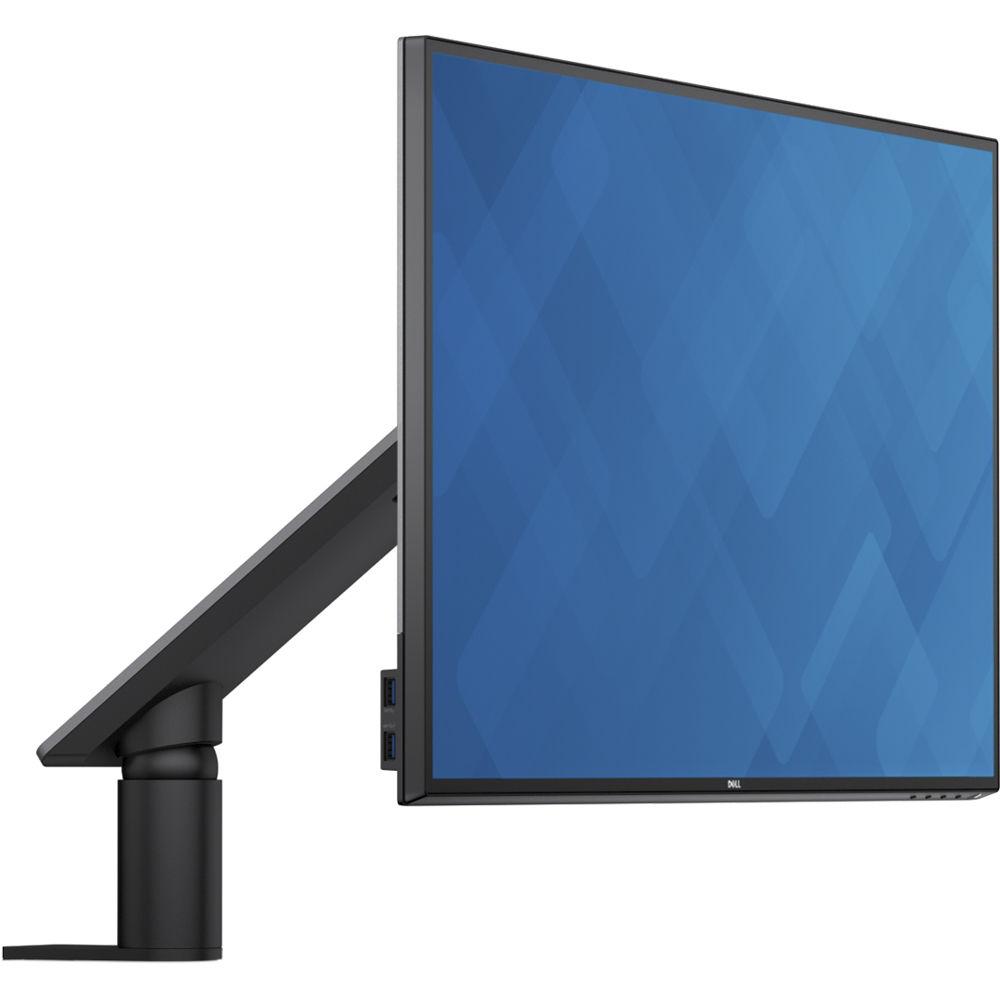

User Manual for Dell UltraSharp 27 U2717DA 27" 16:9 InfinityEdge IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell UltraSharp 27 U2717DA 27" 16:9
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell UltraSharp 27 U2717DA 27" 16:9 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

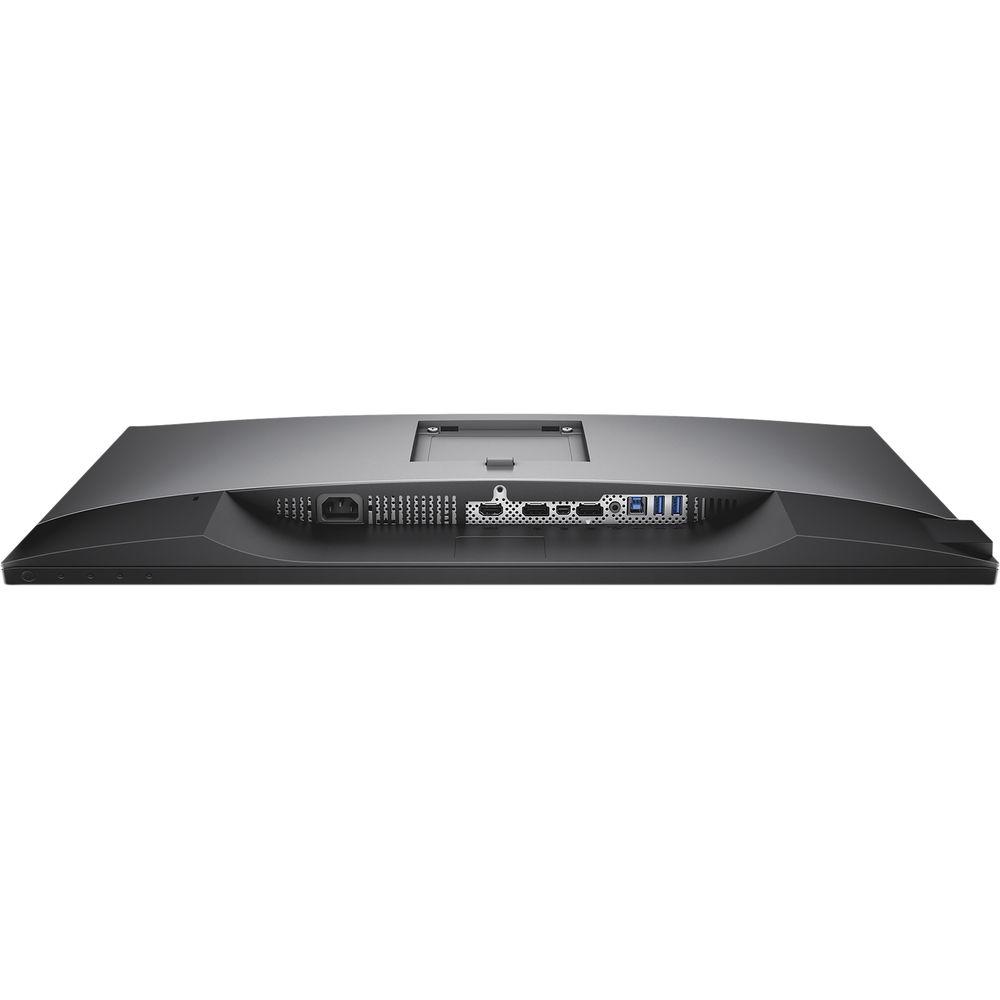

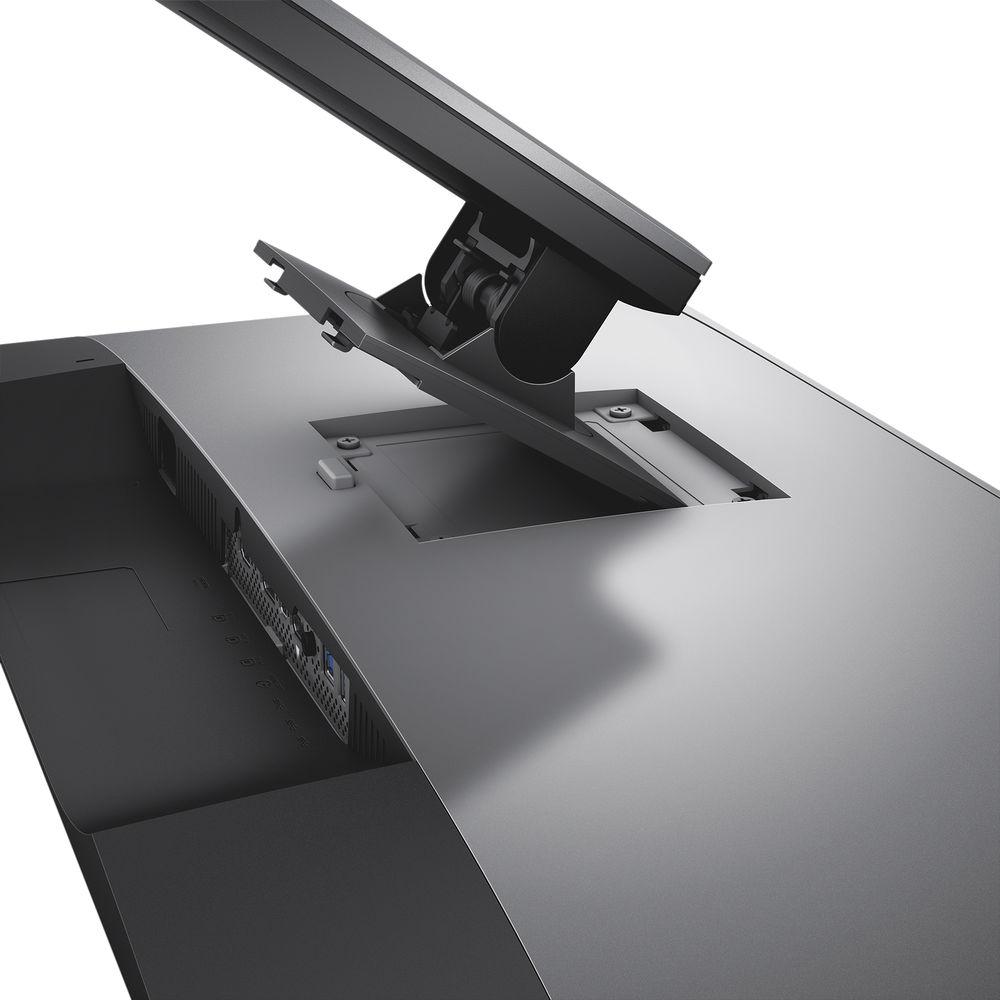

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More See and do more with the UltraSharp 27 U2717DA 27" 16:9 InfinityEdge IPS Monitor from Dell. This display is built with an In-Plane Switching (IPS) panel that provides you with wide 178° viewing angles and vivid color reproduction. The 2560 x 1440 resolution has roughly 1.77 times more pixels than a standard Full HD display so you'll be able to enjoy crystal-clear details. Furthermore, it has a 350 cd/m² brightness rating, a static 1000:1 contrast ratio, an 8 ms response time, and supports 16.7 million colors for immersive, lag-free content reproduction with darker blacks and brighter bright colors. Connect this display to your system via HDMI, DisplayPort, or Mini-DisplayPort and then adjust it to your viewing preference. If required, you can install an alternate mount or stand using the 100 x 100 mm VESA mounting holes on the back of the display. - InfinityEdge Display

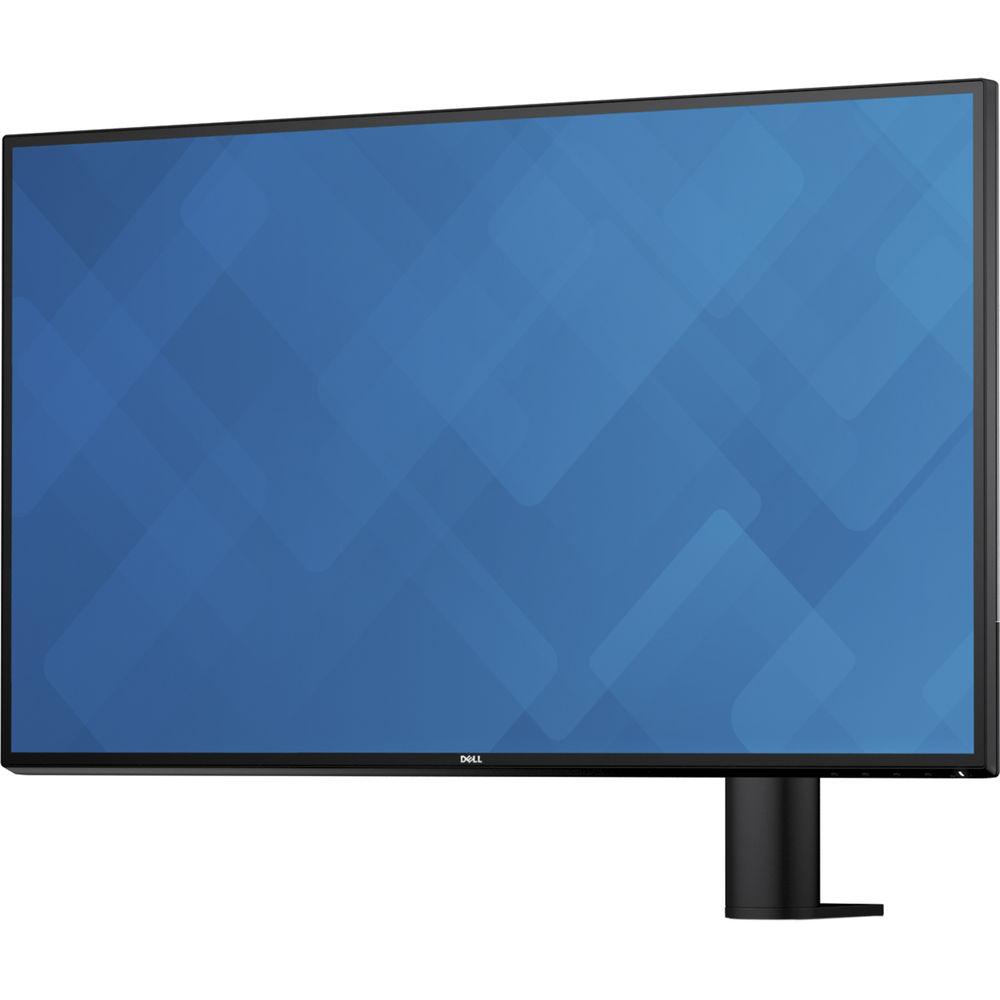

- See more with Dell's InfinityEdge borders. Measuring at roughly 7.3mm thick, you'll be able to stay focused on what's on the display rather than the thick bulky bezels surrounding it.
- Extra Real Estate
- With a 2560 x 1440 QHD display, the UltraSharp 27 has 1.77 times more screen space compared to a Full HD monitor. Extra pixels deliver enhanced details for crystal-clear visual enjoyment.
- IPS Display with 99% sRGB
- In-Plane Switching displays provide you with wide viewing angles and vivid color reproduction. Combined with a 99% sRGB coverage, this monitor is suitable for handling color-sensitive work. Furthermore, it comes factory-calibrated so you won't have to fuss around with the settings.

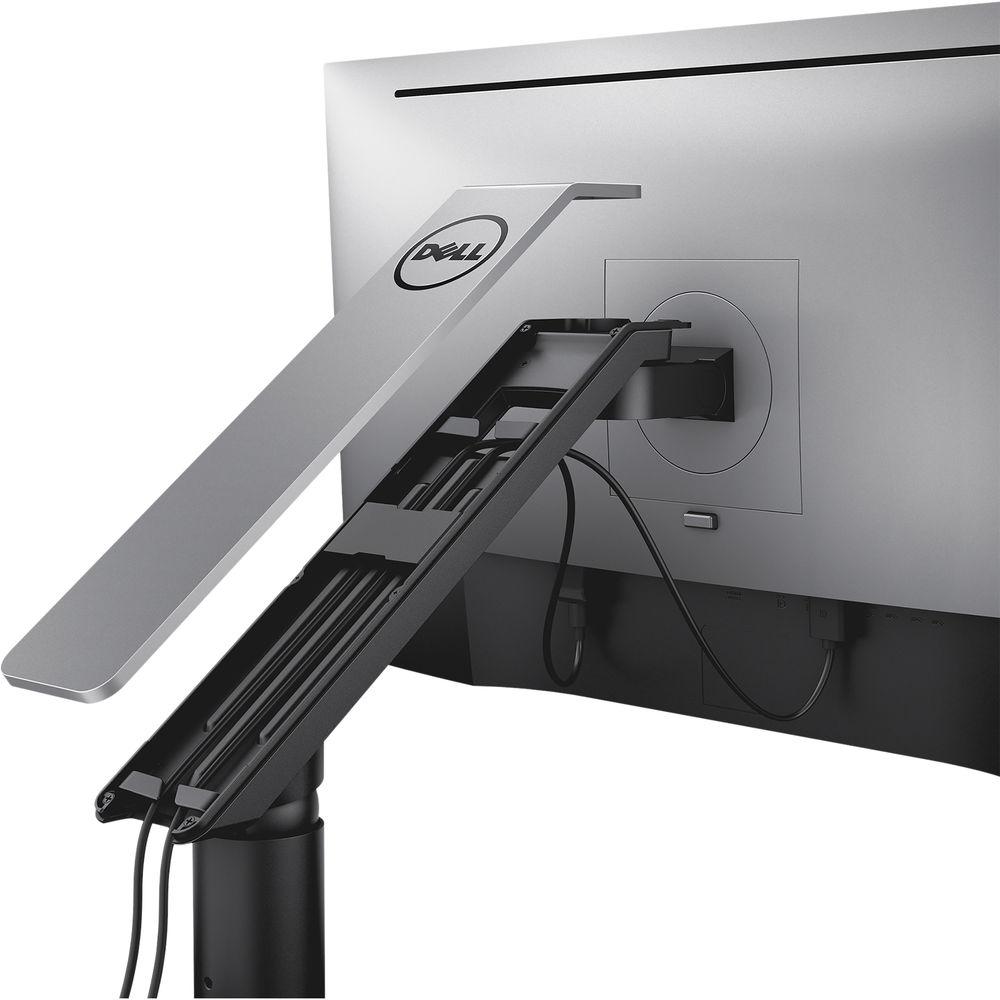

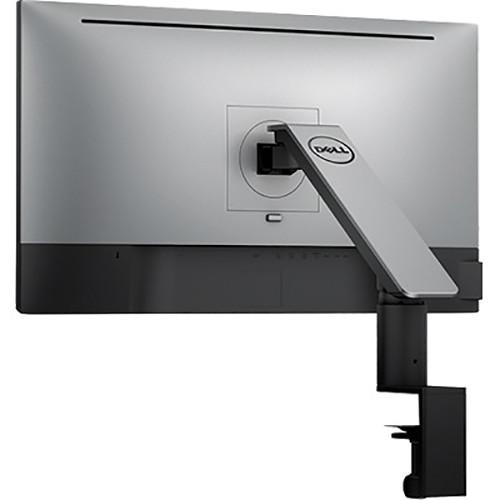

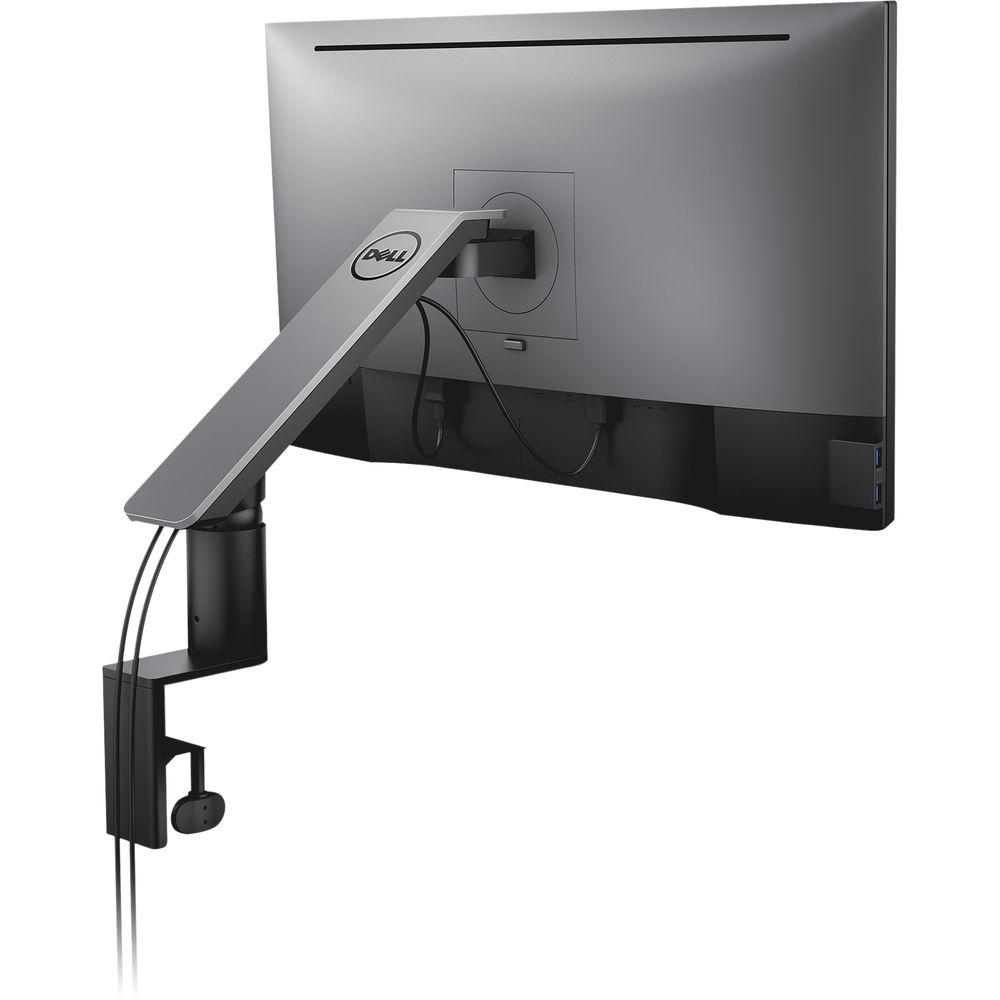

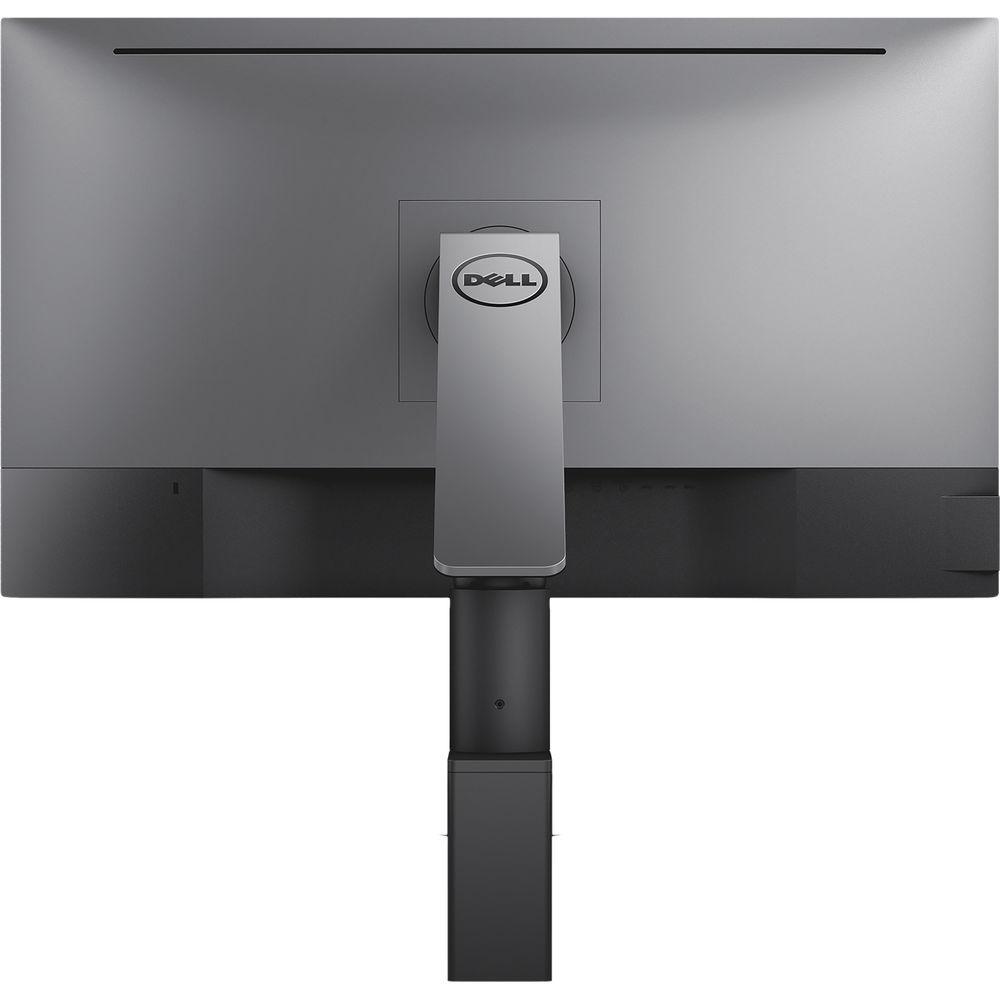

UPC: 884116202806 In the Box Dell UltraSharp 27 U2717DA 27" 16:9 InfinityEdge IPS Monitor Power Cable Arm Mount DisplayPort to Mini-DisplayPort Cable USB 3.0 Cable Factory Calibration Report Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell UltraSharp 27 U2717DA 27" 16:9 InfinityEdge IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell U2717DA Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Finish | Matte | | Hardness Rating | 3H | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 99% sRGB | | Response Time | 8 ms
6 ms (Overdrive) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2331 x 0.2331 mm | | | | Connectivity | 1 x 3.5 mm Output
1 x USB Type-B (USB 3.1 Gen 1) Input
4 x USB Type-A (USB 3.1 Gen 1) Output
1 x DisplayPort 1.2 Input
1 x DisplayPort Output
1 x Mini DisplayPort 1.2 Input
1 x HDMI 1.4 | | | | Power Consumption | 0.5 W (Standby)
26 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.7 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 90% | | Operating Altitude | 0 to 16,404' / 0 to 5000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | ENERGY STAR, EPEAT GOLD, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 6.2" / 15.7 cm | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 24.1 x 14.2 x 7.7" / 61.1 x 36.0 x 19.6 mm (With Stand)
24.1 x 14.0 x 1.9" / 61.1 x 35.6 x 4.8 mm (Without Stand) | | Weight | 9.9 lb / 4.5 kg (Without Stand) | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 27.0 x 22.0 x 5.5" |
