User Manual for Dell Universal Dock D6000 Click to enlarge the picture
Contents of the user manual for the Dell Universal Dock D6000
- Product category: Docking Stations & Port Replicators Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Docking Stations & Port Replicators
 |
User manual for the Dell Universal Dock D6000 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

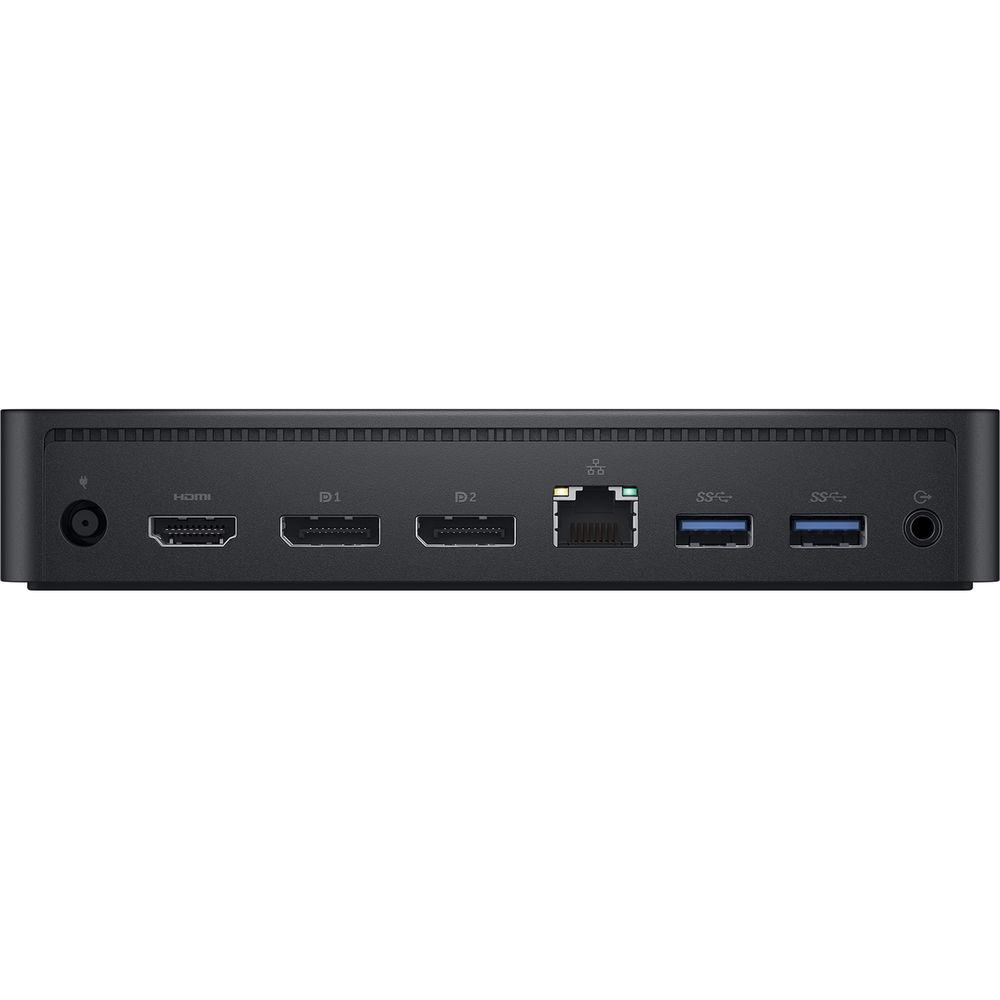

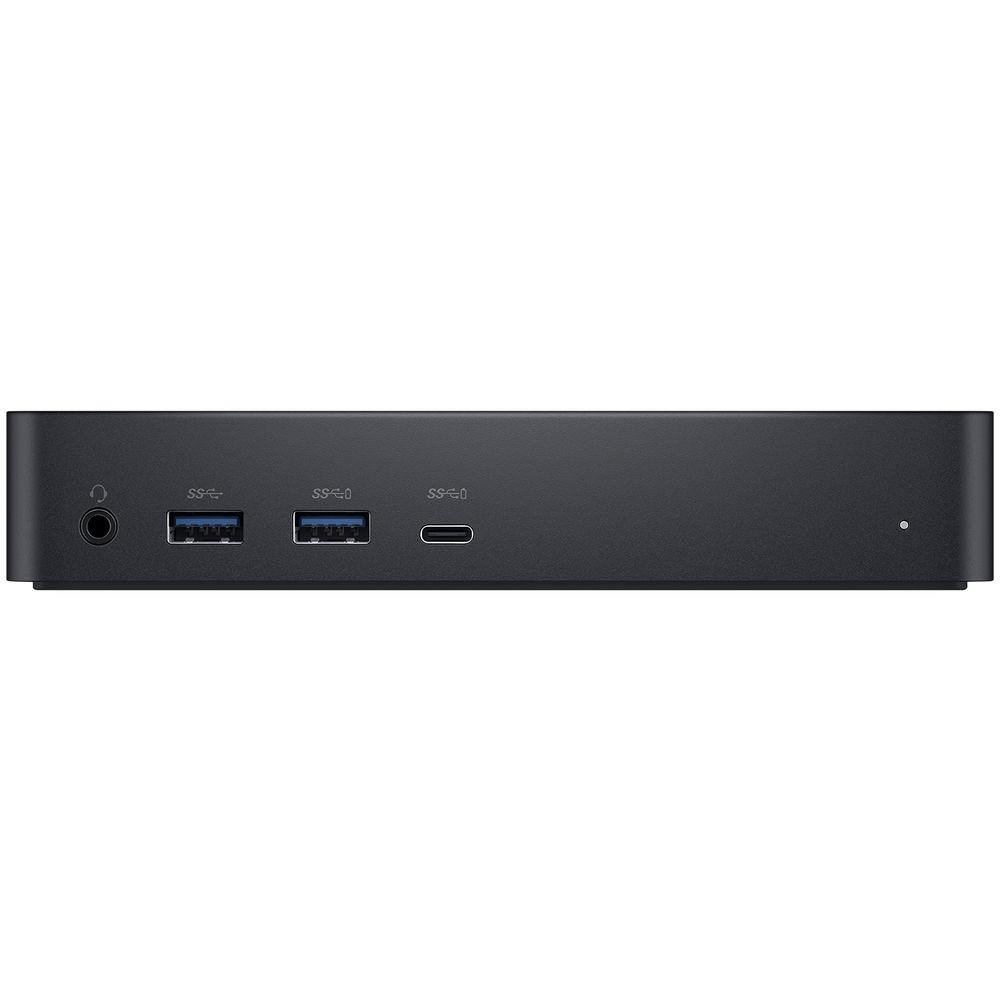

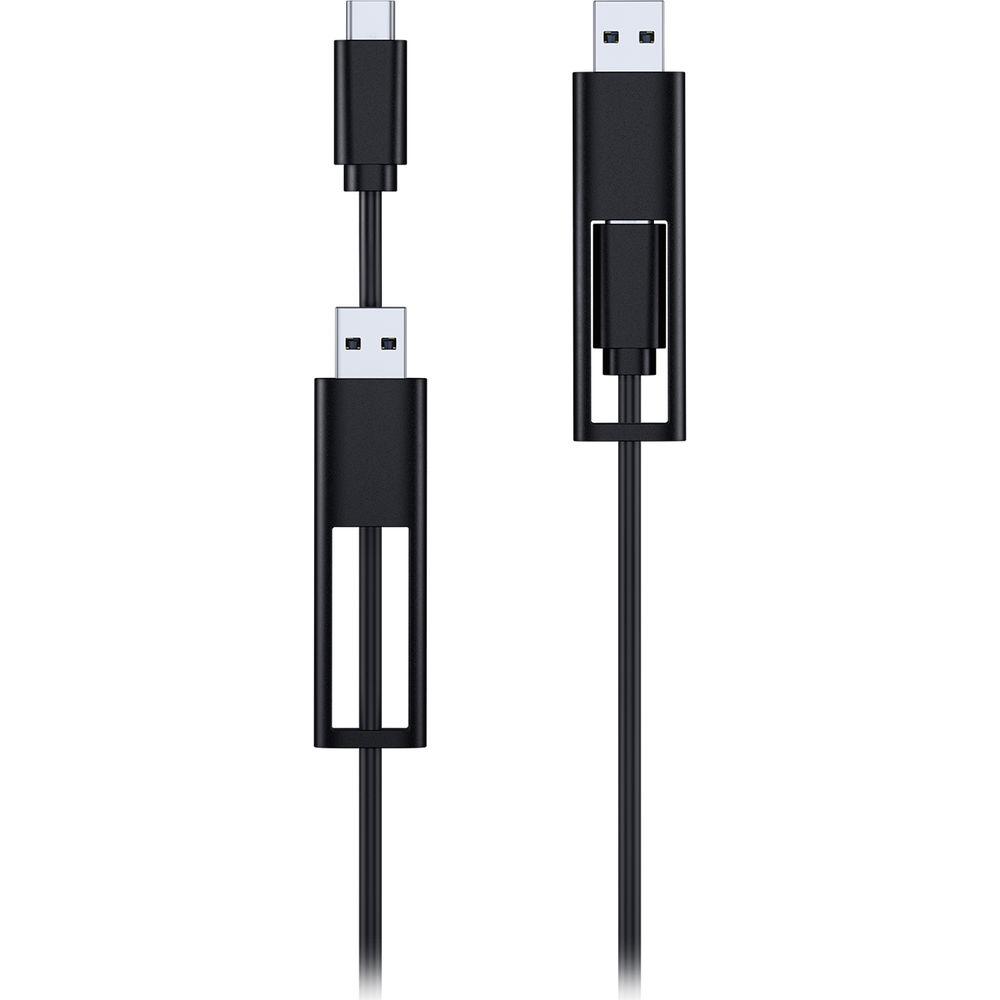

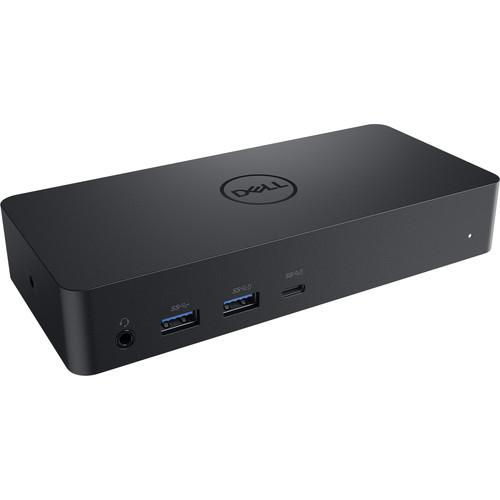

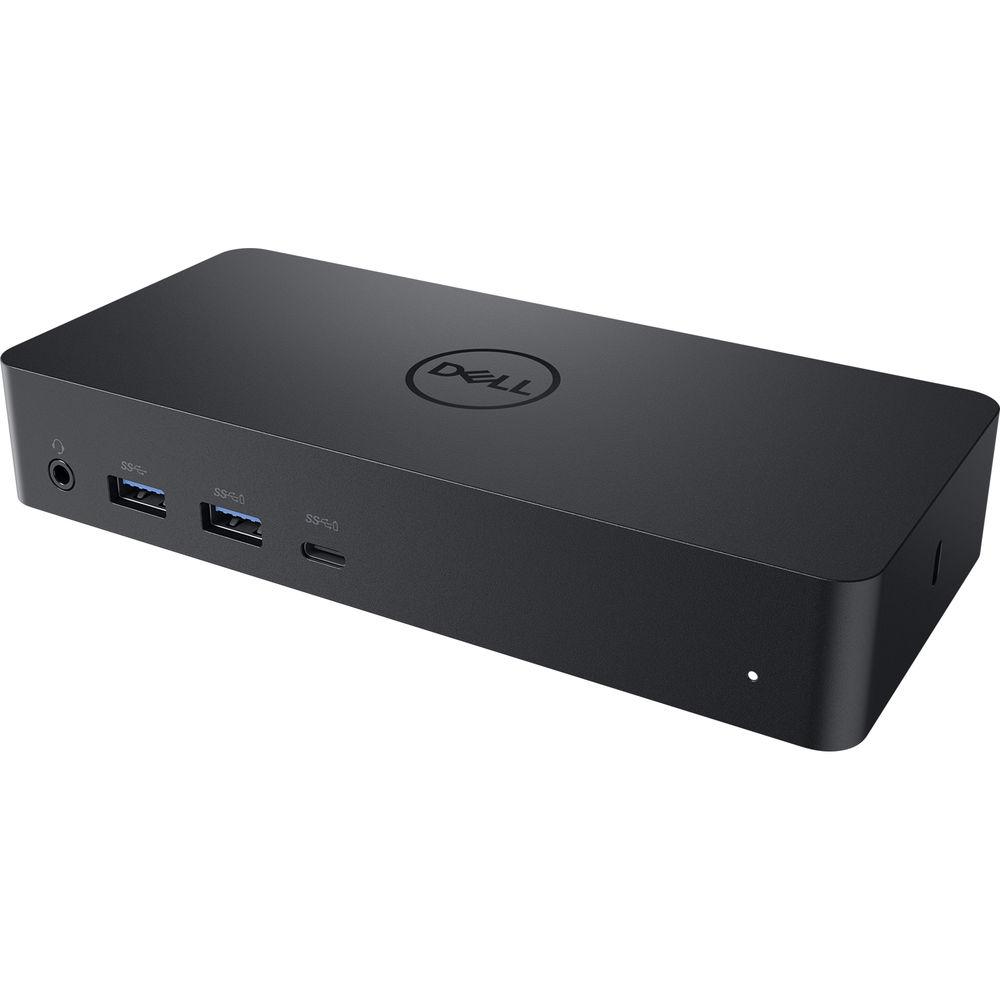

Product description The Universal Dock D6000 from Dell lets you connect your compatible laptop to 4K displays, a mouse, keyboard, and audio devices. Compatible with a wide range of PC brands and operating systems supported by DisplayLink technology, the Universal Dock D6000 can connect your laptop to up to three 4K displays simultaneously. The dock comes equipped with three USB 3.0/3.1 Gen 1 Type-A ports, an additional USB 3.0/3.1 Gen 1 Type-A port with PowerShare technology, a USB Type-C port with PowerShare, an HDMI port, two DisplayPort video ports, a 3.5mm combo audio port, an audio line-out port, and a Gigabit Ethernet port. The dock connects to your laptop via an attached USB Type-C cable that can transfer data, power, and video. The cable also includes an integrated USB Type-A adapter. - Universal Laptop Dock
- The Dell Universal Dock D6000 can connect to most laptops equipped with USB Type-C or USB 3.0/3.1 Gen 1 Type-A ports, and it's compatible with a variety of PC brands and operating systems supported by DisplayLink technology. Whether you're at your desk or in a shared workspace, you can connect to displays, a mouse, keyboard and audio devices from your compatible laptop. USB 3.0 and USB 3.1 Gen 1 are synonymous.
- Connect to Three 4K Displays Simultaneously
- The Universal Dock D6000 lets your laptop connect to up to three 4K displays at once via the dock's USB Type-C connection, or to a single 5K display. DisplayLink driver installation may be required. When connected to three 4K displays, a maximum refresh rate of 30 Hz for the third display is supported.
- Single-Cable Docking Solution
- The D6000 can supply up to 65W of power to your laptop, as well as transfer data, video, and audio over a single cable when connected via USB Type-C, ideal for keeping clutter to a minimum.
- OS Requirements
- Windows 10, 8.1, 8, 7 (32/64-bit), or later
- System Requirements
- Windows PC equipped with USB 3.0/3.1 Gen 1 Type-A port or USB Type-C Port
DisplayLink driver installation UPC: 884116269021 In the Box Dell Universal Dock D6000 130W AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell Universal Dock D6000 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell Universal Dock D6000 Specs | | | USB | 1 x USB 3.1 Gen 1 Type-C
4 x USB 3.1 Gen 1 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x HDMI
2 x DisplayPort | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo
1 x 1/8" / 3.5 mm Line-Out | | Memory Card Slots | None | | | | System Connection | 1 x USB 3.1 Gen 1 Type-C Male | | Connection Type | Integrated Cable | | | | Number of Displays Supported | 3 | | Maximum Resolution Supported | 5120 x 2880 at 60 Hz (Single Display)
3840 x 2160 at 60 Hz (Dual Display)
3840 x 2160 at 30 Hz (Triple Display) | | Data Transfer Rate | 5 Gb/s USB 3.0/USB 3.1 Gen 1 | | Compatibility | Dell Inspiron 14 7460
Dell Inspiron 15 Gaming 7567
Dell Latitude 13 3380
Dell Latitude 3189
Dell Latitude 3480
Dell Latitude 3580
Dell Latitude 5280
Dell Latitude 5285 2-in-1
Dell Latitude 5289 2-In-1
Dell Latitude 5480
Dell Latitude 5580
Dell Latitude 7280
Dell Latitude 7480
Dell Vostro 3450
Dell Vostro 3550
Dell Vostro 3750
Dell Vostro 3555
Dell Vostro 3350
Dell Vostro 3360
Dell Vostro 3460
Dell Vostro 3560
Dell Vostro 5470
Dell Vostro 3558
Dell Vostro 3459
Dell Vostro 3559
Dell Vostro 5480
Dell Vostro 3468
Dell Vostro 14 3458
Dell Vostro 14 5468
Dell Vostro 15 3568
Dell Vostro 15 3578
Dell Vostro 15 5568
Dell XPS 13 9360
Dell XPS 13 9365 2-in-1 | | Operating System Support | Windows | | UASP Support | No | | | | Power Source | AC Adapter | | Maximum Power Consumption | 130 W (AC Adapter) | | | | Lock Slot | Yes, Kensington | | Dimensions | 3.1 x 6.6 x 1.2" / 7.87 x 16.76 x 3.05 cm | | Weight | 0.8 lb / 362.9 g | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 7.6 x 5.6 x 4.3" |
