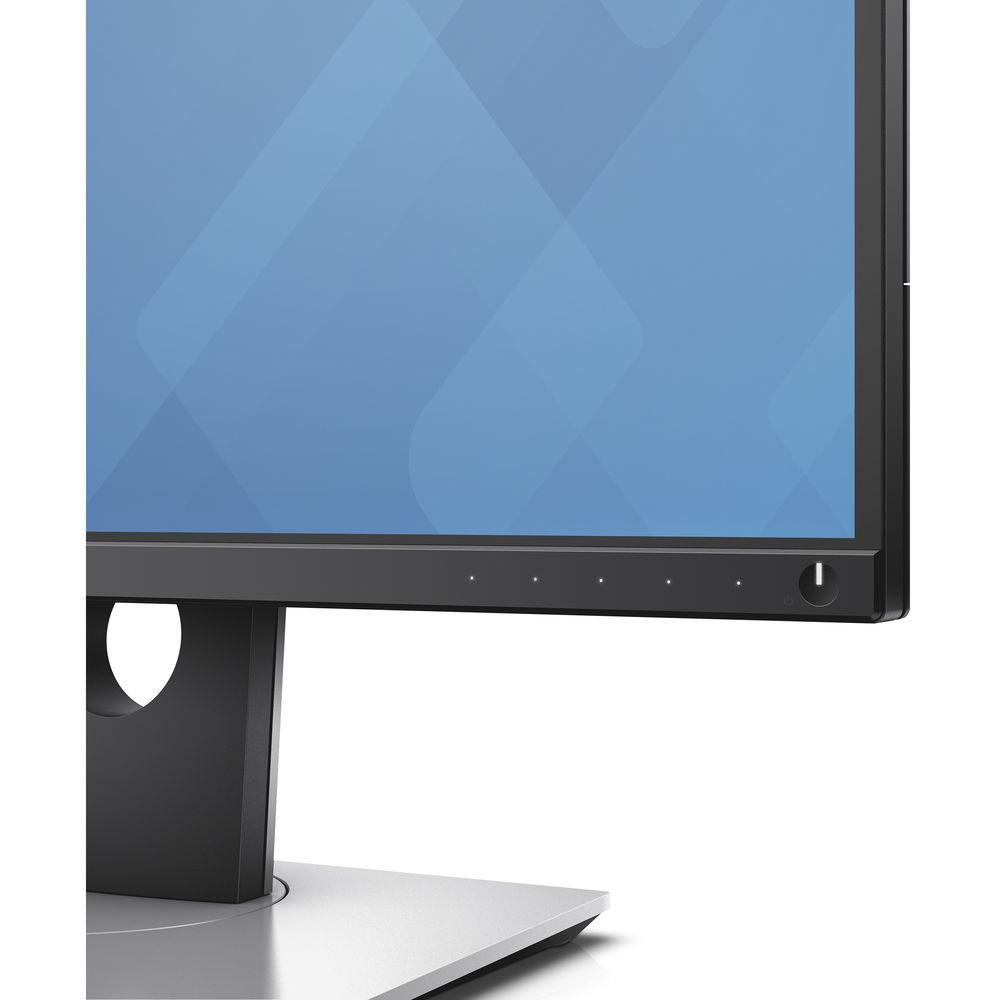

User Manual for Dell UP2516D 25" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell UP2516D 25" 16:9 IPS Monitor
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell UP2516D 25" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Covering 100% of the Adobe RGB, 100% of the sRGB, 100% of the REC 709, and 98% of the DCI-P3 color spaces, the UP2516D 25" 16:9 IPS Monitor from Dell gives you the color accuracy you need to ensure your photos and videos are true to life. In addition to enhanced color accuracy, this Dell Ultra-Sharp monitor comes factory calibrated to Delta-E < 2 so you do not have to calibrate the display when it arrives.
With a 2560 x 1440 resolution the UP2516D provides a crisp clear picture, and with support for up to 1.07 billion colors you have an expanded color palette to choose from. Along with enhanced resolution, this ultra-sharp monitor supports a 6 ms response time for reduced ghosting when viewing video, and 1,000:1 contrast ratio for deeper dark and brighter bright colors resulting in a more dynamic picture.
Configuration is simple with a variety of connectors including DisplayPort, Mini DisplayPort, HDMI, and USB port. This Dell monitor can even support content from two PCs simultaneously thanks to the dual USB 3.0 upstream ports and embedded KVM switch. Once configured, this IPS (In-Plane Switching) display can be viewed from nearly any angle with support for 178° horizontal and vertical viewing angles. Professional Grade Color - Wide Color Coverage
- This Dell UltraSharp Monitor comes equipped with PremierColor offering 100% Adobe RGB and 100% sRGB color coverage as well as two new color spaces: 100% REC 709 and 98% DCI-P3, which are ideal for video editors during post-production work and animation designers who deal with color-critical projects.
- Precise, Accurate Colors
- This monitor comes factory-color calibrated with a deltaE of less than 2, making any color differences between the desired color and onscreen color indistinguishable to the human eye.
- User-Enabled Adjustments
- Dell's software development kit, or SDK, enables customers with a proprietary color solution to customize Dell UltraSharp Monitors with their preferred specifications. You can also fine-tune color parameters, including RGBCMY saturation, RGBCMY hue, RGB, and RGB offset.
- Extensive Color Gamut
- Take advantage of a high level of detail - even in dark areas - with a color depth of 1.07 billion colors, that's approximately 64 times more colors than standard monitors.
Enhanced Viewing Experience - Seamless Setup
- Experience virtually seamless viewing across a dual- or multiple-monitor setup thanks to ultra-thin bezels.
- Enhanced Resolution
- Get amazing clarity with QHD resolution (2560 x 1440) for exceptional viewing on an expansive 25" screen with in-plane switching.
- Ultrawide Viewing Angles

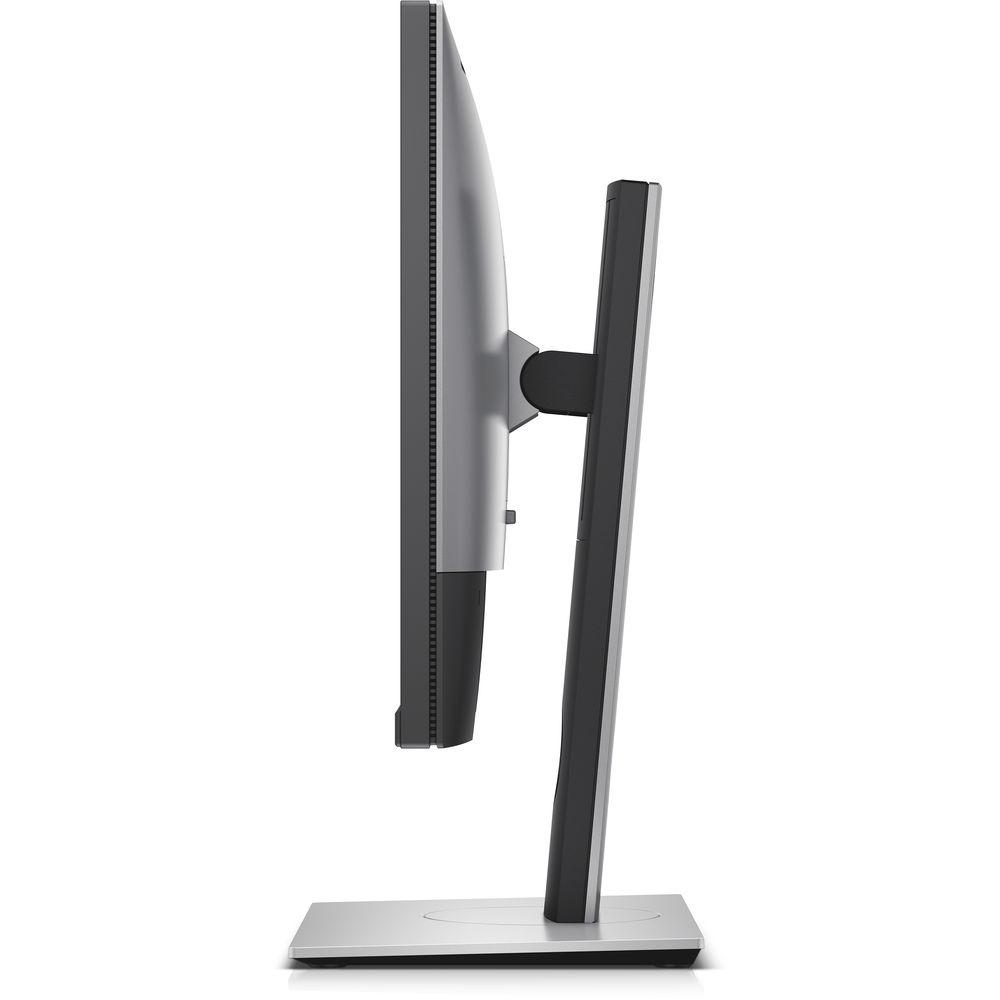

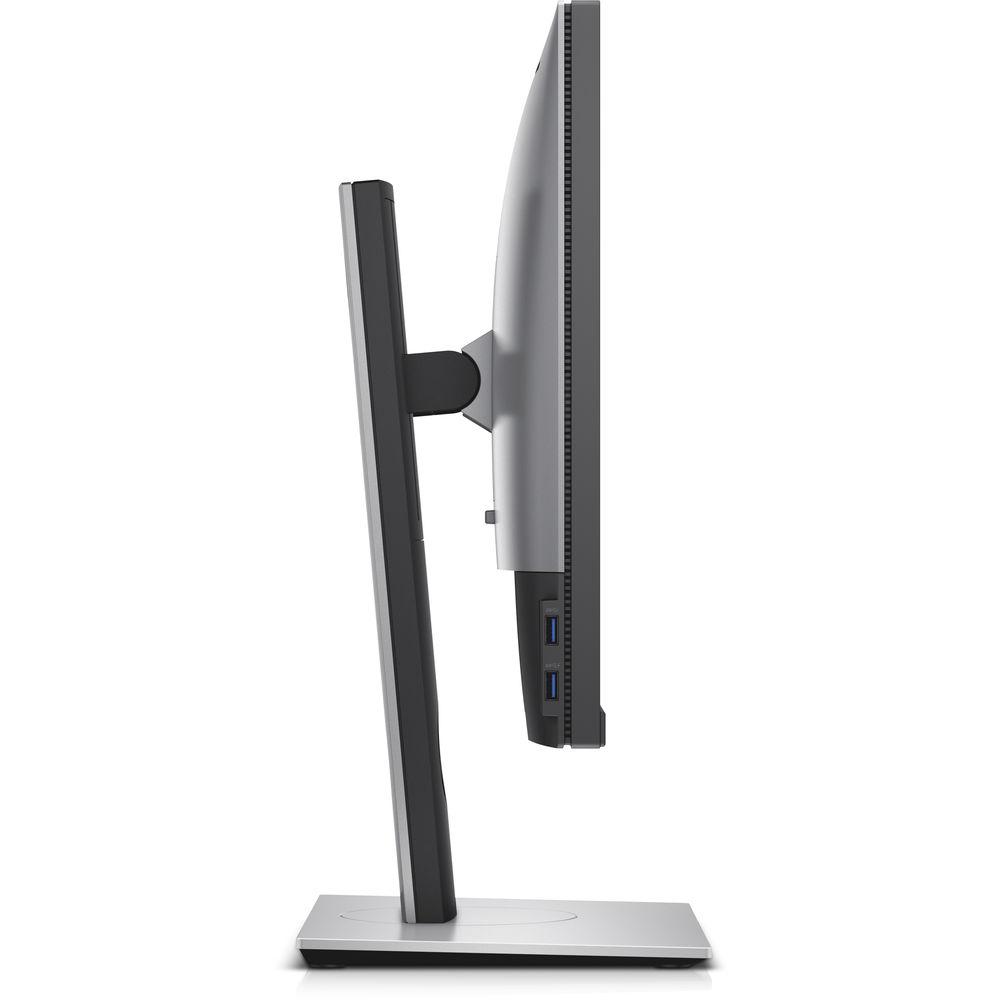

- View consistent colors from every direction across an ultrawide 178°/178° viewing angle. Tilt, swivel, or pivot clockwise or counter-clockwise to tailor this height-adjustable monitor to suit your needs.
- Convenient Connectivity

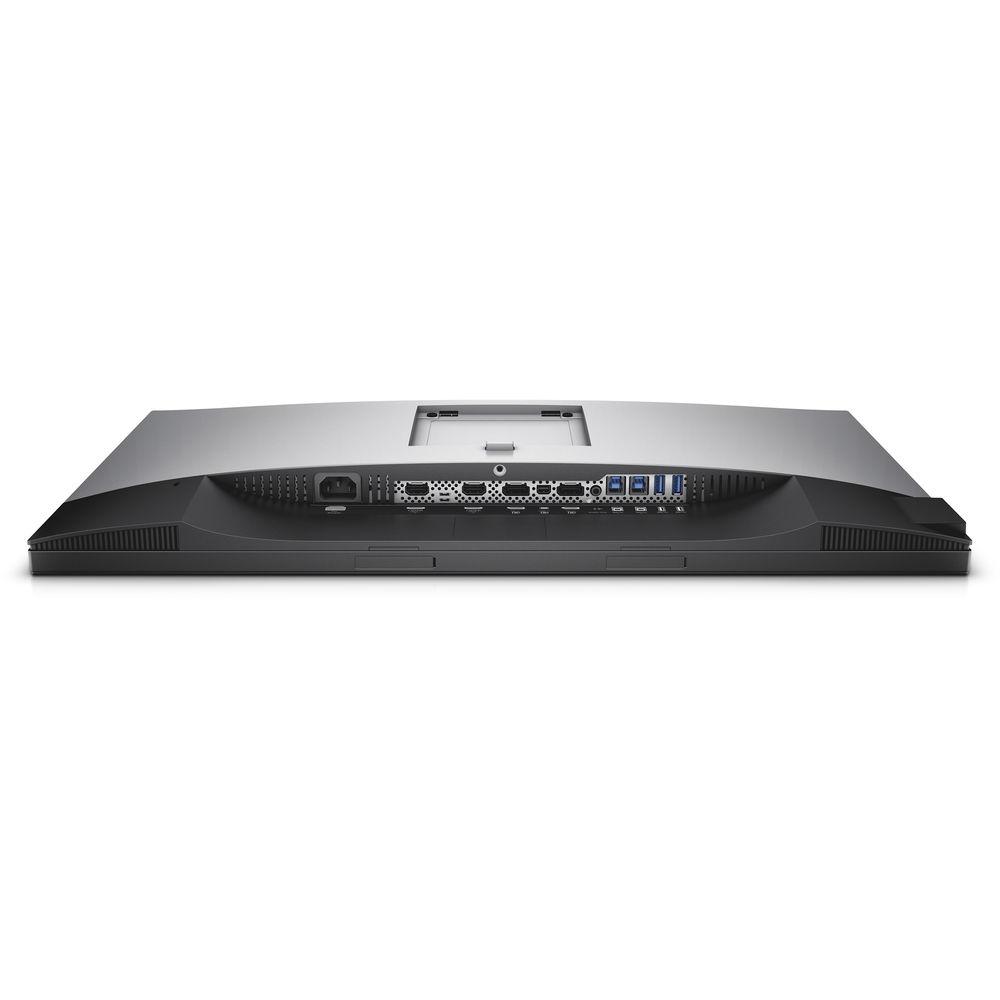

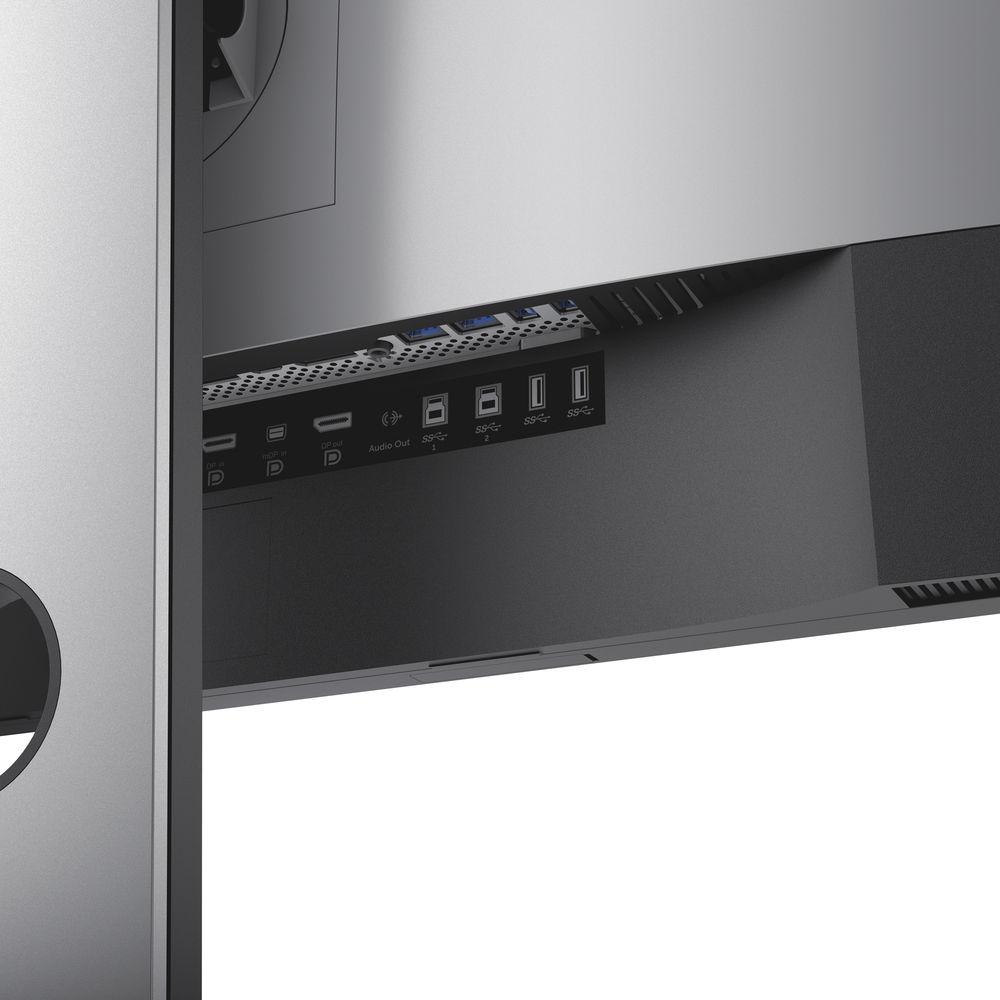

- View applications between two PCs simultaneously on your screen and manage the content with only one keyboard and mouse with a convenient KVM feature. And you can rely on extensive connectivity with an HDMI 1.4/MHL 2.0 port, one DisplayPort/ mini-DisplayPort connector, four USB 3.0 ports, and two USB 3.0 upstream ports with KVM support.
UPC: 884116193265 In the Box Dell UP2516D 25" 16:9 IPS Monitor Stand Power Cable Mini DisplayPort to DisplayPort Cable USB 3.0 Upstream Cable Drivers and Documentation Media (CD) Limited 3-Year Warranty User Manual PDF 9mb More from Manufacturer More info from Dell Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell UP2516D 25" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell UP2516D Specs | | | Size | 25" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 2000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Response Time | 6 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.216 x 0.216 mm | | | | Connectivity | 2 x USB Type-A (USB 3.1 Gen 1) Input
4 x USB Type-A (USB 3.1 Gen 1) Output
1 x DisplayPort Input
1 x Mini DisplayPort Input
2 x HDMI (MHL) | | Built-In Speakers | Yes | | | | Power Consumption | 38 W (Eco)
0.3 W (Standby)
45 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.6 A | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 90% | | Operating Altitude | 0 to 16,404' / 0 to 5000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | ENERGY STAR, EPEAT GOLD, TCO Certified, as per Manufacturer | | | | Height Adjustment | 5.1" / 13 cm | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 22.4 x 20.8 x 7.9" / 56.9 x 52.8 x 20.1 cm (With Stand)
13.3 x 22.4 x 2.0" / 33.8 x 56.9 x 5.1 cm (Without Stand) | | Weight | 8.9 lb / 4 kg (Without Stand) | | | | Package Weight | 20.5 lb | | Box Dimensions (LxWxH) | 25.0 x 15.2 x 7.0" |
