User Manual for Dell UP2718Q 27" 16:9 UltraSharp 4K IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell UP2718Q 27" 16:9 UltraSharp 4K
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell UP2718Q 27" 16:9 UltraSharp 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Covering 100% of the Adobe RGB, 100% of the sRGB, 100% of the REC 709, 97.7% of the DCI-P3, and 76.9% of the REC2020 color spaces, the UP2718Q 27" 16:9 UltraSharp 4K IPS Monitor from Dell gives you the color accuracy you need to ensure your photos and videos are true to life. In addition to enhanced color accuracy, this Dell Ultra-Sharp monitor comes factory calibrated to Delta-E so you do not have to calibrate the display when it arrives.
With a 3840 x 2160 resolution, the UP2718Q provides a crisp, clear picture, and with support for up to 1.07 billion colors you have an expanded color palette to choose from. Along with enhanced resolution, this ultra-sharp monitor supports a 6 ms response time for reduced ghosting when viewing video, and 1000:1 contrast ratio for deeper dark and brighter bright colors, resulting in a more dynamic picture.

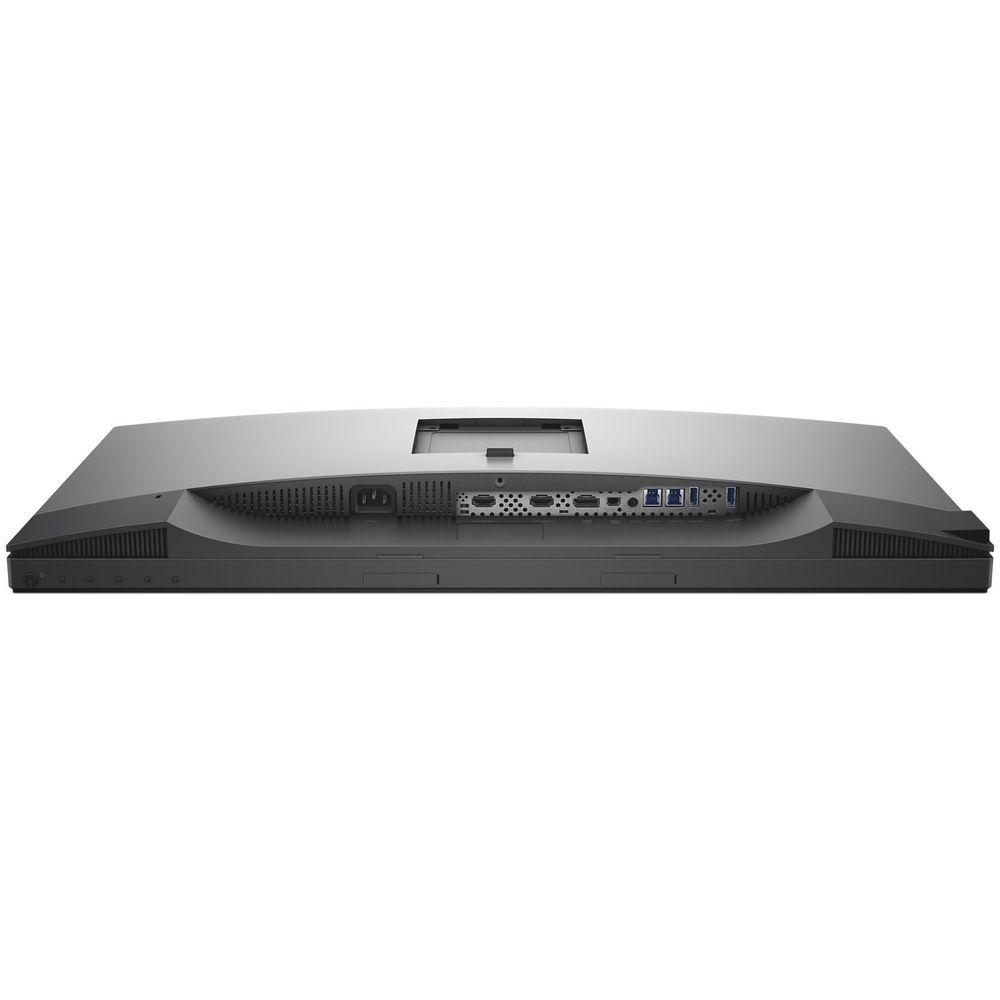

Configuration is simple with a variety of connectors, which includes DisplayPort, mini DisplayPort, HDMI, and USB ports. This Dell monitor can even support content from two computers simultaneously thanks to the dual USB 3.0 upstream ports and embedded KVM switch. Once configured, this IPS (In-Plane Switching) display can be viewed from nearly any angle with support for 178° horizontal and vertical viewing angles. - 4K Clarity
- Design and edit your work yet with enhanced visuals on Dell's 27" 4K HDR monitor that meets HDR10 standards. View lifelike colors, improved clarity, and finer details. Plus, with Dell PremierColor, your visuals are enhanced with heightened color performance.
- Enhanced Visuals
- With a peak brightness of 1000 cd/m² (at least three times brighter than most standard SDR displays) you'll see deep blacks and bright whites for true-to-life visuals. Whether you are working in the shadows or the light, you'll still see small details that would otherwise be lost without a high contrast ratio of 20,000:1 and 384 local dimming zones. This Dell monitor is also designed to handle even the most color-critical post production editing tasks thanks to support for the Rec. 2020 color space. To complete the 4K experience take advantage of a display offering four times more detail than Full HD with 3840 x 2160 Ultra HD 4K resolution.
- Color Accurate
- Dell PremierColor offers wide color coverage that meets major industry standards-100% Adobe RGB, 100% sRGB, 100% Rec. 709, 97.7% DCI-P3, and 76.9% Rec. 2020-for enhanced color clarity. Enjoy a greater level of detail with a color depth of 1.07 billion colors (that's 64 times more color depth than standard monitors) can provide. Even in dark areas, you'll see better color gradation and precision in more shades. Customize color parameters to your preference using the Custom Color mode, the SDKi, or the optional X-rite i1Display Pro colorimeter. The UP2718Q monitor is calibrated on Adobe RGB and sRGB to an accuracy of Delta-E less than 2. An included factory calibration report gives you the confidence that colors will be impressively accurate right from the start.
- Multiple Connectivity Options
- Experience multiple plugin options with dual HDMI 2.0a for simple connectivity to HDR devices. View applications between two PCs simultaneously on your screen and manage the content with only one keyboard and mouse with a convenient Keyboard, Video, and Mouse (KVM) feature. Once configured you can tilt, pivot, swivel and adjust the height to experience your most comfortable setup.
UPC: 884116257684 In the Box Dell UP2718Q 27" 16:9 UltraSharp 4K IPS Monitor Stand Power Cable mDP - DP Cable HDMI Cable USB 3.0 Upstream Cable Factory Calibration Report Limited 3-Year Warranty User Manual PDF 5.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell UP2718Q 27" 16:9 UltraSharp 4K IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell UP2718Q Specs | Display Size | 27" / 68.47 cm | | Display Area | 23.49 x 13.21" / 596.74 x 335.66 mm | | Display Screen Coating | Anti-glare treatment of the front polarizer (3H) hard coating | | Panel Type | IPS | | Resolution | 3840 x 2160 @ 60 Hz | | Viewing Angles (H/V) | 178°/178° | | Pixels Per Inch | 163 | | Pixel Pitch | 0.1554 x 0.1554 mm | | Aspect Ratio | 16:9 | | Contrast Ratio | 1000:1 (typical)
20,000:1 (HDR) | | Brightness | 400 cd/m² (typical)
1000 cd/m² (peak) | | Backlight | LED | | Response Time | 6 ms (GtG) | | Operating System Supported | Windows 10, 8.1, 7 | | Security | Security lock slot | | Adjustability | Height adjustable: 5.7" / 145 mm
Tilt: -5 to 21°
Swivel: -45 to 45°
Pivot: 90°, clockwise direction | | Color Depth | 1.07 billion colors | | Power | Voltage Required
100-240 VAC / 50 or 60 Hz (±3 Hz) / 1.8 A (maximum)
Power Consumption Standby / Sleep
Less than 0.5 W
Power Consumption (Operational)
90 W (typical) / 120 W (maximum) | | Connectivity | 1 x DisplayPort 1.4
1 x mDP 1.4
2 x HDMI 2.0a
2 x USB 3.0 upstream port
4 x USB 3.0 ports
(including 2 USB 3.0 BC 1.2 charging capability at 2 A max.) | | Audio Output | 1 x Audio line-out | | Mounting Interface | VESA 100 x 100 mm | | Color Gamut | 100% Adobe RGB, 100% sRGB, 100% REC 709, 97.7% DCI-P3, 76.9% REC2020 | | Calibration | Color Calibration Accuracy
Delta E | | Temperature & Humidity | Operating Temperature
32 to 95°F / 0 to 35°C
Non-Operating Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
10 to 80% non-condensing
Non-Operating Humidity
5 to 90% non-condensing | | Altitude | Operating
16,400 ft / 5000 m
Non-Operating
40,000 ft / 12,192 m | | RoHS Compliant | Yes | | Dimensions | With Stand
24.66 x 15.85-21.54 x 7.89" / 626.4 x 402.6-547.1 x 200.3 mm
Without Stand
24.66 x 14.53 x 2.54" / 626.4 x 369.1 x 64.4 mm | | Weight | Panel Only
13.18 lb / 5.98 kg | | | | Package Weight | 25.5 lb | | Box Dimensions (LxWxH) | 27.0 x 17.0 x 8.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
