User Manual for Dell UP3017 30" 16:10 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell UP3017 30" 16:10 IPS Monitor
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell UP3017 30" 16:10 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

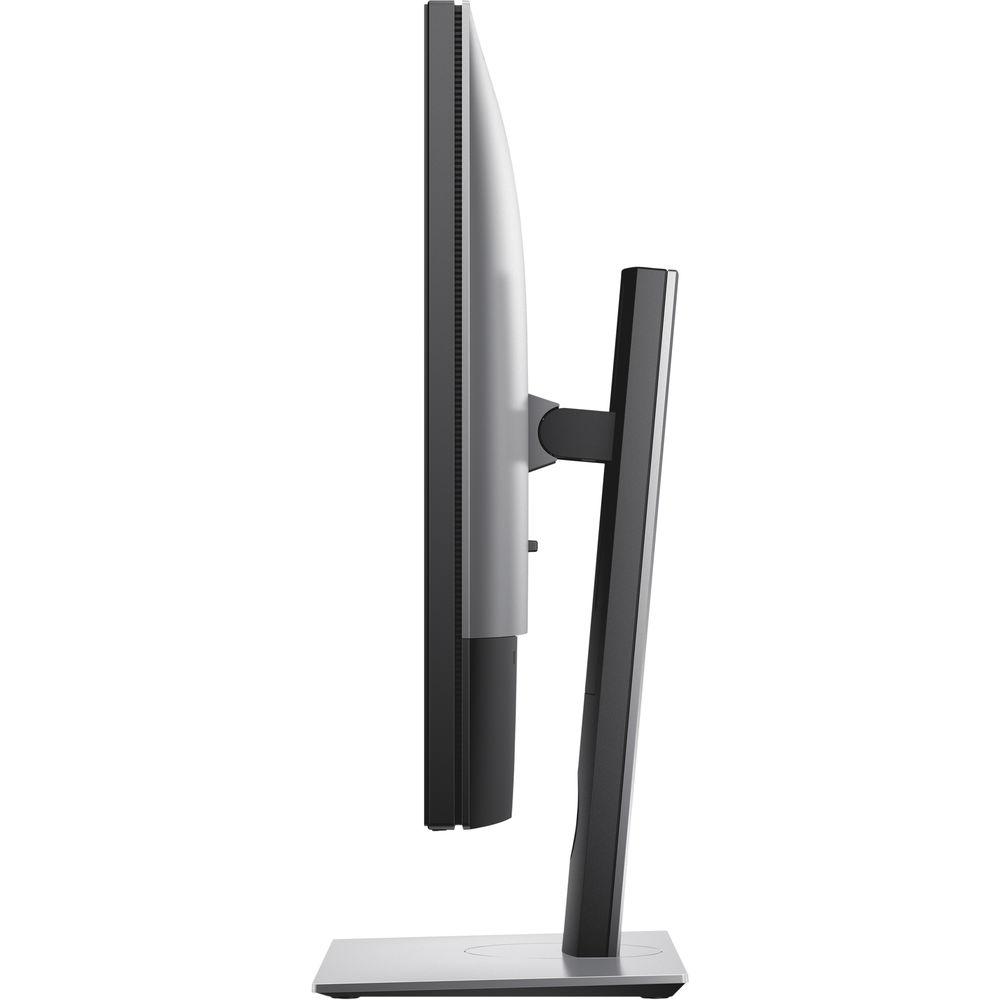

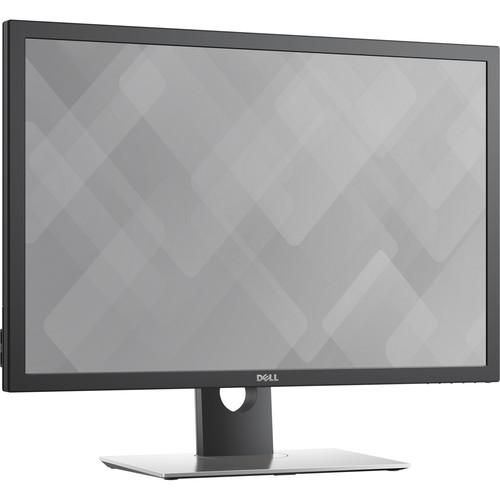

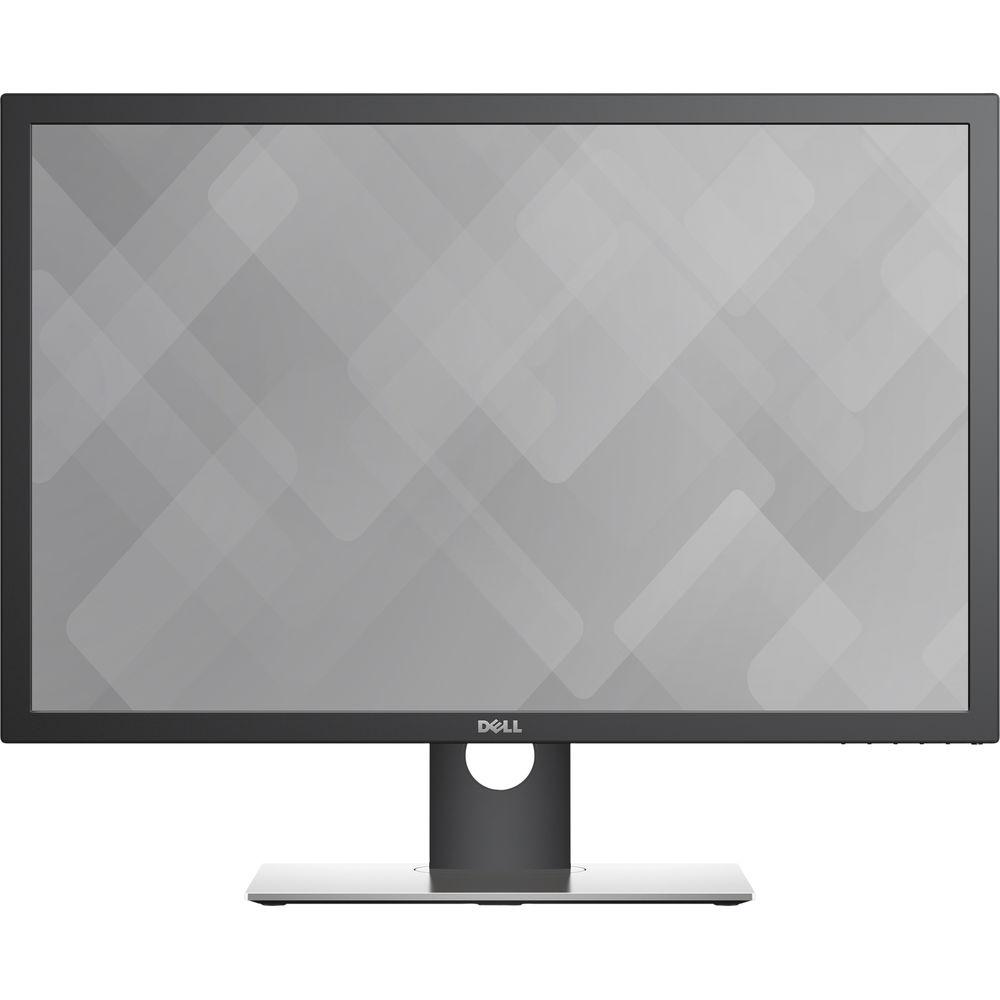

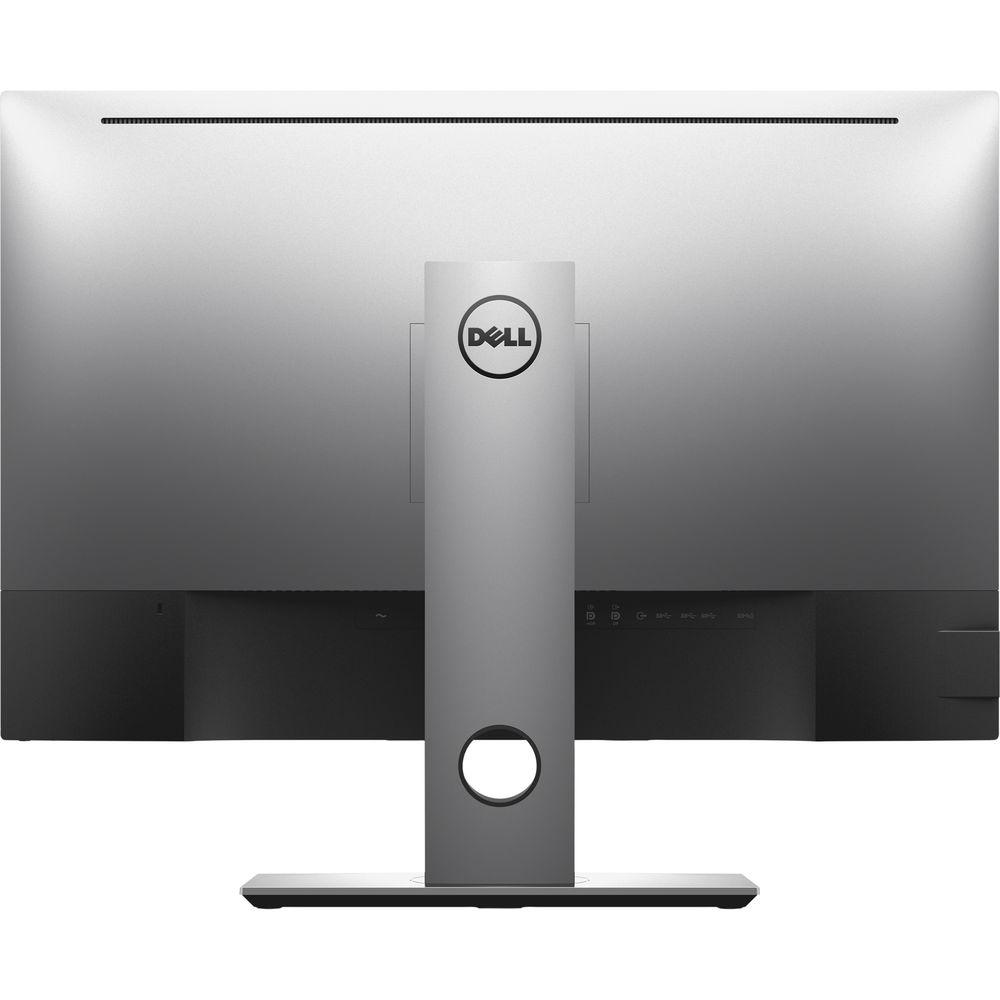

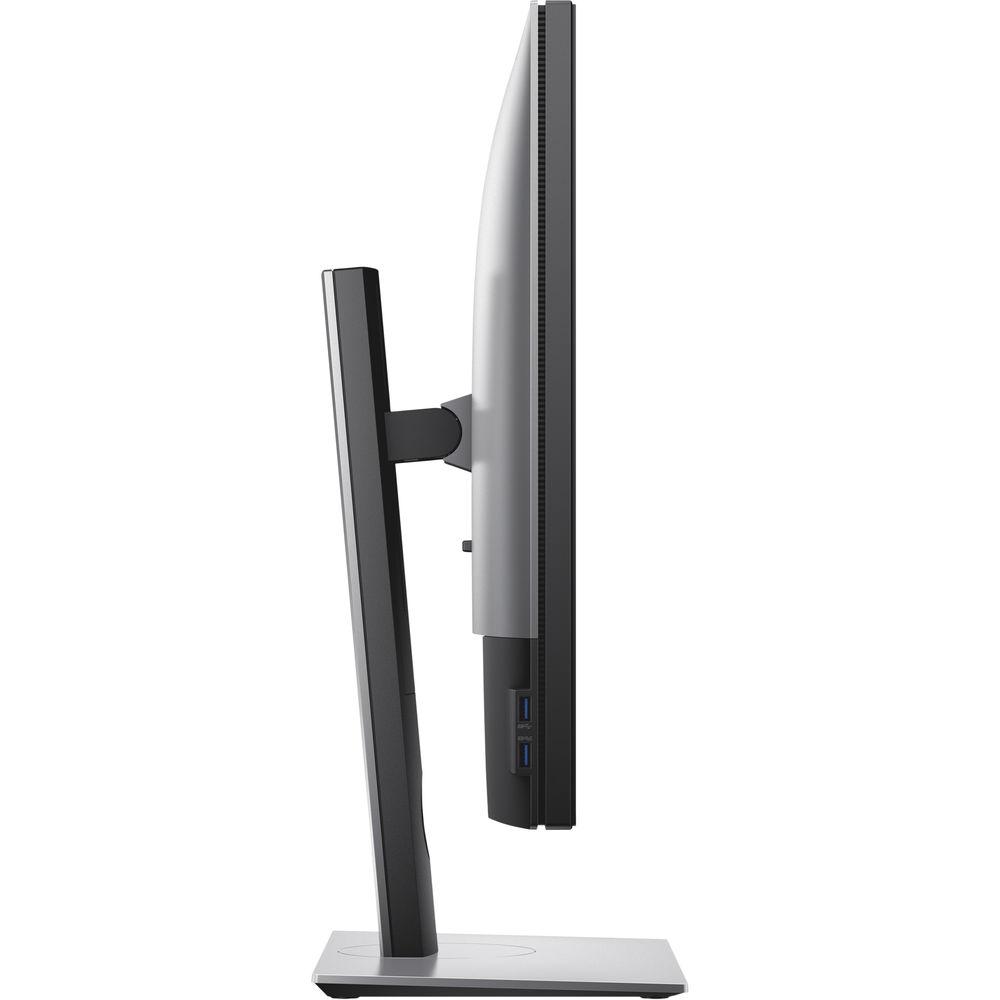

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The UP3017 30" 16:10 IPS Monitor from Dell has a 2560 x 1600 resolution for crisp and clear HD content. It's also built with an In-Plane Switching (IPS) display, which provides you with wide 178° viewing angles and vivid colors. Combined with a 350 cd/m² brightness rating and a 1000:1 static contrast ratio that offers darker blacks and brighter bright colors, the UP3017 delivers an immersive viewing experience for work and play. Furthermore, it supports up to 1.07 billion colors, has a 99% Adobe RGB, sRGB, REC 709, and DCI-P3 rating, and comes factory-calibrated out of the box, making it ideal for color sensitive work. Connect this display to your system via HDMI, DisplayPort, or Mini-DisplayPort and then attach the stand to tilt, swivel, pivot, and adjust its height to your viewing preference. Alternatively, you can install a different mount or stand using the 100 x 100mm VESA mounting holes on the back. For your convenience, it has multiple USB ports so you can easily connect peripherals and other USB-equipped devices. - Easy Connectivity
- The DisplayPort-out interface allows for a simple daisy chain extension into a second screen.
- Picture in Picture & Picture by Picture
- Easily display your content from two computers with picture-in-picture and picture-by-picture mode. Plus, the KVM feature enables you to navigate with a single keyboard and mouse.
- Advanced Replacement & Premium Panel Guarantee
- If your display is damaged or needs to be replaced, Dell will ship you a replacement unit first so you won't run into any downtime. Furthermore, their Premium Panel Guarantee ensures that they will send you a free exchange monitor if even one bright defective pixel is found.
UPC: 884116234050 In the Box Dell UP3017 30" 16:10 IPS Monitor Power Cable DisplayPort to Mini-DisplayPort Cable USB 3.0 Upstream Cable Limited 3-Year Warranty User Manual PDF 5.1mb More from Manufacturer More info from Dell Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell UP3017 30" 16:10 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell UP3017 Specs | | | Size | 30" | | Screen Area | 25.2 x 15.8" / 64.1 x 40.1 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1600 | | Pixels Per Inch (ppi) | 101 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Color Gamut | 99% Adobe RGB
99% sRGB
99% Rec. 709
99% DCI-P3 | | Response Time | 8 ms
6 ms (Overdrive) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.251 x 0.251 mm | | | | Connectivity | 1 x 3.5 mm Output
4 x USB Type-A (USB 3.1 Gen 1) Output
1 x DisplayPort 1.2 Input
1 x DisplayPort Output
1 x Mini DisplayPort Input
2 x HDMI 1.4 | | HDCP Support | Yes | | | | Power Consumption | 38.2 W (Eco)
108 W (Maximum)
0.3 W (Standby)
54 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.6 A | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 90% | | Operating Altitude | 0 to 16,404' / 0 to 5000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | ENERGY STAR, EPEAT GOLD, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 6" / 15.2 cm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | 60° (-30 to 30°) | | Tilt Adjustment | -5 to 21° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 27.0 x 17.6 x 2.3" / 68.7 x 44.7 x 5.8 mm (Without Stand)
27.0 x 19.0 x 8.5" / 68.7 x 48.2 x 21.7 mm (With Stand) | | Weight | 14.3 lb / 6.5 kg (Without Stand) | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 30.5 x 21.0 x 7.5" |
