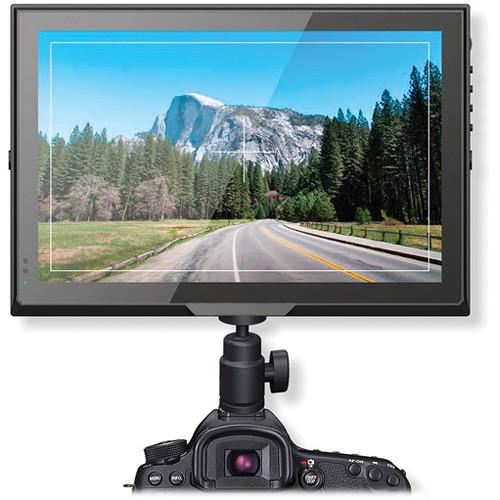

User Manual for Delvcam 10.1" 3G-SDI On-Camera Monitor with HDMI & VGA Inputs Click to enlarge the picture
Contents of the user manual for the Delvcam 10.1" 3G-SDI On-Camera Monitor with
- Product category: On Camera Monitors Delvcam
- Brand: Delvcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Delvcam On Camera Monitors
|
User manual for the Delvcam 10.1" 3G-SDI On-Camera Monitor with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Delvcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Delvcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Delvcam product will considerably shorten its lifespan!
|
Product description The 10.1" 3G-SDI On-Camera Monitor from Delvcam features 3G-SDI and HDMI inputs, as well as a 16:9 aspect ratio. This monitor has a native resolution of 1280 x 800 and a contrast ratio of 800:1. The interface of this monitor supports various functions which can be customized to meet different demands. The dustproof front panel ensures that the screen remains protected from the environment. - IPS 10.1" display with 1280 x 800 native resolution
- Lux auto brightness of 350 cd/m²
- Integrated dustproof front panel
- I/O control interface with functions such as connecting with reverse trigger line in a car, reversing system, and control computer host to switch on/off
- Functions can be customized to meet different demands
- Wide 170° horizontal and vertical viewing angle
- 3G-SDI, HDMI, VGA, and AV inputs
UPC: 854554007387 In the Box Delvcam 10.1" 3G-SDI On-Camera Monitor with HDMI & VGA Inputs Limited 1-Year Warranty User Manual PDF 816.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam 10.1" 3G-SDI On-Camera Monitor with HDMI & VGA Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDelvcam DELV-SDI10-IP Specs | Display Screen | 10.1" (25.7 cm) LED IPS Capacitive touch panel available (sold separately) | | Resolution | 1280 x 800 (supports up to 1920 x 1080) | | Aspect Ratio | 16:9 | | Touch Panel | Capacitive touch | | Contrast Ratio | 800:1 | | Brightness | 350 cd/m² | | Viewing Angle (H/V) | 170°/170° | | Input Signal | HDMI
VGA
AV
(Optional DVI input) | | I/O Port | 1 x HDMI
1 x VGA | | Number of Speakers | 1 | | Input Voltage | 7 to 24 VDC Can also be powered by an external battery, sold separately | | Current | 800 mAh | | Power Consumption | <10 W | | Audio Output | <1 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions (L x W x D) | 9.8 x 6.7 x 1.3" (25.0 x 17.0 x 3.2 cm) | | Weight | 19.8 oz (560 g) | | | | Package Weight | 4.85 lb | | Box Dimensions (LxWxH) | 12.1 x 9.9 x 4.4" |
