User Manual for Delvcam 17.3" 1080p 3G-SDI HDMI Rackmount LCD Monitor Click to enlarge the picture
Contents of the user manual for the Delvcam 17.3" 1080p 3G-SDI HDMI Rackmount
- Product category: Production Monitors Delvcam
- Brand: Delvcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Delvcam Production Monitors
|
User manual for the Delvcam 17.3" 1080p 3G-SDI HDMI Rackmount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Delvcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Delvcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Delvcam product will considerably shorten its lifespan!
|

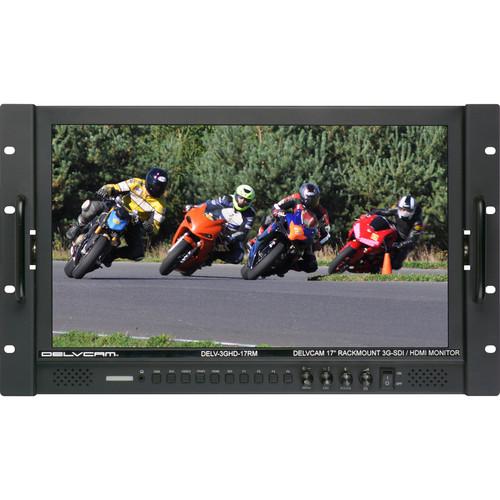

Product description The Delvcam 17.3" 1080p 3G-SDI/HDMI Rackmount LCD Monitor is a 6.3 RU broadcast quality monitor with a slim and tough build and grip handles. It's designed for production vehicles as well as studio racks. The monitor features a 1920 x 1080 display resolution and offers adjustable tilting capability for viewing the image from different angles in difficult lighting conditions. The front panel provides a tri-color tally indicator, built-in speakers, input selection buttons, and four customizable function buttons. Connections include 3G-SDI, HDMI, composite BNC, and component BNC inputs and loop-through outputs. Other inputs consist of DVI, tally, and analog RCA audio. - Key Features
-
- 17.3" LCD screen with 1920 x 1080 resolution
- Adjustable rackmount tilt for viewing from different angles
- Slim design with grip handles
- 6.3 RU (under 7 RU)
- 3G-SDI, HDMI, composite, component, DVI, RCA analog audio, and tally input
- 3G-SDI, HDMI, composite, and component output
- Tri-color tally indicator
- Stereo headphone jack
- Built-in speakers
- Customizable function buttons
- Durable, black powder-coated steel housing
- Front Panel
-
- Tally indicator
- 3.5mm headphone jack
- VGA signal input selection
- DVI digital video signal input selection
- Composite video signal input selection
- Component signal input selection
- HDMI signal input selection
- SDI signal input selection
- F1-F4 customizable buttons
- Menu, Saturation, L/R rotate
- Exit, Brightness, U/D rotate
- Focus Assist/Contrast
- Camera Mode/Volume
- Power On/Off
UPC: 854554007035 In the Box Delvcam 17.3" 1080p 3G-SDI/HDMI Rackmount LCD Monitor 12 VDC / 3A Power Cable Tally Interface Board Tilting Rackmount Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam 17.3" 1080p 3G-SDI HDMI Rackmount LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDelvcam DELV-3GHD-17RM Specs | Display | 17.3" / 44 cm TFT LCD screen with LED backlight | | Resolution | 1920 x 1080 | | Brightness | 400 cd/m² | | Contrast Ratio | 600:1 | | Aspect Ratio | 16:9 | | Viewing Angle | 80°/80° (L/R), 60°/80° (U/D) | | Input | 3G-SDI: 1 x BNC
HDMI: 1 x HDMI type A
Composite: 1 x BNC
Component: 3 x BNC
Stereo Analog Audio: 1 x 2RCA
DVI: 1 x DVI-I
Tally: 1 x 9-pin D-sub
1 x USB software upgrade port
1 x RJ45 (possible future expansion) | | Output | 3G-SDI: 1 x BNC
HDMI: 1 x HDMI type A
Composite: 1 x BNC
Component: 3 x BNC | | SDI Format Support | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29/25/24/23.98
576i
480i | | HDMI Format Support | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29/25/24/23.98
576p
576i
480p
480i | | SDI Signal | SDI A; SDI B limited to 1080i60 | | Headphone Jack | 1 x 3.5 mm | | Built-In Speakers | Yes | | Power Input | 1 x 12 VDC barrel
1 x 4-pin XLR | | Input Voltage | 7-18 VDC | | Power Consumption | 15 W | | Dimensions | 16.3 x 11 x 1.4" / 41 x 28 x 35 cm | | Rack Height | 6.3 RU (under 7 RU) | | Weight | 6 lb / 2.7 kg | | | | Package Weight | 9.7 lb | | Box Dimensions (LxWxH) | 20.5 x 16.2 x 6.3" |
