User Manual for Delvcam 4K UHD HDMI 3G-SDI Quad View LED 6RU Broadcast Monitor in Case Click to enlarge the picture
Contents of the user manual for the Delvcam 4K UHD HDMI 3G-SDI Quad
- Product category: Production Monitors Delvcam
- Brand: Delvcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Delvcam Production Monitors
|
User manual for the Delvcam 4K UHD HDMI 3G-SDI Quad contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Delvcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Delvcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Delvcam product will considerably shorten its lifespan!
|

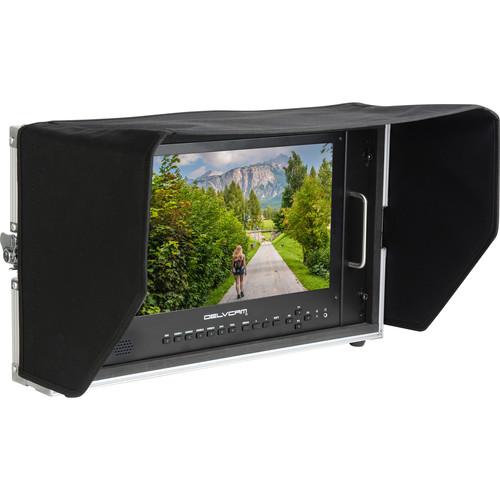

Product description The 4K UHD HDMI 3G-SDI Quad View LED 6RU Broadcast Monitor in Case from Delvcam features a 15" screen with multiple viewing options, including built-in quad and multiview, as well as a high-contrast display for the ultimate cinematic experience. High contrast ratio of 1000:1 showcases this monitor's ability to handle light and dark on-screen images. With multiple interfaces including 3G-SDI, HDMI, VGA, DVI, and audio, this monitor is ideal for ENG news crews, TV stations, production studios, and directors in live and post production applications. The monitor supports 4K UHD signals with 16:9 aspect ratio and viewing angle of 176° x 176°. Wide viewing angle ensures no color deviation or distortion from virtually any angle. - Multiple viewing options (full screen, split, and quad)
- 100 x 100mm and 75 x 75mm VESA points
- Mounted in a removable reinforced case
- Fits standard 19" 6RU equipment rack
UPC: 854554007059 In the Box Delvcam 4K UHD HDMI 3G-SDI Quad View LED 6RU Broadcast Monitor in Case (15") Collapsible Sunshade Carrying Case 15 VDC 4-Pin XLR Power Adapter Battery Plate Bracket V-mount with Power Cable Tally Connector Kit Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam 4K UHD HDMI 3G-SDI Quad View LED 6RU Broadcast Monitor in Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDelvcam DELV-4KSDI15 Specs | Aspect Ratio | 16:9 | | Brightness | 330 cd/m2 | | Contrast Ratio | 1000:1 | | Viewing Angle (H/V) | 176°/176° | | Native Resolution | 4K, 3840 x 2160 | | Formats | HDMI:
4K, 1080p, 1080i, 1035i, 720p, 576p, 576i, 480p, 486i
SDI:
SMPTE-125M - 480i (59.94), 1080i (60 / 59.94 / 5), 1080p (30 / 29 / 97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
SDI:
SMPTE-292M-1080p (30 / 29 / 97 / 25 / 24 / 24sF / 23.98 / 23.98sF), SMPTE-296M-720p (60 / 59.94 / 50 / 30 / 29 / 25 / 24 / 23.9)
SDI:
SMPTE-372M-720p (60 / 59.94 / 5), 1080i (29.97 / 25 / 24 / 23.98), 1080p (60 / 59.94 / 50 / 30 / 29 / 25 / 24 / 23.98), SMPTE-425M-AB-1080p (60 / 59 / 50), Level A & Level B-720p (60 / 59.94 / 50 / 30 / 29 / 25 / 24 / 23.98), Level B 2x-1080i (60 / 59.94 / 5), ITU-R BT.656-576i (50) | | Special Functions | Tally interface, check field, image flip, overscan, underscan, image freeze, color temperature, user definable function buttons | | Image Controls | Peaking, split screen, quad view, user adjustable markers | | Input | 1 x 3G-SDI
1 x HDMI 2.0 (4K)
3 x HDMI 1080P
1 x DVI
1 x VGA
1 x Audio | | Loop Outputs | 1 x 3G-SDI | | Screen Size | 15" (38.1 cm) | | Audio | 1 speaker, earphone jack | | VESA Mount | 3.9 x 3.9" (100 x 100 mm)
2.9 x 2.9" (75 x 75 mm) | | Power Consumption | 15 W | | Input Current | 1 A | | Input Voltage | 12/24 VDC (XLR) | | Dimensions | Without Case: 15.3 x 10.5 x 1.5" (38.9 x 26.7 x 4.3 cm)
With Case: 20.6 x 12.0 x 6.7" (52.3 x 30.5 x 17.0 cm) | | Weight | Without Case: 7.5 lb (3.4 kg)
With Case: 26.5 lb (12.0 kg) | | | | Package Weight | 27.5 lb | | Box Dimensions (LxWxH) | 23.3 x 16.0 x 9.5" |
