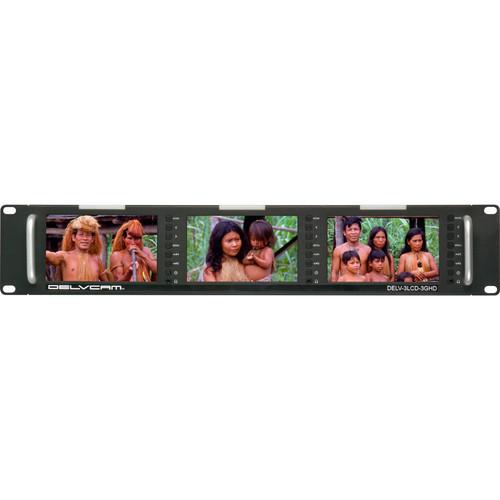

Product description The 5” Triple Rackmount 3G-SDI/HDMI Video Monitor from Delvcam features three 5" 800 x 480 LCD monitors in a 2 RU form factor. With a lightweight and sleek design, it is suitable for use in limited space areas like portable flypacks, TV broadcasting trucks, low-profile consoles, and mobile applications. Each display screen features tri-color tally lights, as well as the convenience of 3G/HD BNC, HDMI, and composite BNC multi-format inputs. All inputs also have loop-through outputs and left/right RCA audio.Each monitor has an individual menu control and a front-mounted headphone jack for monitoring purposes. The high-resolution 3G broadcast quality makes this a suitable professional video monitor for the studio, live events, post-production, and video surveillance. Power the unit by using either the included 12V power adapter or the 4-pin XLR. - Three 5" vibrant color LCD screens
- Ultra-slim design with grip handles
- Durable black powder coated steel 2 RU cabinet
- Stereo 3.5mm mini headphone jack
- Customizable function buttons
- Tri-color tally indicator controlled via DB-15 port
- HDMI, 3G-SDI, CVBS, and RCA audio (L/R) inputs
- HDMI, 3G-SDI, and CVBS outputs
- 3G/HD/SD-SDI loop-through output
In the Box Delvcam 5" Triple Rackmount 3G-SDI/HDMI LCD Video Monitor 12 VDC, 3A Power Adapter Tally Interface Board Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam 5" Triple Rackmount 3G-SDI HDMI LCD Video Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDelvcam DELV-3LCD-3GHD Specs | Display Screen | Three 5" (12.7 cm) LCDs | | Backlight | LED | | Resolution | Each Display: 800 x 480 (RGB) | | Brightness | 500 cd/m² | | Contrast | 500:1 | | Aspect Ratio | 16:9 | | Viewing Angle | 70° / 70° (L/R)
50° / 70° (U/D) | | Color Format | PAL-4.43 / NTSC-3.58 | | Image Controls | P2P, adjustable markers | | Functions Supported | Tally interface, camera mode, zoom, safe frames, image freeze, image flip, check field, focus assist | | Input | 3G/HD/SD-SDI
HDMI
CVBS
RCA Audio (L/R) | | Output | 3G/HD/SD-SDI loop
HDMI loop
CVBS
3.5 mm Mini stereo headphone jack | | USB | For software upgrade | | HDMI Format Support | 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)
1080i (60 / 59.94 / 50 fps)
720p (60 / 59.94 / 50 / 30 / 29 / 25 / 24 / 23.98 fps)
576p / 576i
480p / 480i | | SDI Format Support | 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)
1080i (60 / 59.94 / 50 fps)
720p (60 / 59.94 / 50 / 30 / 29 / 25 / 24/ 23.98 fps)
576i
480i | | Mount | 2 RU rackmount | | Power Input | 12 VDC 4-pin XLR | | Input Voltage | 9 to 24 VDC | | Power Consumption | 25 W | | Dimensions (L x H x D) | 19.0 x 3.5 x 1.3" (482.6 x 88.0 x 34.0 mm) | | Weight | 3.5 lb (1.6 kg) | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 21.2 x 6.4 x 4.3" |
