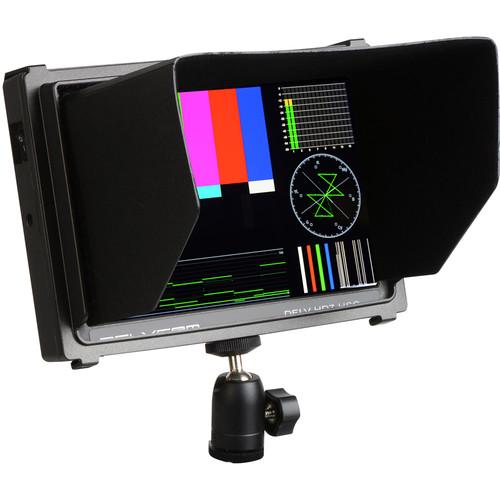

Product description The 7" 1920 x 1200 HD LCD Monitor with HDMI/SDI Cross Conversion from Delvcam features a 16:10 panel and integrates advanced features such as waveform, vectorscope, and histogram displays to verify optimal video signals. This broadcast quality monitor includes HDMI and 3G-SDI inputs, with HDMI/SDI cross converter outputs. A Full HD 1920 x 1200 resolution and high contrast ratio of 1000:1, as well as an array of professional functions, make this an essential reference monitor for cinematographers and directors during live production. -
- High-resolution 1920 x 1200
- High contrast ratio of 1000:1
- Wide 170° viewing angles
- SDI and HDMI cross conversion
- Integrated waveform & vectorscope displays
- Audio level meter
- Rugged metal housing
UPC: 854554007257 In the Box Delvcam 7" 1920 x 1200 HD LCD Monitor with HDMI/SDI Cross Conversion Sunshade HDMI AC Cable 12 VDC Adapter Shoe Mount F-970 Battery Plate LP-E6 Battery Plate Mount Plate Bracket VESA Battery Bracket Limited 1-Year Warranty User Manual PDF 289.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam 7" 1920 x 1200 HD LCD Monitor with HDMI SDI Cross Conversion in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDelvcam DELV-HD7 Specs | Display | 7" LCD, LED backlight | | Resolution | 1920 x 1200 | | Brightness | 500 cd/m² | | Contrast | 1000:1 | | Viewing Angle (H/V) | 170°/170° | | Input & Output | 1 x 3G-SDI
1 x HDMI | | Audio | 1 x Built-in speaker
1 x Headphone jack
1 x Audio level meter | | Power | Power Consumption: 13 W
Input Current: 1 A
Input Voltage: 7 to 24 VDC | | Supported Frame Rates | HDMI:
1080p, 1080i, 720p, 576p, 576i, 480p, 486i
SDI:
SMPTE-125M: 480i59.94 Hz
SMPTE-274M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-292M: 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M: 720p (60/59.94/50/30/29/25/24/23.98)
SMPTE-372M: 720p (60/59.94/50), 1080i (29.97/25/24/23.98), 1080p (60/59.94/50/30/29.97/25/24/23.98)
SMPTE-425M-AB: 1080p (60/59/94/50), Level A & B 720p (60/59.94/50/30/29.97/25/24/23.98), Level B2X 1080i (60/59.94/50), ITU-R BT.656 576i (50) | | Mount | 1/4"-20 Camera mount, 75 x 75 VESA mount | | Battery Plate | LP-E6 & F-970 | | Special Functions | HDMI/SDI cross conversion, waveform, vectorscope, histogram, column (YRGB), color bar, check field, timecode, color bars, image flip, underscan, pixel zoom, level meter | | Image Controls | Histogram, exposure, false color, peaking, pixel-to-pixel, waveform, vectorscope, user-adjustable markers | | Dimensions | 17.7 x 4.9 x 0.9" (44.9 x 12.3 x 2.2 cm) | | Weight | 0.9 lb (0.4 kg) | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 9.0 x 6.8 x 4.1" |
