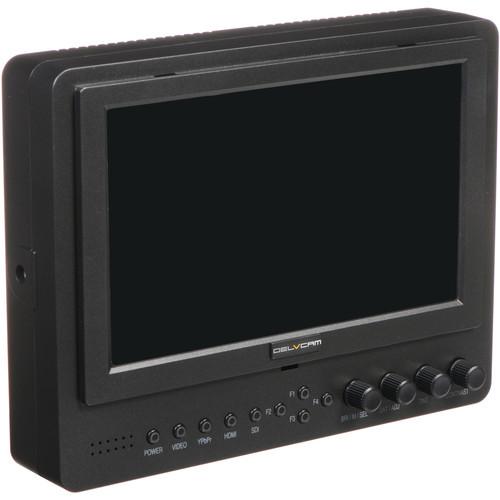

User Manual for Delvcam 7" 3G-SDI and HDMI On-Camera Monitor with Gold Mount Battery Plate Click to enlarge the picture
Contents of the user manual for the Delvcam 7" 3G-SDI and HDMI On-Camera
- Product category: On Camera Monitors Delvcam
- Brand: Delvcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Delvcam On Camera Monitors
|
User manual for the Delvcam 7" 3G-SDI and HDMI On-Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Delvcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Delvcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Delvcam product will considerably shorten its lifespan!
|
Product description This kit combines the Delvcam 7" 3G-SDI and HDMI On-Camera Monitor with a Gold Mount Battery Plate. The L-series and LP-E6 plates and the power adapter that normally come with the individual monitor are also included. Altogether, you'll have the choice between long-lasting, lightweight, and continuous power options. The monitor features a 1024 x 600 screen resolution and supports up to 1080p60 signal input. It has 3G-SDI, HDMI, and analog connections and a variety of monitoring functions including focus peaking, false color, and histogram display. - DELV-SDI-7 7" 3G-SDI and HDMI On-Camera LED Monitor The DELV-SDI-7 7" 3G-SDI and HDMI On-Camera LED Monitor is a 16:9 monitor that provides a wide range of A/V connections for compatibility with SD and HD signals. Inputs include 3G-SDI, HDMI, and composite and component through BNC connectors. 3G-SDI, HDMI, and composite outputs let you duplicate your video content on an additional monitor.
The 7" LED-backlit LCD has a resolution of 1024x600 and contrast ratio of 800:1. A selection of advanced monitoring features is available to help you properly expose and focus your shots. Features include focus peaking, false color, and histogram display. It also has a mode specially designed for viewing footage from the Canon 5D Mark II. Four function buttons on the front of the panel can be programmed for shortcut access to the features that you use most.
The monitor is powered from 6.5 to 24 VDC via a male 4-pin XLR connector or with a single Sony NP-F970 or Canon LP-E6 type battery with the included battery plates. Additional battery plate types are also available. Also included with the monitor are a flexible folding sun hood, HDMI cable, DC power adapter, and a shoe mount adapter. -
- 7" LED backlit LCD
- 1024x600 Resolution
- 250cd/m2 Brightness
- 800:1 Contrast ratio
- 3G/HD/SD-SDI and HDMI inputs
- Component and Composite inputs on BNC connectors
- 3G-SDI, HDMI, and Composite active buffered outputs
- Focus peaking, false color, and histogram
- Canon 5D Mark II mode
- Four programmable function buttons
- 6.5 to 24 VDC operation
- Sony NP-F970 and Canon LP-E6 type battery plates included
- Flexible folding sun hood
- 1/4"-20 threads - one on bottom and one on each side
UPC: 854554007394 - DELV-BPAB Anton Bauer Battery Plate for Camera-Top Monitor The DELV-BPAB Anton Bauer Battery Plate from Delvcam allows you to mount an Anton Bauer battery onto your DELV-WFORM-7, DELV-WFORM-7SDI, DELV-SDI-10, DELV-SDI-7, or DELV-HDSD-10 camera-top monitor. UPC: 854554007134
In the Box Bundle Items DELV-SDI-7 7" 3G-SDI and HDMI On-Camera LED Monitor rqcqbfwctdyxvebttztzsbzssz - NP-F970 Type Battery Plate
DELV-BPAB Anton Bauer Battery Plate for Camera-Top Monitor rqcqbfwctdyxvebttztzsbzssz User Manual PDF 678.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam 7" 3G-SDI and HDMI On-Camera Monitor with Gold Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DELV-SDI-7 7" 3G-SDI and HDMI On-Camera LED Monitor
| | | Panel Type | TFT LCD | | Display Size | 7.0" / 17.7 cm | | Screen Resolution | 1024 x 600 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160°
Vertical: 150° | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 800:1 | | Image Controls | False Color, Focus Peaking | | | | Video | 1 x BNC (3G-SDI) Output
1 x HDMI Type A Output
1 x BNC (Composite) Output
1 x 3BNC (Component) Output
1 x DE-15/DB-15 (VGA) Output
1 x BNC (3G-SDI) Input
1 x 3BNC (Component) Input
1 x BNC (Composite) Input
1 x HDMI Type A Input | | Audio | 1 x BNC Input | | Built-In Speaker | 1 | | Power | 1 x 4-Pin XLR Input | | Card Slot | None | | | | Video Format | Composite
PAL
NTSC
Component
PAL
NTSC
480p: 59.94
576p: 50
720p: 50/59.94/60
1080i: 50/59.94/60
1080p: 50/59.94
HDMI
NTSC
480p: 59.94
PAL
576p: 50
720p: 29.97/30/50/59.94/60
1080i: 50/59.94/60
1080p: 23.98/24/25/29.97/30/50/59.94
SDI
NTSC
PAL
720p: 29.97/30/50/59.94/60
1080i: 50/59.94/60
1080p: 23.98/24/25/29.97/30/50/59.94 | | | | DC Input Power | 6.5 to 24 VDC | | Battery Type | 1 x LP-E6 or L-Series | | Operating Current | 800 mA | | Power Consumption | 10 W | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Dimensions (W x H x D) | 7.66 x 5.91 x 1.52" / 19.45 x 15 x 3.85 cm
7.66 x 5.91 x 6.24" / 19.45 x 15 x 15.85 cm, Including Sun Hood | | Weight | 16.9 oz / 480 g
22.6 oz / 640 g, Including Sun Hood | | | | Box Dimensions (LxWxH) | 12.441 x 9.764 x 3.465" | - DELV-BPAB Anton Bauer Battery Plate for Camera-Top Monitor
| Compatibility | Camera-Top Monitor Models:
DELV-WFORM-7
DELV-WFORM-7SDI
DELV-SDI-10
DELV-SDI-7
DELV-HDSD-10 |
