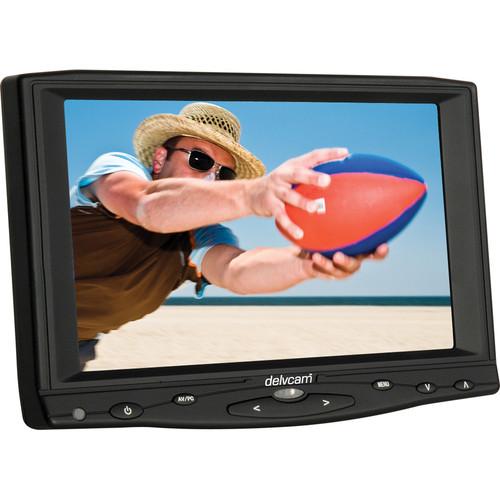

User Manual for Delvcam 7" HDMI VGA LCD Monitor Click to enlarge the picture
Contents of the user manual for the Delvcam 7" HDMI VGA LCD Monitor
- Product category: On Camera Monitors Delvcam
- Brand: Delvcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Delvcam On Camera Monitors
|
User manual for the Delvcam 7" HDMI VGA LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Delvcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Delvcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Delvcam product will considerably shorten its lifespan!
|
Product description The Delvcam HDMI/VGA LCD Monitor (7") provides high-quality images with a resolution of 800 x 480 (VGA), contrast ratio of 500:1, and brightness of 300cd/m². It features automatic display adjustment, or you can adjust the settings like brightness, contrast ratio, resolution, and color quality. Useful in GPS systems for cars, ships and other mobile applications, the monitor can also be used in OB (Outside Broadcast) trucks and production studios for in-line monitoring of HDMI, VGA, and composite video signals. The monitor comes with a built-in speaker and LED-illuminated backlight that has a minimum lifetime of 20,000 hours. Four adjustable backlight levels are available for daytime or night-time use. The VESA 75 x 75 mount makes for easy mounting on a filler panel or swivel arm and the 1/4-20 bottom mount offers flexible mounting when used with Delvcam LCD mounts. With the multilingual OSD menu, the monitor offers display settings in multiple languages and has low power consumption of 0.8W. - 7" diagonal TFT-LCD with built-in speaker
- Compact form factor in a rugged chassis
- Supports up to 1920 x 1440 video
- Resolution - 800 (H) x (RGB) x 480 (V)=1,152,000(dots)
- HDMI & VGA inputs, as well as dual composite video and audio inputs
- HD and VGA displays in ENG / EFP applications, OB trucks and mobile operations
- Automatic display adjustment for settings like brightness, contrast ratio, resolution, and color quality
- LED illuminated backlight with minimum life time of 20,000 hours
- Four adjustable backlight levels for daytime or night-time use
- Mount - VESA 75 x 75 for easy mounting on a filler panel or swivel arm
- 1/4-20 bottom mount allows quick mounting anywhere when coupled with Delvcam's vast array of LCD mounts
- Full-function IR remote control
- Low power consumption (0.8W)
- Suitable for VGA,VCD, DVD and GPS systems for cars, ships and other mobile applications
- Can be used in production studios and broadcasting facilities for in-line monitoring of HDMI, VGA, and composite video signals
UPC: 854554007240 In the Box Delvcam 7" HDMI/VGA LCD Monitor Remote Control Multi-Pin I/O Breakout Cable Interconnect (VGA/USB to Multi-Pin) Cable HDMI Cable Car Lighter Power Cable Table Stand Mount Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam 7" HDMI VGA LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDelvcam DELV-HD7 Specs | | | Panel Type | TFT LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 800 x 480 | | Viewing Angle | Horizontal: 140° (70/70)
Vertical: 100° (50/50) | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 500:1 | | | | Video | 2 x RCA Input
1 x DE-15/DB-15 (VGA) Input
1 x HDMI Type A (HDMI 1.3) Input | | Audio | 1 x RCA Input | | Built-In Speaker | 1 | | Card Slot | None | | | | PC Resolutions | 1920 x 1440 | | | | DC Input Power | 12 VDC | | Battery Type | None | | Power Consumption | 10 W | | | | Operating Temperature | -4 to 131°F / -20 to 55°C | | | | Dimensions (W x H x D) | 8.9 x 5.8 x 1.3" / 208 x 146 x 34 mm | | | | Package Weight | 2.835 lb | | Box Dimensions (LxWxH) | 13.45 x 8.1 x 2.85" |
