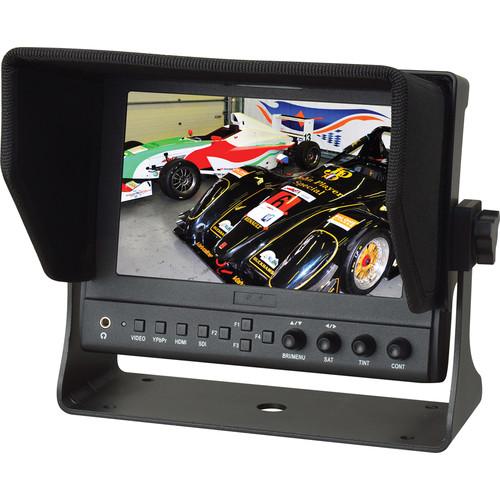

User Manual for Delvcam 7" On-Camera 3G-SDI and HDMI Monitor with Video Waveform Click to enlarge the picture
Contents of the user manual for the Delvcam 7" On-Camera 3G-SDI and HDMI
- Product category: On Camera Monitors Delvcam
- Brand: Delvcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Delvcam On Camera Monitors
|
User manual for the Delvcam 7" On-Camera 3G-SDI and HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Delvcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Delvcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Delvcam product will considerably shorten its lifespan!
|
Product description The Delvcam 7" On-Camera 3G-SDI and HDMI Monitor with Video Waveform is a versatile 16:9 broadcast monitor with a resolution of 1280x800. It provides a wide range of A/V connections for compatibility with SD and HD signals. Inputs include one HDMI input, one 3G-SDI input, and analog composite and component inputs on BNC connectors. HDMI and 3G-SDI outputs let you duplicate and send your video content to an additional monitor.
The 7" IPS LCD is LED backlit and provides a wide 178° horizontal and vertical viewing angles and an 800:1 contrast ratio. A selection of advanced monitoring features are available to help you properly exposure and focus your shots. Features include waveform, histogram, vector scope, false color, and focus peaking. A 1:1 pixel mapping function is also available, allowing you to view the original resolution of your footage for more accurate focusing. Four programmable function buttons provide quick access to the features you use the most.
The monitor is powered from 5 to 12 VDC via a male 4-pin XLR connector or with a single Canon LP-E6 or Sony NP-F970 type battery with the included battery plates and battery plate bracket. Also included with the monitors is a desktop stand with yoke mount, detachable sunhood, HDMI cable, tally cable, power cable, and DC adapter. A briefcase style carrying case comes included for safely storing and transporting the monitor. -
- 7" IPS panel 178° wide viewing angles
- 1280x800 Resolution
- 400cd/m2 Brightness
- 800:1 Contrast ratio
- 3G-SDI and HDMI Inputs
- Component and Composite inputs on BNC connectors
- Active buffered 3G-SDI and HDMI Outputs
- Tally interface
- 7-24 VDC operation
UPC: 854554007479 In the Box Delvcam 7" On-Camera 3G-SDI and HDMI Monitor with Video Waveform NP-F970 Type Battery Plate LP-E6 Type Battery Plate Battery Plate Adapter Bracket HDMI Cable Power and Tally Cable DC Adapter Desktop Yoke Stand Sun Hood Carrying Case Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam 7" On-Camera 3G-SDI and HDMI Monitor with Video Waveform in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDelvcam DELV-WFORM-7SDI Specs | | | Type | 7" IPS LCD
LED backlit | | Resolution | 1280 x 800
Supports up to 1920x1080 | | Aspect Ratio | 16:9 | | Brightness | 400 cd/m2 | | Contrast Ratio | 800:1 | | Viewing Angle (H/V) | 178° / 178° | | | | Inputs | 1 x 3G-SDI
1 x HDMI
1 x Component, BNC connectors
1 x Composite, BNC connector
2 x Audio (L/R), RCA connectors
1 x Tally, VGA style DB connector | | Outputs | 1 x 3G-SDI
1 x HDMI | | | | Monitoring | 1 x Built-in speaker
1 x 3.5 mm headphone jack | | | | Mounting Thread | 1/4"-20 | | Current | 900 mA | | Input Voltage | 7 to 24 VDC, 4-pin XLR connector | | Battery Plate Type | LP-E6
NP-F970 | | Power Consumption | 11 W | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Dimensions (L x W x H) | Monitor: 7.5 x 6.0 x 1.2" (19.1 x 15.2 x 3.1 cm)
Monitor with Sunhood: 7.5 x 6.0 x 5.6" (19.1 x 15.2 x 14.1 cm) | | Weight | Monitor Only: 1.68 lb (0.76 kg)
With Sunhood: 2.07 lb (0.94 kg)
With Carrying Case: 4.76 lb (2.16 kg) | | | | Package Weight | 5.7 lb | | Box Dimensions (LxWxH) | 12.1 x 10.2 x 4.0" |
