Product description Delvcam's 9.7" Dual Input HDMI Monitor with AB Gold Mount Type Battery Plate & Sun Hood features a native 4:3 aspect ratio, supports video with resolution up to 1920 x 1080, and displays video with either a 4:3 or 16:9 aspect ratio. It features 1024 x 768 resolution, useful for displaying either SD (NTSC/PAL) or HD video, and it features advanced display tools such as peaking, false color, and histogram.
The display panel features 400 nit brightness with a 600:1 contrast ratio for a clear bright image, a 170° viewing angle for off axis viewing by those huddling around the monitor, and 1:1 pixel mapping. The included AB Gold mount type battery plate allows you to power the monitor from an optional professional sized battery brick. - Peaking highlights the sharpest (most in focus) areas of the image with a color outline. This tool can help the operator confirm they have captures the critical parts of the image in focus.
- The False Color feature provides under/over luminance warning by presenting the image as a series of color values representing exposure.
- The Histogram provides a graphic depiction of how many pixels in your image are at each level between black and white. This provides you exposure information so you can objectively judge how much of your image is clipping, falling into the shadows, or being captured faithfully.
- 1:1 pixel-to-pixel mapping allows you to look at parts of your image without any scaling, so you can see the actual detail and not be fooled by scaling artifacts.
- The 4 front panel buttons are user assignable to allow you to call up frequently used menu options.
- The monitor features a tally light above the screen, with a built-in 15-pin din connector on the back of the monitor for Tally input. A corresponding 15-pin din cable connector is included if you want to build your own Tally cable.
- The included desktop stand attaches to the monitor via the 1/4"-20 threaded mounting holes on each side of the monitor.
- The monitor features a tally connection on the back, and includes a tally connector that you can wire up. Please note only the tally connector for the monitor is included, you need to source the cable and tally controller side tally connector separately.
- The monitor features 1/4"-20 threaded mounting holes on each side and the bottom, allowing for on-camera mounting with optional mounting hardware.
- The monitor can be powered via the 4-pin XLR connector, the included AB Gold mount type plate, or the included Sony L type or Canon LP-E6 type battery plates.

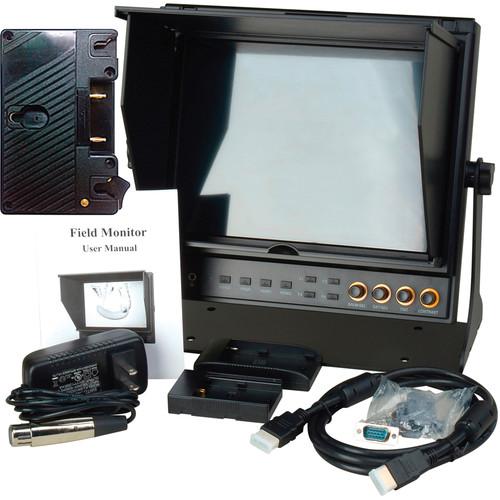

In the Box Delvcam 9.7" Dual Input HDMI Monitor with AB Gold Mount Type Battery Plate & Sun Hood Flexible Folding Sun Hood Battery Plate Bracket AB Gold Mount Type Battery Plate Sony L Series Type Battery Plate Canon LP-E6 Type Battery Plate HDMI Type A to Type A Cable 12 VDC Power Supply Tally Connector Desktop Stand 2 x Rosettes 2 x Locking Knobs Limited 1-Year Warranty User Manual PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam 9.7" Dual Input HDMI Monitor with AB Gold Mount Type Battery Plate & Sun Hood in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDelvcam DELV-HDSD-10-AB Specs | LCD Size | 9.7" IPS display | | Video System | NTSC
PAL | | Resolution | Native: 1024 x 768
Support: 1920 x 1080 | | Viewing Angle | 178°/178° (H/V) | | Brightness | 400 nit | | Contrast Ratio | 600:1 | | Aspect Ratio | Native: 4:3
Support: 16:9 | | Input and Output Connectors | Input
HDMI: 2 x Type A
Component: 1 x 3 BNC YPbPr
Composite: 1 x BNC
Audio: 2 x RCA jacks (L/R)
Tally: 1 x 15-pin DIN
Output
HDMI: 1 x Type A
Component: 1 x 3 BNC YPbPr
Composite: 1 x BNC Headphone: 1 x 3.5mm Stereo mini jack
Speaker: Built-in | | Format Support | Composite
NTSC
PAL
Component
1080p: 59.94/50/
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 59.94
480i: 59.94
NTSC
PAL
HDMI
1035i: 60/59.94 720p: 60/59.94/50/30/29.97
576p: 50
576i: 50
480p: 59.94
480i: 59.94 | | Power Requirements | Input Voltage: 7 to 24 VDC
Current: 1500 mA Consumption: 18 W | | Temperature | Operating: -4 to 140°F / -20 to 60°C
Storage: -22 to 158°F / -30 to 70°C | | Dimensions (WxHxD) | 9.7 x 8.8 x 1.2" / 246 x 224 x 31 mm 9.7 x 8.8 x 6.6" / 246 x 224 x 167.5 mm (with sun hood) | | Weight | 2.4 lb / 1.07 kg
3.1 lb / 1.39 kg (with sun hood) |
