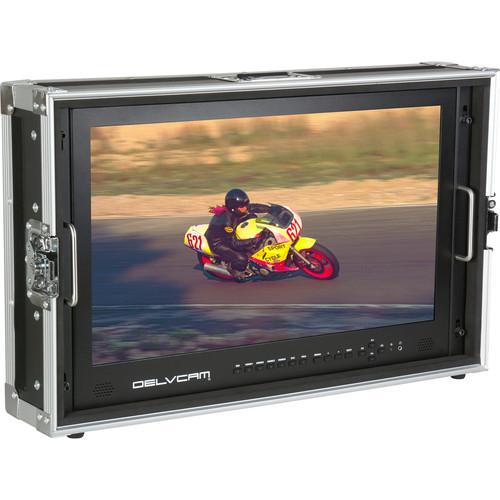

User Manual for Delvcam DELV-4KSDI24 4K Ultra HD 3G-SDI Monitor Click to enlarge the picture
Contents of the user manual for the Delvcam DELV-4KSDI24 4K Ultra HD 3G-SDI
- Product category: Production Monitors Delvcam
- Brand: Delvcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Delvcam Production Monitors
|
User manual for the Delvcam DELV-4KSDI24 4K Ultra HD 3G-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Delvcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Delvcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Delvcam product will considerably shorten its lifespan!
|
Product description Monitor UHD 4K video sources in their native format with the Delvcam DELV-4KSDI24 4K Ultra HD 3G-SDI Monitor. Featuring a built-in 3840 x 2160 LED-backlit LCD panel with a wide viewing angle, you won't miss any details in any of your SD, HD, and 4K sources. 4K footage can be monitored by using any of the four HDMI inputs. One HDMI input can handle UHD content at up to 60 fps, while the other three max out at 30 fps. A 3G-SDI input can handle broadcast and professional HD signals. An SDI loop output is provided for daisy-chaining additional equipment. VGA and DVI inputs are also offered for legacy computer sources. Analog audio is supported via a stereo RCA input. Audio can be played back through the built-in speakers.The monitor itself comes packaged inside a road-ready housing which can be stood up on a tabletop surface, or removed for mounting on any VESA equipment. A V-Mount bracket and plate are included for powering the monitor away from a mains connection using separately available V-Mount batteries. Other 4-pin XLR power solutions supplying between 12 and 24 VDC are also supported. For improved outdoor visibility, a collapsible sun hood is included. - Monitoring Tools
-
- Center marker
- Safety markers
- Aspect ratio selection
- Underscan
- R/G/B only
- Image freeze
- Peaking
- Assignable Buttons
- Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor's menu system.
- Road-Ready Case
- The monitor is built into the included hard case/enclosure, improving the robustness of the monitor's metal chassis, useful when venturing outside controlled environments. A rear opening gives easy access to all the monitor's ports and accessory mounts. The case is removable for securing to stands using the built-in VESA mount.
UPC: 854554007066 In the Box Delvcam DELV-4KSDI24 4K Ultra HD 3G-SDI Monitor Sun Hood Power Supply Battery Plate Bracket V-Mount Battery Plate Tally Connector Kit Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam DELV-4KSDI24 4K Ultra HD 3G-SDI Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDelvcam DELV-4KSDI24 Specs | | | Size | 24" / 60 cm | | Resolution | 3840 x 2160 | | Brightness | 450 cd/m² | | Aspect Ratio | 16:9 | | Contrast Ratio | 1000:1 | | Viewing Angle | 170/160° (H/V) | | Backlight | LED | | | | Inputs | 1 x BNC, 3G-SDI
1 x HDMI 2.0
3 x HDMI 1.4
1 x VGA
1 x DVI | | Outputs | 1 x BNC, 3G-SDI loop-through out | | Audio | RCA audio input
3.5 mm headphone jack output
2 x Speakers | | Power Input | 1 x 4-pin XLR, 12–24 VDC | | Power Supply | 15 VDC | | Power Consumption | 48 W | | Dimensions | With Case: 26.2 x 16.4 x 6.8" / 67 x 42 x 17 cm
Without Case: 22.4 x 14.8 x 1.8" / 57 x 38 x 5 cm | | Weight | With Case: 37.7 lb / 17.1 kg
Without Case: 19 lb / 8.6 kg | | | | Package Weight | 45.0 lb | | Box Dimensions (LxWxH) | 28.8 x 19.5 x 9.75" |
