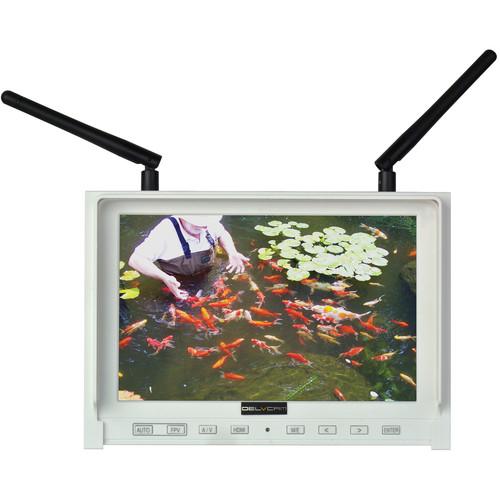

User Manual for Delvcam DELV-DUALFPV-7PL 7" 1280 x 800 IPS FPV Monitor with Dual 5.8GHz Wireless Receiver with Built-In Battery Click to enlarge the picture
Contents of the user manual for the Delvcam DELV-DUALFPV-7PL 7" 1280 x 800
- Product category: FPV (First Person View) Components Delvcam
- Brand: Delvcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Delvcam FPV (First Person View) Components
 |
User manual for the Delvcam DELV-DUALFPV-7PL 7" 1280 x 800 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Delvcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Delvcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Delvcam product will considerably shorten its lifespan!
|
Product description The Delvcam DELV-DUALFPV-7PL 7" 1280 x 800 IPS FPV Monitor with Dual 5.8GHz Wireless Receiver with Built-In Battery is suited first-person viewing (FPV) of the wireless AV feed from your RC aircraft mounted camera. The monitor supports analog NTSC and PAL signals, allowing for viewing of signals that are degraded due to distance. The screen features 1280 x 800 resolution and 178° viewing angle which allows for clear images even when viewing the screen from severely off angles.
The 400 nit brightness and 800:1 contrast ratio allows you to use the monitor in bright conditions, and the included sun hood can help protect the screen from glare. It supports 32 channels across 8 frequency bands in the 5.8GHz range and features an auto search function. You can set a built-in timer in the monitor to count down from up to 4 hours so you don't have to try to remember how long you have been flying your rc unit. Multiple PIP options are useful if you want to display a second video signal on your monitor simultaneously. Also included with the monitor is sun shade and video input/output cable allowing you to feed an optional second monitor. -
- 7" LCD, LED backlit
- Built-in dual 5.8GHz receiver
- 4 Bands and total 32 channels
- No more "blue" screen when signal gets weak, up to 6561' (range of monitor is dependent on the range of the transmitter)
- High brightness: 400cd/m2
- NTSC/PAL auto-detect
- Composite AV in/out
- 75mm VESA standard mount
- Slim and portable design
- The monitor features two antenna attachments but only includes one antenna. To take advantage of dual receiver functionality you need to acquire an optional 5.8GHz antenna.
In the Box Delvcam DELV-DUALFPV-7PL 7" 1280 x 800 IPS FPV Monitor with Dual 5.8GHz Wireless Receiver with Built-In Battery Power Cable 12 VDC Adapter AV Input Cable AV Output Cable Sun Shade 5.8 GHz Antenna Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam DELV-DUALFPV-7PL 7" 1280 x 800 IPS FPV Monitor with Dual 5.8GHz Wireless Receiver with Built-In Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

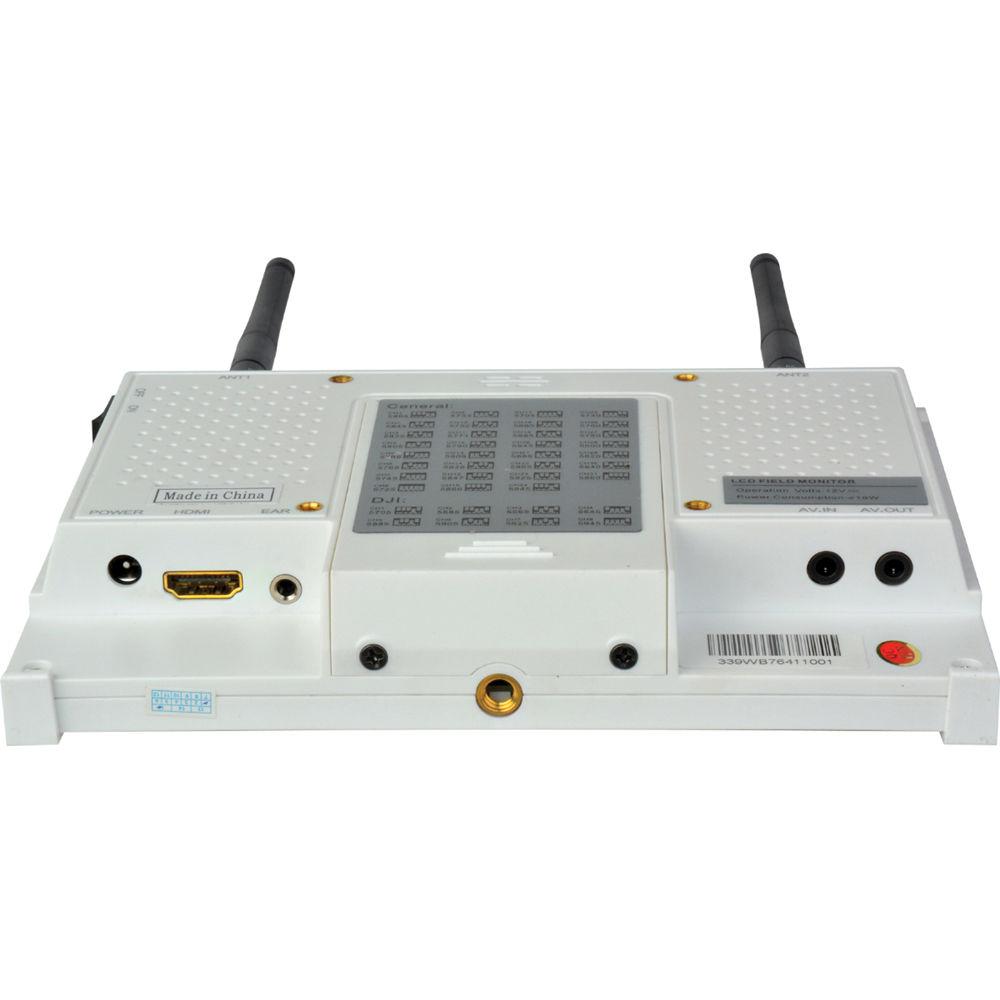

Technical parametersDelvcam DELV-DUALFPV-7PL Specs | | | Type | 7" LCD, LED backlit | | Resolution | 1280 x 800 | | Aspect Ratio | 16:9 | | Brightness | 400 cd/m2 | | Contrast Ratio | 800:1 | | Viewing Angle (H/V) | 178° / 178° | | | | Inputs | Antenna Port: 2 x Antenna port
HDMI: 1 x HDMI Type A
AV: 1 x AV jack | | Output | AV: 1 x AV jack | | | | Receiver | 5.8 GHz, built-in wireless receiver
4 bands and 32 total channels | | Audio | Built-in speaker | | Power Requirements | 7 to 24 VDC
1300 mA | | Power Consumption | ≤18 W | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | Dimensions (L x W x D) | 7.3 x 5.0 x 1.2" / 18.5 x 12.6 x 3.0 cm | | Weight | 14.6 oz / 385 g |
