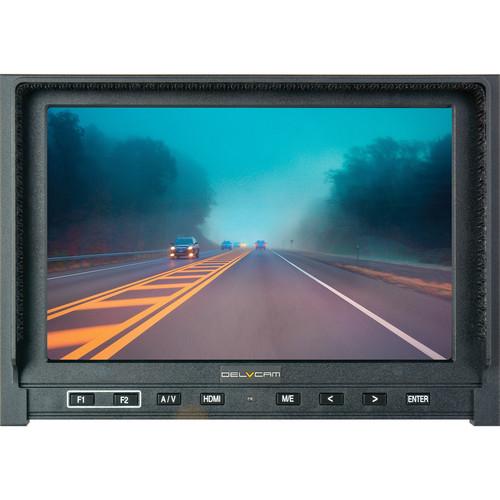

User Manual for Delvcam DELV-HDMIB 7" Camera-Top Monitor with HDMI & AV Input Click to enlarge the picture
Contents of the user manual for the Delvcam DELV-HDMIB 7" Camera-Top Monitor with
- Product category: On Camera Monitors Delvcam
- Brand: Delvcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Delvcam On Camera Monitors
|
User manual for the Delvcam DELV-HDMIB 7" Camera-Top Monitor with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Delvcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Delvcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Delvcam product will considerably shorten its lifespan!
|
Product description The DELV-HDMIB 7" Camera-Top Monitor from Delvcam features an aspect ratio of 16:9 and provides a wide range of A/V connections for compatibility with SD and HD signals. This monitor has a resolution of 1280 x 800 and a contrast ratio of 800:1. It includes a 12 VDC power adapter and a built-in 2600mAh battery along with a sun shade. This monitor is ideal for use with DSLR and full HD camcorders. - Supports resolutions up to 1920 × 1080
- Built-in battery and battery level indicator
In the Box Delvcam DELV-HDMIB 7" Camera-Top Monitor with HDMI & AV Input Sun Shade AV Input Cable AV Output Cable 12 VDC Adapter HDMI AC Cable Shoe Mount Limited 1-Year Warranty User Manual PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam DELV-HDMIB 7" Camera-Top Monitor with HDMI & AV Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDelvcam DELV-HDMIB Specs | Panel | 7.0" (17.8 cm) IPS monitor | | Backlit | LED | | Resolution | 1280 x 800 | | Brightness | 400cd/m² | | Aspect Ratio | 16:9 | | Contrast Ratio | 800:1 | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | HDMI Format Support | Full HD: 1080p (60/59.94/50/30/29.97/25/24/23.98/23.976/24sF)
HD: 1080i (60/59.94/50), 1035i (60/59.94), 720p (60/59.94/50/30/29.97/25)
SD: 576p (50), 576i (50), 480p (60/59.94), 486i (60/59.94) | | Input Signal | 1 x HDMI, 1 x RCA | | Output Signal | 1 x RCA | | Audio | 1 x speaker, 1 x ear phone slot | | Input Voltage | 7 to 24 VDC | | Current | 580 mA | | Battery | 2600 mAh built-in | | Power Consumption | ≤7 W | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Dimensions (L x W x D) | 7.3 x 5.0 x 1.2" (18.5 x 12.6 x 3.0 cm) | | Weight | .79 lb (.36 kg) |
