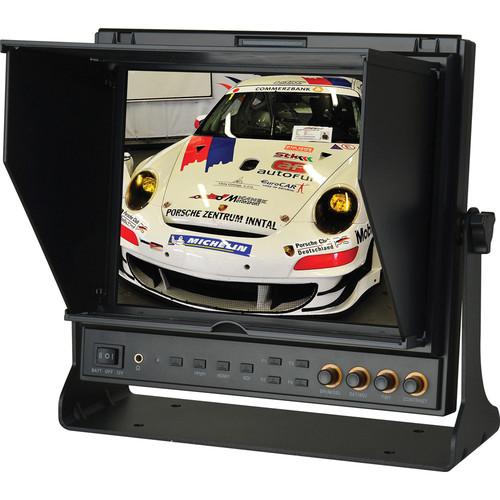

Product description The Delvcam DELV-SDI-10 9.7" 3G-SDI and HDMI LCD Monitor is a versatile 4:3 broadcast monitor with a resolution of 1024x768. It provides a wide range of A/V connections for compatibility with SD and HD signals. Inputs include composite and component through BNC connectors and two HDMI inputs. SDI, HDMI, component, and composite outputs let you duplicate your video content on an additional monitor.
The 9.7" IPS LCD is large enough confident monitoring, while remaining small enough for travel and to fit on your desk. It has a wide 178° horizontal and vertical viewing angle and a 600:1 contrast ratio. A selection of advanced monitoring features is available to help you properly exposure and focus your shots. Features include focus peaking, false color, and histogram display. A 1:1 pixel mapping function is also available, allowing you to view the original resolution of your footage for more accurate focusing.
A built-in sunhood blocks unwanted light from hitting the screen and folds away to become a screen protector with the monitor is not in use. The monitor is powered from 5 to 12 VDC via a male 4-pin XLR connector or with a single Canon LP-E6 or Sony NP-F970 type battery with the included battery plates and battery plate bracket. Also included with the monitors is a desktop stand with yoke mount, HDMI cable, tally connector, and power adapter. A briefcase style carrying case is also included. -
- 9.7" IPS panel 178° wide viewing angles
- 1024x768 Resolution
- 400cd/m2 Brightness
- 600:1 Contrast ratio
- 3G/HD/SD-SDI and HDMI
- Component and Composite inputs on BNC connectors
- SDI, HDMI, Component & Composite active buffered outputs
- Tally interface
- 7-24 VDC operation
- 5V charging
UPC: 854554007363 In the Box Delvcam DELV-SDI-10 9.7" 3G-SDI and HDMI LCD Monitor NP-F970 Type Battery Plate LP-E6 Type Battery Plate Battery Plate Bracket HDMI Cable Power Adapter Tally Connector Desktop Yoke Stand Carrying Case Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam DELV-SDI-10 9.7" 3G-SDI and HDMI LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDelvcam DELV-SDI-10 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 9.7" / 24.6 cm | | Screen Resolution | 1024 x 768 | | Aspect Ratio | 4:3 | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 600:1 | | Image Controls | False Color, Focus Peaking, Pixel-to-Pixel Zoom | | | | Video | 1 x BNC (3G-SDI) Output
1 x HDMI Type A Output
1 x 3BNC (Component) Output
1 x BNC (Composite) Output
1 x BNC (3G-SDI) Input
1 x 3BNC (Component) Input
1 x BNC (Composite) Input
1 x HDMI Type A Input | | Audio | 1 x RCA Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Power | 1 x USB Type-A Input
1 x 4-Pin XLR Input | | Other I/O | 1 x Tally (DE-15/DB-15) | | Card Slot | None | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 1 x LP-E6 or L-Series | | Operating Current | 1500 mA | | Power Consumption | 18 W | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Dimensions (W x H x D) | 9.7 x 8.8 x 1.2" / 24.6 x 22.4 x 3.1 cm
9.7 x 8.8 x 6.6" / 24.6 x 22.4 x 16.75 cm, Including Cover | | Weight | 2.35 lb / 1.07 kg
3.06 lb / 1.39 kg, Including Cover | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 21.102 x 14.173 x 8.032" |
