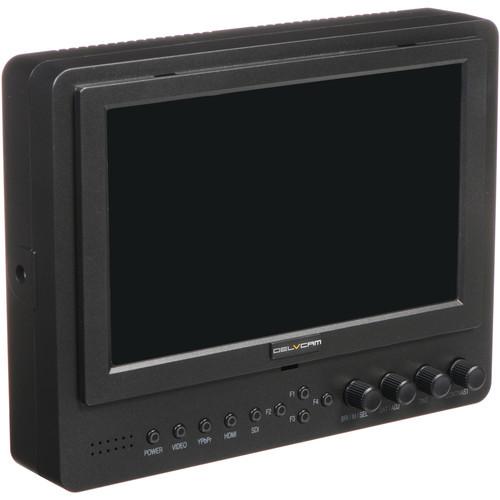

Product description The DELV-SDI-7 7" 3G-SDI and HDMI On-Camera LED Monitor is a 16:9 monitor that provides a wide range of A/V connections for compatibility with SD and HD signals. Inputs include 3G-SDI, HDMI, and composite and component through BNC connectors. 3G-SDI, HDMI, and composite outputs let you duplicate your video content on an additional monitor.
The 7" LED-backlit LCD has a resolution of 1024x600 and contrast ratio of 800:1. A selection of advanced monitoring features is available to help you properly expose and focus your shots. Features include focus peaking, false color, and histogram display. It also has a mode specially designed for viewing footage from the Canon 5D Mark II. Four function buttons on the front of the panel can be programmed for shortcut access to the features that you use most.

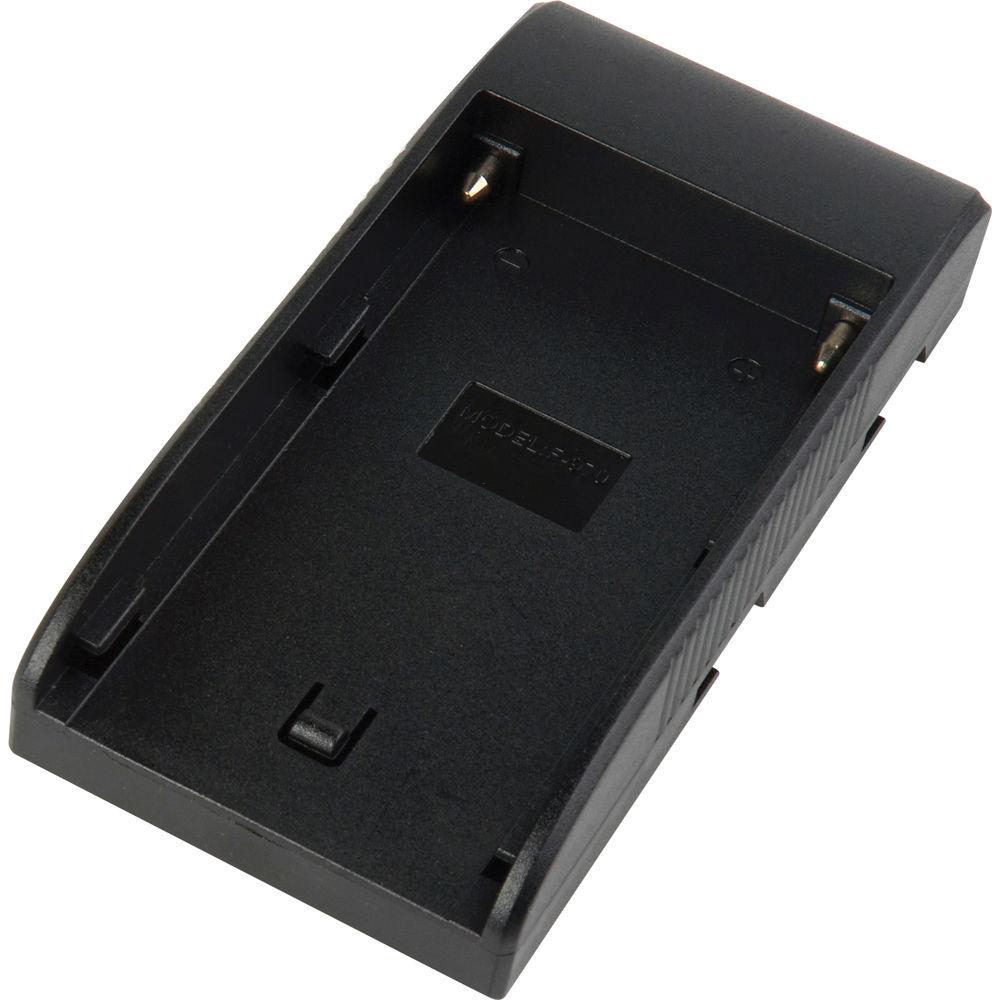

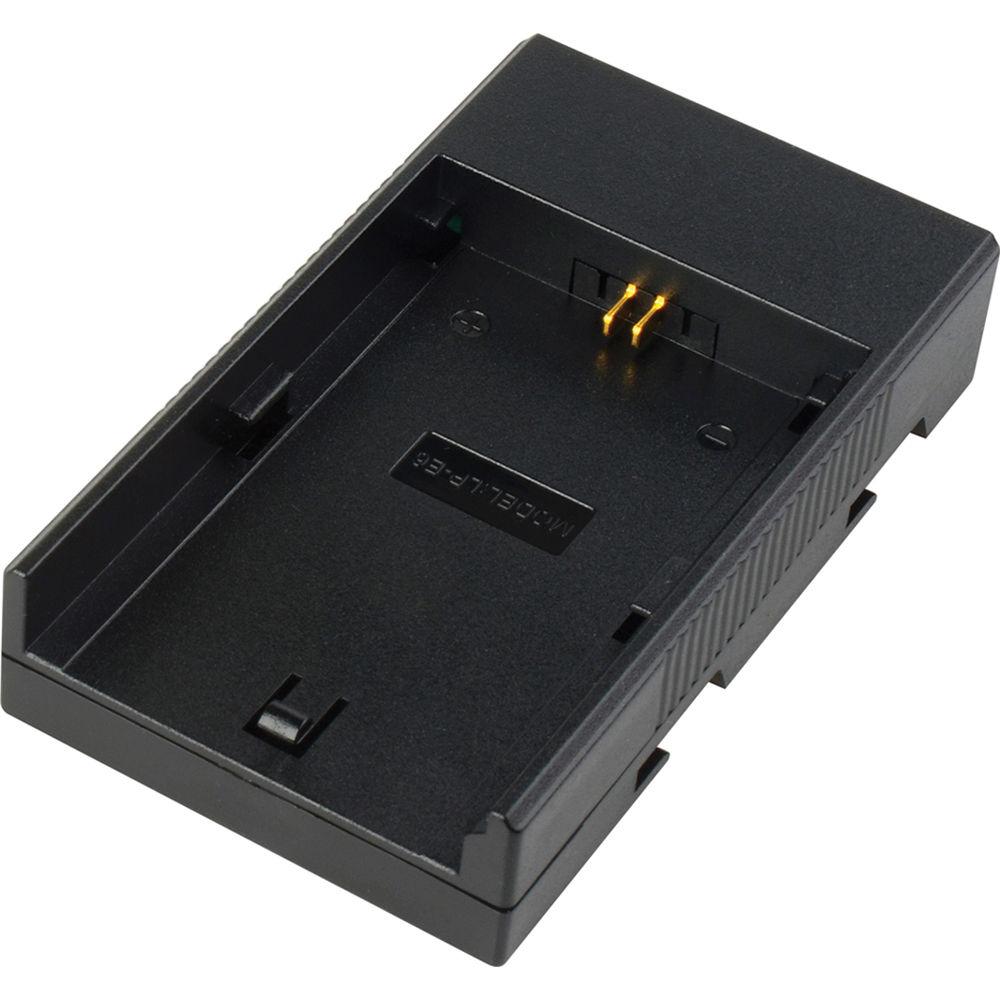

The monitor is powered from 6.5 to 24 VDC via a male 4-pin XLR connector or with a single Sony NP-F970 or Canon LP-E6 type battery with the included battery plates. Additional battery plate types are also available. Also included with the monitor are a flexible folding sun hood, HDMI cable, DC power adapter, and a shoe mount adapter. -
- 7" LED backlit LCD
- 1024x600 Resolution
- 250cd/m2 Brightness
- 800:1 Contrast ratio
- 3G/HD/SD-SDI and HDMI inputs

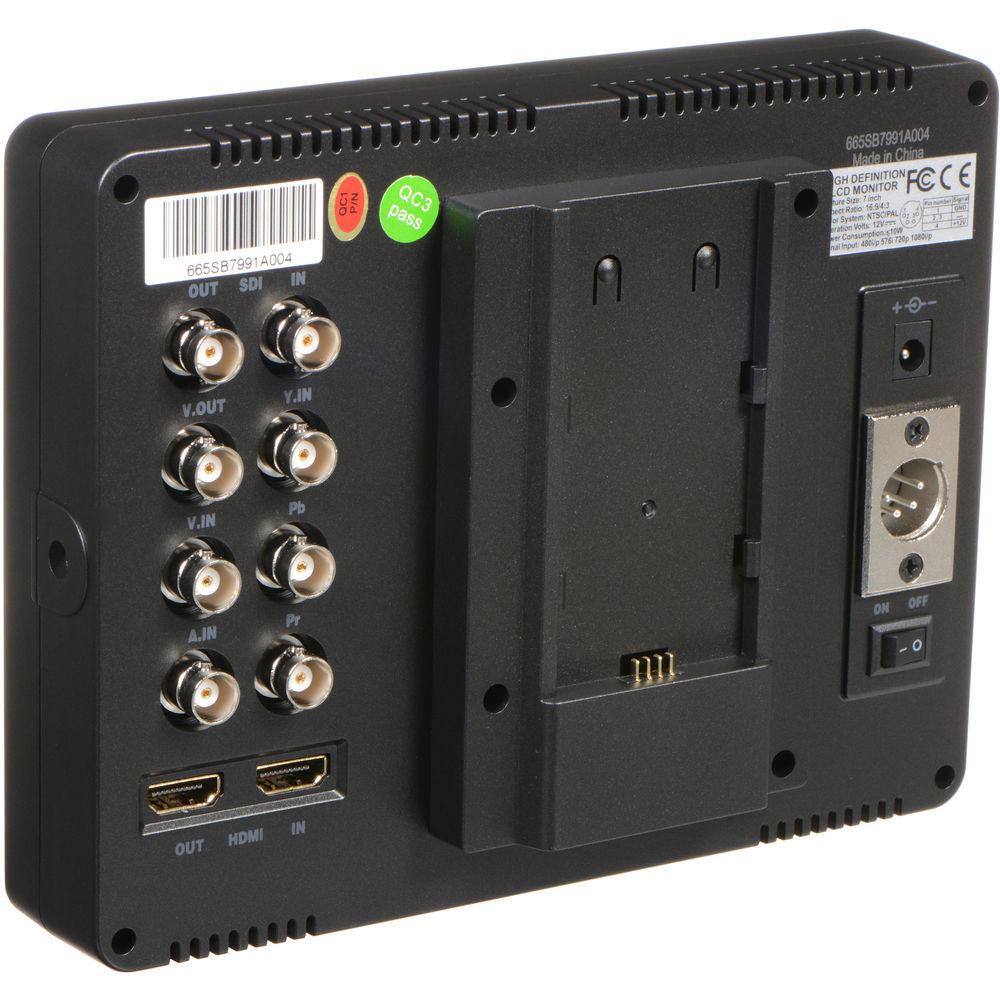

- Component and Composite inputs on BNC connectors
- 3G-SDI, HDMI, and Composite active buffered outputs
- Focus peaking, false color, and histogram
- Canon 5D Mark II mode
- Four programmable function buttons
- 6.5 to 24 VDC operation
- Sony NP-F970 and Canon LP-E6 type battery plates included

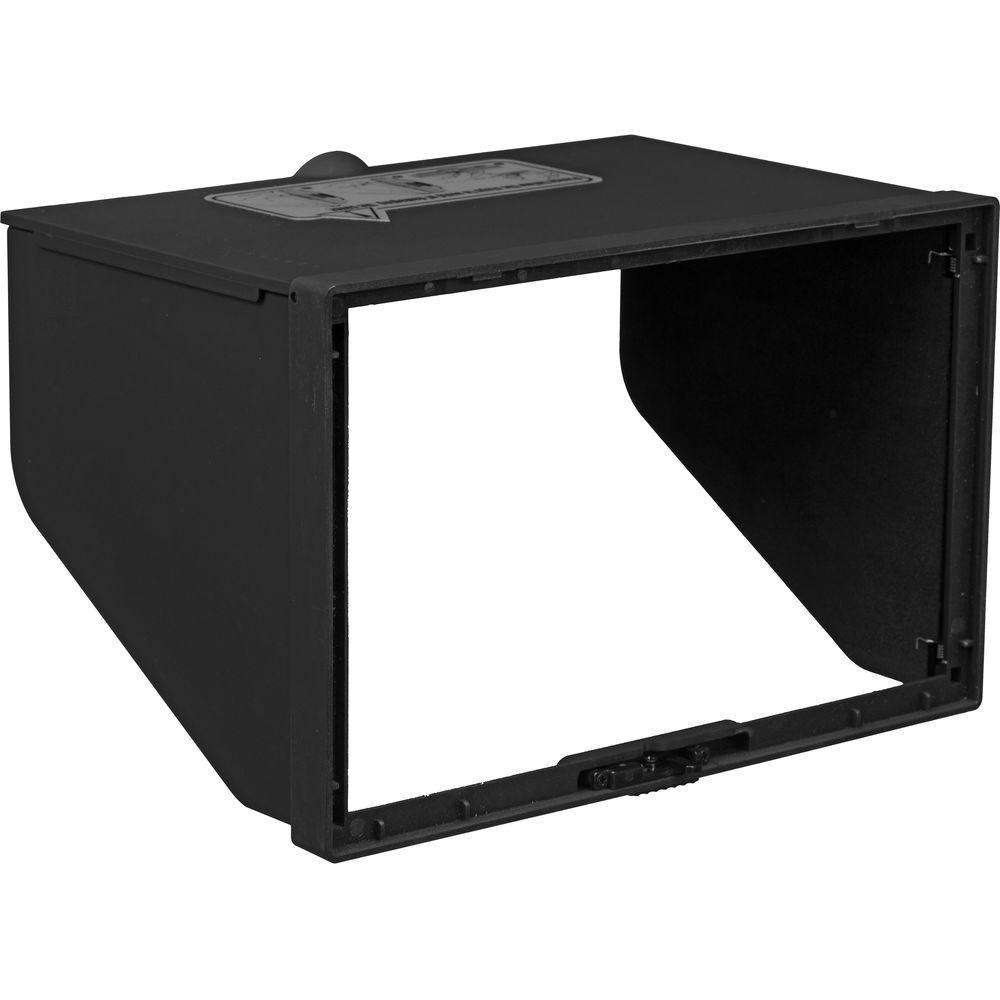

- Flexible folding sun hood
- 1/4"-20 threads - one on bottom and one on each side
UPC: 854554007394 In the Box Delvcam DELV-SDI-7 7" 3G-SDI and HDMI On-Camera LED Monitor NP-F970 Type Battery Plate LP-E6 Type Battery Plate Mini HDMI to HDMI Cable DC Adapter Sun Hood Swivel Shoe Mount Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam DELV-SDI-7 7" 3G-SDI and HDMI On-Camera LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDelvcam DELV-SDI-7 Specs | | | Panel Type | TFT LCD | | Display Size | 7.0" / 17.7 cm | | Screen Resolution | 1024 x 600 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160°
Vertical: 150° | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 800:1 | | Image Controls | False Color, Focus Peaking | | | | Video | 1 x BNC (3G-SDI) Output
1 x HDMI Type A Output
1 x BNC (Composite) Output
1 x 3BNC (Component) Output
1 x DE-15/DB-15 (VGA) Output
1 x BNC (3G-SDI) Input
1 x 3BNC (Component) Input
1 x BNC (Composite) Input
1 x HDMI Type A Input | | Audio | 1 x BNC Input | | Built-In Speaker | 1 | | Power | 1 x 4-Pin XLR Input | | Card Slot | None | | | | Video Format | Composite
PAL
NTSC
Component
PAL
NTSC
480p: 59.94
576p: 50
720p: 50/59.94/60
1080i: 50/59.94/60
1080p: 50/59.94
HDMI
NTSC
480p: 59.94
PAL
576p: 50
720p: 29.97/30/50/59.94/60
1080i: 50/59.94/60
1080p: 23.98/24/25/29.97/30/50/59.94
SDI
NTSC
PAL
720p: 29.97/30/50/59.94/60
1080i: 50/59.94/60
1080p: 23.98/24/25/29.97/30/50/59.94 | | | | DC Input Power | 6.5 to 24 VDC | | Battery Type | 1 x LP-E6 or L-Series | | Operating Current | 800 mA | | Power Consumption | 10 W | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Dimensions (W x H x D) | 7.66 x 5.91 x 1.52" / 19.45 x 15 x 3.85 cm
7.66 x 5.91 x 6.24" / 19.45 x 15 x 15.85 cm, Including Sun Hood | | Weight | 16.9 oz / 480 g
22.6 oz / 640 g, Including Sun Hood | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 12.441 x 9.764 x 3.465" |
