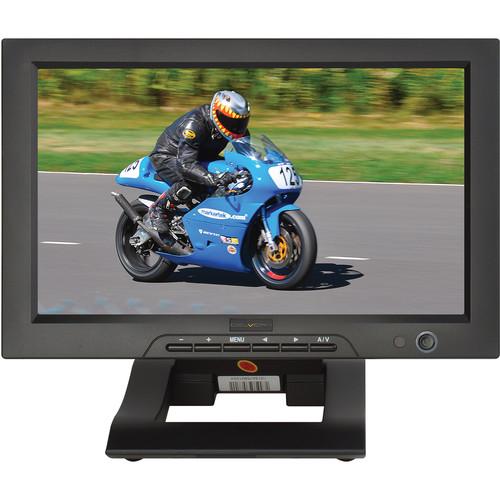

User Manual for Delvcam DELV-SDI10-16X9 10" 3G-SDI HDMI Widescreen Monitor with SDI Loop Out Click to enlarge the picture
Contents of the user manual for the Delvcam DELV-SDI10-16X9 10" 3G-SDI HDMI Widescreen
- Product category: Production Monitors Delvcam
- Brand: Delvcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Delvcam Production Monitors
|
User manual for the Delvcam DELV-SDI10-16X9 10" 3G-SDI HDMI Widescreen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Delvcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Delvcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Delvcam product will considerably shorten its lifespan!
|
Product description The DELV-SDI10-16X9 10" 3G-SDI/HDMI Widescreen Monitor from Delvcam is a 16:9 monitor with SDI loop out which supports resolutions up to 1920 x 1080. It features a contrast ratio of 500:1 and various input video options such as 3G-SDI, HDMI, and YPbPr. This monitor comes with multiple mounting options and is ideal for DP's and other field production users. - Supports resolutions up to 1920 x 1080
- Multiple mounting options
UPC: 854554007370 In the Box Delvcam DELV-SDI10-16X9 10" 3G-SDI/HDMI Widescreen Monitor with SDI Loop Out 12V/1.5A DC Adapter HDMI Cable Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam DELV-SDI10-16X9 10" 3G-SDI HDMI Widescreen Monitor with SDI Loop Out in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDelvcam DELV-SDI10-16X9 Specs | Panel Size | 10.1" (25.7 cm) TFT LCD | | Color System | NTSC/PAL | | Aspect Ratio | 16:9 | | Resolution Supported | 1024 x 600 (up to 1920 x 1080) | | Brightness | 250 cd/m² | | Contrast Ratio | 500:1 | | Viewing Angle | Horizontal: 140°
Vertical: 110° | | Input Signal | SDI, HDMI, YPbPr, AV1/AV2 | | Mode | SDI/HDMI/YPbPr : 480i/p, 576i/p, 720p, 1080i/p (50/60) | | Input Voltage | 12 VDC (XLR DC connection) | | Current | 500 mA (under 800 x 600 to 60 Hz) | | Standby Current | 50 mA maximum | | Power Consumption | 6 W maximum | | Audio Output | 250 mW | | Speaker | One speaker at the back | | Earphone Jack | 1 x 3.5 mm | | Mount | 75 mm standard VESA | | Dimensions (L x W x D) | 10.1 x 6.7 x 1. 5" (25.7 x 17.0 x 3.8 cm) | | Weight | 2.5 lb (1.1 kg) | | | | Package Weight | 3.92 lb | | Box Dimensions (LxWxH) | 13.35 x 11.25 x 3.65" |
