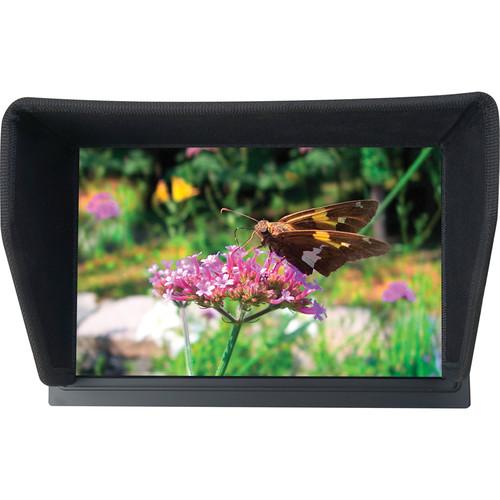

User Manual for Delvcam DELV-TOUCH-10SDI 10.1" 3G-SDI and HDMI Touchscreen LCD Monitor Click to enlarge the picture
Contents of the user manual for the Delvcam DELV-TOUCH-10SDI 10.1" 3G-SDI and HDMI
- Product category: On Camera Monitors Delvcam
- Brand: Delvcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Delvcam On Camera Monitors
|
User manual for the Delvcam DELV-TOUCH-10SDI 10.1" 3G-SDI and HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Delvcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Delvcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Delvcam product will considerably shorten its lifespan!
|
Product description The Delvcam DELV-TOUCH-10SDI 10.1" 3G-SDI and HDMI Touchscreen LCD Monitor is a 16:9 broadcast monitor with a resolution of 1280x800. It provides a wide range of A/V connections for compatibility with SD, HD, and VGA signals. Inputs include HDMI, VGA, and composite and component through BNC connectors. It also features a 3G-SDI input for connection with professional broadcast equipment. 3G-SDI and All inputs feature matching loop through outputs, letting you send your video signals to additional monitors, switchers, or recording devices.
The IPS LCD provides a large 10.1 touchscreen surface with a wide 170° horizontal and vertical viewing angle and 800:1 contrast ratio. The monitor comes with a wide selection of advanced monitoring features to help you properly exposure and focus your shots. Features include waveform, vectorscope, historgrams, and focus peaking. Audio can be monitored using on-screen audio level meters and a 3.5mm headphone jack.
The monitor is powered from 7 to 24 VDC via a 4-pin XLR connector or with a single Canon LP-E6 or Sony NP-F970 type battery with the included battery plates and battery plate adapter bracket. A 1/4"-20 threaded hole at the base of the monitor is provided for mounting, with a swivel hot shoe mount included for on-camera use. Also included with the monitor is a sun hood, HDMI cable, mini XLR and tally cable, and power adapter. To keep the monitor stored and protected when not in use, a briefcase style hard carrying case is included. - Waveform
- Luminance, YCbCr parade, and RGB parade waveforms are available for measuring the brightness, luminance, or chroma values from a video input signal. It not only helps you keep your shots from being over or underexposed but also assists with color correction and camera white and black balance.
- Vectorscope
- Vectorscope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes and positions, allowing you to monitor color gamut range in real time.
- Histograms
- Histogram consist of RGB, Color, and Luminance histograms. RGB histogram: Shows the red, green, and blue channels in overlay histogram Color histogram: Shows histograms for each of the red, green, and blue channels Luminance histogram: Shows the distribution of brightness in an image as a graph of luminance
-
- 10.1" IPS multi- touch capacitive touchscreen panel
- 1280x800 Resolution
- 170° wide viewing angles
- 350cd/m2 Brightness
- 800:1 Contrast ratio
- 3G-SDI, HDMI, Composite, Component, and VGA inputs
- All inputs have matching loop through outputs
- Tally interface
- Audio level meters
- 7-24 VDC operation
UPC: 854554007455 In the Box Delvcam DELV-TOUCH-10SDI 10.1" 3G-SDI and HDMI Touchscreen LCD Monitor NP-F970 Type Battery Plate LP-E6 Type Battery Plate Battery Plate Adapter Panel DC Power Adapter HDMI Cable Audio Output Cable Mini XLR & Tally Cable Swivel Shoe Mount Adapter Sun Hood Hard Carrying Case Limited 90-Day Warranty User Manual PDF 6.2mbrxvcrwruruxvacbbrtaybutrsswdrzxxx Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam DELV-TOUCH-10SDI 10.1" 3G-SDI and HDMI Touchscreen LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDelvcam DELV-TOUCH-10SDI Specs | | | Panel Type | IPS-Type LCD | | Display Size | 10.1" / 25.6 cm | | Screen Resolution | 1280 x 800 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 170°
Vertical: 170° | | Touchscreen | Yes | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 800:1 | | Image Controls | False Color, Focus Peaking, Waveform | | | | Video | 1 x BNC (3G-SDI) Output
1 x HDMI Type A Output
1 x BNC (Composite) Output
1 x 3BNC (Component) Output
1 x DE-15/DB-15 (VGA) Output
1 x BNC (3G-SDI) Input
1 x HDMI Type A Input
1 x DE-15/DB-15 (VGA) Input
1 x 3BNC (Component) Input
1 x BNC (Composite) Input | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Power | 1 x 4-Pin XLR Input | | Other I/O | 1 x Tally (DE-15/DB-15) | | Card Slot | None | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 1 x LP-E6 or L-Series | | Operating Current | 1200 mA | | Power Consumption | 12 W | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions (W x H x D) | 9.84 x 6.69 x 1.17" / 25 x 17 x 2.96 cm | | Weight | 1.39 lb / 0.63 kg | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 16.0 x 12.5 x 4.7" |
