Product description The DELV-WFORM-7-AB 7" Camera-Top Monitor Bundle from Delvcam comes with a DELV-WFORM-7 monitor and a Gold Mount Battery Plate.The DELV-WFORM-7 is a versatile 16:9 broadcast monitor with a resolution of 1280 x 800. It provides a wide range of A/V connections for compatibility with SD and HD signals. Inputs include one HDMI input and analog composite and component inputs via BNC connectors. An HDMI output lets you duplicate and send your video content to an additional monitor.The DELV-BPAB Gold Mount Battery Plate allows you to mount a Gold Mount battery onto your DELV-WFORM-7 camera-top monitor. - 7" On-Camera HDMI Monitor with Video Waveform The Delvcam 7" On-Camera HDMI Monitor with Video Waveform is a versatile 16:9 broadcast monitor with a resolution of 1280x800. It provides a wide range of A/V connections for compatibility with SD and HD signals. Inputs include one HDMI input and analog composite and component inputs on BNC connectors. An HDMI output lets you duplicate and send your video content to an additional monitor.
The 7" IPS LCD is LED backlit and provides a wide 178° horizontal and vertical viewing angles and an 800:1 contrast ratio. A selection of advanced monitoring features are available to help you properly exposure and focus your shots. Features include waveform, histogram, vector scope, false color, and focus peaking. A 1:1 pixel mapping function is also available, allowing you to view the original resolution of your footage for more accurate focusing. Four programmable function buttons provide quick access to the features you use the most.
The monitor is powered from 5 to 12 VDC via a male 4-pin XLR connector or with a single Canon LP-E6 or Sony NP-F970 type battery with the included battery plates and battery plate bracket. Also included with the monitors is a desktop stand with yoke mount, detachable sunhood, HDMI cable, tally cable, power cable, and DC adapter. A briefcase style carrying case comes included for safely storing and transporting the monitor. -
- 7" IPS panel 178° wide viewing angles
- 1280x800 Resolution
- 400cd/m2 Brightness
- 800:1 Contrast ratio
- HDMI Input
- Component and Composite inputs on BNC connectors
- Active buffered HDMI Output
- Tally interface
- 7-24 VDC operation
UPC: 854554007462 - DELV-BPAB Anton Bauer Battery Plate for Camera-Top Monitor The DELV-BPAB Anton Bauer Battery Plate from Delvcam allows you to mount an Anton Bauer battery onto your DELV-WFORM-7, DELV-WFORM-7SDI, DELV-SDI-10, DELV-SDI-7, or DELV-HDSD-10 camera-top monitor. UPC: 854554007134

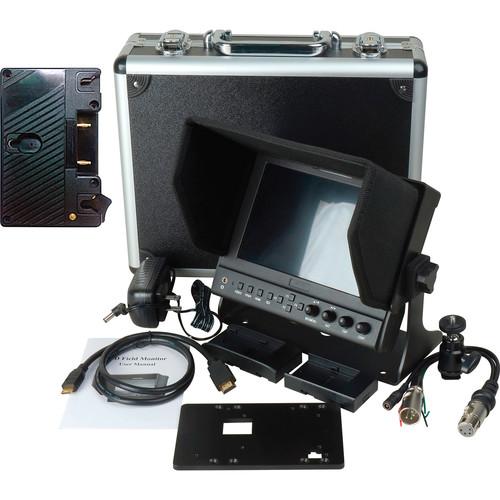

In the Box Bundle Items 7" On-Camera HDMI Monitor with Video Waveform rqcqbfwctdyxvebttztzsbzssz - NP-F970 Type Battery Plate
- Battery Plate Adapter Bracket
DELV-BPAB Anton Bauer Battery Plate for Camera-Top Monitor
Also Includes User Manual PDF 644.5kbrqcqbfwctdyxvebttztzsbzssz Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam DELV-WFORM-7-AB 7" Camera-Top Monitor with Video Waveform and Gold Mount Battery Plate Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 7" On-Camera HDMI Monitor with Video Waveform
| | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.7 cm | | Screen Resolution | 1280 x 800 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 800:1 | | Image Controls | False Color, Focus Peaking, Waveform | | | | Video | 1 x HDMI Type A Input
1 x 3BNC (Component) Input
1 x BNC (Composite) Input
1 x HDMI Type A Output | | Audio | 1 x RCA Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Power | 1 x 4-Pin XLR Input | | Other I/O | 1 x Tally (DE-15/DB-15) | | Card Slot | None | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 1 x LP-E6 or L-Series | | Operating Current | 900 mA | | Power Consumption | 11 W | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Dimensions (W x H x D) | 7.5 x 6 x 1.2" / 19.1 x 15.2 x 3.1 cm
7.5 x 6 x 5.6" / 19.1 x 15.2 x 14.1 cm, Including Sun Hood | | Weight | 1.68 lb / 0.76 kg
2.07 lb / 0.94 kg, Including Sun Hood
4.76 lb / 2.16 kg, Including Case | | | | Box Dimensions (LxWxH) | 12.9 x 11.2 x 4.85" | - DELV-BPAB Anton Bauer Battery Plate for Camera-Top Monitor
| Compatibility | Camera-Top Monitor Models:
DELV-WFORM-7
DELV-WFORM-7SDI
DELV-SDI-10
DELV-SDI-7
DELV-HDSD-10 |
