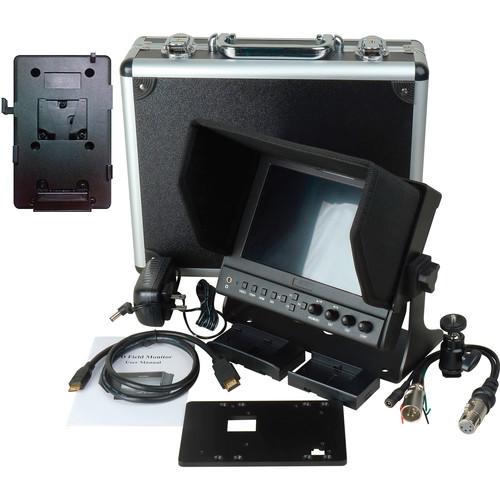

Product description The DELV-WFORM7SDIVM 7" Camera-Top SDI Monitor from Delvcam with video waveform and V-Mount battery plate is a versatile 16:9 broadcast monitor with a resolution of 1280 x 800. It provides a wide range of A/V connections for compatibility with SD and HD signals. Inputs include one HDMI input, one 3G-SDI input, and analog composite and component inputs on BNC connectors. HDMI and 3G-SDI outputs let you duplicate and send your video content to an additional monitor.
The 7" IPS LCD is LED backlit and provides wide 178° horizontal and vertical viewing angles and an 800:1 contrast ratio. A selection of advanced monitoring features are available to help you properly exposure and focus your shots. Features include waveform, histogram, vector scope, false color, and focus peaking. A 1:1 pixel mapping function is also available, allowing you to view the original resolution of your footage for more accurate focusing. Four programmable function buttons provide quick access to the features you use the most.
The monitor is powered from 5 to 12 VDC via a male 4-pin XLR connector or with an optional battery using the included plates for Canon LP-E6, Sony NP-F970, and V-Mount batteries. Also included with the monitors is a desktop stand with yoke mount, detachable sunhood, HDMI cable, tally cable, power cable, and DC adapter. A briefcase-style carrying case comes included for safely storing and transporting the monitor. - DELV-BPAB Anton Bauer Battery Plate for Camera-Top Monitor The DELV-BPAB Anton Bauer Battery Plate from Delvcam allows you to mount an Anton Bauer battery onto your DELV-WFORM-7, DELV-WFORM-7SDI, DELV-SDI-10, DELV-SDI-7, or DELV-HDSD-10 camera-top monitor. UPC: 854554007134
- 7" On-Camera 3G-SDI and HDMI Monitor with Video Waveform The Delvcam 7" On-Camera 3G-SDI and HDMI Monitor with Video Waveform is a versatile 16:9 broadcast monitor with a resolution of 1280x800. It provides a wide range of A/V connections for compatibility with SD and HD signals. Inputs include one HDMI input, one 3G-SDI input, and analog composite and component inputs on BNC connectors. HDMI and 3G-SDI outputs let you duplicate and send your video content to an additional monitor.
The 7" IPS LCD is LED backlit and provides a wide 178° horizontal and vertical viewing angles and an 800:1 contrast ratio. A selection of advanced monitoring features are available to help you properly exposure and focus your shots. Features include waveform, histogram, vector scope, false color, and focus peaking. A 1:1 pixel mapping function is also available, allowing you to view the original resolution of your footage for more accurate focusing. Four programmable function buttons provide quick access to the features you use the most.
The monitor is powered from 5 to 12 VDC via a male 4-pin XLR connector or with a single Canon LP-E6 or Sony NP-F970 type battery with the included battery plates and battery plate bracket. Also included with the monitors is a desktop stand with yoke mount, detachable sunhood, HDMI cable, tally cable, power cable, and DC adapter. A briefcase style carrying case comes included for safely storing and transporting the monitor. -
- 7" IPS panel 178° wide viewing angles
- 1280x800 Resolution
- 400cd/m2 Brightness
- 800:1 Contrast ratio
- 3G-SDI and HDMI Inputs
- Component and Composite inputs on BNC connectors
- Active buffered 3G-SDI and HDMI Outputs
- Tally interface
- 7-24 VDC operation
UPC: 854554007479 In the Box Bundle Items DELV-BPAB Anton Bauer Battery Plate for Camera-Top Monitor eqsqsyqzfsbuvudyrfezcwcvzacq 7" On-Camera 3G-SDI and HDMI Monitor with Video Waveform eqsqsyqzfsbuvudyrfezcwcvzacq - NP-F970 Type Battery Plate
- Battery Plate Adapter Bracket
User Manual PDF 656.5kbeqsqsyqzfsbuvudyrfezcwcvzacq Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam DELV-WFORM7SDIVM 7" Camera-Top SDI Monitor with Video Waveform and V-Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DELV-BPAB Anton Bauer Battery Plate for Camera-Top Monitor
| Compatibility | Camera-Top Monitor Models:
DELV-WFORM-7
DELV-WFORM-7SDI
DELV-SDI-10
DELV-SDI-7
DELV-HDSD-10 | - 7" On-Camera 3G-SDI and HDMI Monitor with Video Waveform
| | | Type | 7" IPS LCD
LED backlit | | Resolution | 1280 x 800
Supports up to 1920x1080 | | Aspect Ratio | 16:9 | | Brightness | 400 cd/m2 | | Contrast Ratio | 800:1 | | Viewing Angle (H/V) | 178° / 178° | | | | Inputs | 1 x 3G-SDI
1 x HDMI
1 x Component, BNC connectors
1 x Composite, BNC connector
2 x Audio (L/R), RCA connectors
1 x Tally, VGA style DB connector | | Outputs | 1 x 3G-SDI
1 x HDMI | | | | Monitoring | 1 x Built-in speaker
1 x 3.5 mm headphone jack | | | | Mounting Thread | 1/4"-20 | | Current | 900 mA | | Input Voltage | 7 to 24 VDC, 4-pin XLR connector | | Battery Plate Type | LP-E6
NP-F970 | | Power Consumption | 11 W | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Dimensions (L x W x H) | Monitor: 7.5 x 6.0 x 1.2" (19.1 x 15.2 x 3.1 cm)
Monitor with Sunhood: 7.5 x 6.0 x 5.6" (19.1 x 15.2 x 14.1 cm) | | Weight | Monitor Only: 1.68 lb (0.76 kg)
With Sunhood: 2.07 lb (0.94 kg)
With Carrying Case: 4.76 lb (2.16 kg) | | | | Box Dimensions (LxWxH) | 12.1 x 10.2 x 4.0" |
