User Manual for Delvcam DELV-WHDI-7 7" Monitor with WHDI Technology Click to enlarge the picture
Contents of the user manual for the Delvcam DELV-WHDI-7 7" Monitor with WHDI
- Product category: On Camera Monitors Delvcam
- Brand: Delvcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Delvcam On Camera Monitors
 |
User manual for the Delvcam DELV-WHDI-7 7" Monitor with WHDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Delvcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Delvcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Delvcam product will considerably shorten its lifespan!
|

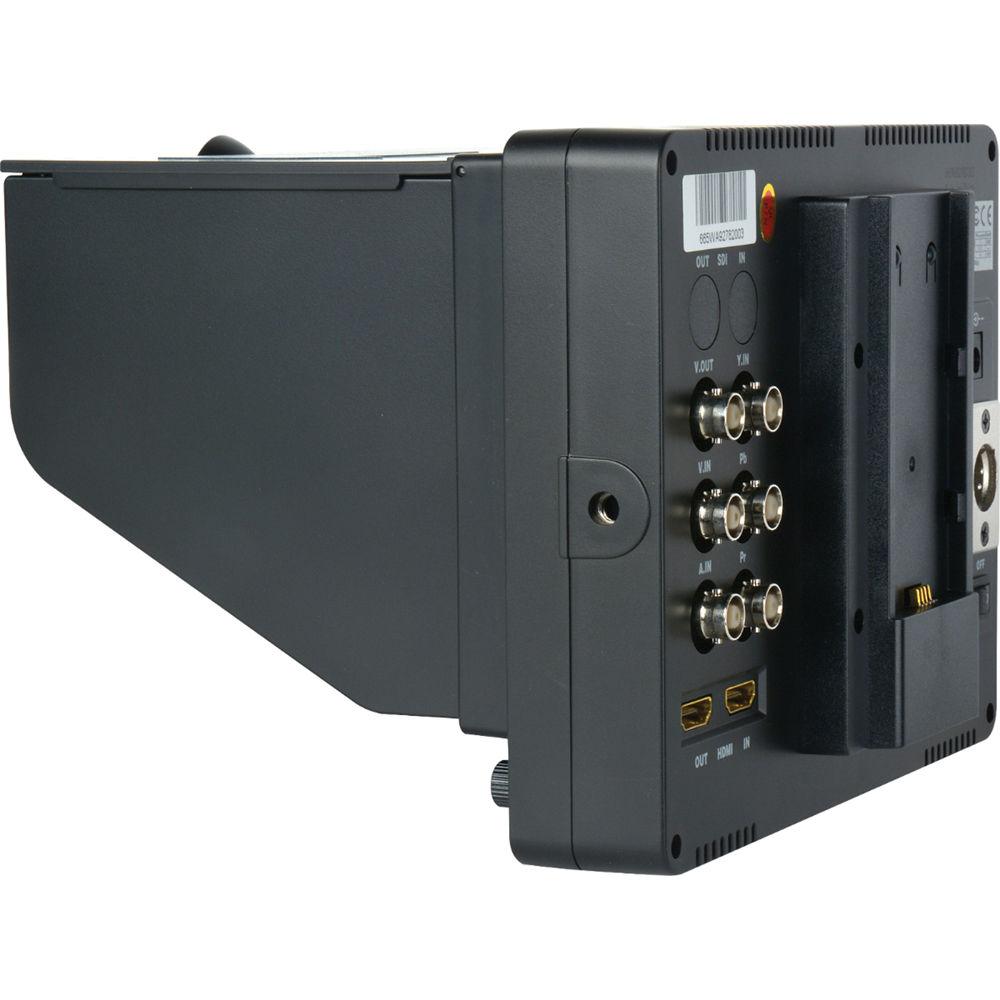

Product description The DELV-WHDI-7 7" Monitor from Delvcam helps you to wirelessly monitor your HDMI outputs when shooting video with DSLRs and camcorders. It allows you to monitor HD video (up to 1080p @ 60 fps) from a distance of 98.4' without the need for additional cables. This monitor features WHDI, HDMI, YPbPr, component video, peaking functions, focus assistance, and a sun hood. This unit is optimized for DSLR & Full HD camcorders. - This unit features integrated circuits, lower power consumption, and lower radiation emission. It has fashion designed appearance and good portability
- Wireless transmission with extremely low latency
- Transmission distance of up to 98.4'
- 1920 × 1080 60 Hz video supported
- AV, WHDI, YPbPr, and HDMI input/output
- 1920 × 1080 HD resolution supported
- 7 to 24 VDC input voltage
- High contrast & dizzy-proof monitor with flexible folding sun shade cover

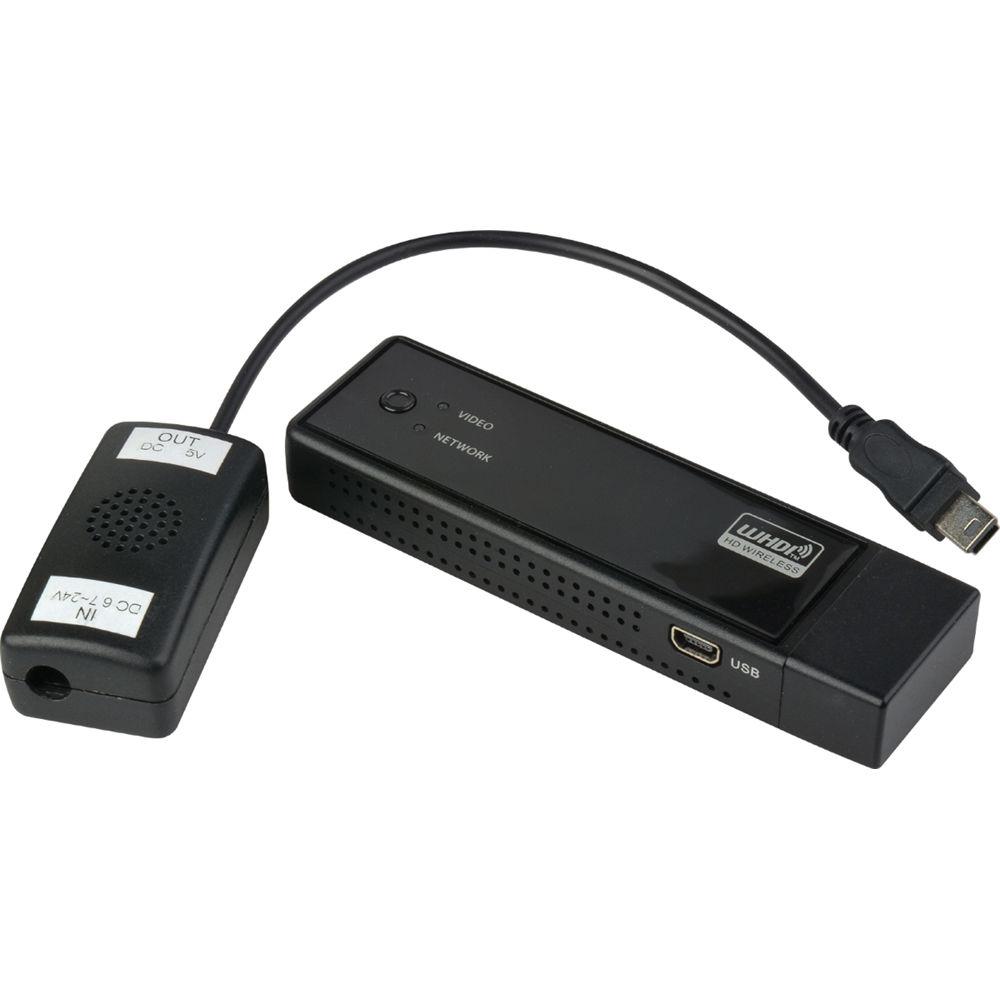

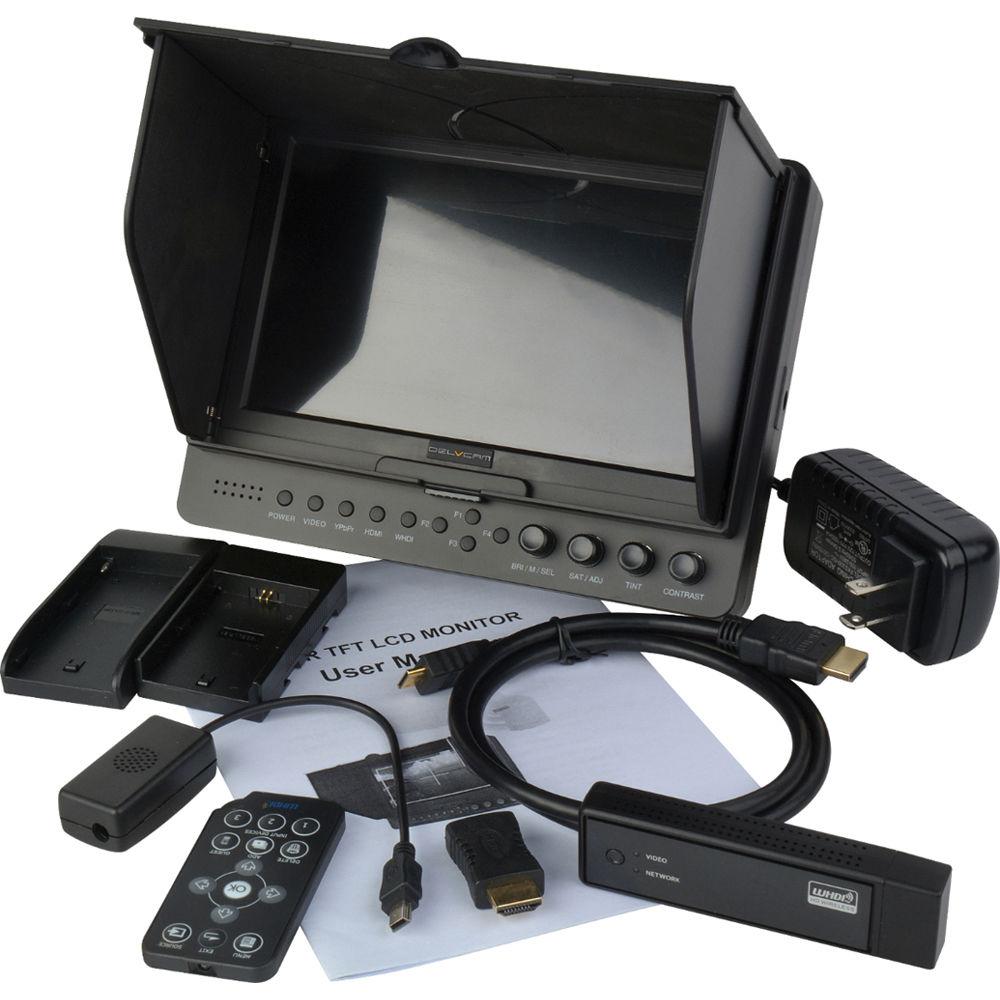

In the Box Delvcam DELV-WHDI-7 7" Monitor with WHDI Technology Flexible Folding Sun Shade Cover WHDI Accessory QM91D Battery Plate Sony F970 Battery Plate for On-Camera Field Monitor HDMI to Mini HDMI Cable DC Adapter Limited 90-Day Warranty User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam DELV-WHDI-7 7" Monitor with WHDI Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDelvcam DELV-WHDI-7 Specs | Panel | 7.0" (17.8 cm) | | Backlit | LED | | Resolution | 1024 x 600, supports up to 1920 x 1080 | | Aspect Ratio | 16:9 | | Brightness | 250 cd/m² | | Contrast Ratio | 800:1 | | Viewing Angle | Horizontal: 160°
Vertical: 150° | | Video Format | WHDI:
1080p @ 60/50/30/25/24 Hz
1080i @ 60/50 Hz
720p 60/50 Hz
576i/p @ 50 Hz
480p @ 60 Hz
486i @ 60 Hz
HDMI:
1080p @ 60/59.94/50/30/29.97/25/24/23.98/23.976 Hz
1080i @ 60/59.94/50 Hz
1035i 60/59.94 Hz
720p @ 60/59.94/50/30/29.97/25 Hz
576i @ 50 Hz
486i @ 60/59.94 Hz

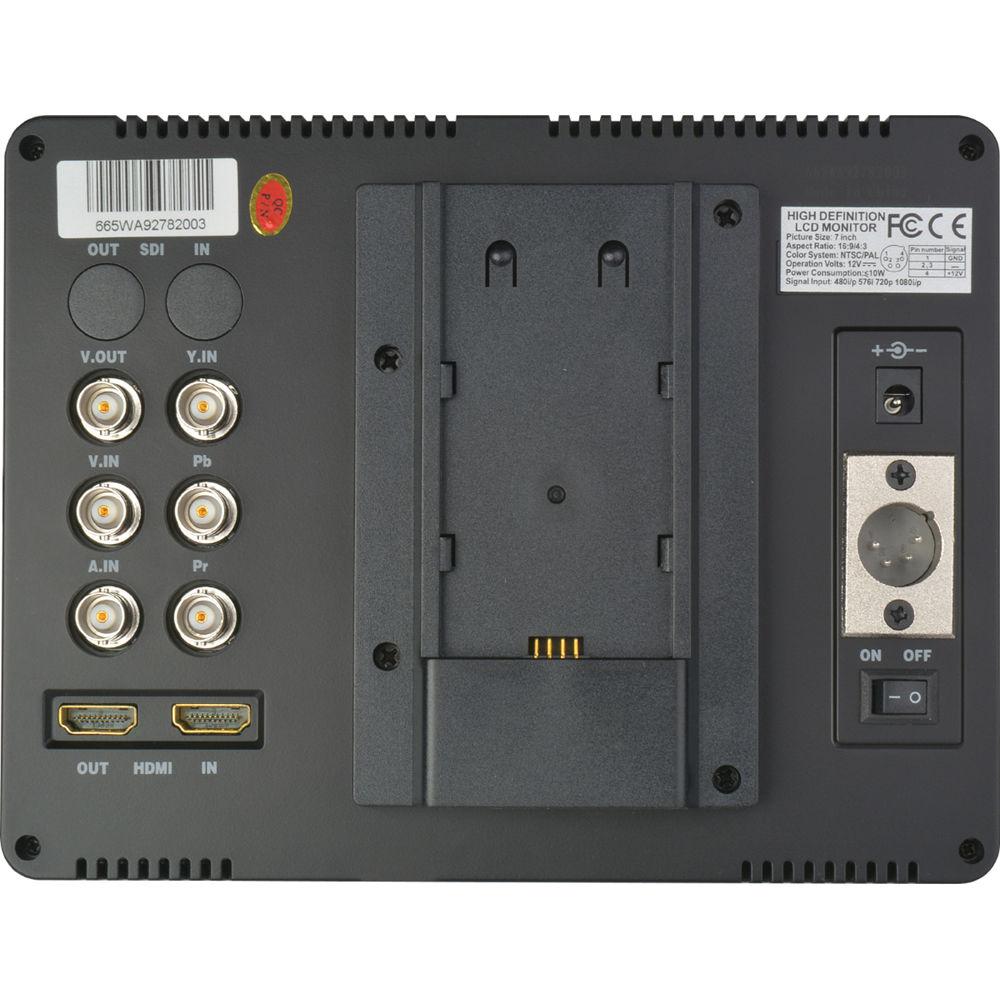

480p @ 59.94 Hz | | Input Signal | 1 x WHDI, 1 x HDMI, 3 x YPbPr (via BNC), 1 x composite, 1 x audio | | Output Signal | 1 x composite | | Current | 800 mA | | Input Voltage | 7 to 24 VDC (XLR) | | Power Consumption | <10 W | | Battery Plate Type | QM91D and F-970 | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Dimensions (L x W x D) | 7.7 x 5.9 x 1.5" (19.6 x 15.0 x 3.8 cm) | | Weight | Without Cover: 1.2 lb (0.5 kg)
With Cover: 1.6 lb (0.7 kg) |
