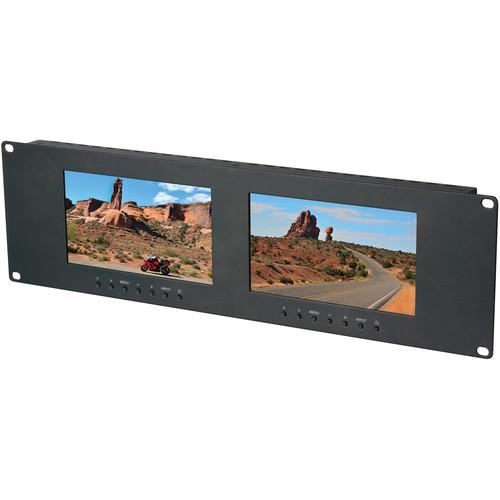

User Manual for Delvcam Dual 7" 3 RU VGA, DVI, & Composite LCD Video Monitor Click to enlarge the picture
Contents of the user manual for the Delvcam Dual 7" 3 RU VGA,
- Product category: Production Monitors Delvcam
- Brand: Delvcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Delvcam Production Monitors
|
User manual for the Delvcam Dual 7" 3 RU VGA, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Delvcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Delvcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Delvcam product will considerably shorten its lifespan!
|
Product description Fitting dual 7" LCD monitors into a 3 RU chassis, the Delvcam Dual 7" 3 RU VGA, DVI, & Composite LCD Video Monitor will work well in studio and broadcast production environments as well as any other situation that requires multiple monitors in a compact form factor. 4:3 and 16:9 aspect-ratio sources can be input through the Composite, VGA, or DVI inputs, and adjustments can be made through the on-screen menu. Using the integrated rack ears, this unit can be mounted into a 19" standard rack and take up 3 spaces. This monitor includes a power supply and a clip to keep the power cable organized. - Supports resolutions up to 800 x 480
- 15:9 aspect ratio (16:9 and 4:3 selectable)
- With VGA, DVI, composite input, and loop through output
- Multi format compatibility
- Easy-to-navigate on-screen menus with 5 button control (<, >, MENU, -, +)
- Adjustable color temperature in VGA and DVI mode
- Image flip (up/down/left/right)
- Independent power switches
UPC: 854554007011 In the Box Delvcam Dual 7" 3 RU VGA, DVI, & Composite LCD Video Monitor 12V Power Supply Power Supply Clamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Delvcam Dual 7" 3 RU VGA, DVI, & Composite LCD Video Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDelvcam DELV-2LCD7-CVGAD Specs | | | Panel Type | TFT LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 800 x 480 | | Aspect Ratio | 15:9 | | Viewing Angle | Horizontal: 140°
Vertical: 120° | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 500:1 | | | | Video | 2 x BNC (Composite) Output
2 x DE-15/DB-15 (VGA) Output
2 x DVI-I Output
2 x RCA (Composite) Input
2 x DE-15/DB-15 (VGA) Input
2 x DVI-I (Dual-Link DVI) Input | | Audio | None | | Built-In Speaker | None | | Card Slot | None | | | | DC Input Power | 6 to 24 VDC | | Battery Type | None | | Power Consumption | 15.6 W (Maximum) | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Dimensions (W x H x D) | 19 x 5.2 x 1" / 48.2 x 13.3 x 2.5 cm | | Weight | 90.3 oz / 2560.0 g | | | | Package Weight | 7.35 lb | | Box Dimensions (LxWxH) | 23.3 x 7.0 x 3.8" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
