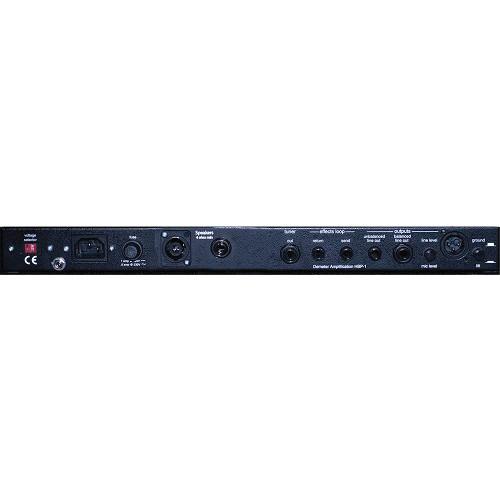

User Manual for Demeter HBP-1J-800D Tube Bass Preamplifier with Jensen Transformer Click to enlarge the picture
Contents of the user manual for the Demeter HBP-1J-800D Tube Bass Preamplifier with
- Product category: Bass Amplifiers Demeter
- Brand: Demeter
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Demeter Bass Amplifiers
|
User manual for the Demeter HBP-1J-800D Tube Bass Preamplifier with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Demeter product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Demeter user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Demeter product will considerably shorten its lifespan!
|
Product description The HBP-1J-800D Tube Bass Preamplifier with Jensen Transformer from Demeter is a tube bass pre and power amp that delivers 800W of power into a 4 ohm load. It integrates an 800 Watt Class D amplifier into a HBP-1 Preamplifier circuit. This unit uses the same all tube front end found in the VTBP-201 Bass pre-amplifier and combines it with the H Series circuitry found in the professional audio H Series line.
Utilizing the best of both the tube and solid-state world, the HBP-1-800D features a high-voltage (250V) tube front end (providing all of the preamplifier gain and passive tone controls), a two-band solid state fully parametric equalizer that is tuned for bass, a fully adjustable active effects loop with controls up front, a tuner output and a balanced output with switchable mic or line level. It also features both a balanced TRS line level output and an unbalanced line level output for amplifier connections, and a mute switch.
Jensen transformers allow for noiseless operation, whether you use the preamp on its own, or in tandem with the power amp output. The transformer-based design also has the unique advantage of 'warming' up the power amp output. The power amp section features a Speakon and 1/4" speaker output. As with all Demeter equipment, it is meticulously hand-wired using the finest components and assembled in the U.S.A. In the Box Demeter HBP-1J-800D Tube Bass Preamplifier with Jensen Transformer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Demeter HBP-1J-800D Tube Bass Preamplifier with Jensen Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDemeter HBP-1J-800D Specs | Input Impedance | > 1 MOhm | | Minimum Load Impedance | 600 ohms | | Ouput Impedance | 50 ohms, balanced (studio output)
4 ohms, 8 ohms, 16 ohms (power amp) | | Maximum Output | +24 dBV @ 600 ohms | | Output Power | 800 watt RMS @ 4 ohms, 500 watt RMS @ 8 ohms (power amp) | | Gain | Adjustable to +10 dB mid 440 Hz to 4 kHz
EQ gain: + or - 15 dB | | Signal to Noise Ratio | -80 dB | | THD | .5% | | Frequency Response | 10 Hz to 40 kHz | | Tube | 1-12AX7a selected | | Parametric Equalizer | Q or width continuously variable Low 40 Hz to 440 Hz Mid 440 Hz to 4.4 kHz | | Inputs | 1/4" (passive and active) | | Outputs | Preamp: 3-pin balanced mic/line, TT, XLR & 1/4"
Power Amp: 1/4" Speaker & Speakon | | Chassis | Single space rack | | Operating Voltage | 115-230 VAC switchable | | Power Supply | 250 V fully regulated | | Filament | 12.6 V fully regulated |
