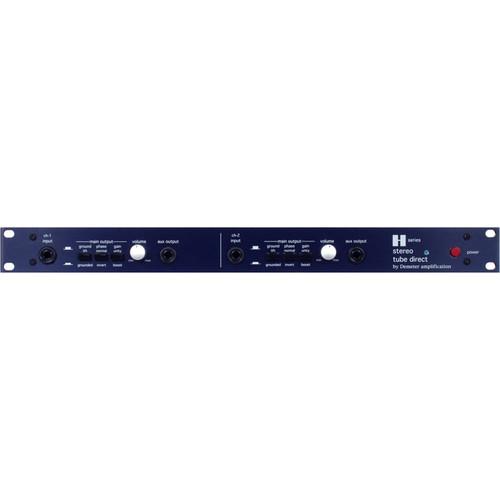

User Manual for Demeter HDI-1 - Dual Channel Tube Direct Box Click to enlarge the picture
Contents of the user manual for the Demeter HDI-1 - Dual Channel Tube
- Product category: Direct Boxes Demeter
- Brand: Demeter
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Demeter Direct Boxes
|
User manual for the Demeter HDI-1 - Dual Channel Tube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Demeter product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Demeter user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Demeter product will considerably shorten its lifespan!
|
Product description The HDI-1 H Series Tube Direct from Demeter is a dual channel, tube-based DI. The unit incorporates the same tube driven, ultra-high 27MΩ impedance input found in the original Tube Direct that prevents instrument pickup loading. A balanced line-level output section allows the unit to be used as both a line-level direct instrument input, or as a line-level driver to add tube warmth to line-level digital interfaces. Each channel features separate 1/4" inputs, ground lift, phase preset, unity-gain balanced output and a tube driven boost mode with 20dB of boost. The overall output is controlled by a continuously variable volume control that delivers a unity-gain, low-impedance, tube-driven output to drive external instrument amplifiers or effects. The rear panel provides separate 1/4" TRS and XLR connectors for each channel. The power supply is fully regulated for low noise and supplies 220V B+ to the tubes. - Dual channel, tube direct box
- Ultra-high input impedance to prevent loading instrument pickups
- Balance line level output
- Can be used as a line level driver to add tube "color" to digital interfaces
- 20dB tube based boost switch
- Fully regulated, universal power supply
In the Box Demeter HDI-1 - Dual Channel Tube Direct Box AC Power Cable One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Demeter HDI-1 - Dual Channel Tube Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDemeter HDI-1 Specs | Input Connections | 2 x 1/4" TS phone | | Output Connectors | 2 x XLR
2 x 1/4" TRS phone
2 x 1/4" TS phone Aux Output (front panel) | | Input Level | +10 dbv normal, 0 dbv boost | | Output Level | +28dB @ 600Ω | | Controls | Ground lift
Phase invert
Gain boost
Volume control | | Frequency Response | 20Hz to 20kHz | | Noise | SNR: -98dB | | Power | 115/230V AC | | Dimensions (WxDxH) | 19" 1U rackmount | | Weight | 15 lbs (6.8kg) | | Specialties | Utilizes twin 2AX7a tubes | | | | Package Weight | 11.05 lb | | Box Dimensions (LxWxH) | 21.3 x 15.9 x 7.4" |
